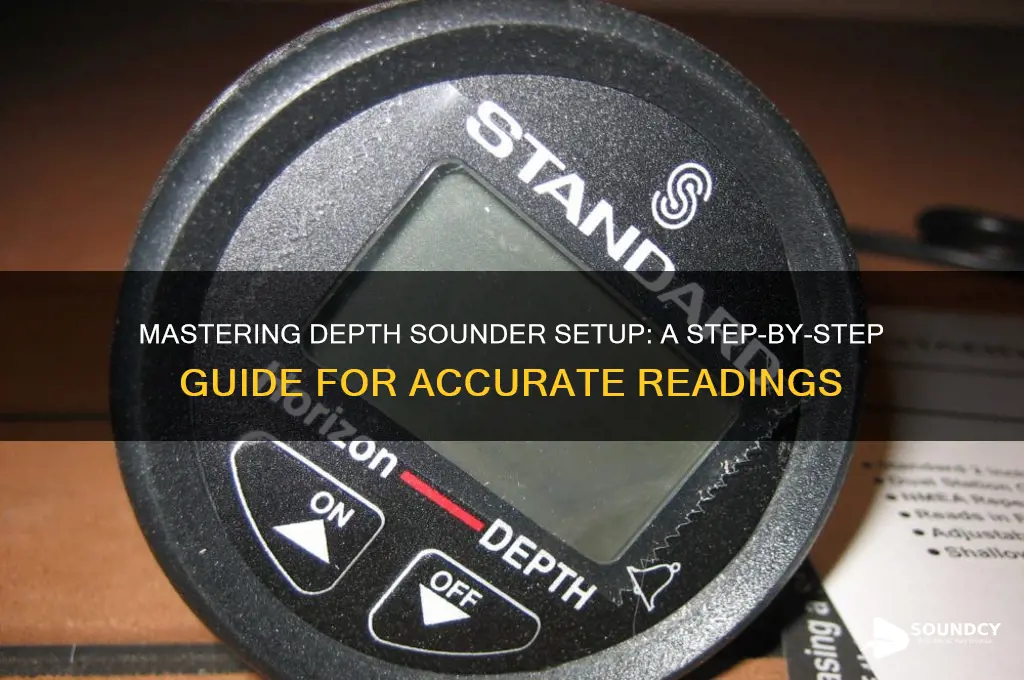

Setting up a depth sounder, also known as a fish finder, is essential for accurately measuring water depth and locating underwater structures. Begin by mounting the transducer on the boat's hull, ensuring it is submerged and free from air bubbles, as proper placement is critical for accurate readings. Connect the transducer to the sounder unit, following the manufacturer’s instructions for wiring and power supply. Calibrate the device by inputting the correct transducer offset and selecting the appropriate frequency for your water conditions. Test the sounder in open water to verify depth readings and adjust settings as needed. Regular maintenance, such as cleaning the transducer and checking connections, ensures reliable performance for safe navigation and successful fishing.
| Characteristics | Values |
|---|---|
| Transducer Installation | Mount transducer on hull, ensuring it's submerged, free from air bubbles, and aligned with boat's keel. Follow manufacturer's instructions for specific placement. |
| Frequency Selection | Choose frequency based on depth and water conditions: 50 kHz for deep water, 200 kHz for shallow water and better detail. Some units offer dual-frequency. |
| Sensitivity Adjustment | Adjust sensitivity to filter out noise and improve readings. Higher sensitivity for deeper water, lower for shallow water or debris. |
| Depth Range Setting | Set depth range to match expected water depth. This optimizes display and reduces clutter. |
| Speed Compensation | Enable speed compensation to account for boat speed and ensure accurate depth readings. |
| Water Temperature Compensation | Some units require water temperature input for accurate depth readings due to sound speed variations. |
| Units of Measurement | Select preferred units (feet, meters, fathoms) for depth display. |
| Alarm Settings | Set depth alarms to alert you when approaching shallow or deep water. |
| Calibration | Calibrate transducer and unit according to manufacturer's instructions for optimal performance. |
| Regular Maintenance | Clean transducer regularly to remove debris and ensure accurate readings. Inspect cables and connections for damage. |
Explore related products
What You'll Learn
- Understanding Transducers: Choose the right type and frequency for your boat and water conditions
- Mounting the Transducer: Ensure proper alignment and secure installation for accurate readings
- Wiring and Connections: Connect power, ground, and display cables correctly to avoid signal loss
- Calibrating the Sounder: Adjust settings for depth, keel offset, and water type for precision
- Interpreting Readings: Learn to read depth, fish arches, and bottom composition effectively
Understanding Transducers: Choose the right type and frequency for your boat and water conditions
Transducers are the unsung heroes of depth sounders, converting electrical energy into sound waves and vice versa to measure water depth. Choosing the right one isn’t just about compatibility—it’s about maximizing accuracy in your specific boating environment. For instance, a 200 kHz transducer offers high-resolution images in shallow, freshwater lakes, while an 80 kHz model penetrates deeper but with less detail, ideal for offshore saltwater fishing. The key lies in matching frequency to water depth and clarity, ensuring your sounder delivers reliable data without unnecessary clutter or shadowing.
Consider your boat’s hull material and design when selecting a transducer type. In-hull transducers are non-invasive, mounted inside the hull, but require a solid, non-metallic surface for optimal performance. Transom-mount transducers are budget-friendly and easy to install, though they may vibrate at high speeds, distorting readings. For fiberglass hulls, a thru-hull transducer offers the best accuracy, as it sits flush with the boat’s exterior, minimizing drag and ensuring consistent contact with water. Aluminum or wooden hulls, however, may require specialized transducers or professional installation to avoid interference.
Frequency selection is a balancing act between depth penetration and image clarity. Higher frequencies (455–800 kHz) provide detailed images of the water column and bottom structure, perfect for identifying fish or submerged objects in shallow waters. Lower frequencies (50–200 kHz) sacrifice detail but penetrate deeper, essential for navigating open waters or locating thermoclines. Dual-frequency transducers offer versatility, allowing you to switch between modes based on conditions. For example, a 75/200 kHz transducer is a popular choice for anglers who fish both inshore and offshore.
Water conditions play a critical role in transducer performance. Turbid or saltwater environments can absorb higher frequencies, reducing their effectiveness. In such cases, opt for lower frequencies or CHIRP technology, which sweeps across a range of frequencies to enhance clarity. Freshwater anglers in clear lakes, on the other hand, benefit from higher frequencies to pinpoint structure and fish. Always consider the typical depth and clarity of the waters you frequent to avoid over- or under-specifying your transducer.
Finally, installation and calibration are as crucial as the transducer itself. Ensure the transducer is mounted at the correct angle and free from air bubbles or debris, which can distort readings. Calibrate your sounder to account for water temperature and salinity, as these factors affect sound wave speed. Regularly inspect the transducer for damage or fouling, especially in saltwater environments. By pairing the right transducer with proper installation and maintenance, you’ll unlock the full potential of your depth sounder, transforming it from a basic tool into a precision instrument tailored to your boating needs.
