Measuring sound accurately is essential in various fields, from acoustics and engineering to environmental monitoring and healthcare. The process involves quantifying sound waves' characteristics, such as intensity, frequency, and duration, using specialized tools like sound level meters, microphones, and analyzers. Key parameters include sound pressure level (SPL), measured in decibels (dB), and frequency, expressed in hertz (Hz). Understanding how to measure sound correctly ensures compliance with safety standards, optimizes audio quality, and aids in diagnosing issues in both natural and engineered environments. Techniques range from simple handheld devices for basic measurements to sophisticated software for detailed spectral analysis, making it crucial to select the appropriate method for the specific application.
| Characteristics | Values |
|---|---|
| Unit of Measurement | Decibel (dB) |
| Measurement Tool | Sound Level Meter (SLM) |
| Frequency Range | Typically 20 Hz to 20 kHz (human hearing range) |
| Weighting Scales | A-weighting (most common), C-weighting, Z-weighting |
| Reference Pressure | 20 micropascals (µPa) for air |
| Measurement Types | Continuous (Leq), Peak, Impulse, Statistical (L10, L50, L90) |
| Accuracy | ±1.5 dB (Class 1 SLM), ±2.0 dB (Class 2 SLM) |
| Response Time | Fast (125 ms), Slow (1 s), Impulse (35 ms) |
| Calibration | 94 dB at 1 kHz (standard calibration tone) |
| Applications | Noise pollution monitoring, occupational safety, audio engineering |
| Standards | IEC 61672 (international), ANSI S1.4 (USA) |
| Data Logging | Manual or automatic recording of sound levels over time |
| Octave Bands | Frequency analysis using 1/1, 1/3, or 1/12 octave filters |
| Background Noise Correction | Subtracting ambient noise for accurate measurements |
| Distance Consideration | Inverse square law (sound level decreases with distance) |
| Environmental Factors | Temperature, humidity, and air pressure affect measurements |
Explore related products
What You'll Learn
- Sound Pressure Level (SPL): Measures sound intensity using decibels (dB) with a logarithmic scale
- Frequency Analysis: Breaks sound into frequency components using tools like FFT (Fast Fourier Transform)
- Sound Intensity: Quantifies power per unit area, measured in watts per square meter (W/m²)
- Decibel (dB) Scale: Logarithmic unit to express sound levels relative to human hearing thresholds
- Sound Level Meters: Devices to measure SPL accurately, calibrated for precise sound assessments
Sound Pressure Level (SPL): Measures sound intensity using decibels (dB) with a logarithmic scale
Sound Pressure Level (SPL) is the standard unit for measuring sound intensity, expressed in decibels (dB). Unlike linear scales, the decibel scale is logarithmic, meaning each 10 dB increase represents a tenfold rise in sound pressure. This design mirrors the human ear’s sensitivity, which perceives loudness similarly. For instance, a 20 dB sound is not twice as loud as 10 dB but ten times more intense. Practical examples include a whisper at 30 dB, normal conversation at 60 dB, and a rock concert exceeding 110 dB—levels above 85 dB can cause hearing damage with prolonged exposure.
To measure SPL accurately, use a sound level meter calibrated to the A-weighting scale (dBA), which aligns with human hearing frequencies. Position the meter at ear height and ensure it’s free from obstructions. Measurements should be taken over time to account for fluctuations, especially in dynamic environments like factories or concerts. For workplace safety, OSHA recommends limiting exposure to 90 dBA for 8 hours daily, with thresholds decreasing as intensity increases—for example, 100 dBA is safe for only 2 hours. Always cross-reference readings with regulatory guidelines to ensure compliance.
The logarithmic nature of SPL introduces nuances that require careful interpretation. A 3 dB increase doubles sound energy but is barely noticeable to the ear, while a 10 dB jump is perceived as roughly twice as loud. This distinction is critical in applications like audio engineering, where precise adjustments matter. For instance, reducing a speaker’s output from 90 dB to 80 dB significantly lowers energy but may not drastically alter perceived loudness. Understanding this relationship helps balance clarity and safety in sound design.
In everyday scenarios, monitoring SPL can prevent hearing damage and improve acoustic comfort. Smartphone apps with built-in microphones offer convenient but less accurate measurements, while dedicated sound level meters provide professional-grade results. For home use, aim to keep ambient noise below 50 dB for quiet activities and limit personal audio devices to 60% volume to avoid exceeding 85 dB. In public spaces, advocate for noise assessments to ensure environments like schools (recommended < 35 dB in classrooms) and hospitals (< 45 dB in wards) meet health standards.
Understanding the Unique Beagle Bark: Sounds, Patterns, and Meanings
You may want to see also
Explore related products
Frequency Analysis: Breaks sound into frequency components using tools like FFT (Fast Fourier Transform)
Sound, at its core, is a complex wave composed of multiple frequencies, each contributing to its unique character. Frequency analysis dissects this wave, revealing the individual components that make up the whole. By breaking sound into its frequency parts, we can understand its composition, identify dominant tones, and even diagnose issues in audio systems. This process is not just theoretical; it’s a practical tool used in fields ranging from music production to acoustics engineering.
The Fast Fourier Transform (FFT) is the cornerstone of frequency analysis, converting time-domain signals into frequency-domain representations. Imagine recording a guitar chord: FFT transforms this waveform into a spectrum, showing the amplitude of each frequency present. For instance, a C major chord might peak at frequencies corresponding to C, E, and G notes. This visualization is invaluable for tasks like equalizing audio, where you might reduce frequencies causing muddiness or boost those lacking clarity. To apply FFT effectively, ensure your audio sample is long enough (at least one full cycle of the lowest frequency) and use a sampling rate at least twice the highest frequency you’re analyzing, as per the Nyquist-Shannon theorem.
While FFT is powerful, it’s not without limitations. It assumes the signal is stationary, meaning the frequency content doesn’t change over time. For non-stationary signals, like speech or music with varying pitches, techniques like Short-Time Fourier Transform (STFT) or wavelet analysis are more suitable. STFT, for example, divides the signal into short windows, applying FFT to each, providing a time-frequency map. This is particularly useful in speech recognition systems, where understanding how frequencies evolve over time is critical.
Practical applications of frequency analysis extend beyond audio engineering. In environmental monitoring, it’s used to analyze noise pollution, identifying dominant frequencies from traffic or machinery. In medicine, audiologists use frequency analysis to assess hearing loss by measuring how well a patient perceives different frequencies. For DIY enthusiasts, tools like Audacity or Adobe Audition offer FFT features, allowing you to experiment with audio files. When using these tools, start by zooming in on specific frequency ranges (e.g., 20 Hz–20 kHz for human hearing) to pinpoint issues like hums (50/60 Hz) or hisses (high frequencies).
In conclusion, frequency analysis, powered by FFT and its variants, is a versatile technique for understanding sound’s building blocks. Whether you’re fine-tuning a mix, diagnosing acoustic problems, or exploring scientific applications, mastering this method unlocks deeper insights into the auditory world. Remember, the key to effective analysis lies in choosing the right tool for your signal’s characteristics and interpreting the results with context in mind.
Mastering the Trill: Understanding Its Unique Sound and Technique
You may want to see also
Explore related products
Sound Intensity: Quantifies power per unit area, measured in watts per square meter (W/m²)
Sound intensity, measured in watts per square meter (W/m²), quantifies the power of sound waves passing through a given area. Imagine a speaker emitting sound energy—this energy spreads out in all directions, and the intensity decreases as it travels farther from the source. For instance, a sound with an intensity of 1 W/m² at a distance of 1 meter from the source will drop to 0.25 W/m² at 2 meters, following the inverse square law. This principle is crucial for understanding how sound behaves in different environments, from concert halls to outdoor spaces.
To measure sound intensity accurately, specialized equipment like sound intensity probes is required. These devices consist of two microphones spaced closely together to capture the sound pressure and particle velocity, which are then used to calculate intensity. For practical applications, such as assessing noise pollution or optimizing acoustic designs, it’s essential to take measurements at multiple points in a space. For example, in a factory setting, measuring sound intensity at various workstations can help identify areas where noise levels exceed safe limits, typically above 85 dB (equivalent to about 0.01 W/m²).
Comparing sound intensity to other acoustic metrics highlights its unique utility. While sound pressure level (SPL) measures the force of sound waves on a surface in decibels (dB), intensity directly quantifies energy flow. For instance, a whisper might have an intensity of 10⁻⁶ W/m², while a rock concert can reach 1 W/m². This distinction makes intensity particularly valuable for evaluating the potential for hearing damage or the effectiveness of soundproofing materials. Unlike SPL, which is logarithmic and subjective, intensity provides an objective, linear measurement of sound energy.
In real-world scenarios, understanding sound intensity can guide practical decisions. For example, if you’re designing a home theater, knowing the intensity of your speakers can help you position them optimally to achieve balanced sound without overwhelming certain areas. Similarly, in environmental studies, measuring sound intensity near highways or industrial sites can inform policies to mitigate noise pollution. A useful tip: when measuring intensity, ensure the probe is perpendicular to the direction of sound propagation for accurate results. By mastering this concept, you can tackle acoustic challenges with precision and confidence.
What Does a Cat Cough Sound Like? Identifying Feline Respiratory Noises
You may want to see also
Explore related products
Decibel (dB) Scale: Logarithmic unit to express sound levels relative to human hearing thresholds
Sound levels are measured in decibels (dB), a logarithmic unit that quantifies the intensity of sound relative to the faintest sound a human ear can detect, approximately 0 dB. This scale is not linear; an increase of 10 dB represents a tenfold increase in sound intensity, while a 20 dB increase means the sound is 100 times more intense. For context, a normal conversation measures around 60 dB, while a rock concert can reach 120 dB—a difference of 60 dB, indicating a millionfold increase in intensity. Understanding this scale is crucial for assessing noise exposure and its potential impact on hearing health.
To measure sound using the decibel scale, you’ll need a sound level meter, a device calibrated to detect and display sound pressure levels in dB. Place the meter at the listener’s ear level in the environment you’re testing, ensuring it’s away from reflective surfaces for accurate readings. For occupational settings, OSHA recommends limiting exposure to 90 dB for 8 hours daily, with exposure time halved for every 5 dB increase. For example, at 95 dB, safe exposure drops to 4 hours. Prolonged exposure to levels above 85 dB can cause hearing damage, making regular monitoring essential.
The logarithmic nature of the dB scale reflects the human ear’s sensitivity to sound. While a 3 dB increase is barely noticeable, a 10 dB jump is perceived as roughly twice as loud. This sensitivity varies by frequency; the ear is most attuned to sounds between 2,000 and 5,000 Hz, the range of human speech. Sound level meters often use A-weighting (dBA) to mimic this frequency response, filtering out low-frequency noise less audible to humans. For instance, a humming refrigerator might measure 40 dB but only 30 dBA due to its lower frequency.
Practical applications of the dB scale extend beyond occupational safety. In urban planning, noise ordinances often cap outdoor sound levels at 55 dBA during the day and 45 dBA at night to minimize disturbance. For personal use, smartphone apps with built-in microphones can estimate sound levels, though they’re less accurate than professional meters. When attending loud events, earplugs can reduce sound levels by 15–30 dB, preserving hearing without sacrificing experience. Understanding and utilizing the dB scale empowers individuals to protect their hearing in various environments.
Exploring the Geographic Origins and Formation of Sounds in Nature
You may want to see also
Explore related products

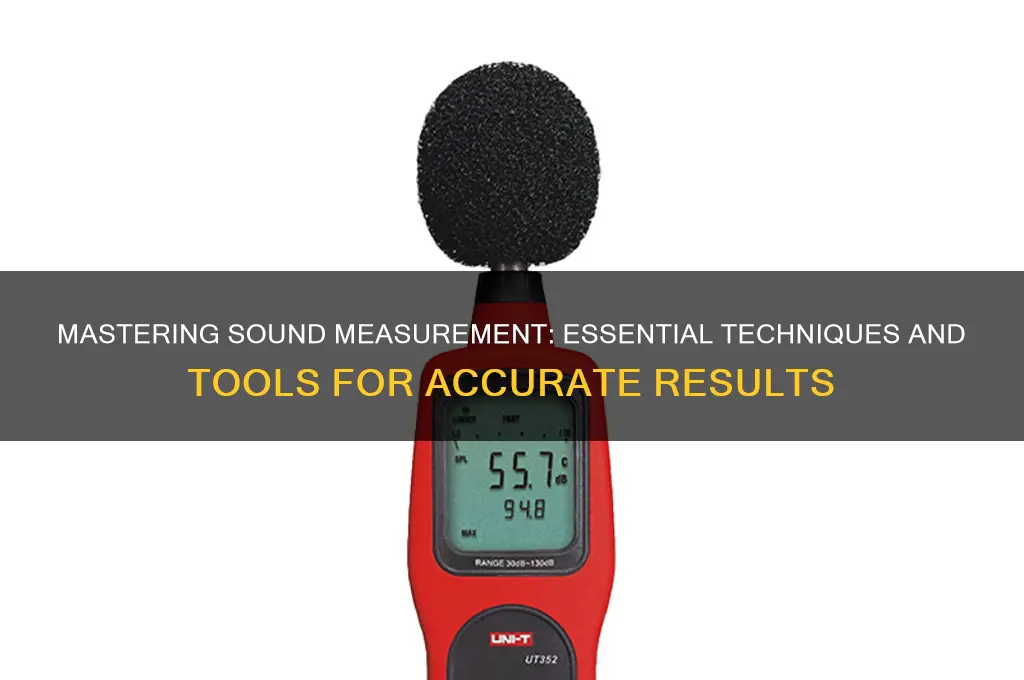

Sound Level Meters: Devices to measure SPL accurately, calibrated for precise sound assessments
Sound level meters are the gold standard for measuring Sound Pressure Level (SPL) with precision, offering calibrated accuracy essential for professional assessments. Unlike smartphone apps or basic decibel readers, these devices comply with international standards like IEC 61672, ensuring reliable data for environmental monitoring, occupational safety, or acoustic engineering. Their ability to capture frequency-weighted measurements (A-weighting, C-weighting) and time-averaged values (Leq) makes them indispensable for detailed sound analysis.
To use a sound level meter effectively, follow these steps: position the meter at ear height in the area of interest, ensure the microphone is unobstructed, and activate the device. For accurate readings, measure over a representative time period—at least 30 seconds for stable noise or longer for fluctuating levels. Calibration is critical; use an acoustic calibrator before each session to verify the meter’s accuracy. For occupational noise assessments, OSHA recommends measuring 8-hour Leq levels to ensure worker safety, while environmental studies may require 24-hour monitoring to capture diurnal variations.
While sound level meters are powerful, their precision demands careful handling. Avoid placing them near reflective surfaces or in windy conditions, as these can distort readings. For outdoor measurements, use a windscreen to minimize interference. When assessing noise exposure, combine SPL data with proximity and duration—for instance, an 85 dB(A) sound is safe for up to 8 hours but becomes hazardous at shorter distances or longer exposures. Always cross-reference findings with regulatory thresholds, such as the WHO’s 53 dB(A) nighttime noise limit for residential areas.
The versatility of sound level meters extends beyond compliance. In architectural acoustics, they help optimize room designs by identifying resonant frequencies or excessive reverberation. For live events, meters ensure sound systems operate within safe limits, typically below 100 dB(A) to prevent hearing damage. Advanced models offer features like octave band analysis, which breaks down noise into frequency components, aiding in targeted mitigation strategies. Whether for regulatory adherence or creative applications, these devices transform raw sound into actionable data.
Investing in a calibrated sound level meter is a commitment to accuracy, but it’s equally important to interpret results thoughtfully. For instance, a 3 dB(A) increase represents a doubling of sound energy, while a 10 dB(A) rise is perceived as twice as loud. Pairing measurements with contextual observations—such as machinery operation or traffic patterns—enhances their utility. By mastering these tools, users can navigate the complexities of sound measurement, ensuring environments are safe, compliant, and acoustically balanced.
How Fast is Mach Speed?
You may want to see also
Frequently asked questions
'Sound w' likely refers to sound power (W), which is the total energy emitted per unit of time by a sound source, measured in watts (W).
Sound power is measured by placing the sound source in a reverberation room or using a technique like the sound intensity method to calculate the total acoustic energy radiated.
Sound power (W) measures the total energy emitted by a source, while sound pressure level (dB) measures the pressure fluctuations in the air at a specific point, often using a decibel scale.
No, direct conversion requires additional information such as distance from the source, room acoustics, and directivity. Specialized formulas or software are typically used for accurate conversion.
