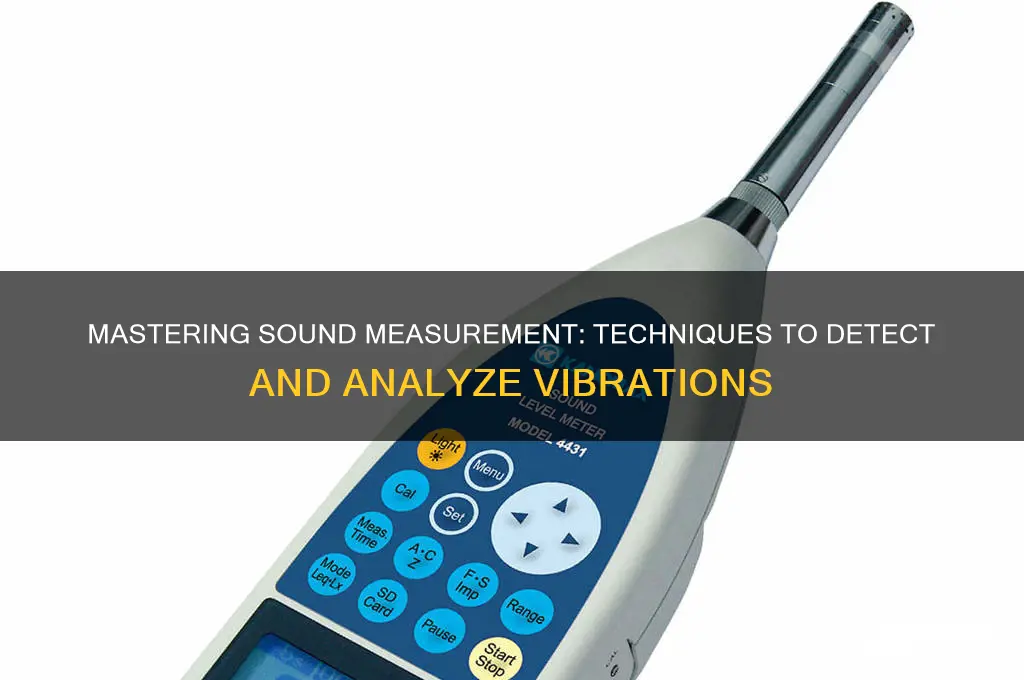

Mastering Sound Measurement: Techniques To Detect And Analyze Vibrations

how to measure sound vibrations

Measuring sound vibrations is a fundamental aspect of understanding acoustics and sound phenomena. Sound, essentially a mechanical wave, propagates through mediums like air, water, or solids, creating fluctuations in pressure and displacement. To quantify these vibrations, various techniques and tools are employed, such as microphones, accelerometers, and laser vibrometers. Microphones convert sound pressure variations into electrical signals, while accelerometers measure the velocity or acceleration of vibrating surfaces. Laser vibrometers offer a non-contact method, using light to detect surface displacements with high precision. These measurements are crucial in fields like audio engineering, structural analysis, and medical diagnostics, enabling the characterization of sound intensity, frequency, and waveform, which in turn helps in optimizing sound quality, identifying defects, or diagnosing health conditions.

Characteristics Values
Measurement Unit Decibels (dB), Pascals (Pa), or displacement in meters (m)
Primary Tools Microphones, accelerometers, laser vibrometers, hydrophones (for water)
Frequency Range Typically 20 Hz to 20 kHz for audible sound
Sensitivity Microphones: 1-50 mV/Pa; Accelerometers: 10-100 mV/g
Dynamic Range Microphones: 30-140 dB; Accelerometers: 50-160 dB
Accuracy ±0.5 dB (microphones); ±1% (accelerometers)
Sampling Rate 44.1 kHz (audio CD quality); 48 kHz (professional audio)
Measurement Types Sound Pressure Level (SPL), Particle Velocity, Sound Intensity
Calibration Calibrated using pistonphones or sound level calibrators (94 dB @ 1 kHz)
Environmental Factors Temperature, humidity, air pressure affect measurements
Applications Noise pollution monitoring, audio engineering, structural analysis
Data Analysis Tools FFT (Fast Fourier Transform), spectrograms, sound level meters
Standards IEC 61672 (sound level meters), ANSI S1.4 (calibration)
Latest Advancements MEMS microphones, real-time cloud-based vibration analysis

soundcy

Microphone Types: Condenser, dynamic, and piezoelectric microphones for capturing sound vibrations accurately

Sound vibrations are captured through microphones, each type leveraging distinct technologies to suit specific applications. Condenser microphones, for instance, rely on a diaphragm positioned close to a charged backplate. When sound waves strike the diaphragm, it vibrates, altering the distance between the two and changing the capacitance. This variation is converted into an electrical signal, requiring phantom power (typically 48 volts) to operate. Ideal for studio recordings and live sound, condensers excel in capturing high-frequency details and transient sounds due to their lightweight diaphragms and broad frequency response.

Dynamic microphones, in contrast, operate on electromagnetic induction. A coil of wire attached to a diaphragm moves within a magnetic field when sound waves hit it, generating an electrical current proportional to the sound. This passive design eliminates the need for external power, making dynamics rugged and reliable for stage performances and loud environments. While less sensitive than condensers, they handle high sound pressure levels without distortion, making them perfect for vocals, drums, and guitar amplifiers. Their durability and simplicity ensure longevity in demanding settings.

Piezoelectric microphones represent a niche yet specialized category, utilizing crystals or ceramics that generate voltage when subjected to mechanical stress. Commonly embedded in instruments like acoustic guitars and violins, these microphones capture vibrations directly from the sound source. Their high impedance requires a preamp for proper signal processing, but their ability to isolate mechanical vibrations makes them immune to electromagnetic interference. Piezoelectrics are not suited for general audio recording but excel in applications where traditional microphones fall short, such as measuring structural vibrations or capturing percussive sounds.

Choosing the right microphone depends on the sound source and environment. Condensers offer precision and clarity, dynamics provide robustness and versatility, and piezoelectrics deliver targeted vibration sensing. For instance, a studio engineer might pair a condenser with a dynamic microphone to capture both nuanced vocals and powerful instrumentals in a single session. Understanding these differences ensures accurate and effective sound vibration measurement, tailored to the specific demands of the task at hand.

soundcy

Sound Pressure Level (SPL): Measuring sound intensity in decibels using calibrated sensors

Sound pressure level (SPL) is the standard metric for quantifying sound intensity, expressed in decibels (dB), a logarithmic unit that mirrors the ear’s sensitivity to pressure changes. Unlike linear scales, the decibel system compresses the vast range of audible sound pressures—from the faint rustle of leaves (20 dB) to the roar of a jet engine (140 dB)—into a manageable framework. Calibrated sensors, such as microphones with preamplifiers, are essential tools for this measurement, converting sound waves into electrical signals that can be analyzed. These sensors must adhere to international standards like IEC 61672 to ensure accuracy across frequencies and amplitudes.

To measure SPL effectively, follow these steps: position the calibrated sensor at the point of interest, ensuring it is perpendicular to the sound source to capture direct energy. Set the device to the appropriate weighting (A-weighting for environmental noise, C-weighting for peak levels) and frequency range. Record measurements over a sufficient duration to account for fluctuations, especially in dynamic environments. For example, monitoring workplace noise requires averaging SPL over an 8-hour period to assess exposure limits (e.g., OSHA’s 85 dB threshold for occupational safety). Always verify the sensor’s calibration before use, as drift can introduce errors.

While SPL is a powerful metric, it has limitations. Decibels measure pressure, not perceived loudness, which is influenced by frequency and duration. For instance, a 60 dB alarm may sound louder than a 60 dB conversation due to tonal differences. Additionally, SPL does not account for the cumulative effects of intermittent exposure. To address this, integrate metrics like Leq (equivalent continuous sound level) or use dosimeters that log exposure over time. Practical tip: when measuring in reflective spaces, such as concert halls, account for reverberation by taking multiple readings at varying distances from walls.

Comparing SPL to other vibration measurement methods highlights its specificity. Accelerometers, for instance, measure structural vibrations in machinery, while SPL focuses on airborne sound. This distinction is critical in applications like automotive design, where both cabin noise (SPL) and engine vibrations (acceleration) must be optimized. Calibrated sensors also outperform smartphone apps, which lack precision and standardization. For professionals, investing in a Class 1 sound level meter ensures compliance with regulations and delivers reliable data for noise mitigation strategies.

In conclusion, SPL measurement using calibrated sensors is indispensable for assessing sound intensity in diverse fields, from environmental monitoring to industrial safety. Its logarithmic scale and standardized protocols provide a robust framework for quantifying noise, but users must remain mindful of its limitations and complement it with contextual metrics. Whether safeguarding workers from hearing damage or optimizing acoustic environments, mastering SPL measurement empowers informed decision-making in a noisy world.

soundcy

Frequency Analysis: Analyzing vibrations via FFT to identify frequency components and harmonics

Sound vibrations are inherently complex, carrying a multitude of frequencies that blend to create the auditory experience. To unravel this complexity, frequency analysis emerges as a powerful tool. By decomposing a sound wave into its constituent frequencies, we can identify the fundamental frequency—the perceived pitch—and its harmonics, which are integer multiples of the fundamental. This breakdown reveals the spectral content of the sound, offering insights into its timbre, quality, and source.

The Fast Fourier Transform (FFT) is the cornerstone of frequency analysis, efficiently converting time-domain signals into frequency-domain representations. Imagine capturing a sound wave with a microphone, digitizing it, and feeding it into FFT software. The output is a spectrum graph, where the x-axis represents frequency (in Hertz) and the y-axis represents amplitude (in decibels or volts). Peaks on this graph correspond to dominant frequencies, while their relative heights indicate their prominence in the sound. For instance, analyzing a guitar string’s vibration might reveal a strong peak at 440 Hz (the fundamental frequency of A4) and weaker peaks at 880 Hz, 1320 Hz, etc. (the harmonics).

While FFT is a robust method, its effectiveness depends on proper implementation. Key considerations include the sampling rate, windowing, and signal duration. The sampling rate must be at least twice the highest frequency of interest (Nyquist criterion), so for audible sounds (up to 20 kHz), a rate of 44.1 kHz or higher is standard. Windowing functions, such as the Hann or Hamming window, mitigate spectral leakage by smoothing the signal’s edges. Additionally, longer signal durations improve frequency resolution, as FFT resolution is inversely proportional to the signal length. For example, analyzing a 1-second recording at a 44.1 kHz sampling rate yields a frequency resolution of 1 Hz/bin, allowing precise identification of harmonics.

Practical applications of frequency analysis span diverse fields. In music production, FFT helps tune instruments, remove unwanted frequencies, and enhance harmonics for richer sound. In industrial settings, it identifies mechanical faults by detecting abnormal vibration frequencies in machinery. Biomedical engineers use it to analyze vocal cord vibrations for diagnosing speech disorders. For hobbyists, free software like Audacity or professional tools like MATLAB offer accessible entry points into FFT-based analysis. By mastering these techniques, one can transform raw sound vibrations into actionable data, unlocking a deeper understanding of the acoustic world.

Exploring MIDI: Do They All Sound Alike?

You may want to see also

soundcy

Vibration Sensors: Accelerometers and laser vibrometers for non-contact vibration measurement

Sound vibrations, though invisible, are tangible phenomena that can be precisely measured using specialized tools. Among these, accelerometers and laser vibrometers stand out for their distinct approaches to capturing vibrational data. Accelerometers, typically contact-based, are affixed directly to the vibrating surface, translating mechanical motion into electrical signals. They excel in high-frequency applications, such as monitoring machinery health, where their sensitivity to rapid changes in acceleration provides critical insights into wear and tear. For instance, in automotive engineering, accelerometers are mounted on engine components to detect imbalances before they escalate into costly failures.

In contrast, laser vibrometers offer a non-contact solution, ideal for scenarios where physical attachment is impractical or undesirable. These devices use a laser beam to measure surface displacement with micron-level precision, making them invaluable in fields like acoustics and structural analysis. A notable example is their use in studying the vibrational behavior of musical instruments, where even the slightest contact could alter the instrument’s natural resonance. By scanning a violin’s body with a laser vibrometer, luthiers can identify areas of uneven vibration, refining the instrument’s tonal quality without invasive intervention.

Choosing between these tools hinges on the application’s constraints. Accelerometers, while highly accurate, may introduce mass-loading effects, altering the very vibrations they aim to measure. Laser vibrometers sidestep this issue but are limited by line-of-sight requirements and susceptibility to surface reflectivity. For instance, measuring vibrations on a rotating turbine blade would favor a laser vibrometer, as attaching an accelerometer would be both hazardous and disruptive. However, in a controlled lab setting, an accelerometer might be preferred for its robustness and cost-effectiveness.

Practical implementation requires careful calibration. Accelerometers must be securely mounted to ensure consistent contact, often using adhesives or magnetic bases. Laser vibrometers demand a stable platform and, in some cases, surface preparation to enhance reflectivity. For outdoor measurements, environmental factors like wind or ambient light can interfere with laser readings, necessitating shielding or signal filtering. Both tools benefit from integration with data acquisition systems, enabling real-time analysis and long-term monitoring.

In conclusion, accelerometers and laser vibrometers each offer unique advantages for measuring sound vibrations, tailored to specific needs. While accelerometers provide direct, high-frequency insights through physical contact, laser vibrometers deliver non-invasive precision in sensitive or inaccessible scenarios. Understanding their strengths and limitations allows practitioners to select the optimal tool, ensuring accurate and actionable vibrational data across diverse applications.

soundcy

Data Acquisition: Using oscilloscopes and software to record and process vibration signals

Measuring sound vibrations requires precision and the right tools. Oscilloscopes, paired with specialized software, offer a robust solution for capturing and analyzing these dynamic signals. Unlike simple sound level meters, oscilloscopes provide a visual representation of vibration waveforms, revealing frequency, amplitude, and transient events critical for detailed analysis.

Acoustic engineers and researchers rely on this setup to study everything from machinery vibrations to musical instrument harmonics.

To begin, connect a suitable transducer, such as an accelerometer or microphone, to the oscilloscope. Ensure the transducer’s sensitivity matches the vibration amplitude range—for instance, a piezoelectric accelerometer works well for high-frequency mechanical vibrations, while a condenser microphone is ideal for audible sound waves. Calibrate the system using a known reference source to eliminate measurement errors. Next, configure the oscilloscope settings: set the timebase to capture the signal’s duration and adjust the vertical scale to display the full amplitude without clipping. For periodic signals, use the oscilloscope’s FFT (Fast Fourier Transform) function to decompose the waveform into its frequency components, identifying dominant frequencies and harmonics.

Software integration enhances the oscilloscope’s capabilities, enabling advanced processing and storage of vibration data. Programs like LabVIEW, MATLAB, or dedicated oscilloscope software allow for real-time analysis, filtering, and exporting of signals. For example, apply digital filters to remove noise or isolate specific frequency bands. Use software cursors to measure parameters like peak-to-peak amplitude or period accurately. When dealing with transient events, such as impact sounds, trigger the oscilloscope to capture the event repeatedly for consistent analysis. Save the data in a compatible format (e.g., CSV or WAV) for further post-processing or reporting.

Despite its power, this method has limitations. Oscilloscopes are sensitive to environmental interference, so conduct measurements in a controlled setting. Be mindful of aliasing—ensure the sampling rate is at least twice the highest frequency of interest, as per the Nyquist-Shannon theorem. For long-term monitoring, consider the oscilloscope’s memory capacity and data transfer speed to avoid data loss. Lastly, interpret results cautiously; raw waveforms and frequency spectra provide insights but require context to draw meaningful conclusions.

In summary, using oscilloscopes and software for vibration signal acquisition combines accuracy with versatility. By selecting the right transducer, optimizing oscilloscope settings, and leveraging software tools, users can capture and analyze sound vibrations with precision. Whether troubleshooting machinery or studying acoustic phenomena, this approach delivers the detailed data needed for informed decision-making.
