Lena Torres

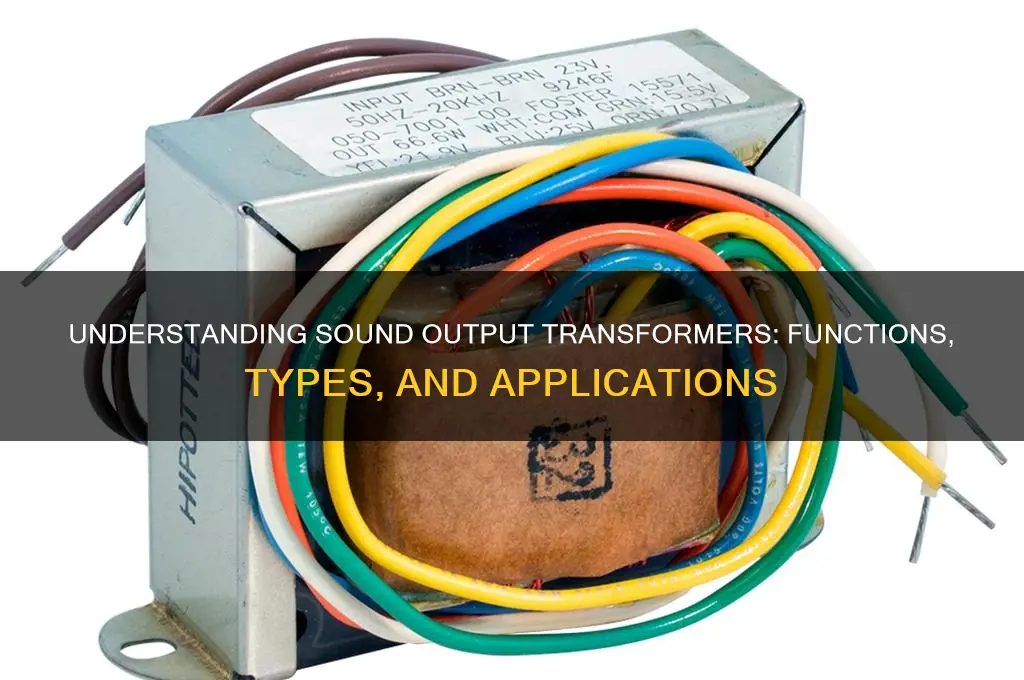

A sound output transformer is a critical component in audio systems, particularly in valve (tube) amplifiers, where it serves as an impedance-matching device between the amplifier’s output stage and the speaker. Its primary function is to efficiently transfer the amplified audio signal to the speaker while ensuring compatibility between the amplifier’s high output impedance and the speaker’s lower input impedance. By doing so, the transformer maximizes power transfer, improves frequency response, and prevents signal distortion. Additionally, it provides galvanic isolation, protecting the amplifier and speaker from electrical interference or damage. In modern solid-state amplifiers, output transformers are less common but remain essential in vintage and high-fidelity tube systems for their role in preserving sound quality and system integrity.
| Characteristics | Values |
|---|---|
| Function | Matches impedance between vacuum tubes and loudspeakers for optimal power transfer. |
| Impedance Matching | Typically transforms high impedance (3kΩ-15kΩ) of tubes to low impedance (4Ω-8Ω) of speakers. |
| Frequency Response | Wide bandwidth, usually 20 Hz to 20 kHz, ensuring accurate audio reproduction. |
| Core Material | Often uses silicon steel or permalloy for low distortion and high efficiency. |
| Windings | Primary (tube side) and secondary (speaker side) windings with precise turns ratio. |
| Distortion | Low harmonic distortion (<0.1% THD) for high-fidelity sound. |
| Power Handling | Varies by design, typically 5W to 50W per channel. |
| Size | Compact to large, depending on power rating and application. |
| Applications | Used in tube amplifiers, guitar amps, and high-end audio systems. |
| Efficiency | High efficiency (>90%) in transferring power from tubes to speakers. |
| Phase Linearity | Ensures consistent phase response across the audio spectrum. |
| Cost | Ranges from $50 to $500+ depending on quality and brand. |
| Common Brands | Lundahl, Tamura, Edcor, Hammond, and Jensen. |
Explore related products
What You'll Learn
- Impedance Matching: Matches amplifier output impedance to speaker input impedance for optimal power transfer
- Frequency Response: Ensures accurate sound reproduction across the audible frequency spectrum
- Signal Isolation: Prevents electrical interference between amplifier and speaker systems
- Voltage Transformation: Steps up or down voltage levels to match speaker requirements
- Distortion Reduction: Minimizes harmonic distortion for clearer, more accurate audio output
Impedance Matching: Matches amplifier output impedance to speaker input impedance for optimal power transfer
Impedance matching is a critical process in audio systems, ensuring that the amplifier's output impedance aligns with the speaker's input impedance for maximum power transfer. This alignment minimizes energy loss and distortion, allowing the speaker to reproduce sound with clarity and efficiency. Without proper impedance matching, the amplifier may struggle to drive the speaker, resulting in weak or distorted audio output. For instance, a common scenario involves matching an amplifier with an output impedance of 8 ohms to a speaker rated at the same impedance, ensuring optimal performance.
To achieve impedance matching, sound output transformers play a pivotal role. These transformers act as intermediaries between the amplifier and speaker, stepping up or down the impedance to create a harmonious connection. For example, if an amplifier has a low output impedance of 4 ohms but is paired with a high-impedance speaker (e.g., 16 ohms), a transformer can bridge this gap. The transformer’s turns ratio is calculated to match the impedances, ensuring that the amplifier delivers its full power potential without overloading or underutilizing the speaker.
Practical implementation of impedance matching requires careful consideration of the audio system’s components. Start by identifying the amplifier’s output impedance and the speaker’s input impedance, typically found in their specifications. If these values differ, select a transformer with an appropriate turns ratio to match them. For instance, a 2:1 step-up transformer can connect a 4-ohm amplifier to an 8-ohm speaker. Always ensure the transformer’s power rating exceeds the amplifier’s output to avoid overheating or damage.
One common misconception is that impedance matching is only necessary for high-power systems. However, even low-power setups benefit from proper matching, as it enhances sound quality and protects equipment. For DIY enthusiasts, testing impedance matching can be done using a multimeter to verify continuity and resistance across the transformer and speaker. Additionally, software tools like impedance calculators can aid in determining the correct transformer specifications for specific setups.
In conclusion, impedance matching is not just a technical detail but a fundamental aspect of achieving optimal audio performance. By leveraging sound output transformers, enthusiasts and professionals alike can ensure that amplifiers and speakers work in perfect harmony. Whether upgrading a home stereo or designing a professional sound system, understanding and applying impedance matching principles will yield clearer, more powerful sound reproduction.
Understanding Bowel Sounds: Levels, Significance, and Clinical Assessment
You may want to see also
Explore related products
Frequency Response: Ensures accurate sound reproduction across the audible frequency spectrum
The human ear perceives frequencies from 20 Hz to 20,000 Hz, a range that encompasses the rumble of thunder to the chirp of a bird. A sound output transformer with a flat frequency response ensures that every note, every nuance, and every detail within this spectrum is faithfully reproduced. Imagine a symphony where the bass lacks depth or the treble sounds tinny—a transformer with poor frequency response would be the culprit. By maintaining a consistent output across the audible range, these transformers preserve the integrity of the original audio signal, delivering a listening experience that’s true to the artist’s intent.
To achieve this, sound output transformers are designed with precision. Their core materials, winding configurations, and impedance matching are carefully engineered to minimize distortion and phase shifts. For instance, a transformer used in high-fidelity audio systems might employ a wide bandwidth design, allowing it to handle frequencies as low as 10 Hz and as high as 40 kHz, far exceeding the human hearing range. This extra bandwidth ensures that even the most subtle harmonics are captured, providing a richer, more immersive soundstage. In contrast, a transformer in a guitar amplifier might prioritize midrange frequencies (500 Hz to 2 kHz) to enhance vocal clarity and instrument presence.
Consider the practical implications for different applications. In professional recording studios, a transformer with a frequency response deviation of ±1 dB across the audible spectrum is ideal, ensuring that every take is captured accurately. For home audio enthusiasts, a transformer with a slightly wider tolerance, such as ±3 dB, might suffice, balancing performance with cost. When selecting a transformer, always check its frequency response curve—a flat line indicates consistency, while peaks or dips suggest coloration or loss of detail.
One common misconception is that higher frequency response always equates to better sound. While extending beyond the audible range can improve transient response and clarity, it’s the accuracy within the 20 Hz to 20 kHz band that matters most. For example, a transformer that boosts high frequencies might make audio sound brighter but could also introduce harshness or fatigue during extended listening. Conversely, a transformer that rolls off bass frequencies prematurely will make music feel thin and lifeless. The goal is balance, not extremes.
In summary, frequency response is the cornerstone of accurate sound reproduction. Whether you’re a musician, audio engineer, or casual listener, understanding this concept empowers you to make informed decisions about equipment. Test transformers with familiar tracks, paying attention to how they handle bass drums, vocals, and cymbals. Pair them with speakers or headphones that complement their frequency response characteristics. By prioritizing accuracy across the audible spectrum, you ensure that every sound—from the deepest bass to the highest treble—is rendered with clarity and fidelity.
Can Ultrasonic Devices Effectively Repel Mosquitoes? Uncovering the Truth
You may want to see also
Explore related products
Signal Isolation: Prevents electrical interference between amplifier and speaker systems
Electrical interference can wreak havoc on audio systems, distorting sound and diminishing clarity. Signal isolation, a critical function of sound output transformers, acts as a barrier against this interference, ensuring a clean and uninterrupted audio signal from amplifier to speaker. This process is particularly vital in environments where multiple electronic devices operate in close proximity, such as recording studios or live sound setups. By isolating the signal, transformers prevent ground loops and electromagnetic interference, which are common culprits of unwanted noise.
Consider a scenario where an amplifier and speaker share a common ground but are connected to different power sources. Without signal isolation, the varying electrical potentials can create a ground loop, introducing a low-frequency hum into the audio. Sound output transformers address this by breaking the direct electrical connection between the amplifier and speaker while maintaining signal integrity. This is achieved through electromagnetic induction, where the transformer’s primary coil converts the electrical signal into a magnetic field, and the secondary coil reconverts it back into an electrical signal, effectively decoupling the two systems.
For practical implementation, selecting the right transformer is crucial. Transformers are rated by their impedance matching capabilities, typically expressed in ohms (e.g., 4:8:16 ohms). Ensure the transformer’s impedance matches both the amplifier’s output and the speaker’s input to avoid signal loss or distortion. For instance, a 100-watt amplifier with an 8-ohm output should be paired with a transformer that steps down to the speaker’s impedance, such as 4 ohms. Additionally, consider the transformer’s frequency response; a wide range (20 Hz to 20 kHz) ensures fidelity across the audible spectrum.
While signal isolation is a primary benefit, it’s not without trade-offs. Transformers can introduce phase shifts or slight coloration to the sound, depending on their design and quality. High-end transformers minimize these effects through precision winding techniques and core materials like permalloy or amorphous alloys. For critical applications, such as mastering studios, audiophiles often opt for custom-built transformers tailored to their specific needs. Conversely, budget-friendly options may suffice for less demanding environments like home theaters or small PA systems.
In summary, signal isolation via sound output transformers is indispensable for maintaining audio purity in the face of electrical interference. By understanding impedance matching, frequency response, and potential trade-offs, users can effectively integrate transformers into their systems. Whether for professional or personal use, the right transformer not only safeguards against noise but also enhances overall sound quality, making it an essential component in any audio setup.
Languages That Sound Like Turkish: Exploring Linguistic Similarities and Connections
You may want to see also
Explore related products
Voltage Transformation: Steps up or down voltage levels to match speaker requirements
Sound output transformers are pivotal in audio systems, ensuring compatibility between amplifiers and speakers by adjusting voltage levels. Voltage transformation, a core function, steps up or down the voltage to match the speaker’s impedance and power requirements. For instance, a tube amplifier producing 400 volts AC may need to be reduced to 100 volts AC for safe and efficient speaker operation. This process is not arbitrary; it’s a precise calculation based on the transformer’s turns ratio, where the number of windings in the primary and secondary coils determines the voltage output. Without this adjustment, speakers could be underpowered or damaged by excessive voltage, highlighting the transformer’s critical role in system integrity.
Consider a practical scenario: a high-fidelity audio setup where an amplifier outputs 80 volts but the speakers are rated for 40 volts. Here, a step-down transformer with a 2:1 turns ratio reduces the voltage to the speaker’s requirement. Conversely, in professional audio systems, a step-up transformer might be used to amplify low-voltage signals from a microphone preamp to line level. The key lies in understanding the speaker’s impedance and the amplifier’s output voltage. For example, a 4-ohm speaker paired with a 100-watt amplifier requires a transformer that maintains power balance while adjusting voltage, ensuring optimal sound quality without distortion or damage.
The process of voltage transformation isn’t without challenges. Efficiency losses, core saturation, and frequency response limitations are common pitfalls. Transformers with low-quality cores or inadequate winding materials can introduce hum or distort high-frequency sounds. To mitigate this, select transformers with high-grade silicon steel cores and oxygen-free copper windings. Additionally, ensure the transformer’s power rating exceeds the amplifier’s output to prevent overheating. For DIY enthusiasts, calculating the turns ratio (N₁/N₂ = V₁/V₂) is essential, but pre-built transformers from reputable brands like Jensen or Edcor offer plug-and-play solutions for most applications.
In comparative terms, voltage transformation in sound output transformers differs from power distribution transformers. While the latter focuses on high-efficiency energy transfer, audio transformers prioritize signal fidelity and impedance matching. For example, a 1:4 step-up transformer in a guitar amplifier boosts the instrument’s weak signal to line level without altering its tonal characteristics. This contrasts with a 240V-to-120V power transformer, which emphasizes energy conservation over signal quality. Understanding this distinction ensures the right transformer is chosen for audio applications, where clarity and dynamic range are paramount.
Finally, the takeaway is clear: voltage transformation in sound output transformers is a delicate balance of physics and engineering, tailored to meet speaker requirements. Whether stepping up a microphone signal or stepping down amplifier voltage, the transformer’s role is indispensable. Practical tips include verifying compatibility with speaker impedance, using transformers rated 20–30% above the system’s power needs, and testing for frequency response flatness. By mastering these principles, audiophiles and engineers alike can achieve seamless integration between amplifiers and speakers, ensuring every note is delivered with precision and power.
Unraveling the Unique Sounds of Australian Slang from 2003
You may want to see also
Explore related products
Distortion Reduction: Minimizes harmonic distortion for clearer, more accurate audio output
Harmonic distortion, a common audio artifact, occurs when an amplifier or speaker introduces unwanted frequencies that weren’t present in the original signal. These additional harmonics muddy the soundstage, making audio feel harsh, unnatural, or fatiguing to listen to. Sound output transformers play a critical role in mitigating this issue by acting as a buffer between the amplifier and the speaker. By isolating the amplifier’s output stage from the speaker’s impedance fluctuations, transformers help maintain a stable signal path, reducing the conditions that cause harmonic distortion. This results in cleaner, more accurate audio reproduction, particularly in high-fidelity systems where clarity is paramount.
Consider the example of a tube amplifier paired with a high-efficiency speaker. Without a sound output transformer, the amplifier’s output stage might struggle to match the speaker’s impedance, leading to signal clipping and harmonic distortion. A well-designed transformer steps down the amplifier’s voltage while maintaining current flow, ensuring the speaker receives a clean, undistorted signal. This is especially crucial in systems where the amplifier and speaker impedance mismatch exceeds 10%, as distortion levels can rise exponentially under such conditions. Practical tip: When selecting a transformer, ensure its voltage and current ratings align with your amplifier’s output specifications for optimal performance.
From a persuasive standpoint, investing in a quality sound output transformer is not just a technical upgrade—it’s an investment in your listening experience. Harmonic distortion, even at low levels, can mask subtle details in music, such as the decay of a piano note or the texture of a vocalist’s timbre. By minimizing distortion, transformers reveal these nuances, bringing you closer to the artist’s intended performance. For audiophiles, this clarity is the difference between hearing music and truly experiencing it. Caution: Avoid transformers with low-quality cores or insufficient bandwidth, as they can introduce their own distortions, defeating the purpose.
Comparatively, while digital signal processing (DSP) can correct some forms of distortion, it often does so at the cost of latency and computational overhead. Sound output transformers, on the other hand, address distortion passively and in real-time, making them a more efficient solution for analog systems. For instance, in vintage audio setups, transformers not only reduce distortion but also preserve the warm, organic sound characteristic of tube amplifiers. Takeaway: If your goal is to achieve pristine audio with minimal artifacts, a sound output transformer is a more direct and effective solution than relying solely on DSP.
Finally, a descriptive approach highlights the transformative effect of distortion reduction on audio quality. Imagine listening to a symphony through a foggy window—the instruments are there, but their edges are blurred, and their interplay lacks precision. Now, replace that window with a crystal-clear pane. The sound output transformer acts as this pane, removing the haze of harmonic distortion and revealing the music’s full depth and dimension. Practical tip: Pair your transformer with balanced interconnects to further reduce noise and interference, ensuring the cleanest possible signal path from source to speaker.
Exploring Milford Sound's Depths: Unveiling the Fjord's Astonishing Underwater Secrets
You may want to see also
Frequently asked questions
A sound output transformer is a passive electronic component used in audio amplifiers to match the impedance of the amplifier's output stage to the impedance of the speaker or load, ensuring maximum power transfer and optimal sound quality.
A sound output transformer works by using electromagnetic induction to transfer the audio signal from the amplifier's output stage to the speaker. It consists of two coils, a primary and a secondary, wound around a magnetic core, which allows the transformer to step up or step down the voltage and current to match the speaker's impedance.
The benefits of using a sound output transformer include improved frequency response, reduced distortion, and increased efficiency. It also allows the use of different speaker impedances without damaging the amplifier, and can provide galvanic isolation between the amplifier and the speaker.
Yes, sound output transformers can be used with modern solid-state amplifiers, although they are more commonly found in tube amplifiers. In solid-state amplifiers, output transformers are often used in high-end or specialized designs to achieve specific sound characteristics or to match unusual speaker impedances. However, many modern solid-state amplifiers use direct coupling or active circuitry instead of output transformers.
