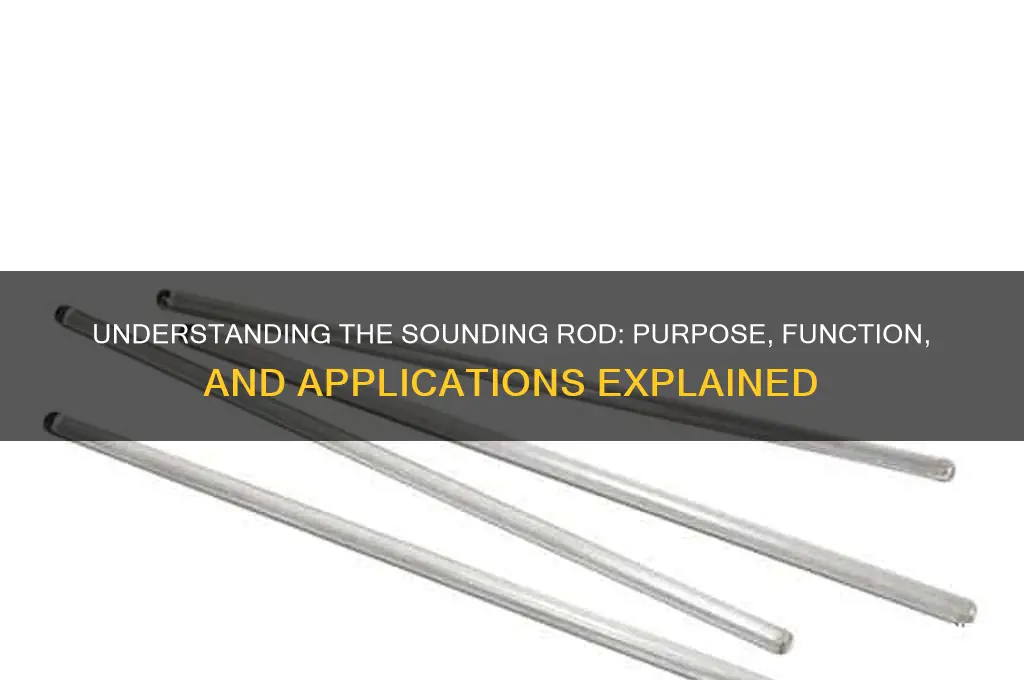

The sounding rod, also known as a sounding pole or depth rod, is a simple yet essential tool used primarily in navigation and marine applications to measure the depth of water in shallow areas. Typically made of wood, metal, or fiberglass, it is a long, graduated rod that is manually lowered into the water until it touches the bottom. The markings on the rod indicate the depth, allowing users to determine how much water is beneath their vessel. Historically, sounding rods were crucial for sailors and explorers to avoid running aground in uncharted or poorly mapped waters. Today, while modern electronic depth sounders have largely replaced them, sounding rods remain valuable for their reliability, simplicity, and use in situations where technology may fail or is unavailable.
| Characteristics | Values |
|---|---|
| Definition | A sounding rod, also known as a dip rod or sounding weight, is a device used to measure the depth of water in a well, borehole, or other deep, narrow spaces. |
| Purpose | To determine the depth of water, detect the presence of obstructions, or identify the bottom of a well or borehole. |
| Design | Typically consists of a weighted end (usually made of metal) attached to a graduated rod or cable with depth markings. |
| Material | Commonly made of steel, brass, or other durable materials resistant to corrosion. |
| Length | Varies depending on application; can range from a few feet to several hundred feet. |
| Graduations | Marked with depth measurements (e.g., feet, meters) for accurate readings. |
| Weight | The weighted end ensures the rod sinks to the bottom of the water column for precise measurement. |
| Applications | Used in well drilling, hydrogeology, environmental monitoring, and construction. |
| Advantages | Simple, cost-effective, and reliable for quick depth measurements. |
| Limitations | May not work effectively in highly turbulent water or if obstructions are present. |
| Alternatives | Electronic depth sounders or sonar devices for more advanced or automated measurements. |
Explore related products
$19.68
What You'll Learn
- Definition and Purpose: A sounding rod measures liquid levels in tanks by detecting the depth of a liquid surface
- Working Principle: It operates on the principle of hydrostatic pressure and displacement to gauge liquid height
- Types of Sounding Rods: Includes weighted, graduated, and electronic rods for various industrial applications
- Applications: Commonly used in oil, gas, chemical, and water storage tank level monitoring
- Advantages and Limitations: Offers simplicity and accuracy but may require manual operation and calibration
Definition and Purpose: A sounding rod measures liquid levels in tanks by detecting the depth of a liquid surface
A sounding rod is a simple yet ingenious tool designed to measure the depth of liquid in a tank by detecting the surface level. Its primary purpose is to provide an accurate reading of how much liquid is present, which is crucial in industries such as oil and gas, chemical manufacturing, and water treatment. The rod operates on the principle of displacement: when lowered into a tank, it makes contact with the liquid surface, and the point of contact indicates the level. This method is both cost-effective and reliable, making it a staple in environments where precise measurements are essential for operational efficiency and safety.
To use a sounding rod effectively, follow these steps: first, ensure the rod is clean and free of debris to avoid inaccurate readings. Lower the rod vertically into the tank until it touches the liquid surface, taking care not to agitate the liquid. Mark the point where the rod meets the surface, then withdraw it and measure the wetted length. This measurement corresponds to the liquid depth. For tanks with hazardous materials, use a rod made of non-reactive materials like stainless steel or Teflon to prevent contamination. Always record measurements immediately to avoid errors, especially in dynamic environments where liquid levels fluctuate.
While sounding rods are straightforward in design, their application varies widely. For instance, in the maritime industry, they are used to measure fuel levels in ship tanks, ensuring compliance with safety regulations. In chemical plants, they help monitor corrosive liquids, where electronic sensors might fail. However, sounding rods are not without limitations. They are less effective in tanks with turbulent liquids or those containing solids, as these can interfere with accurate surface detection. Additionally, manual operation means they require more time and effort compared to automated systems, making them less ideal for continuous monitoring.
The choice of a sounding rod over other measurement tools often comes down to practicality and cost. Unlike electronic sensors, which require power and maintenance, sounding rods are low-maintenance and operate without external energy sources. They are particularly useful in remote or resource-limited settings where sophisticated equipment is impractical. However, for applications demanding real-time data or high precision, automated systems like ultrasonic or radar sensors may be more suitable. Understanding these trade-offs helps industries select the right tool for their specific needs, balancing accuracy, cost, and operational constraints.
In conclusion, the sounding rod remains a valuable instrument for liquid level measurement, especially in scenarios where simplicity and reliability are paramount. Its design and operation reflect a blend of traditional engineering principles and practical utility, making it a timeless tool in various industries. By mastering its use and recognizing its limitations, operators can ensure accurate measurements that support safe and efficient operations. Whether in a small-scale water storage tank or a large industrial vessel, the sounding rod continues to play a critical role in liquid level management.
