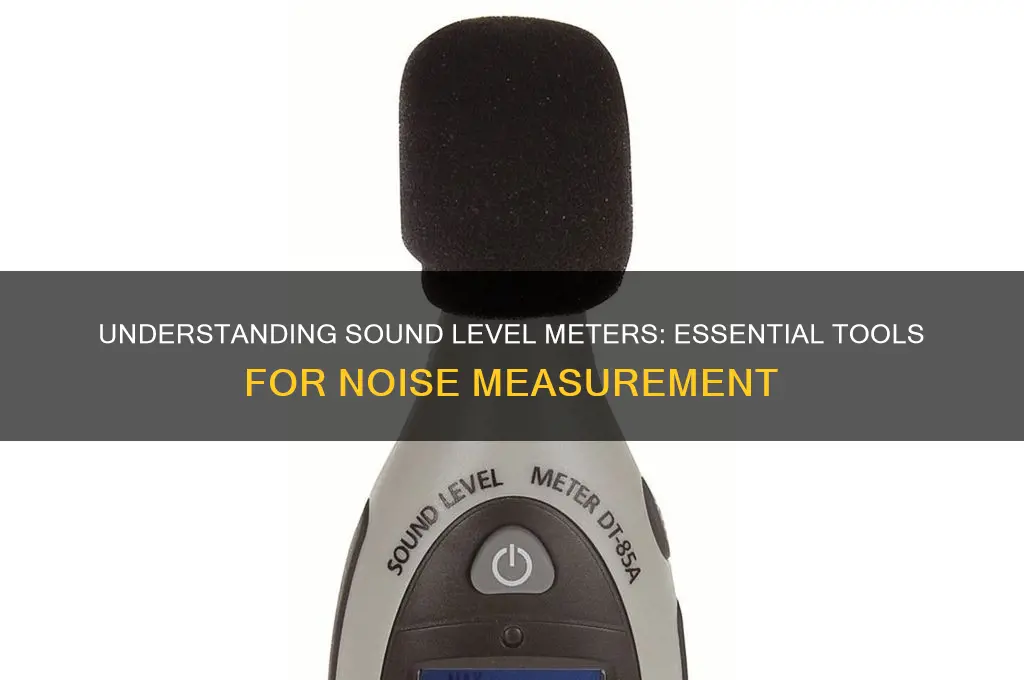

A sound level meter is a handheld or portable device used to measure and quantify sound pressure levels in decibels (dB). It is an essential tool in various fields, including environmental monitoring, occupational health and safety, and acoustics, as it helps assess noise levels in different environments. The device typically consists of a microphone, a preamplifier, and a display unit, allowing users to measure and analyze sound intensity accurately. Sound level meters can be analog or digital, with advanced models offering features like frequency weighting, data logging, and real-time analysis, making them indispensable for ensuring compliance with noise regulations and maintaining safe and comfortable acoustic conditions.
| Characteristics | Values |
|---|---|
| Definition | A device used to measure sound pressure levels in decibels (dB). |
| Primary Function | Quantifies sound intensity in various environments. |
| Measurement Range | Typically 30 dB to 130 dB (varies by model). |
| Frequency Range | Usually 31.5 Hz to 8 kHz (A-weighting standard). |
| Weighting Curves | A, C, and Z (A for general noise, C for peak levels, Z for unweighted). |
| Accuracy | ±1.5 dB to ±3 dB (Class 1 or Class 2 standards). |
| Display | Digital or analog, showing real-time sound levels. |
| Data Logging | Some models store measurements for later analysis. |
| Response Time | Fast (125 ms) or slow (1 s) time weighting for dynamic sound capture. |
| Applications | Environmental noise monitoring, occupational safety, acoustics testing. |
| Power Source | Battery-operated or mains-powered. |
| Size and Portability | Compact handheld devices to larger, stationary units. |
| Standards Compliance | IEC 61672 (international standard for sound level meters). |
| Additional Features | Max/Min hold, peak detection, frequency analysis (in advanced models). |
| Calibration | Requires periodic calibration using a calibrator for accuracy. |
| Cost | Ranges from $50 (basic) to $2,000+ (professional-grade). |
Explore related products
What You'll Learn
- Sound Level Meter Definition: A device measuring sound pressure levels in decibels (dB)
- Types of Sound Level Meters: Includes Type 0, 1, 2, and integrating sound level meters
- Key Components: Microphone, preamplifier, frequency weighting networks, and display unit
- Applications: Used in noise pollution monitoring, occupational safety, and acoustic analysis
- Calibration and Accuracy: Requires regular calibration to ensure precise and reliable measurements
Sound Level Meter Definition: A device measuring sound pressure levels in decibels (dB)
A sound level meter, often abbreviated as SLM, is a precision instrument designed to measure sound pressure levels in decibels (dB). This device is essential in various fields, including environmental monitoring, occupational health, and acoustics, where accurate measurement of sound intensity is crucial. The primary function of a sound level meter is to quantify the loudness or intensity of sound in a given environment, providing data that can be used to assess noise pollution, ensure compliance with regulations, or optimize acoustic conditions. By converting sound pressure variations into electrical signals, the meter offers a standardized way to express sound levels, making it a vital tool for professionals and researchers alike.
The operation of a sound level meter is based on the principles of acoustics and electronics. It consists of a microphone that captures sound waves, a preamplifier to boost the signal, and a processing unit that converts the signal into a decibel reading. The microphone is typically designed to mimic the frequency response of the human ear, ensuring that measurements are relevant to human perception of sound. Advanced models may include features such as frequency weighting (A, B, C, or Z-weighting) to account for the ear's varying sensitivity to different frequencies, as well as integration capabilities for measuring time-averaged sound levels. These features enhance the meter's versatility and accuracy in diverse applications.
Sound level meters are categorized into different classes based on their precision and intended use. Type 1 meters are highly accurate and suitable for laboratory or critical field measurements, while Type 2 meters offer a balance between accuracy and cost, making them ideal for general-purpose applications. Handheld sound level meters are commonly used for spot checks and quick assessments, whereas data-logging models can record sound levels over extended periods, providing detailed noise profiles. Regardless of the type, all sound level meters must adhere to international standards such as IEC 61672 to ensure reliability and consistency in measurements.
In practical applications, sound level meters are used to monitor noise in workplaces to protect employees from hearing damage, assess environmental noise impact in urban planning, and ensure compliance with noise regulations in public spaces. For instance, in industrial settings, SLMs help identify noisy machinery that may require mitigation measures. In community noise studies, they provide data to evaluate the effects of traffic, construction, or other sources on residents. The ability to measure sound levels objectively and quantitatively makes the sound level meter an indispensable tool for creating healthier and more comfortable acoustic environments.
Understanding the definition and functionality of a sound level meter is key to appreciating its role in noise management and acoustic science. By measuring sound pressure levels in decibels, this device bridges the gap between subjective human perception and objective data, enabling informed decision-making in various contexts. Whether for regulatory compliance, research, or practical problem-solving, the sound level meter remains a cornerstone of modern acoustics, ensuring that sound is not just heard but also understood and managed effectively.
Camilla Luddington's Accent: Authentic or Acted? A Sound Analysis
You may want to see also
Explore related products
Types of Sound Level Meters: Includes Type 0, 1, 2, and integrating sound level meters
A sound level meter is a device used to measure sound pressure levels in the environment, providing quantitative data on noise levels. These meters are essential in various fields, including occupational health, environmental monitoring, and acoustics. Sound level meters come in different types, each designed to meet specific accuracy and application requirements. The primary types include Type 0, Type 1, Type 2, and integrating sound level meters, each with distinct features and use cases.
Type 0 sound level meters are the most precise and accurate, often referred to as precision or laboratory-grade meters. They comply with the highest standards of accuracy, such as IEC 61672-1, and are used in critical applications where exact measurements are essential. Type 0 meters are ideal for calibration, research, and legal measurements due to their minimal tolerance limits. However, their high precision comes at a higher cost, making them less common in everyday applications.
Type 1 sound level meters are also highly accurate but with slightly broader tolerance limits compared to Type 0. They are suitable for professional and industrial use, such as in occupational noise assessments, environmental monitoring, and building acoustics. Type 1 meters strike a balance between precision and affordability, making them a popular choice for professionals who require reliable measurements without the need for laboratory-grade accuracy.
Type 2 sound level meters are the most commonly used in general-purpose applications. They are less accurate than Type 0 and Type 1 meters but still meet the requirements for many practical scenarios, such as noise surveys, educational purposes, and basic workplace assessments. Type 2 meters are more affordable and portable, making them accessible for individuals and organizations with limited budgets. Their tolerance limits are wider, but they are sufficient for non-critical measurements.
Integrating sound level meters are a specialized category that focuses on measuring the average sound level over a specific period. Unlike standard meters that provide instantaneous readings, integrating meters calculate parameters such as Leq (equivalent continuous sound level) and LAV (average sound level). These meters are particularly useful in situations where noise exposure needs to be monitored over time, such as in workplaces or environmental studies. They often include data logging capabilities, allowing users to analyze noise trends and ensure compliance with regulations.
In summary, the choice of sound level meter depends on the required accuracy, application, and budget. Type 0 and Type 1 meters are ideal for high-precision tasks, while Type 2 meters offer a cost-effective solution for general use. Integrating sound level meters are essential for time-weighted measurements and long-term noise monitoring. Understanding these types ensures the selection of the most appropriate tool for specific noise measurement needs.
How to Pick a Ripe Watermelon: The Hollow Sound Test
You may want to see also
Explore related products
Key Components: Microphone, preamplifier, frequency weighting networks, and display unit
A sound level meter is an essential tool for measuring sound pressure levels in various environments, ensuring compliance with noise regulations, and assessing potential hearing risks. At the heart of this device are several key components, each playing a critical role in accurately capturing and displaying sound levels. The microphone is the first and most fundamental component. It acts as the sensor, converting sound waves in the air into electrical signals. Sound level meters typically use condenser microphones, which are highly sensitive and capable of detecting a wide range of frequencies. These microphones are designed to mimic the response of the human ear, ensuring that measurements are relevant to human hearing. The quality and calibration of the microphone are crucial, as they directly impact the accuracy of the sound level readings.
Once the sound waves are converted into electrical signals by the microphone, the preamplifier takes over. This component amplifies the weak electrical signals to a level that can be processed by the meter’s circuitry. The preamplifier must be low-noise and high-gain to ensure that even faint sounds are accurately captured without introducing distortion. It also plays a role in maintaining the integrity of the signal, as any noise or interference at this stage can compromise the measurement accuracy. In advanced sound level meters, the preamplifier may include features like automatic gain control to handle a wide dynamic range of sound levels.
After amplification, the signal passes through frequency weighting networks, which are essential for simulating how the human ear perceives sound. The human ear is more sensitive to certain frequencies than others, particularly in the mid-range. Frequency weighting networks apply filters (such as A-weighting, C-weighting, or Z-weighting) to the signal to emphasize or de-emphasize specific frequency bands. A-weighting, for example, is commonly used for environmental noise measurements as it aligns closely with human hearing sensitivity. These networks ensure that the sound level meter provides measurements that are meaningful in the context of human auditory perception.
Finally, the display unit presents the measured sound levels in a clear and understandable format. Modern sound level meters often feature digital displays that show real-time sound pressure levels in decibels (dB). Some advanced models may also include graphical displays, data logging capabilities, and connectivity options for transferring data to computers or other devices. The display unit may also provide additional information, such as maximum, minimum, and average sound levels, as well as frequency analysis data. A user-friendly interface is crucial, as it allows operators to quickly interpret measurements and make informed decisions based on the data.
Together, these key components—the microphone, preamplifier, frequency weighting networks, and display unit—form the core of a sound level meter, enabling it to accurately measure and present sound levels in a way that is relevant to human hearing. Each component must be carefully designed and calibrated to ensure the overall reliability and precision of the device. Whether used in occupational health, environmental monitoring, or acoustic engineering, a sound level meter is an indispensable tool for anyone dealing with noise measurement and management.
Understanding Decibels: How Sound Intensity is Measured Scientifically
You may want to see also
Explore related products
Applications: Used in noise pollution monitoring, occupational safety, and acoustic analysis
A sound level meter is a device used to measure sound pressure levels in decibels (dB), providing a quantitative assessment of noise. Its primary applications span noise pollution monitoring, occupational safety, and acoustic analysis, making it an indispensable tool in various industries and environmental contexts. In noise pollution monitoring, sound level meters are employed to assess and control environmental noise levels in urban, industrial, and residential areas. They help regulatory bodies enforce noise ordinances by measuring sound levels from sources like traffic, construction, and industrial activities. Continuous monitoring ensures compliance with legal limits, protects public health, and mitigates the adverse effects of excessive noise on communities.
In the realm of occupational safety, sound level meters play a critical role in safeguarding workers from noise-induced hearing loss (NIHL). Industries such as manufacturing, construction, and aviation expose employees to high noise levels, often exceeding safe thresholds. By measuring sound levels in workplaces, employers can identify hazardous areas, implement engineering controls (e.g., soundproofing), and provide personal protective equipment (PPE) like earplugs or earmuffs. Regular noise assessments ensure adherence to occupational health and safety standards, such as OSHA regulations in the United States, thereby preventing long-term hearing damage.
Sound level meters are also essential in acoustic analysis, where they are used to evaluate and optimize sound quality in various settings. In architectural acoustics, these meters help design spaces with appropriate sound absorption and reflection properties, ensuring clarity in venues like concert halls, studios, and conference rooms. In product development, manufacturers use sound level meters to test and reduce noise emissions from machinery, vehicles, and appliances. Additionally, they are employed in environmental research to study the impact of noise on wildlife and ecosystems, aiding in conservation efforts.
The versatility of sound level meters extends to event management and public spaces, where they ensure noise levels remain within acceptable limits during concerts, festivals, and sporting events. This prevents disturbances to nearby residents and protects attendees from excessive noise exposure. Furthermore, in transportation, sound level meters are used to monitor noise from airports, railways, and highways, guiding infrastructure planning and policy-making to minimize noise pollution. Their precision and portability make them ideal for both spot measurements and long-term monitoring campaigns.
In summary, sound level meters are vital tools across noise pollution monitoring, occupational safety, and acoustic analysis. Their ability to provide accurate, real-time data enables informed decision-making, ensuring compliance with regulations, protecting human health, and enhancing sound quality in diverse environments. Whether used in industrial settings, urban planning, or scientific research, these devices are indispensable for managing and understanding noise in our increasingly noisy world.
Sound on Meta Quest 3: What to Expect
You may want to see also
Explore related products
Calibration and Accuracy: Requires regular calibration to ensure precise and reliable measurements
A sound level meter is an instrument used to measure sound pressure levels in decibels (dB), providing critical data for assessing noise pollution, workplace safety, and environmental compliance. To ensure these measurements are precise and reliable, regular calibration of the sound level meter is essential. Calibration involves adjusting the meter’s readings to match a known standard, ensuring it accurately reflects the true sound pressure levels in the environment. Without proper calibration, measurements can drift over time due to wear and tear, environmental factors, or internal component changes, leading to inaccurate results.
Calibration is particularly important because sound level meters are highly sensitive devices. Even minor deviations in their internal components, such as the microphone or circuitry, can significantly impact measurement accuracy. For instance, a meter that is not calibrated may underreport or overreport sound levels, which could lead to incorrect assessments of noise hazards or compliance violations. Regular calibration ensures the meter’s readings remain within acceptable tolerances, typically defined by international standards like IEC 61672 or ANSI S1.4. These standards specify the frequency response, dynamic range, and other performance criteria that a calibrated meter must meet.
The calibration process typically involves exposing the sound level meter to a pistonphone or calibrator, which generates a precise, known sound pressure level. The meter’s reading is then compared to this reference value, and adjustments are made if necessary. Calibration should be performed at specific frequencies (e.g., 250 Hz, 1 kHz) to ensure accuracy across the audible spectrum. It is recommended that sound level meters be calibrated before each critical measurement or at regular intervals, such as every 6 to 12 months, depending on usage frequency and environmental conditions.
Accuracy is directly tied to calibration, as an uncalibrated meter cannot provide reliable data. In applications like occupational health and safety, where noise exposure limits are strictly regulated, inaccurate measurements can have serious consequences. For example, underestimating noise levels could lead to workers being exposed to harmful sound pressures, while overestimating could result in unnecessary restrictions or costs. Therefore, maintaining calibration is not just a technical requirement but a critical aspect of ensuring the meter’s functionality and the validity of its measurements.
To further ensure accuracy, users should also verify the meter’s condition before each use. This includes checking for physical damage, ensuring the microphone is clean and unobstructed, and confirming that the meter’s settings (e.g., weighting and response time) are appropriate for the task. Additionally, keeping detailed records of calibration dates, results, and any adjustments made is a best practice. These records provide traceability and demonstrate compliance with regulatory requirements, reinforcing the credibility of the measurements taken.
In summary, calibration and accuracy are inseparable aspects of sound level meter operation. Regular calibration is the cornerstone of reliable measurements, ensuring the device performs within specified tolerances and delivers trustworthy data. By adhering to calibration schedules and maintaining the meter’s integrity, users can confidently rely on their sound level meter for accurate noise assessments in any application.
Computer Sounds: Mic Input or Output?
You may want to see also
Frequently asked questions
A sound level meter is a device used to measure the intensity of sound, typically in decibels (dB), to assess noise levels in various environments.
A sound level meter works by using a microphone to capture sound waves, which are then converted into electrical signals. These signals are processed to calculate the sound pressure level, often displayed in real-time on the device.
The main components include a microphone (for sound capture), a preamplifier (to boost the signal), a frequency weighting network (to simulate human hearing), and a display (to show measurements).
Sound level meters are used in occupational health and safety to monitor workplace noise, environmental noise assessments, audio engineering, and compliance with noise regulations in public spaces.
A Type 1 sound level meter is precision-grade, suitable for laboratory and legal measurements, while a Type 2 meter is general-purpose, offering less precision but sufficient for most field applications.
