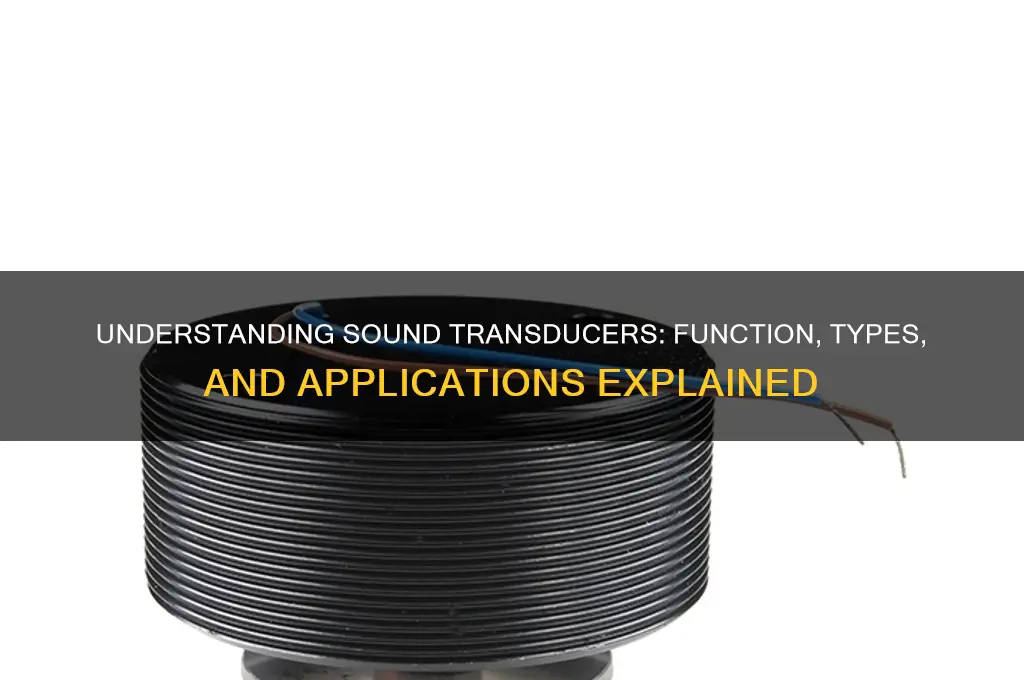

A sound transducer is a device that converts one form of energy into another, specifically designed to transform audio signals or sound waves into electrical signals, or vice versa. Commonly used in various applications such as microphones, speakers, and hearing aids, these devices play a crucial role in modern audio technology. In a microphone, for instance, a sound transducer captures sound waves and converts them into electrical signals that can be amplified, recorded, or transmitted, while in a speaker, the process is reversed, converting electrical signals back into sound waves. The efficiency and accuracy of a sound transducer are essential for maintaining the quality and clarity of audio in both professional and everyday settings.
| Characteristics | Values |
|---|---|
| Definition | A device that converts electrical signals into sound waves (loudspeaker) or sound waves into electrical signals (microphone). |
| Types | Electromagnetic, Piezoelectric, Electrostatic, Condenser, Dynamic. |
| Frequency Response | Typically 20 Hz to 20 kHz for audio applications. |
| Sensitivity | Measured in dB (decibels) or mV/Pa (millivolts per Pascal) for microphones; dB SPL/mW (sound pressure level per milliwatt) for loudspeakers. |
| Impedance | Usually 4, 8, or 16 ohms for loudspeakers; varies for microphones. |
| Directivity | Omnidirectional, Cardioid, Bidirectional, Unidirectional (depends on design). |
| Power Handling | Measured in watts (W) for loudspeakers; indicates maximum power input without damage. |
| Diaphragm Material | Paper, Plastic, Metal, Carbon Fiber, or Composite Materials. |
| Size | Varies from small (e.g., earbuds) to large (e.g., subwoofers or studio microphones). |
| Applications | Audio systems, telecommunications, medical devices, sonar, and industrial equipment. |
| Efficiency | Ratio of acoustic power output to electrical power input, often expressed as a percentage. |
| Distortion | Measured as Total Harmonic Distortion (THD), typically <1% for high-quality transducers. |
| Polarity | Indicates the direction of sound or electrical signal flow (e.g., positive or negative terminal). |
| Mounting | Surface mount, flush mount, or free-standing, depending on application. |
| Environmental Resistance | Varies; some transducers are designed for harsh conditions (e.g., waterproof, dustproof). |
Explore related products
What You'll Learn
- Definition: A sound transducer converts electrical signals into sound waves or vice versa
- Types: Includes microphones, speakers, and piezoelectric transducers for various applications
- Working Principle: Operates on electromagnetic, electrostatic, or piezoelectric principles to produce sound
- Applications: Used in audio devices, medical imaging, sonar systems, and communication technology
- Components: Consists of a diaphragm, coil, magnet, and housing for efficient sound conversion
Definition: A sound transducer converts electrical signals into sound waves or vice versa
Sound transducers are the unsung heroes of modern communication, bridging the gap between the electrical and acoustic domains. At their core, these devices operate on a simple yet profound principle: they convert electrical signals into sound waves and vice versa. This bidirectional functionality is what makes them indispensable in applications ranging from smartphones to concert speakers. For instance, when you speak into a microphone, it transforms your voice—a mechanical sound wave—into an electrical signal that can be amplified, recorded, or transmitted. Conversely, a speaker takes an electrical signal and converts it back into sound waves, allowing you to hear music, voices, or alerts. This dual capability is the essence of a sound transducer’s utility.
To understand how this conversion works, consider the anatomy of a typical sound transducer. In a microphone, a diaphragm vibrates in response to sound waves, causing fluctuations in an electromagnetic field or a piezoelectric material, which generates an electrical signal. In a speaker, the process is reversed: an electrical signal passes through a coil or piezoelectric element, creating vibrations in a diaphragm that produce sound waves. This interplay of mechanics and electromagnetism is governed by principles such as Faraday’s law of induction and the piezoelectric effect. For practical applications, the efficiency of this conversion is critical; a high-quality transducer minimizes energy loss and distortion, ensuring clear and accurate sound reproduction.
The versatility of sound transducers is evident in their wide-ranging applications. In medical ultrasound devices, transducers convert electrical signals into high-frequency sound waves that penetrate tissue, producing images for diagnostic purposes. In industrial settings, they are used for non-destructive testing, where sound waves detect flaws in materials. Even in everyday devices like hearing aids, transducers play a vital role, amplifying and clarifying sound for users. Each application demands specific performance characteristics, such as frequency response, sensitivity, and impedance, highlighting the adaptability of sound transducers across diverse fields.
Despite their ubiquity, designing and optimizing sound transducers presents unique challenges. Engineers must balance factors like size, cost, and performance to meet the demands of specific applications. For example, miniaturization is crucial in consumer electronics, where transducers must fit into compact devices without sacrificing sound quality. Advances in materials science, such as the development of new piezoelectric ceramics or lightweight polymers, continue to push the boundaries of what’s possible. Additionally, innovations in digital signal processing (DSP) enhance the capabilities of transducers, enabling features like noise cancellation and beamforming.
In conclusion, the definition of a sound transducer as a device that converts electrical signals into sound waves or vice versa captures its fundamental role in modern technology. From enhancing communication to enabling medical diagnostics, these devices are integral to countless applications. Understanding their principles, applications, and challenges provides insight into their importance and potential for future innovation. Whether in a smartphone, a concert hall, or a hospital, sound transducers remain a cornerstone of how we interact with the world through sound.
Amazon Echo Sound Quality: A Comprehensive Review and Analysis
You may want to see also
Explore related products
Types: Includes microphones, speakers, and piezoelectric transducers for various applications
Sound transducers are devices that convert energy between audio and electrical signals, and their types—microphones, speakers, and piezoelectric transducers—serve distinct purposes across industries. Microphones, for instance, are essential in capturing sound waves and transforming them into electrical signals, making them indispensable in recording studios, live performances, and telecommunications. Condenser microphones, known for their high sensitivity, are ideal for vocal recordings, while dynamic microphones excel in noisy environments due to their robustness. Understanding these nuances ensures the right tool is chosen for the task, whether it’s a podcast setup or a concert stage.
Speakers, on the other hand, reverse the process by converting electrical signals back into sound waves, delivering audio output for listeners. From home theater systems to portable Bluetooth speakers, the design and materials vary widely. For example, tweeters handle high-frequency sounds, while woofers manage low frequencies, creating a balanced audio experience. In professional settings, such as concert halls, line array speakers are strategically positioned to ensure uniform sound distribution. Selecting the appropriate speaker type depends on factors like room size, desired sound quality, and application, making it a critical decision in audio engineering.
Piezoelectric transducers stand apart due to their unique ability to generate electrical signals in response to mechanical stress, such as vibrations. Commonly used in medical ultrasound devices, these transducers emit high-frequency sound waves to create detailed images of internal organs. In industrial applications, they monitor structural integrity by detecting vibrations in machinery. Their compact size and durability also make them ideal for underwater sonar systems. Unlike microphones and speakers, piezoelectric transducers operate in specialized niches, showcasing the versatility of sound transducer technology.
When integrating these transducers into systems, compatibility and efficiency are key. For instance, pairing a high-quality microphone with a low-grade speaker can bottleneck audio performance. Similarly, piezoelectric transducers require precise calibration to function optimally in medical or industrial settings. Practical tips include testing microphones in the intended environment to account for acoustics and ensuring speakers are matched to amplifiers for maximum output. By understanding the strengths and limitations of each type, users can harness their full potential across diverse applications.
In summary, microphones, speakers, and piezoelectric transducers each play unique roles in the realm of sound transduction, tailored to specific needs. Microphones capture sound with varying sensitivities, speakers deliver audio with specialized components, and piezoelectric transducers excel in niche applications requiring precision. By selecting the right type and optimizing its use, individuals and industries can achieve superior audio outcomes, whether in creative, technical, or diagnostic contexts. This targeted approach underscores the importance of understanding the distinct capabilities of each transducer type.
Is Line-X Sound Deadening Effective? A Comprehensive Review and Analysis
You may want to see also
Explore related products
$90.79 $129.99
Working Principle: Operates on electromagnetic, electrostatic, or piezoelectric principles to produce sound
Sound transducers are the unsung heroes behind every audible alert, musical note, and spoken word in our devices. At their core, these components convert electrical signals into sound waves, leveraging three primary principles: electromagnetic, electrostatic, and piezoelectric. Each method offers distinct advantages, catering to specific applications—from the crisp highs of electrostatic headphones to the robust bass of electromagnetic speakers. Understanding these principles not only demystifies how sound is produced but also guides the selection of the right transducer for your needs.
Electromagnetic transducers operate on Faraday’s law of induction, where a varying electric current in a coil generates a magnetic field. This field interacts with a permanent magnet, causing a diaphragm to vibrate and produce sound. The efficiency of this process depends on the coil’s material—copper is commonly used for its conductivity—and the strength of the magnet. For instance, neodymium magnets, with their high magnetic flux density (up to 1.4 tesla), are ideal for compact yet powerful speakers. However, electromagnetic designs can be bulky and less efficient at high frequencies, making them better suited for mid-range and bass reproduction in applications like home theater systems.
Electrostatic transducers, in contrast, rely on the attraction and repulsion of charged plates. A thin, conductive diaphragm is suspended between two perforated, charged grids. When an audio signal modulates the voltage across these grids, the diaphragm moves, creating sound waves. This design excels in reproducing high-frequency details, making it a favorite for audiophiles. For example, electrostatic headphones often deliver frequencies up to 40 kHz, far beyond the human hearing range of 20 Hz to 20 kHz. However, they require high voltages (up to 1,000 volts) and are sensitive to humidity, limiting their use in portable devices.
Piezoelectric transducers harness the unique properties of certain materials, like quartz or lead zirconate titanate (PZT), which deform when subjected to an electric field. When an audio signal is applied, the material vibrates, generating sound. Piezoelectric transducers are lightweight, durable, and efficient at high frequencies, often used in buzzers, ultrasound devices, and even guitar pickups. For practical applications, a piezoelectric buzzer typically operates at 3–24 volts, making it energy-efficient for battery-powered devices. However, their frequency response is limited, and they struggle with low-frequency reproduction, confining their use to specific niches.
Choosing the right transducer principle depends on the application’s requirements. For instance, if clarity and detail are paramount, electrostatic designs are ideal, but their fragility and power needs may be impractical for everyday use. Electromagnetic transducers, while versatile, may fall short in size-constrained environments. Piezoelectric options shine in simplicity and durability but lack the frequency range for full-spectrum audio. By weighing these trade-offs, engineers and enthusiasts can tailor their sound solutions to meet precise needs, ensuring optimal performance in every scenario.
Mastering the Art of Fake Vomit Sounds: Tips and Tricks
You may want to see also
Explore related products
Applications: Used in audio devices, medical imaging, sonar systems, and communication technology
Sound transducers are the unsung heroes of modern technology, converting electrical signals into sound waves and vice versa. In audio devices, they are the core components that bring music, podcasts, and voice calls to life. Consider the humble loudspeaker: it uses a diaphragm driven by an electromagnet to vibrate and produce sound. Similarly, microphones employ transducers to capture acoustic energy and transform it into electrical signals. Whether it’s a high-fidelity home theater system or a compact smartphone speaker, transducers ensure clarity and fidelity. For optimal performance, position speakers at ear level and avoid placing them near walls to minimize distortion.
In medical imaging, sound transducers play a critical role in ultrasound technology. These devices emit high-frequency sound waves that penetrate tissue, bounce off internal structures, and return as echoes to create detailed images. For instance, a 3–5 MHz transducer is commonly used for abdominal scans, while higher frequencies (7–12 MHz) are ideal for superficial structures like blood vessels. Proper application of ultrasound gel is essential to eliminate air gaps and ensure accurate imaging. This non-invasive tool is invaluable for diagnosing conditions ranging from fetal development to cardiac abnormalities, making it a cornerstone of modern healthcare.
Sonar systems rely on sound transducers to navigate and detect objects underwater. By emitting sound pulses and measuring the time it takes for them to return, these systems map the ocean floor, locate submarines, and guide ships safely through hazardous waters. For example, military sonar arrays use high-power transducers to detect targets at great distances, while fishing sonar employs lower frequencies to identify schools of fish. However, excessive sonar use can harm marine life, particularly whales and dolphins, which rely on sound for communication and navigation. Balancing technological utility with environmental responsibility is crucial in this application.
In communication technology, sound transducers are integral to devices like telephones, intercoms, and hearing aids. Telephones use transducers to convert voice signals into electrical impulses for transmission and back into sound at the receiving end. Hearing aids, on the other hand, amplify sound waves using miniature transducers tailored to the user’s specific hearing loss. For instance, a behind-the-ear (BTE) hearing aid typically operates in the 20–20,000 Hz range, matching the frequency of human speech and ambient sounds. Regular maintenance, such as cleaning earwax from the transducer, ensures longevity and performance. Without these transducers, seamless communication across distances and disabilities would be impossible.
Across these applications, sound transducers demonstrate their versatility and indispensability. From enhancing entertainment to saving lives, their ability to bridge the gap between electrical and acoustic energy is transformative. Whether in a concert hall, hospital, ocean, or living room, transducers quietly power the technologies that define our daily lives. Understanding their function and limitations allows us to harness their potential effectively, ensuring they continue to serve humanity in ever-evolving ways.
How French Sounds to Foreign Ears: A Linguistic Journey
You may want to see also
Explore related products
Components: Consists of a diaphragm, coil, magnet, and housing for efficient sound conversion
A sound transducer is a device that converts electrical signals into sound waves or vice versa, and its efficiency hinges on the precise interplay of its core components. At the heart of this process is the diaphragm, a thin, flexible membrane that vibrates in response to electrical signals or sound pressure. This movement is the first step in converting energy from one form to another, making the diaphragm a critical element in the transducer’s functionality.
The coil, typically attached to the diaphragm, plays a pivotal role in the electromagnetic interaction. When an electrical current passes through the coil, it generates a magnetic field that interacts with the permanent magnet positioned nearby. This interaction causes the coil and diaphragm to move, producing sound waves. Conversely, in a microphone (a type of sound transducer), sound waves cause the diaphragm to vibrate, moving the coil within the magnetic field and inducing an electrical current. This dual functionality underscores the coil’s importance in both sound production and capture.
The magnet provides the static magnetic field necessary for the coil’s operation. Its strength and positioning are crucial for maximizing the efficiency of the transducer. A stronger magnet can produce more force, leading to greater diaphragm movement and, consequently, louder or clearer sound. However, the magnet’s size and material must be balanced with the overall design to avoid unnecessary bulk or weight, especially in portable devices like headphones or speakers.
Encasing these components is the housing, which serves multiple purposes. It provides structural support, ensuring the diaphragm, coil, and magnet remain aligned for optimal performance. The housing also acts as a barrier, protecting the internal components from environmental factors such as dust, moisture, and physical damage. Additionally, its design can influence the acoustic properties of the transducer, affecting sound quality and directionality. For instance, a well-designed housing can minimize unwanted resonances and enhance bass response in speakers.
In practical applications, understanding these components allows for better selection and maintenance of sound transducers. For example, in professional audio setups, choosing a transducer with a high-quality magnet and robust housing can significantly improve sound fidelity and durability. Similarly, in consumer electronics, a lightweight yet sturdy housing ensures portability without compromising performance. By focusing on these components, users can tailor their choices to specific needs, whether for recording studios, live performances, or everyday listening.
What Does Justice Sound Like? Exploring the Echoes of Fairness
You may want to see also
Frequently asked questions
A sound transducer is a device that converts sound waves into electrical signals or vice versa. It acts as an interface between acoustic energy and electrical energy.
A sound transducer works by using a diaphragm or membrane that vibrates in response to sound waves. These vibrations are then converted into electrical signals (in microphones) or electrical signals are converted into vibrations (in speakers).
Common types of sound transducers include microphones (for converting sound to electricity) and loudspeakers (for converting electricity to sound). Other examples are hydrophones (for underwater sound) and piezoelectric transducers.
Sound transducers are used in various applications, such as audio recording, telecommunications, hearing aids, sonar systems, medical imaging (ultrasound), and industrial testing equipment.
