Tyler Wynn

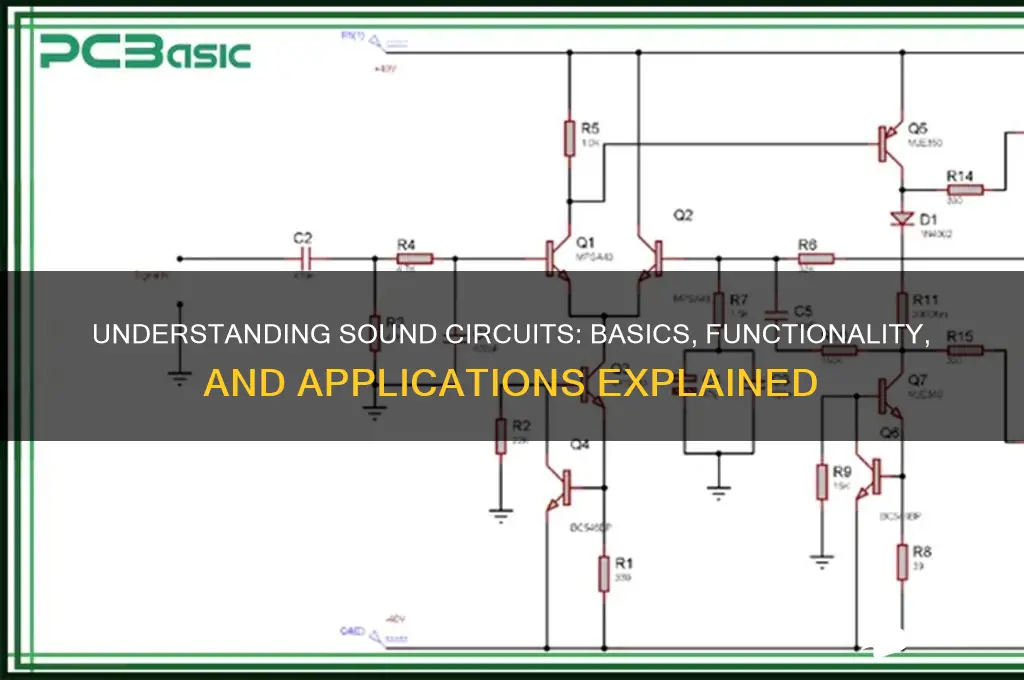

A sound circuit is an electronic system designed to process, amplify, and reproduce audio signals, enabling the conversion of electrical energy into audible sound waves. Typically consisting of components such as amplifiers, filters, and speakers, these circuits are fundamental to devices like radios, microphones, and audio players. They work by receiving input signals, often from sources like microphones or digital files, and manipulating them to enhance clarity, volume, or frequency response before outputting the sound through speakers or headphones. Understanding sound circuits is crucial for anyone involved in audio engineering, electronics, or the development of audio-based technologies, as they form the backbone of modern sound systems and communication devices.
| Characteristics | Values |
|---|---|
| Definition | A sound circuit, also known as an audio circuit, is an electronic circuit designed to process, amplify, or generate audio signals. |
| Primary Components | Resistors, capacitors, transistors, operational amplifiers (op-amps), speakers, microphones, and audio transformers. |
| Frequency Range | Typically handles frequencies between 20 Hz to 20 kHz, corresponding to the human hearing range. |
| Signal Types | Analog or digital audio signals. |
| Applications | Audio amplifiers, mixers, equalizers, sound cards, radios, and musical instruments. |
| Key Parameters | Gain, bandwidth, signal-to-noise ratio (SNR), total harmonic distortion (THD), and frequency response. |
| Power Source | Usually operates on DC power (e.g., batteries or power supplies) with voltages ranging from 3V to 24V. |
| Amplification | Amplifies weak audio signals to drive speakers or headphones, often using Class A, B, AB, or D amplifier designs. |
| Noise Reduction | Incorporates filters and shielding to minimize interference and background noise. |
| Digital Integration | Modern sound circuits often include digital signal processing (DSP) for effects like reverb, echo, and equalization. |
| Miniaturization | Advances in technology allow for compact designs using surface-mount components (SMD). |
| Connectivity | Includes input/output ports like 3.5mm jacks, RCA, USB, and Bluetooth for audio interfacing. |
| Safety Features | Overload protection, thermal shutdown, and short-circuit protection in high-power applications. |
Explore related products
What You'll Learn
- Sound Circuit Basics: Definition, components, and fundamental principles of sound circuits in electronics
- Amplification Process: How sound signals are amplified using transistors, op-amps, or ICs
- Filtering Techniques: Methods to remove noise and enhance specific frequencies in audio signals
- Signal Modulation: Techniques for encoding and decoding audio signals in communication systems
- Applications in Devices: Use of sound circuits in speakers, microphones, and audio equipment
Sound Circuit Basics: Definition, components, and fundamental principles of sound circuits in electronics
Sound circuits are the backbone of audio electronics, transforming electrical signals into audible sound waves and vice versa. At their core, these circuits rely on three fundamental components: a microphone or audio source, an amplifier, and a speaker. The microphone converts sound waves into electrical signals, the amplifier boosts these signals to usable levels, and the speaker reverses the process, turning the amplified signals back into sound. This simple yet powerful trio forms the basis of everything from smartphones to concert sound systems.
Consider the anatomy of a basic sound circuit. A microphone, for instance, uses a diaphragm that vibrates in response to sound waves, generating an electrical signal proportional to the sound’s amplitude and frequency. This signal is often weak, requiring an amplifier to increase its strength. Amplifiers use transistors or operational amplifiers (op-amps) to multiply the signal’s voltage or current, ensuring it’s powerful enough to drive a speaker. The speaker, equipped with a coil and magnet, converts the amplified electrical signal into mechanical vibrations, producing sound. Understanding this flow—input, amplification, output—is key to designing or troubleshooting sound circuits.
One of the fundamental principles governing sound circuits is the concept of frequency response. Human hearing spans approximately 20 Hz to 20,000 Hz, and a well-designed sound circuit must accurately reproduce this range. Components like capacitors and inductors in filters shape the frequency response, ensuring clarity and fidelity. For example, a high-pass filter removes low-frequency noise, while a low-pass filter attenuates high-frequency distortion. Balancing these elements is critical, as poor frequency response can result in muffled or tinny sound, even with high-quality components.
Practical tips for building sound circuits include selecting components with appropriate specifications. For instance, choose a microphone with a sensitivity rating (measured in mV/Pa) that matches your application—higher sensitivity for quiet environments, lower for loud ones. Amplifiers should have sufficient gain (measured in dB) and power output to drive your speaker without distortion. Speakers must be impedance-matched to the amplifier, typically 4, 8, or 16 ohms, to ensure efficient power transfer. Always test your circuit incrementally, verifying each stage’s functionality before proceeding, to isolate issues early.
In essence, sound circuits are a harmonious blend of physics and electronics, turning abstract electrical signals into tangible auditory experiences. By mastering their components and principles, you can design systems that capture, enhance, and reproduce sound with precision. Whether you’re crafting a DIY audio project or optimizing professional equipment, understanding these basics is the first step toward acoustic excellence.
Mastering Reason: Step-by-Step Guide to Loading Sound Packs Easily
You may want to see also
Explore related products
Amplification Process: How sound signals are amplified using transistors, op-amps, or ICs
Sound signals, inherently weak and prone to degradation, require amplification to become audible through speakers or headphones. This process involves increasing the amplitude of the signal while maintaining its integrity, a task accomplished by transistors, operational amplifiers (op-amps), or integrated circuits (ICs). Each of these components offers distinct advantages and is chosen based on the specific requirements of the sound circuit, such as power efficiency, size, and cost.
Transistors, the building blocks of modern electronics, amplify sound through their ability to control current flow. In a typical configuration, a small input signal modulates the base-emitter junction of a bipolar junction transistor (BJT), causing a proportional change in the collector current. This results in a larger output signal, amplified by the transistor’s current gain (hFE). For example, a common-emitter amplifier can achieve a voltage gain of 10x to 100x, depending on the resistor values and transistor characteristics. Practical tip: When designing a transistor amplifier, ensure the operating point (biasing) is set correctly to avoid distortion, typically using a voltage divider or emitter resistor.
Op-amps, or operational amplifiers, provide a more sophisticated approach to amplification. These high-gain differential amplifiers are often used in audio circuits for their precision and versatility. In a non-inverting configuration, the input signal is applied to the non-inverting terminal, and the gain is determined by the ratio of two resistors (1 + R2/R1). For instance, a 10kΩ feedback resistor (R2) and a 1kΩ input resistor (R1) yield a gain of 11x. Op-amps also offer benefits like high input impedance and low output impedance, making them ideal for interfacing with sensitive audio sources. Caution: Always use decoupling capacitors near the power pins to prevent noise from entering the circuit.
Integrated circuits (ICs) streamline the amplification process by combining multiple transistors, resistors, and other components into a single package. Audio-specific ICs, such as the LM386, are designed for low-power applications and can deliver gains up to 200x with minimal external components. These ICs often include built-in features like volume control and thermal shutdown, making them user-friendly for hobbyists and professionals alike. For example, a portable audio amplifier using the LM386 requires only a handful of capacitors and resistors, making it compact and cost-effective. Practical tip: When using ICs, always refer to the datasheet for recommended component values and layout guidelines to ensure optimal performance.
In comparison, transistors offer flexibility and customization but require careful design, while op-amps provide precision and ease of use at the expense of slightly higher complexity. ICs, on the other hand, prioritize convenience and integration, making them the go-to choice for many consumer audio applications. The choice of amplification method ultimately depends on the specific needs of the sound circuit, balancing factors like gain, distortion, power consumption, and component availability. By understanding the strengths and limitations of transistors, op-amps, and ICs, designers can tailor their circuits to deliver clear, powerful sound reproduction.
