Lena Torres

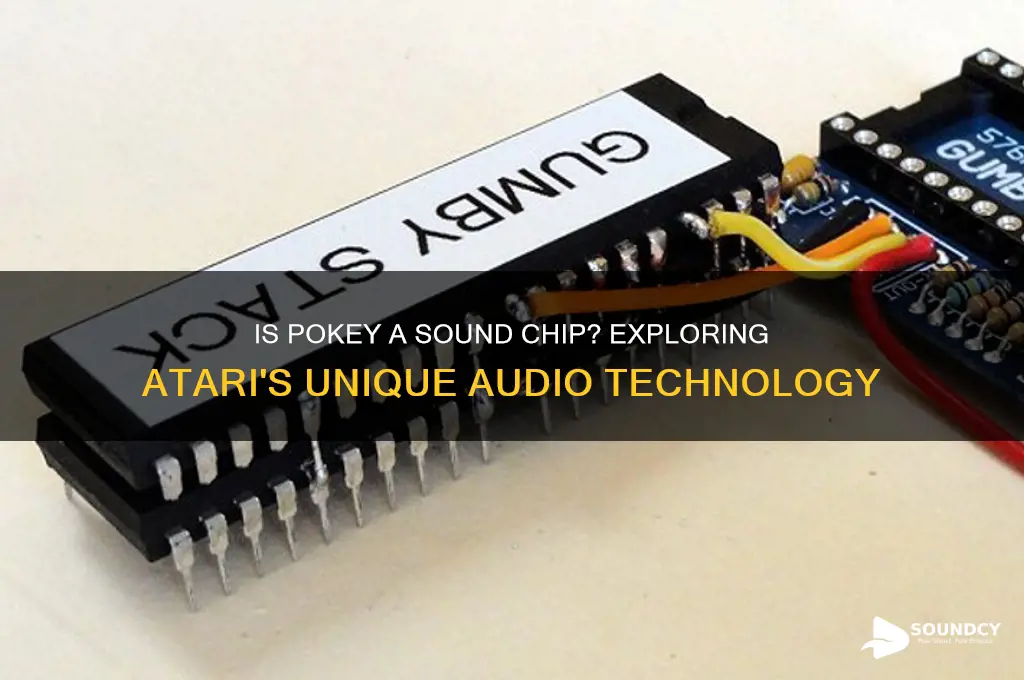

The question of whether Pokey is a sound chip is a fascinating one, rooted in the history of early computer and gaming technology. Pokey, short for Pot Keyboard Integrated Circuit, is actually a multi-purpose chip developed by Atari in the late 1970s, primarily for use in their 8-bit computer systems and game consoles like the Atari 800 and Atari 5200. While Pokey is best known for its role in handling keyboard input and timers, it also includes a sound synthesis component capable of generating four-voice audio, making it a versatile chip that combines input/output functionality with sound capabilities. Therefore, while not exclusively a sound chip, Pokey does indeed include sound generation features, blurring the lines between its primary and secondary functions.
| Characteristics | Values |
|---|---|
| Name | POKEY (Pot Keyboard Integrated Circuit) |
| Type | Sound and I/O chip |
| Manufacturer | MOS Technology (later Commodore Semiconductor Group) |
| Introduced | 1979 |
| Used In | Atari 8-bit computers, Atari 5200 console, some Commodore and Atari arcade machines |
| Sound Channels | 4 audio channels (2 are noise generators, 2 are tone generators) |
| Audio Capabilities | Square wave synthesis, white noise, and mixed modes |
| Sampling Rate | 8-bit, variable rate (up to ~66 kHz for noise, ~15 kHz for tones) |
| Additional Functions | Keyboard scanning, joystick/paddle input, serial I/O, timers, and interrupts |
| Clock Speed | Typically 1.79 MHz (Atari 8-bit systems) |
| Memory | No dedicated memory; relies on system RAM |
| Programming Interface | Register-based, requires direct memory access (DMA) for advanced features |
| Legacy | Known for its versatility and unique sound capabilities in 8-bit systems |
Explore related products
What You'll Learn
- Pokey's Sound Capabilities: Overview of Pokey's audio features and limitations in Atari systems
- Technical Specifications: Details on Pokey's hardware design and sound generation methods
- Sound Chip Comparison: Pokey vs. other contemporary sound chips like SID or AY-3-8910
- Programming Pokey: Techniques for coding music and sound effects using Pokey
- Historical Impact: Pokey's influence on 8-bit gaming and computer audio development
Pokey's Sound Capabilities: Overview of Pokey's audio features and limitations in Atari systems
The POKEY chip, a cornerstone of Atari's 8-bit computer and console systems, is indeed a sound chip, but its capabilities extend far beyond audio. This unassuming 40-pin integrated circuit, designed by Atari engineers in the late 1970s, houses a complex array of features, including interrupt timers, joystick port control, and serial I/O. However, it's the sound synthesis capabilities that often capture the imagination of retrocomputing enthusiasts and musicians alike. At its core, POKEY employs a unique method of sound generation, utilizing four semi-independent channels, each capable of producing either a square wave or a more complex, noise-based waveform.
To unlock POKEY's audio potential, programmers must navigate its intricate register-based interface. Each sound channel has dedicated registers for frequency, volume, and waveform selection, allowing for precise control over the generated tones. For instance, setting the AUDF (Audio Frequency) register to a value of 100 will produce a tone with a frequency of approximately 15.67 kHz, given the chip's default clock speed of 1.79 MHz. The AUX (Audio Control) register further refines the sound, enabling features such as volume envelope control and noise generation. By manipulating these registers in real-time, programmers can create a wide range of sounds, from simple beeps and boops to complex, multi-layered compositions.
Despite its impressive capabilities, POKEY's sound generation has inherent limitations. The chip's 8-bit architecture restricts the range of frequencies and volumes that can be produced, often resulting in a distinctive, lo-fi sound. Additionally, the lack of dedicated hardware for features like frequency modulation (FM) synthesis or sample playback means that creating certain types of sounds, such as realistic instrument simulations, can be challenging. However, it's precisely these limitations that have inspired a dedicated community of chiptune artists and programmers to push the boundaries of what's possible with POKEY, resulting in a rich tapestry of innovative music and sound effects.
One of the most intriguing aspects of POKEY's sound capabilities is its ability to generate pseudo-random noise, which can be used to create a variety of sound effects, from drum hits to sci-fi lasers. By setting the AUDC (Audio Control) register to a specific value, programmers can enable the noise generator, which produces a random sequence of bits that modulate the output waveform. This feature, combined with the chip's ability to mix multiple channels, allows for the creation of complex, layered sounds that were ahead of their time. For example, the classic Atari game _Yars' Revenge_ uses POKEY's noise generator to create the distinctive, otherworldly sound of the enemy swarm.
In practice, harnessing POKEY's sound capabilities requires a combination of technical skill and creative vision. Programmers must be willing to experiment with the chip's registers, often using assembly language or low-level programming techniques to achieve the desired results. However, the rewards can be substantial, as demonstrated by the thriving demoscene and chiptune communities that continue to explore and expand the possibilities of POKEY-based audio. Whether you're a seasoned programmer or a curious newcomer, delving into the world of POKEY sound generation offers a unique opportunity to engage with the history of computer music and push the boundaries of what's possible with this iconic chip.
Summertime Saga: Characters and Their Voices
You may want to see also
Explore related products
Technical Specifications: Details on Pokey's hardware design and sound generation methods
The POKEY chip, developed by Atari in the late 1970s, is a versatile integrated circuit that serves multiple functions, including sound generation, keyboard scanning, and serial I/O. Its hardware design is a marvel of efficiency, packing a range of capabilities into a single chip. At its core, POKEY features four semi-independent audio channels, each capable of generating square waves with adjustable frequency and volume. These channels can be combined in various ways to produce complex sounds, making POKEY a pioneer in early digital audio synthesis. The chip operates at a clock speed of 1.79 MHz, which, while modest by today’s standards, was sufficient for creating the beeps, boops, and melodies that defined the soundtracks of classic Atari games and computers.
To generate sound, POKEY employs a technique known as programmable sound generation (PSG). Each audio channel includes an 8-bit frequency divider and an 8-bit volume control, allowing for precise tuning and amplitude modulation. The chip also incorporates a noise generator, which can be mixed with the square wave channels to add percussive or ambient effects. This noise generator uses a 17-bit polynomial counter, producing a pseudo-random sequence that mimics white noise. Additionally, POKEY supports a unique "filtered" mode, where the output of one channel can modulate the frequency of another, enabling rudimentary frequency modulation (FM) synthesis. This flexibility made POKEY a powerful tool for composers and programmers working within the constraints of 8-bit systems.
One of the most intriguing aspects of POKEY’s design is its integration of non-audio functions alongside sound generation. The chip includes a keyboard scanning module capable of handling up to 64 keys, making it ideal for use in Atari’s home computers like the Atari 800. It also features two serial I/O ports, which could be used for peripherals such as printers or modems. This multifunctional approach not only reduced the overall component count in Atari systems but also streamlined the design process, as engineers could rely on a single chip for multiple critical tasks. However, this integration also meant that POKEY’s audio capabilities were sometimes limited by the demands of its other functions, particularly in resource-constrained environments.
For those interested in experimenting with POKEY’s sound generation, understanding its register-based programming model is essential. The chip is controlled via a set of 16 write-only registers, each responsible for configuring specific aspects of the audio channels, noise generator, or other functions. For example, writing to registers $D200 and $D201 sets the frequency of audio channel 1, while $D202 controls its volume. Practical tips for working with POKEY include using assembly language for precise timing control and leveraging the chip’s interrupt capabilities to synchronize sound effects with game events. Modern enthusiasts can also explore POKEY emulation in software, which allows for experimentation without the need for vintage hardware.
In comparison to contemporary sound chips like the SID (used in the Commodore 64) or the AY-3-8910, POKEY’s sound generation methods are simpler but no less effective. While the SID offered advanced features like waveform shaping and filter control, POKEY’s strength lies in its versatility and ease of integration. Its ability to combine sound, keyboard scanning, and I/O in a single package made it a cornerstone of Atari’s hardware strategy. Today, POKEY remains a fascinating subject for retrocomputing enthusiasts and a testament to the ingenuity of early microprocessor design. By studying its technical specifications, we gain insight into the creative solutions that shaped the early days of digital audio.
Aristotle's Acoustic Odyssey: Unraveling the Mystery of Sound's Discovery
You may want to see also
Explore related products
Sound Chip Comparison: Pokey vs. other contemporary sound chips like SID or AY-3-8910
The POKEY sound chip, developed by Atari for its 8-bit computer and console systems, stands out in the landscape of early sound chips for its versatility and unique capabilities. Unlike its contemporaries, such as the SID (used in the Commodore 64) or the AY-3-8910 (found in systems like the Amstrad CPC and ZX Spectrum), POKEY was not solely dedicated to audio synthesis. It combined sound generation with other functions like keyboard scanning and interrupt handling, making it a multi-purpose chip. This integration, while efficient, also meant that POKEY’s audio capabilities were somewhat limited compared to chips designed exclusively for sound.
From a technical standpoint, POKEY’s sound generation relies on four square wave channels, each with adjustable volume and frequency, and a fifth channel for noise generation. This setup allowed for simple melodies and sound effects but lacked the complexity of the SID chip’s three-voice, waveform-modifiable design. The SID, with its analog filters and ability to produce richer, more dynamic sounds, became iconic for its role in shaping the music of the Commodore 64 era. In contrast, POKEY’s sound was often described as harsher and less nuanced, though it excelled in creating distinctive, retro tones that became a hallmark of Atari games.
The AY-3-8910, another contemporary of POKEY, offered three channels of sound generation with more flexibility in envelope control and noise mixing. While it lacked the SID’s depth, it provided a balanced middle ground between simplicity and capability. Compared to POKEY, the AY-3-8910’s sound was cleaner and more versatile, making it a popular choice for European home computers. However, POKEY’s ability to handle additional system tasks gave it an edge in resource-constrained environments, where efficiency was paramount.
For enthusiasts and modern retro developers, choosing between these chips often comes down to the desired aesthetic and technical constraints. If you’re aiming for the lush, atmospheric soundscapes of Commodore 64 music, the SID is the clear choice. For projects requiring a more utilitarian approach with a distinct, gritty character, POKEY shines. The AY-3-8910, meanwhile, is ideal for those seeking a balance of simplicity and control. Each chip’s limitations and strengths make them uniquely suited to different creative visions, ensuring their continued relevance in the world of chiptune and retro computing.
In practical terms, emulating or working with these chips today requires understanding their specific quirks. For instance, POKEY’s lack of hardware envelopes means that volume modulation must be handled programmatically, while the SID’s filter requires careful tuning to avoid distortion. The AY-3-8910’s straightforward design makes it the easiest to work with for beginners, though its limited channels demand creative composition. Whether you’re composing music, developing a game, or simply exploring the history of sound chips, understanding these differences will help you harness their unique potential.
What Does a Sonic Boom Sound Like? Unraveling the Mystery
You may want to see also
Explore related products
Programming Pokey: Techniques for coding music and sound effects using Pokey
Pokey, the Programmable Sound Generator, is indeed a sound chip, specifically designed for the Atari 8-bit computers and some Atari arcade games. Its capabilities, though limited by modern standards, offer a fascinating playground for retro computing enthusiasts and chiptune musicians alike. Programming Pokey to create music and sound effects requires a blend of technical precision and creative ingenuity. Here’s how to harness its potential effectively.
To begin coding music on Pokey, understand its four audio channels. Each channel can produce square waves with adjustable frequency and volume, enabling polyphonic compositions. Start by initializing the hardware registers using POKE commands in BASIC or direct memory manipulation in assembly. For example, setting the frequency divider for channel 0 involves writing a value to memory address $D200. Experiment with values to produce different pitches, keeping in mind that Pokey’s frequency resolution is coarse compared to modern chips. A practical tip: use a lookup table for common notes to save time and reduce errors.
Sound effects, on the other hand, leverage Pokey’s noise generator and filter capabilities. The noise generator can produce white or periodic noise, ideal for simulating explosions, wind, or machinery. Combine this with the audio channels for layered effects. For instance, a laser sound effect might use a short, high-pitched tone on channel 1 paired with a burst of noise. The key is timing: precise control over duration and amplitude modulation creates realism. Assembly language is often preferred here for its speed and granularity, allowing sub-millisecond timing adjustments.
One advanced technique is using Pokey’s quadrature decoder for input-driven sound effects, such as paddle-controlled pitch bends. This feature, originally intended for reading analog controllers, can be repurposed creatively. By monitoring the decoder registers, you can map physical input to sound parameters in real time. This technique adds interactivity to your compositions, bridging the gap between player action and auditory feedback.
Finally, optimize your code to avoid conflicts with other system processes. Pokey shares hardware interrupts with other peripherals, so timing-critical routines should be interrupt-driven or carefully synchronized. Test your code on actual hardware or accurate emulators to ensure compatibility, as timing quirks can vary between platforms. With patience and experimentation, Pokey’s limitations become a canvas for innovation, proving that even a 1970s sound chip can produce compelling audio experiences.
Understanding Whimpers: Decoding the Soft, Pitiful Sounds of Distress
You may want to see also
Explore related products
Historical Impact: Pokey's influence on 8-bit gaming and computer audio development
The POKEY chip, developed by Atari in the late 1970s, was a multifunctional integrated circuit that played a pivotal role in shaping the audio landscape of 8-bit gaming and computing. Unlike dedicated sound chips of its era, POKEY combined audio synthesis with input/output functions, making it a cost-effective solution for Atari’s 8-bit computers and game consoles. Its four-channel audio capabilities, though limited by modern standards, offered a surprising degree of flexibility, enabling composers to create distinctive soundscapes that defined the era’s games and applications.
To understand POKEY’s historical impact, consider its technical specifications and how they influenced creative output. Each of its four channels could produce square waves with adjustable duty cycles, allowing for a range of tones from harsh beeps to softer pulses. Additionally, POKEY included a noise generator and a unique "random" mode, which composers exploited to simulate percussion or ambient effects. For instance, the iconic *Boulder Dash* soundtrack leveraged POKEY’s noise channel to create a tense, granular atmosphere, while *Star Raiders* used its pitch bending capabilities to mimic the Doppler effect of passing spacecraft. These innovations demonstrated how hardware limitations could inspire artistic ingenuity.
POKEY’s influence extended beyond Atari’s ecosystem, setting a benchmark for what was achievable in 8-bit audio. Its design philosophy—prioritizing versatility over complexity—inspired subsequent sound chips like the SID in the Commodore 64, which built upon POKEY’s foundation with more advanced features. However, POKEY’s simplicity ensured it remained accessible to hobbyists and programmers, fostering a community of demoscene artists and game developers who pushed its boundaries. Today, POKEY emulators and modern recreations allow contemporary creators to experiment with its unique sonic palette, ensuring its legacy endures in both retro and new media.
Practical tips for exploring POKEY’s capabilities include studying its register-based programming model, which requires precise manipulation of memory addresses to control sound parameters. Tools like Altirra, an Atari 8-bit emulator, offer cycle-accurate POKEY emulation, ideal for dissecting classic game soundtracks. For hands-on experience, hardware enthusiasts can build POKEY-based projects using FPGA boards, recreating its circuitry for custom audio experiments. Whether for historical appreciation or creative exploration, engaging with POKEY provides invaluable insights into the evolution of computer audio and its intersection with gaming culture.
Mastering Your Computer Sound Settings: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Yes, Pokey is a sound chip, specifically the POKEY chip, used in Atari 8-bit computers and some Atari arcade games.
Pokey is an acronym for "Pot Keyboard Integrated Circuit," but it also refers to the POKEY chip, which handles sound, keyboard input, and other I/O functions.
The Pokey chip features four-channel sound, including noise and tone generators, allowing for a range of sound effects and simple music in Atari systems.
No, the Pokey chip is not used in modern systems, but it remains a nostalgic and influential component in retro computing and gaming communities.
