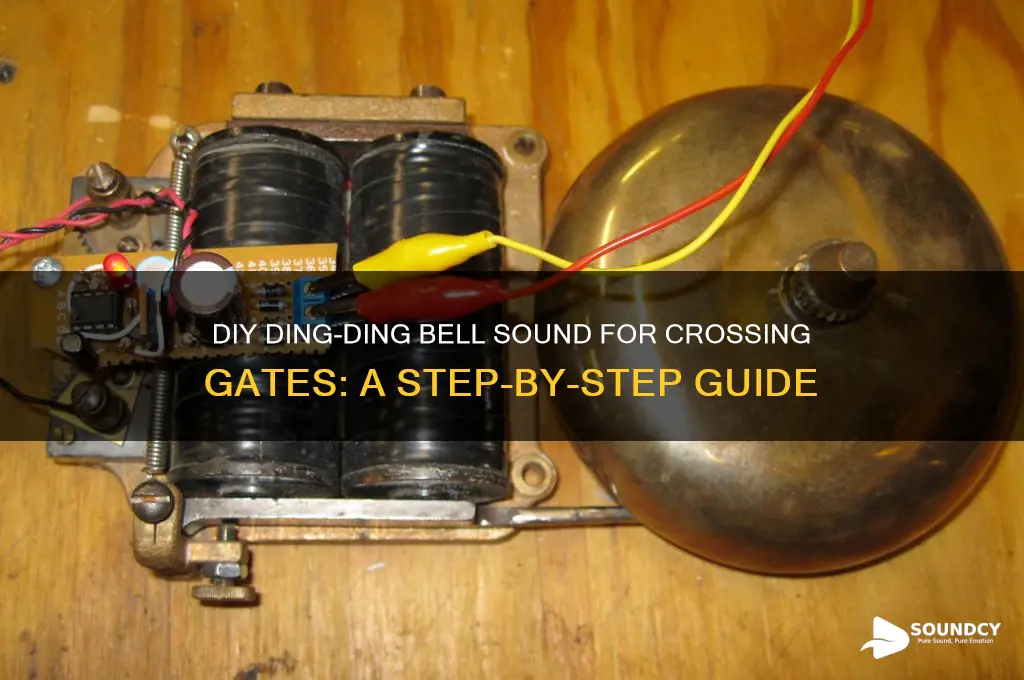

Creating a dinging bell sound for a crossing gate involves a combination of mechanical and electrical components to produce a clear, audible alert for safety. Typically, a solenoid or motor-driven hammer is used to strike a metal bell, generating the distinctive ding sound. The system can be integrated with the gate’s control mechanism, ensuring the bell activates when the gate lowers or raises. For DIY projects, a simple setup might include a small bell, a solenoid, and a microcontroller like an Arduino to trigger the sound at the appropriate times. Commercial solutions often come pre-assembled with weatherproof housings and reliable power sources for outdoor use. Proper installation and regular maintenance are essential to ensure the bell remains functional and effective in alerting pedestrians and vehicles.
| Characteristics | Values |
|---|---|
| Sound Type | Dinging bell sound |
| Purpose | Alerting pedestrians and vehicles at a crossing gate |
| Components Needed | Bell mechanism, striker, power source (electric/manual), mounting hardware |
| Power Options | Electric (solenoid-driven), manual (hand-cranked), pneumatic |
| Sound Frequency | Typically 500–1000 Hz for clarity and audibility |
| Volume | Adjustable, typically 80–100 dB for outdoor use |
| Activation Method | Automatic (sensors, timers), manual (button/lever) |
| Material | Metal (brass, steel) for durability and resonance |
| Weather Resistance | Waterproof and rust-resistant coating |
| Installation Location | Near crossing gates, railways, or pedestrian crossings |
| Maintenance | Regular cleaning, lubrication of moving parts, and power source checks |
| Safety Compliance | Meets local noise and safety regulations |
| Cost Range | $50–$500 depending on complexity and power source |
| DIY Feasibility | Moderate (requires basic electrical/mechanical skills) |
| Examples | Railway crossing bells, school crossing alarms |
Explore related products
What You'll Learn
- Choosing the right bell material for optimal sound resonance and durability
- Designing the striker mechanism for consistent and clear bell activation
- Integrating sensors to detect trains and trigger the bell automatically
- Mounting the bell securely to withstand weather and vibrations at crossings
- Tuning the bell to achieve the desired pitch and volume for safety
Choosing the right bell material for optimal sound resonance and durability
The material of a bell significantly influences its sound resonance and durability, making it a critical factor in creating the distinctive dinging sound for a crossing gate. Brass, bronze, and steel are among the most commonly used materials, each offering unique acoustic properties and longevity. Brass bells, for instance, produce a bright, crisp sound with moderate durability, making them suitable for moderate-use applications. Bronze bells, on the other hand, offer a richer, deeper tone with superior corrosion resistance, ideal for outdoor environments. Steel bells provide a sharp, penetrating sound and exceptional durability, though they may lack the warmth of brass or bronze. Understanding these material characteristics is the first step in selecting the right bell for your crossing gate.
When prioritizing sound resonance, consider the alloy composition and thickness of the bell. Bells made from high-tin bronze alloys, such as bell bronze (20% tin, 80% copper), are renowned for their resonant, long-lasting tone. The thickness of the bell wall also plays a crucial role; thicker walls generally produce a deeper, more sustained sound, while thinner walls yield a higher-pitched, shorter tone. For crossing gates, a bell with a balanced wall thickness—neither too thick nor too thin—is often ideal, as it ensures clarity and audibility without being overly harsh. Experimenting with different thicknesses and alloys can help you achieve the desired sound profile.
Durability is equally important, especially for outdoor crossing gates exposed to weather and frequent use. Stainless steel and high-copper bronze alloys excel in this regard, offering resistance to rust, corrosion, and wear. If your crossing gate is in a coastal or humid area, stainless steel is a superior choice due to its immunity to salt-induced corrosion. However, if you prefer the aesthetic and tonal qualities of bronze, opt for a silicon-bronze alloy, which provides enhanced durability without compromising sound quality. Regular maintenance, such as periodic cleaning and protective coatings, can further extend the life of your bell, regardless of material.
A practical approach to choosing the right material involves balancing your priorities: sound quality, durability, and budget. For instance, if sound resonance is paramount and cost is not a constraint, a high-tin bronze bell is an excellent investment. If durability is the primary concern, stainless steel offers unmatched longevity, though its sound may be less nuanced. Brass bells provide a cost-effective middle ground, delivering satisfactory sound and durability for light to moderate use. Consider the specific demands of your crossing gate location and usage patterns to make an informed decision.
Finally, don’t overlook the role of craftsmanship in maximizing the potential of your chosen material. Hand-cast bells often exhibit superior resonance compared to machine-made ones, as the casting process allows for greater control over wall thickness and alloy distribution. Additionally, the clapper material and design can significantly affect the sound; a hardwood or brass clapper tends to produce a warmer tone, while a steel clapper enhances sharpness. By combining the right material with thoughtful craftsmanship, you can create a dinging bell sound for your crossing gate that is both functional and distinctive.
Unmute Astro Sound: Quick Fixes for Clear Audio Experience
You may want to see also
Explore related products
Designing the striker mechanism for consistent and clear bell activation
A well-designed striker mechanism is the heart of a reliable crossing gate bell. It’s the component that translates mechanical energy into the crisp, audible ding that signals safety. Achieving consistency and clarity in this sound requires precision in both material selection and mechanical design. For instance, a striker made from hardened steel will produce a sharper, more resonant tone compared to softer metals like brass, which tend to dull over time. The angle and velocity of impact also play critical roles; a striker hitting the bell at a 45-degree angle with a controlled speed of 2–3 meters per second maximizes both volume and clarity without causing excessive wear.
Consider the mechanics of activation. A solenoid-driven striker, for example, offers precise control over the striking force and timing. Pairing this with a spring-return mechanism ensures the striker retracts fully after each strike, preventing double-hits or muffled sounds. For DIY setups, a simple lever arm actuated by the gate’s movement can be effective, but it requires careful calibration to avoid variability in strike force. Incorporating a dampening material, like rubber, at the pivot points reduces vibrations that could muddy the sound, ensuring each ding is crisp and distinct.
Durability is another critical factor. Outdoor crossing gates are exposed to weather, dust, and debris, which can degrade the striker mechanism over time. Enclosing the striker in a weatherproof housing and using corrosion-resistant materials, such as stainless steel or coated aluminum, extends its lifespan. Regular maintenance, including lubricating moving parts and inspecting for wear, is essential. For high-traffic areas, consider a striker with replaceable tips to avoid the cost and downtime of replacing the entire mechanism.
Finally, test the mechanism under real-world conditions. Simulate various gate speeds and environmental factors to ensure consistent performance. For example, a bell that sounds perfectly in a controlled workshop might falter in windy conditions due to air resistance affecting the striker’s path. Adjustments like adding a wind shield or increasing the striker’s mass can mitigate these issues. By combining thoughtful design, robust materials, and thorough testing, you can create a striker mechanism that delivers a clear, consistent ding every time the gate activates.
The Haunting Melody: Decoding the Unique Sound of a Train Whistle
You may want to see also
Explore related products
Integrating sensors to detect trains and trigger the bell automatically
To create an automated dinging bell system for a crossing gate, integrating sensors to detect trains is a critical step. The process begins with selecting the right type of sensor for your specific needs. Proximity sensors, such as inductive or capacitive sensors, can detect metallic objects like trains within a range of 1 to 30 millimeters, making them ideal for close-range detection. For longer distances, radar sensors or laser sensors can detect trains up to several hundred meters away, providing ample time to trigger the bell. When choosing a sensor, consider factors like environmental conditions (e.g., weather resistance), power requirements, and compatibility with your control system.
Once the sensor is selected, the next step is to strategically position it along the train tracks. Mount the sensor on a stable structure, ensuring it has a clear line of sight to the tracks. For radar or laser sensors, align the sensor’s beam perpendicular to the tracks to maximize detection accuracy. Test the sensor’s range and sensitivity by simulating a train’s approach using a metallic object. Adjust the sensor’s settings if necessary to avoid false triggers from non-train objects like cars or pedestrians. Proper placement and calibration are crucial to ensure the system activates reliably when a train is detected.
After positioning the sensor, connect it to a control unit that processes the detection signal and triggers the bell. This can be a microcontroller like an Arduino or Raspberry Pi, programmed to activate the bell when the sensor detects a train. For example, if using an Arduino, write a simple script that monitors the sensor’s output pin. When the sensor detects a train, the script sends a signal to a relay module, which switches the bell circuit on. Ensure the control unit is housed in a weatherproof enclosure to protect it from the elements, especially if installed outdoors.
A key consideration in this setup is fail-safe mechanisms to prevent accidents. Implement a backup power supply, such as a battery or solar panel, to keep the system operational during power outages. Additionally, include a manual override switch that allows operators to activate the bell independently of the sensor. Regularly test the system’s functionality by simulating train approaches and inspecting the sensor, control unit, and bell for wear or damage. Maintenance is essential to ensure the system remains reliable over time.
Finally, integrate warning lights alongside the bell to enhance safety. Connect LED lights to the same control unit, programming them to flash when the bell dings. This dual warning system provides both auditory and visual alerts, reducing the risk of accidents at the crossing. By combining sensors, a robust control system, and additional safety features, you can create an automated dinging bell system that effectively warns pedestrians and vehicles of approaching trains.
Discovering the Hidden Gem: Core Sound Estuary's Location Unveiled
You may want to see also
Explore related products
Mounting the bell securely to withstand weather and vibrations at crossings
Securing a bell to withstand the harsh conditions at railway crossings demands more than a casual mounting approach. Exposure to extreme weather, constant vibrations, and potential impacts necessitates a robust solution. Begin by selecting a bell made from durable materials like cast iron or stainless steel, which resist corrosion and maintain structural integrity over time. Pair this with a mounting bracket crafted from galvanized steel or aluminum to ensure longevity in outdoor environments. The bracket should be thick enough to handle stress without warping, typically ranging from ¼ to ½ inch in thickness, depending on the bell’s size and weight.
The mounting process itself requires precision and foresight. Use stainless steel bolts and vibration-dampening washers to secure the bell to the bracket, minimizing the risk of loosening due to constant shaking. Apply a marine-grade adhesive or sealant at all contact points to prevent water infiltration, which can lead to rust or electrical malfunctions if the bell is motorized. For added stability, consider anchoring the bracket to a reinforced concrete base or a sturdy wooden post treated with weather-resistant coatings. This dual-layer approach ensures the bell remains firmly in place, even during high winds or heavy snowfall.
A critical yet often overlooked aspect is the alignment of the bell’s striker mechanism. Misalignment can reduce sound clarity and increase wear on moving parts. Use a level and adjustable mounting arms to ensure the striker hits the bell’s center with consistent force. For motorized bells, install a vibration-isolating pad beneath the motor to reduce strain on internal components. Regularly inspect the system for signs of wear, tightening bolts and replacing seals as needed to maintain performance.
Comparing traditional versus modern mounting techniques highlights the evolution of this practice. Historically, bells were often hung from chains or simple hooks, which proved inadequate for railway crossings. Contemporary methods, such as rigid bracket systems and anti-vibration technology, offer superior durability and reliability. While the initial setup may require more effort and investment, the long-term benefits—reduced maintenance, consistent sound output, and enhanced safety—far outweigh the costs.
In conclusion, mounting a bell securely at a railway crossing is a task that blends material science, engineering, and practical ingenuity. By choosing the right materials, employing precise installation techniques, and incorporating protective measures, you can create a system that endures the elements and delivers a clear, reliable signal for years to come. This approach not only ensures the bell’s functionality but also contributes to the overall safety of the crossing environment.
Why Your Car AC Hisses: Causes and Quick Fixes Explained
You may want to see also
Explore related products
Tuning the bell to achieve the desired pitch and volume for safety
The pitch and volume of a crossing gate bell are critical for ensuring it’s audible yet not overwhelming, balancing safety with community comfort. A bell tuned to A440 (the standard concert pitch) can cut through ambient noise effectively, but adjustments may be necessary based on environmental factors like traffic or nearby industrial sounds. For instance, a bell at 440 Hz with a volume of 80 decibels (dB) is loud enough to alert pedestrians and drivers without causing discomfort, but in noisier areas, increasing the volume to 90 dB or shifting the pitch slightly higher (e.g., 466 Hz) can improve audibility.
Tuning a bell involves altering its physical properties or using electronic modulation. For mechanical bells, adding or removing weight from the clapper changes the strike force, affecting both pitch and volume. A heavier clapper produces a louder, lower sound, while a lighter one yields a higher, softer tone. For electronic systems, adjusting the frequency and amplitude in the sound file is straightforward—software like Audacity allows precise control over these parameters. A practical tip: test the bell at different times of day to account for varying noise levels, ensuring it remains effective during rush hour or late at night.
Safety standards recommend a bell sound lasting 2–3 seconds, with a 1-second pause between rings, to avoid confusion or desensitization. The pitch should fall within the range of 500–1000 Hz, as this frequency range is most easily heard by the human ear across age groups. For elderly individuals or those with hearing impairments, a dual-tone system (e.g., 523 Hz and 659 Hz) can improve detection. Volume should comply with local noise ordinances, typically not exceeding 90 dB at a distance of 1 meter from the source.
Comparing mechanical and electronic bells highlights trade-offs. Mechanical bells offer a classic, resonant sound but require regular maintenance to prevent pitch drift due to wear. Electronic bells, while more consistent, can sound artificial and may need weatherproofing for outdoor use. A hybrid approach—using a mechanical bell with an electronic striker—combines authenticity with reliability. Regardless of the method, periodic calibration is essential; a tuning app or sound level meter can verify pitch and volume accuracy, ensuring the bell remains a dependable safety signal.
Instructively, tuning should follow a structured process: first, measure the current pitch and volume using a digital tuner and decibel meter. Next, adjust the clapper weight or electronic settings incrementally, testing after each change. Finally, conduct a real-world trial, observing how the bell performs in various conditions. A well-tuned bell not only enhances safety but also minimizes nuisance, fostering goodwill within the community. By prioritizing precision and adaptability, crossing gate bells can effectively serve their purpose without becoming a source of irritation.
Understanding the Unique Gobble: What is the Turkey Sound?
You may want to see also
Frequently asked questions
You will need a bell or chime, a solenoid or striker mechanism, a power source (battery or electrical outlet), a control circuit (relay or microcontroller), and wiring to connect the components.
Use a limit switch or sensor to detect when the gate is lowering. Connect the switch to a control circuit that triggers the solenoid or striker to hit the bell, producing the sound.
Yes, you can use a speaker and a microcontroller (like an Arduino) to play a pre-recorded bell sound. Connect the microcontroller to the gate’s control system to activate the sound when needed.
Ensure all electrical components are properly insulated and weatherproofed. Test the system thoroughly to avoid malfunctions, and comply with local safety regulations for railway or roadway crossings.
