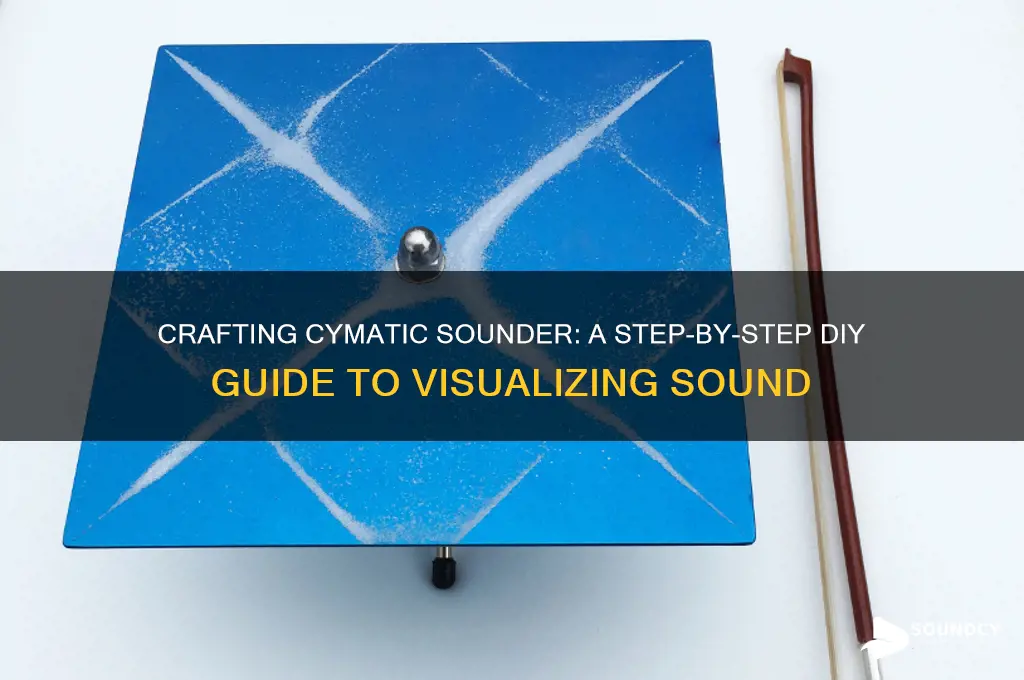

Cymatic sounders, devices that visualize sound vibrations through patterns in matter like sand, water, or other mediums, offer a fascinating intersection of art and science. Creating a cymatic sounder involves understanding the principles of sound wave interaction with physical materials. To build one, you’ll need a sound source, such as a speaker or tone generator, a flat surface or container to hold the medium (e.g., a plate or shallow dish), and a material like sand, water, or fine particles that can respond to vibrations. The process typically includes amplifying sound waves through the medium, causing it to form geometric patterns that reflect the frequency and amplitude of the sound. By experimenting with different frequencies and materials, you can explore the mesmerizing visual representations of sound, making a cymatic sounder both an educational and artistic endeavor.
| Characteristics | Values |
|---|---|
| Purpose | Visualize sound vibrations through patterns in a medium (e.g., water, sand, or particles) |
| Key Components | Sound source (speaker, tone generator), vibrating surface (plate, membrane, or container), medium (water, sand, etc.), amplifier (optional) |
| Types | Chladni Plate (vibrating plate with sand), Water Cymatics (vibrating water surface), Particle Cymatics (using fine particles) |
| Materials Needed | Speaker, amplifier, thin metal or glass plate (for Chladni), container (for water/particle cymatics), medium (sand, water, particles), signal generator (sine wave generator) |
| Frequency Range | Typically 20 Hz to 20 kHz, depending on the medium and setup |
| Amplification | Required for higher intensity vibrations, especially with larger setups |
| Pattern Formation | Depends on frequency, amplitude, and medium properties (e.g., surface tension, particle size) |
| Applications | Scientific research, art installations, educational demonstrations, sound therapy |
| Challenges | Achieving consistent patterns, controlling external vibrations, maintaining medium stability |
| Cost | Low to moderate, depending on materials and complexity (DIY setups can be inexpensive) |
| Safety Considerations | Avoid high-intensity vibrations that could damage hearing or equipment; ensure stable setup to prevent spills or accidents |
| Popular Examples | Chladni figures, water ripple patterns, sand mandalas created by sound vibrations |
| Advanced Techniques | Using 3D printers for custom plates, digital signal processing for precise frequency control, high-speed cameras for pattern analysis |
| Online Resources | DIY tutorials, scientific papers, cymatics communities (e.g., CymaScope, YouTube channels) |
Explore related products
What You'll Learn
- Materials Needed: Gather piezo sensor, amplifier, speaker, and a surface for vibrations
- Circuit Assembly: Connect piezo sensor to amplifier for signal processing
- Surface Preparation: Choose a flat, resonant surface like metal or glass
- Sound Input: Use a frequency generator or audio device for input
- Visualization Setup: Apply sand, water, or particles to see patterns form
Materials Needed: Gather piezo sensor, amplifier, speaker, and a surface for vibrations
A cymatic sounder transforms sound into visible patterns, and its core components are surprisingly simple. The piezo sensor acts as the device's ear, converting vibrations into electrical signals. This sensor, often a piezoelectric disk, is sensitive enough to detect subtle changes in frequency and amplitude, making it ideal for capturing the nuances of sound waves. Without it, the sounder would remain deaf to the auditory input it’s meant to visualize.
Next, the amplifier serves as the sounder’s voice, boosting the weak electrical signals from the piezo sensor into a form that can drive a speaker. A basic operational amplifier (op-amp) circuit, such as the LM386, is commonly used for this purpose. It’s crucial to match the amplifier’s gain to the sensitivity of your piezo sensor; too much amplification can distort the signal, while too little may result in faint or undetectable patterns. Experiment with resistors in the feedback loop to fine-tune the gain for optimal clarity.
The speaker is where sound becomes motion. A small, low-power speaker (2W to 5W) is sufficient for most cymatic experiments, as the goal is to create vibrations, not loud audio. Position the speaker directly beneath the vibration surface to ensure efficient energy transfer. For best results, use a speaker with a flat frequency response to avoid skewing the patterns with uneven sound output. If you’re working with a limited budget, scavenging speakers from old electronics can be a practical alternative.
Finally, the surface for vibrations is the canvas where cymatic patterns come to life. A thin, flexible material like a latex or rubber sheet works well, as it responds dynamically to vibrations. Stretch the material taut over a frame to create a uniform surface. For added visual impact, sprinkle fine particles (sand, salt, or powdered lycopodium) onto the surface. These particles will naturally arrange themselves into patterns as the surface vibrates, revealing the hidden geometry of sound. Experiment with different materials and particle sizes to observe how they affect pattern formation.
In assembling these materials, consider the interplay between them. The piezo sensor must be securely attached to the vibration surface to capture accurate data, while the amplifier and speaker should be positioned to minimize interference. With careful calibration and creativity, these components transform abstract sound waves into tangible, mesmerizing visuals, making the cymatic sounder a fascinating tool for both science and art.
