Elliot Kim

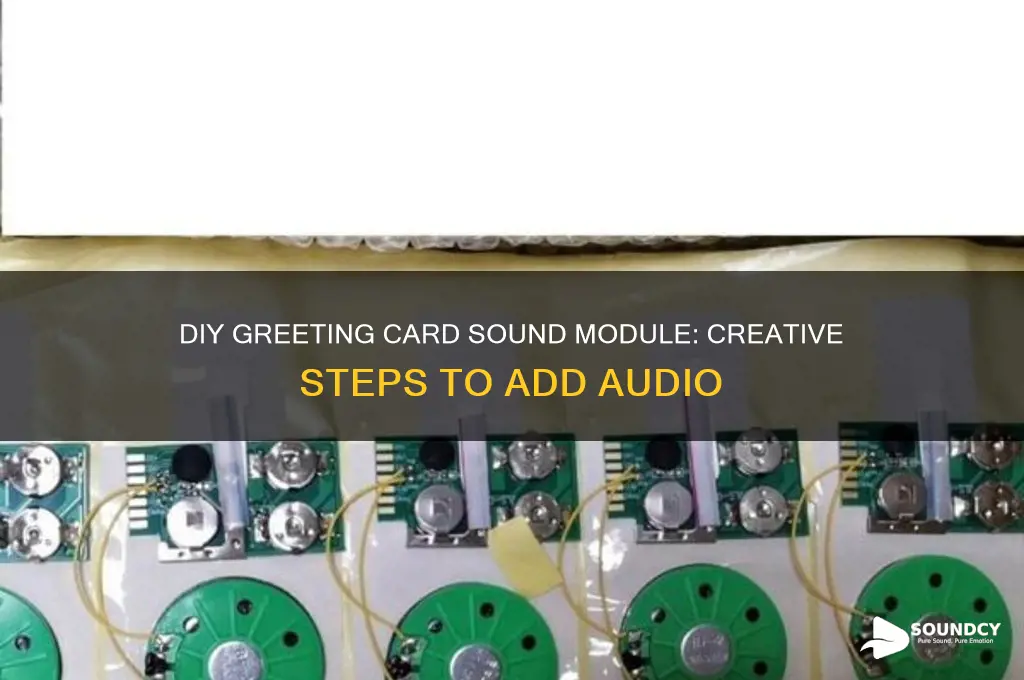

Creating a sound module for a greeting card is a fun and creative way to add a personal touch to your card, making it more engaging and memorable. This project involves integrating a small audio device that plays a pre-recorded message, song, or sound effect when the card is opened. To get started, you’ll need basic electronic components such as a microcontroller (like an Arduino or ATtiny), a small speaker, a push button or light sensor to trigger the sound, and a battery for power. The process includes programming the microcontroller to play the desired audio file, soldering the components together, and embedding them discreetly into the card. With careful planning and attention to detail, you can craft a unique, interactive greeting card that delights the recipient.
| Characteristics | Values |
|---|---|
| Components Needed | Microcontroller (e.g., ATtiny85), Speaker, Push Button, Battery, Resistor, Capacitor, Microphone (optional) |
| Power Source | Coin cell battery (e.g., CR2032), 3V-5V |
| Sound Storage | Pre-recorded audio file stored in EEPROM or external memory card |
| Audio Format | WAV, MP3 (compressed formats may require additional decoding hardware) |
| Activation Method | Push button, light sensor, or magnetic switch |
| Playback Duration | Typically 5-30 seconds (depends on memory capacity) |
| Speaker Type | Small piezoelectric speaker or mini magnetic speaker |
| Cost | $5-$20 (depending on components and complexity) |
| Size | Compact, designed to fit inside a greeting card (e.g., 20mm x 30mm) |
| Programming | Arduino IDE, C/C++ for microcontroller programming |
| DIY Kits Available | Yes (e.g., Adafruit, SparkFun sound modules) |
| Customization | Recordable modules allow for personalized messages |
| Battery Life | 100-500 plays (depends on battery capacity and usage) |
| Assembly Difficulty | Moderate (requires soldering and basic electronics knowledge) |
| Applications | Greeting cards, invitations, novelty items |
Explore related products
What You'll Learn
- Materials Needed: Gather components like microcontrollers, speakers, batteries, and recording modules for the sound module
- Circuit Design: Plan and assemble the circuit to ensure proper audio playback functionality
- Recording Audio: Use a microphone and software to record and format the greeting message
- Programming Steps: Write code to trigger audio playback when the card is opened or activated
- Assembly Tips: Integrate the sound module into the card, ensuring it fits neatly and works reliably
Materials Needed: Gather components like microcontrollers, speakers, batteries, and recording modules for the sound module
Creating a sound module for a greeting card begins with selecting the right microcontroller, the brain of your project. Popular choices include the ATtiny85 or Arduino Nano due to their compact size and ease of programming. For instance, the ATtiny85, measuring just 8mm x 8mm, fits seamlessly into a standard card without adding bulk. Ensure the microcontroller has enough memory to store your audio file, typically requiring at least 2KB for a short greeting. Pair it with a low-power mode to conserve battery life, as most greeting cards are opened infrequently.
Next, choose a speaker that balances sound quality and size. A 1-inch diameter, 8Ω speaker is ideal for greeting cards, delivering clear audio without overwhelming the card’s dimensions. For amplified volume, consider adding a small audio amplifier like the LM386, which can boost the signal without draining the battery excessively. Test the speaker’s placement within the card to avoid muffled sound—positioning it near a small cutout or hole enhances clarity.
Batteries are critical for powering your sound module, and the choice depends on longevity and size. A CR2032 coin cell battery is a common option, providing 3V and lasting up to 20 hours of continuous playback, though most cards will use far less. For longer-lasting projects, a rechargeable LiPo battery with a charging circuit can be integrated, but this adds complexity and thickness to the card. Always include an on/off switch or a magnetic activation mechanism to preserve battery life when the card is closed.
Recording modules simplify the process by eliminating the need for complex coding. Modules like the ISD1820 offer up to 20 seconds of recording time and can be triggered by a push button or light sensor. Alternatively, pre-programmed modules with fixed messages are available for beginners. If using a custom recording, ensure the audio is clear and concise, as background noise can degrade playback quality. Test the module’s sensitivity to avoid accidental activation during shipping or storage.
Finally, consider the enclosure and wiring. Use thin, flexible wires to connect components, and secure them with glue dots or double-sided tape to prevent shifting. Design the card layout to accommodate the module’s thickness, possibly creating a layered structure with cardstock or foam. Always prototype the design to ensure all components fit and function as intended before assembling the final card. With these materials carefully selected and integrated, your greeting card will deliver a memorable auditory surprise.
Explosive Echoes: Decoding the Vibrant Sounds of Fireworks
You may want to see also
Explore related products
Circuit Design: Plan and assemble the circuit to ensure proper audio playback functionality
Designing the circuit for a sound module in a greeting card requires precision and attention to detail to ensure reliable audio playback. Start by selecting a microcontroller or integrated circuit (IC) specifically designed for audio playback, such as the ATtiny series or dedicated voice recording ICs like the ISD1820. These components are compact, low-power, and ideal for small-scale projects. Pair the microcontroller with a small amplifier, such as the LM386, to drive a miniature speaker or piezoelectric buzzer, ensuring the sound is clear and audible despite the card’s limited size.
Next, plan the power supply carefully. A coin cell battery (e.g., CR2032) is commonly used due to its thin profile and sufficient voltage (3V) for most audio ICs. Incorporate a switch mechanism, such as a tilt or push-button switch, to activate the circuit when the card is opened. To conserve power, add a capacitor (e.g., 100µF) across the power rails to stabilize voltage and prevent glitches during playback. Test the circuit’s power consumption to ensure the battery lasts through the intended lifespan of the card.
The audio storage and playback mechanism is critical. If using a microcontroller, program it to store audio data in flash memory or pair it with an external EEPROM. For simplicity, voice recording ICs allow direct recording and playback without programming. Ensure the audio file is optimized for the hardware—keep it short (under 10 seconds) and at a sample rate compatible with the IC’s capabilities. Use a tool like Audacity to trim and export the audio in a supported format.
Assembly requires careful soldering and component placement. Use a prototyping board or design a custom PCB to fit within the card’s dimensions. Surface-mount components (SMDs) are preferable for their compact size, but through-hole components are easier for beginners. Secure the circuit with hot glue or double-sided tape to prevent movement, which could cause loose connections. Test the circuit thoroughly before embedding it into the card to avoid troubleshooting in tight spaces.
Finally, consider the user experience. The sound should play immediately and clearly when the card is opened, without delay or distortion. Position the speaker or buzzer strategically to direct sound outward, avoiding obstruction by card elements. Add a volume control resistor if needed, but balance it with power consumption. A well-designed circuit not only ensures functionality but also enhances the emotional impact of the greeting card, making it memorable for the recipient.
Mastering Lung Auscultation: Essential Nursing Techniques for Accurate Assessment
You may want to see also
Explore related products
Recording Audio: Use a microphone and software to record and format the greeting message
The quality of your greeting card’s audio message hinges on the clarity and warmth of the recorded sound. Start by selecting a microphone suited to your environment—a USB condenser microphone works well for most home setups, offering clear vocals without requiring complex audio interfaces. Pair it with noise-reducing accessories like pop filters or foam shields to minimize plosives and background interference. Position the microphone at mouth level, approximately 6–12 inches away, to capture natural tone without distortion.
Once your setup is ready, choose recording software that balances ease of use with functionality. Audacity, a free and user-friendly option, allows for precise editing, while GarageBand (for macOS) offers intuitive controls and built-in effects. Begin by testing levels to avoid clipping—aim for a peak volume of -6 to -3 dB. Record multiple takes to ensure consistency, and consider adding a brief pause at the start and end to allow for seamless playback in the sound module.
Formatting the audio for a sound module requires attention to file size and compatibility. Export the final recording as a high-quality MP3 or WAV file, keeping the duration under 10–15 seconds to align with typical greeting card constraints. Use editing tools to trim silence, normalize volume, and apply fade-ins or fade-outs for a polished finish. If the sound module supports it, reduce the bitrate to 128 kbps to save space without sacrificing noticeable quality.
A common pitfall is overlooking the playback environment. Greeting cards often have small speakers, so ensure the message is clear and audible even at lower volumes. Test the audio on a similar device or speaker to verify its effectiveness. Additionally, if the message includes music or sound effects, balance them so they don’t overpower the spoken words. A well-recorded and thoughtfully formatted audio clip transforms a simple card into a memorable keepsake.
Key Factors Influencing Headphone Sound Quality: A Comprehensive Guide
You may want to see also
Explore related products
Programming Steps: Write code to trigger audio playback when the card is opened or activated
To trigger audio playback when a greeting card is opened, you’ll need to program a microcontroller to detect the card’s state (open or closed) and activate a sound module accordingly. Start by selecting a microcontroller like the ATtiny85 or Arduino Nano, both popular for their low power consumption and ease of use. Connect a tilt switch or magnetic reed switch to the microcontroller’s input pin to detect the card’s position. When the switch changes state (e.g., the card is opened), the microcontroller will read this input and execute the code to play the audio file stored on a memory chip or micro SD card. This setup ensures the sound is triggered only when the card is activated, conserving battery life.
The core of the programming involves writing a simple loop that continuously monitors the switch’s state. Use a conditional statement (e.g., `if (switchState == OPEN)`) to initiate playback when the card is opened. Libraries like `SD.h` for Arduino or `TinyMP3` for ATtiny can simplify audio file handling. Ensure the audio file is in a compatible format (e.g., WAV or MP3) and stored in the root directory of the memory device. For smoother playback, pre-configure the microcontroller’s timer interrupts to handle audio streaming without delays or glitches. This approach balances simplicity and functionality, making it ideal for DIY projects.
One critical consideration is power management. Since greeting cards rely on small batteries (e.g., CR2032 coin cells), optimize your code to minimize power draw. Use sleep modes when the card is closed and wake the microcontroller only when the switch is activated. Additionally, choose a low-power audio amplifier (e.g., LM386) to drive the speaker efficiently. Test the setup by measuring current consumption during idle and active states, aiming for less than 1 mA in standby mode to prolong battery life.
For advanced users, consider adding a debounce function to the switch input to prevent false triggers caused by vibrations or quick movements. This can be achieved with a simple software debounce algorithm or a hardware capacitor. Another enhancement is to include a volume control feature by adding a potentiometer or using PWM (Pulse Width Modulation) to adjust the amplifier’s gain. These refinements improve the user experience, ensuring the sound plays reliably and at an appropriate volume every time the card is opened.
In conclusion, programming a sound module for a greeting card involves detecting the card’s state, triggering audio playback, and optimizing power usage. By combining hardware components like microcontrollers, switches, and amplifiers with efficient code, you can create a compact, battery-friendly module that delights recipients. Whether you’re a beginner or an experienced maker, this project offers a rewarding blend of creativity and technical skill, turning a simple card into a memorable keepsake.
Effective Sounding Rod Sanitization: A Step-by-Step Guide for Safe Use
You may want to see also
Explore related products
Assembly Tips: Integrate the sound module into the card, ensuring it fits neatly and works reliably
Integrating a sound module into a greeting card requires precision to ensure both aesthetic appeal and functionality. Start by selecting a module that matches the card’s size and thickness—most modules are coin-cell battery-powered and range from 20mm to 40mm in diameter. Measure the card’s interior space and choose a module with a footprint at least 2mm smaller on all sides to allow for secure attachment and wiring. Avoid overcrowding, as this can cause the card to bulge or the module to malfunction when closed.
Once the module is selected, plan its placement strategically. Position it near the card’s fold or spine to minimize stress on wires and components when the card opens and closes. Use a craft knife to create a shallow recess in the card’s inner layer, ensuring the module sits flush. Secure it with double-sided foam tape or hot glue, but apply sparingly to avoid seepage that could damage circuitry. Test the module’s placement by closing the card multiple times to confirm it doesn’t shift or dislodge.
Wiring is a critical step that demands attention to detail. Connect the module’s speaker to the circuit board using insulated wires no thicker than 0.5mm to maintain flexibility. Route wires along the card’s natural folds or conceal them beneath decorative elements like ribbon or paper cutouts. Avoid sharp bends or tension on the wires, as this can cause breakage over time. For added durability, reinforce wire connections with a small dot of clear nail polish or electrical tape.
Reliability hinges on proper activation mechanisms. If using a push-button activation, ensure the button is accessible yet discreet—embed it under a sticker or printed design. For light-activated modules, test the sensor’s sensitivity to ambient light and adjust its placement accordingly. Always include a test cycle before finalizing assembly: open and close the card repeatedly, activate the sound module multiple times, and verify the audio plays clearly without distortion. This step ensures the module survives handling and delivers its intended surprise.
Finally, consider the card’s longevity by incorporating user-friendly features. Include a battery replacement flap if the module isn’t soldered shut, and add a small diagram or note explaining how to activate the sound. For gift-giving practicality, ensure the module’s volume is moderate—loud enough to hear but not overwhelming. By balancing technical precision with thoughtful design, the sound module becomes a seamless, memorable addition to the card.
Do Dancing Shoes Make Sound? Exploring the Rhythm of Footwear
You may want to see also
Frequently asked questions
You'll need a small audio playback module (like a recordable greeting card chip or a microcontroller with audio capabilities), a speaker or piezo buzzer, a battery, wires, and basic crafting supplies like glue and scissors.
If using a recordable module, simply press the record button, speak or play your audio, and save it. For microcontrollers, upload audio files using programming software like Arduino IDE or specialized tools for the specific module.
Yes, you can use a tilt switch, light sensor, or a simple push button connected to the module. When the card is opened or the sensor is triggered, the sound will play automatically.
