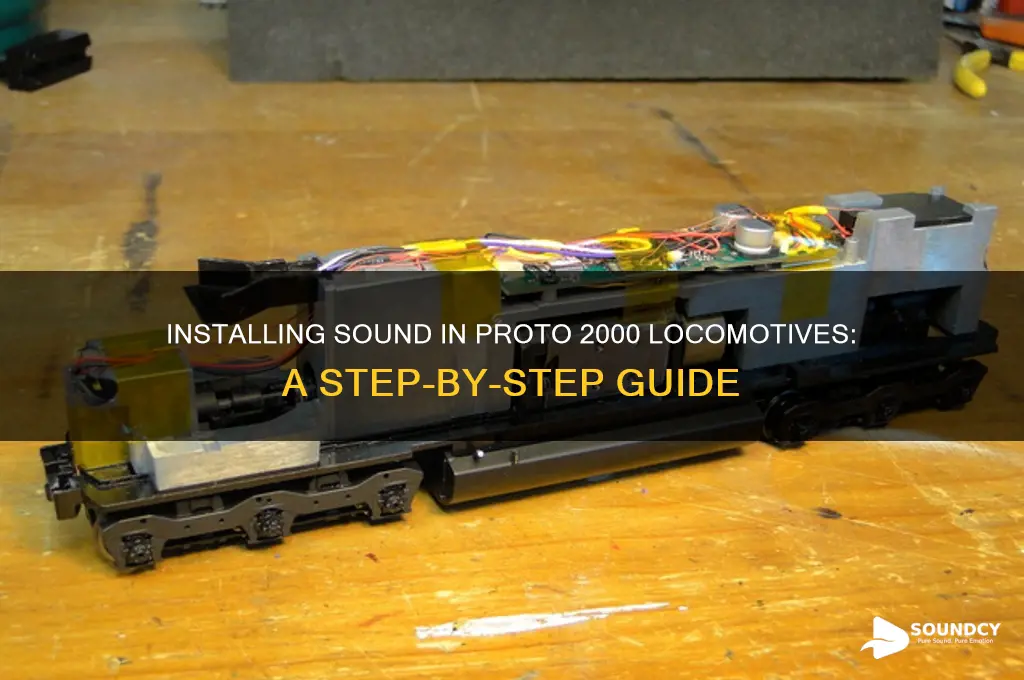

Installing sound into a Proto 2000 locomotive can significantly enhance the realism and enjoyment of model railroading. This process involves upgrading the locomotive with a sound decoder, which replaces the standard decoder and adds authentic engine sounds, horns, and other audio effects. To begin, you’ll need a compatible sound decoder, such as those from brands like ESU, SoundTraxx, or QSI, ensuring it matches your DCC system and the Proto 2000’s electrical requirements. The installation typically requires opening the locomotive’s shell, carefully removing the existing decoder, and connecting the new sound decoder to the motor and speaker. A small speaker, often included with the decoder, must be mounted inside the locomotive to produce clear sound. Following the manufacturer’s instructions is crucial to avoid damage and ensure proper functionality. With patience and attention to detail, adding sound to your Proto 2000 locomotive can transform it into a dynamic and immersive model.
| Characteristics | Values |
|---|---|
| Required Tools | Soldering iron, wire strippers, screwdrivers, heat shrink tubing, multimeter |
| Sound Decoder Compatibility | NMRA-compliant DCC sound decoders (e.g., ESU LokSound, QSI, SoundTraxx) |
| Proto 2000 Versions | Ensure compatibility with Proto 2000 or Proto 2000-series locomotives |
| Speaker Installation | 25mm or 28mm round speakers (check locomotive space constraints) |
| Wiring Connections | Solder decoder wires to motor, track pickup, and function outputs |
| Power Requirements | Decoder must match locomotive's voltage and current needs |
| Sound File Selection | Choose sound files specific to the locomotive model (e.g., steam, diesel) |
| CV Programming | Program decoder CVs for volume, speed, and sound effects |
| Space Considerations | Ensure sufficient space for decoder and speaker inside the locomotive |
| Testing Procedure | Test decoder and sound functions before final assembly |
| Additional Components | Stay-alive capacitors or sugar cube speakers for enhanced performance |
| Difficulty Level | Intermediate to advanced (soldering and DCC programming skills required) |
| Cost Estimate | $50-$150 (depending on decoder, speaker, and additional components) |
| Time Required | 2-4 hours (varies based on experience and locomotive complexity) |
| Safety Precautions | Disconnect power before installation; avoid short circuits |
| Documentation | Refer to decoder manual and Proto 2000-specific guides |
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect soldering iron, wires, speakers, and sound decoder for installation
- Disassemble Locomotive: Carefully remove shell, trucks, and chassis to access internal components
- Install Speaker: Mount speaker in designated area, ensuring secure fit and proper wiring
- Connect Sound Decoder: Solder decoder wires to locomotive’s motor and pickup contacts
- Test and Reassemble: Verify sound functionality, then reassemble locomotive and test on track
Gather Tools and Materials: Collect soldering iron, wires, speakers, and sound decoder for installation
Before embarking on the installation of sound into your Proto 2000 locomotive, it's crucial to assemble the necessary tools and materials. A soldering iron, preferably a 25-30 watt model with a fine tip, is essential for creating secure connections between the sound decoder and the locomotive's circuitry. This tool will be your primary means of attaching wires, which should be 22-24 AWG stranded copper, to the decoder and speaker terminals.
The speaker is a critical component, and its size and impedance should match the specifications of your sound decoder. Typically, 8-ohm speakers with a diameter of 15-20mm are suitable for most Proto 2000 locomotives. Ensure the speaker's power handling capacity exceeds the decoder's maximum output to prevent damage. For instance, a 1-watt speaker is adequate for most decoders with a 0.5-watt output.
Selecting the right sound decoder is paramount. Popular options include the ESU LokSound V4.0 and the Zimo MX645P, both of which offer high-quality sound and are compatible with DCC (Digital Command Control) systems. When choosing a decoder, consider the locomotive's era, as some decoders provide sound profiles tailored to specific periods, enhancing the realism of your model.
In addition to these core components, gather heat shrink tubing or electrical tape for insulating connections, a small Phillips-head screwdriver for accessing the locomotive's interior, and a pair of wire cutters/strippers. Having a multimeter on hand is also advisable for testing connections and ensuring the decoder functions correctly before final assembly.
A well-prepared workspace is key to a successful installation. Organize your tools and materials within easy reach, and consider using a magnifying glass or headset magnifier to aid in soldering and wiring, especially if you're working with small-scale models. This preparation not only streamlines the installation process but also minimizes the risk of errors or damage to your locomotive.
