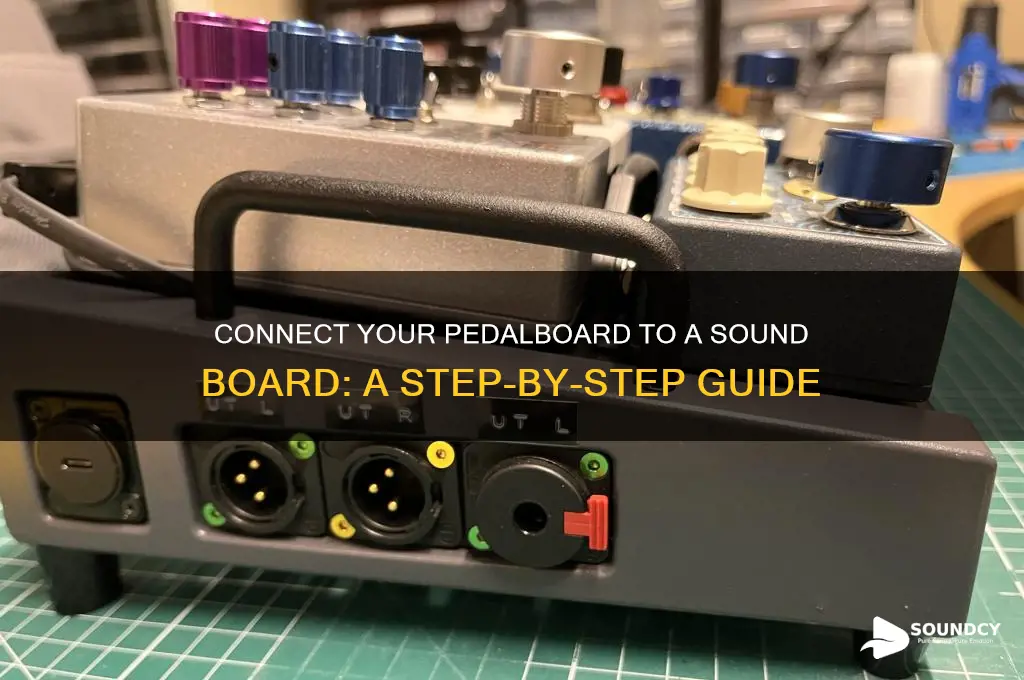

Connecting a pedalboard to a soundboard is a crucial step for musicians looking to integrate their effects pedals into a live or studio setup. The process involves routing the audio signal from the pedalboard to the soundboard, ensuring optimal sound quality and control. Start by using a balanced cable, typically an XLR or 1/4-inch TRS cable, to connect the output of the pedalboard to an input channel on the soundboard. If the pedalboard has a stereo output, use two cables to connect both left and right channels. Ensure the pedalboard’s output level matches the soundboard’s input gain to avoid distortion or signal loss. Additionally, consider using a direct box (DI) if the pedalboard outputs an unbalanced signal to maintain signal integrity over longer cable runs. Properly configuring the soundboard’s EQ, effects, and monitoring settings will further enhance the overall sound. This setup allows for seamless integration of guitar, bass, or other instrument effects into a professional audio environment.
| Characteristics | Values |
|---|---|
| Connection Type | Use a mono or stereo cable (1/4" TS or TRS) from the pedalboard's output to the soundboard. |
| Pedalboard Output | Connect the last pedal in the chain to the cable leading to the soundboard. |
| Soundboard Input | Use a line-level input or instrument input on the soundboard, depending on the pedalboard's output level. |
| Signal Path | Pedalboard → Cable → Soundboard Input Channel. Ensure the signal flows in this order. |
| Power Supply | Use a dedicated power supply for the pedalboard to avoid noise interference. |
| Grounding | Ensure proper grounding to prevent hum. Use a single power outlet or ground lift if needed. |
| Cable Quality | Use high-quality, shielded cables to minimize signal loss and interference. |
| Signal Level Matching | Match the output level of the pedalboard to the input level of the soundboard (e.g., -10dBv or +4dBu). |
| Effects Loop (Optional) | If the soundboard has an effects loop, connect the pedalboard to it for better signal integration. |
| Testing | Test the setup with various pedals to ensure clarity and proper signal flow. |
| Volume and EQ Adjustments | Adjust volume and EQ on both the pedalboard and soundboard for optimal sound. |
| Digital vs. Analog Pedals | Digital pedals may require specific inputs/outputs; check compatibility with the soundboard. |
| Stereo vs. Mono Setup | Use stereo cables if the pedalboard or soundboard supports stereo signals. |
| Buffer Pedals | Add a buffer pedal at the end of the chain to maintain signal integrity over long cables. |
| Documentation | Refer to the pedalboard and soundboard manuals for specific connection instructions. |
Explore related products
What You'll Learn
- Signal Chain Order: Arrange pedals logically for optimal sound flow and effect interaction
- Cabling Basics: Use quality cables, patch cables, and proper connectors for clean signal transfer
- Power Supply Setup: Ensure stable power distribution to all pedals to avoid noise
- Connecting to Mixer: Use DI box or direct output to link pedalboard to soundboard
- Ground Loop Prevention: Isolate pedals and mixer to eliminate unwanted hum or interference
Signal Chain Order: Arrange pedals logically for optimal sound flow and effect interaction
The order of your pedals in the signal chain can make or break your tone. Imagine a guitarist who places a distortion pedal after a volume pedal—the distortion's grit would be inconsistently affected by the volume swells, creating an unpredictable and often muddy sound. This example underscores the importance of arranging pedals logically to ensure optimal sound flow and effect interaction.
Analytical Breakdown:
The signal chain typically begins with pedals that shape the core tone, such as tuners, wah pedals, or compressors. These should be placed first to ensure the raw signal is clean and dynamic before modulation or time-based effects. Next, overdrive or distortion pedals add grit and sustain, followed by modulation effects like chorus or phaser, which interact with the distorted signal to create depth. Finally, time-based effects like delay and reverb should be last, as they benefit from a fully processed signal, adding space and ambiance without muddying the earlier stages.
Practical Steps:
- Start with Dynamics and Filtering: Place compressors, noise gates, or wah pedals first to control the initial signal.
- Add Gain Stages: Position overdrive, distortion, or fuzz pedals next to ensure they interact with the clean or compressed signal.
- Incorporate Modulation: Insert chorus, flanger, or phaser pedals to add movement and texture to the distorted tone.
- Finish with Time-Based Effects: Place delay and reverb pedals last to create a sense of space and depth.
Cautions and Exceptions:
While the above order is a general rule, experimentation is key. For instance, placing a reverb before a distortion can create a unique, dreamy texture, though it’s non-traditional. Avoid placing two pedals with similar functions (e.g., two overdrives) consecutively, as this can cause signal degradation or unwanted interference.
A well-ordered signal chain enhances clarity, ensures effects interact harmoniously, and prevents tonal inconsistencies. By understanding the role of each pedal and its interaction with others, you can craft a setup that not only sounds professional but also adapts to your creative needs. Remember, the goal isn’t rigidity but intentionality—let your ears be the final judge.
Sound Support: NVIDIA 1070 Ti Edition
You may want to see also
Explore related products
Cabling Basics: Use quality cables, patch cables, and proper connectors for clean signal transfer
Quality cables are the unsung heroes of a pedalboard-to-soundboard connection. A single weak link—a frayed wire, a loose connector, or a low-grade cable—can introduce noise, signal loss, or even complete failure. Think of your signal chain as a highway: if the road is bumpy or obstructed, the journey suffers. Invest in cables with robust shielding (at least 90% coverage) and oxygen-free copper conductors to minimize interference and maintain signal integrity. Patch cables, in particular, should be short and flexible to avoid clutter and signal degradation, especially in tight pedalboard spaces.
Patch cables, often overlooked, play a critical role in signal clarity. Their length directly impacts signal quality—longer cables increase capacitance, which can dull high frequencies and muddy your tone. Keep patch cables under 18 inches whenever possible. For longer runs between the pedalboard and soundboard, use instrument cables with thicker gauge wire (20-22 AWG) to preserve signal strength. Avoid coiling excess cable tightly, as this can induce noise; instead, loosely loop it to maintain flexibility without compromising performance.
Connectors are the handshake between your gear, and a weak grip can ruin the connection. Use ¼-inch mono plugs (TS or TRS, depending on your pedals) with sturdy metal housings and spring-loaded tips for a secure fit. Gold-plated connectors resist corrosion and ensure reliable contact, though they’re not mandatory for short-term use. Always inspect connectors for wear or damage before each gig—a loose or bent tip can cause intermittent signal loss or unwanted noise. For balanced connections to the soundboard, XLR cables with Neutrik or equivalent connectors are ideal for their durability and locking mechanisms.
The devil is in the details when it comes to cabling. Avoid daisy-chaining power supplies with signal cables to prevent ground loops, which cause hum. Use right-angle connectors on pedal inputs/outputs to save space and reduce strain on jacks. Label cables clearly to streamline setup and teardown, especially in high-pressure live environments. Finally, test your entire signal chain at home before a gig—a single faulty cable can derail your performance. Clean, well-maintained cables aren’t just tools; they’re the foundation of a professional sound.
Effective Bird Deterrent Sounds: What Scares Birds Away Instantly?
You may want to see also
Explore related products
Power Supply Setup: Ensure stable power distribution to all pedals to avoid noise
A poorly configured power supply is the silent saboteur of pedalboard setups, introducing unwanted noise that can mar your sound. Each pedal has unique power requirements, and daisy-chaining them without consideration for voltage, current, or isolation can lead to ground loops, hum, and signal degradation. To avoid this, start by mapping out your pedals' power needs. Most analog pedals operate on 9V DC, but digital or high-current pedals may require 12V or 18V. Use a power supply with isolated outputs to prevent interference between pedals, ensuring each receives clean, stable power.
Consider the Strymon Ojai R30, a popular choice for its five isolated 9V outputs, each capable of delivering 500mA. For more demanding setups, the Truetone 1 SPOT Pro combines isolated outputs with a built-in sag control for vintage-style dynamics. When connecting pedals, avoid long cable runs that can introduce resistance and noise. Instead, use right-angle cables to keep connections tidy and minimize signal loss. If you’re on a budget, the Donner DP-1 isolates four outputs at 100mA each, offering a cost-effective solution for smaller boards.
Noise isn’t just an annoyance—it’s a sign of inefficiency. Ground loops, caused by multiple paths to ground, are a common culprit. To diagnose this, unplug your power supply from the wall and see if the noise disappears. If it does, invest in a power supply with ground lift switches, like the Voodoo Lab Pedal Power 2 Plus, which allows you to break the ground connection on problematic pedals. Additionally, use a power supply with toroidal transformers, as they reduce electromagnetic interference compared to traditional transformers.
For touring musicians, reliability is key. A power supply with overvoltage and short-circuit protection, such as the Cioks DC7, ensures your setup survives the rigors of the road. Pair it with a surge protector to safeguard against venue-specific power issues. If you’re building a complex rig, consider a modular power supply system like the T-Rex Fuel Tank, which allows you to expand outputs as needed. Remember, a stable power supply isn’t just about noise reduction—it’s about consistency, ensuring your pedals perform optimally in every setting.
In conclusion, treating your power supply setup as the backbone of your pedalboard is non-negotiable. By matching power requirements, using isolated outputs, and addressing ground loops, you’ll eliminate noise and unlock the full potential of your pedals. Whether you’re a weekend warrior or a touring pro, investing in a robust power solution pays dividends in sound quality and peace of mind.
Customizing Your Wii: A Step-by-Step Guide to Replacing Console Sounds
You may want to see also
Explore related products
Connecting to Mixer: Use DI box or direct output to link pedalboard to soundboard
A direct interface between your pedalboard and the soundboard is crucial for achieving a clean, professional sound. Two primary methods dominate this connection: utilizing a DI (Direct Injection) box or employing a direct output from your pedalboard. Each approach has its merits, depending on your setup and sonic goals.
DI boxes act as signal transformers, converting the high-impedance, unbalanced signal from your pedals into a low-impedance, balanced signal suitable for long cable runs and mixer inputs. This conversion minimizes noise and signal degradation, ensuring your carefully crafted tones reach the soundboard intact.
Consider a scenario where you're using a chain of overdrive and distortion pedals. Without a DI box, the high-gain signals can become susceptible to interference and hum when traveling long distances. A DI box, placed at the end of your pedalboard chain, effectively isolates and strengthens the signal, delivering a robust and noise-free output to the soundboard. This is particularly beneficial in live settings where signal integrity is paramount.
Direct output connections, on the other hand, offer a more streamlined approach. Many modern pedalboards feature dedicated direct outputs, often in the form of XLR or 1/4-inch jacks. These outputs are designed to provide a balanced, low-impedance signal directly to the mixer, bypassing the need for an additional DI box. This method is ideal for pedalboards with built-in buffering or those using pedals with line-level outputs.
However, it's essential to note that not all pedalboards or pedals are created equal. Some older or boutique pedals may not have the necessary output specifications for direct connection. In such cases, a DI box becomes indispensable. It acts as a bridge, ensuring compatibility and signal optimization. For instance, if you're using a vintage fuzz pedal with a high-impedance output, a DI box will match the impedance, allowing for a seamless connection to the soundboard without compromising the pedal's unique character.
In summary, the choice between a DI box and direct output depends on your pedalboard's capabilities and the specific requirements of your setup. DI boxes provide a versatile solution, especially in complex or high-gain scenarios, while direct outputs offer convenience and simplicity for modern, well-equipped pedalboards. Understanding these options empowers you to make informed decisions, ensuring your pedalboard's creative potential is fully realized in any live or studio environment.
Unveiling the Eerie Whispers: What a Black Hole Sounds Like
You may want to see also
Explore related products
Ground Loop Prevention: Isolate pedals and mixer to eliminate unwanted hum or interference
Ground loops are a common culprit behind the annoying hum or buzz that can ruin a live performance or recording session. These loops occur when multiple devices, like your pedalboard and soundboard, share a common ground path, creating a circuit that amplifies electrical noise. The result? Unwanted interference that distracts from your music. Understanding and preventing ground loops is crucial for maintaining a clean, professional sound.
To isolate your pedals and mixer effectively, start by identifying potential ground loop sources. Common culprits include power supplies, cables, and even the venue’s electrical wiring. A practical first step is to use isolated power supplies for your pedals. These supplies provide separate power paths for each pedal, breaking the ground loop chain. For example, a Truetone CS12 or a Voodoo Lab ISO-5 can significantly reduce noise by ensuring each pedal operates independently. Additionally, consider using balanced cables for connections between your pedalboard and mixer, as they are less susceptible to interference.
Another effective strategy is to employ ground lift adapters or isolators. A ground lift adapter, often found on professional audio equipment, disconnects the ground pin on an XLR or power cable, breaking the loop. For instance, if your mixer has a ground lift switch, activate it to see if the hum disappears. If not, an inline isolator like the Ebtech Hum Eliminator can be inserted between your pedalboard and mixer to actively filter out noise. These devices are particularly useful in older venues with unreliable electrical systems.
While isolating your gear is essential, it’s equally important to approach ground loop prevention systematically. Start by testing your setup in a controlled environment before the gig. Gradually add components, checking for noise at each step. If a hum appears, isolate the problematic device or connection. For instance, if adding a specific pedal introduces noise, check its power supply or cables. This methodical approach helps pinpoint the issue without disrupting your performance.
In conclusion, preventing ground loops requires a combination of the right tools and a strategic mindset. Isolated power supplies, balanced cables, and ground lift adapters are your first line of defense. Pair these with a systematic troubleshooting process to ensure a noise-free setup. By taking these steps, you’ll not only eliminate unwanted hum but also elevate the clarity and professionalism of your sound.
The Day the Sound Barrier Fell
You may want to see also
Frequently asked questions
Use a mono or stereo instrument cable to connect the output of your pedalboard to an input channel on the soundboard. Ensure the pedalboard’s output is set to instrument level (not line level) unless the soundboard has a dedicated instrument input.
Yes, using a DI (Direct Injection) box is recommended, especially if your pedalboard outputs an unbalanced signal. A DI box converts the signal to a balanced format, reduces noise, and matches impedance for better sound quality.
It’s not ideal. Pedalboards typically output instrument-level signals, while soundboard main inputs expect line-level signals. Use a DI box or a preamp to boost the signal to line level before connecting to the main inputs.
Use a dedicated pedalboard power supply to power your pedals. Ensure the power supply is isolated to avoid ground loops and noise. The power supply should be plugged into the same power circuit as the soundboard to minimize hum.
