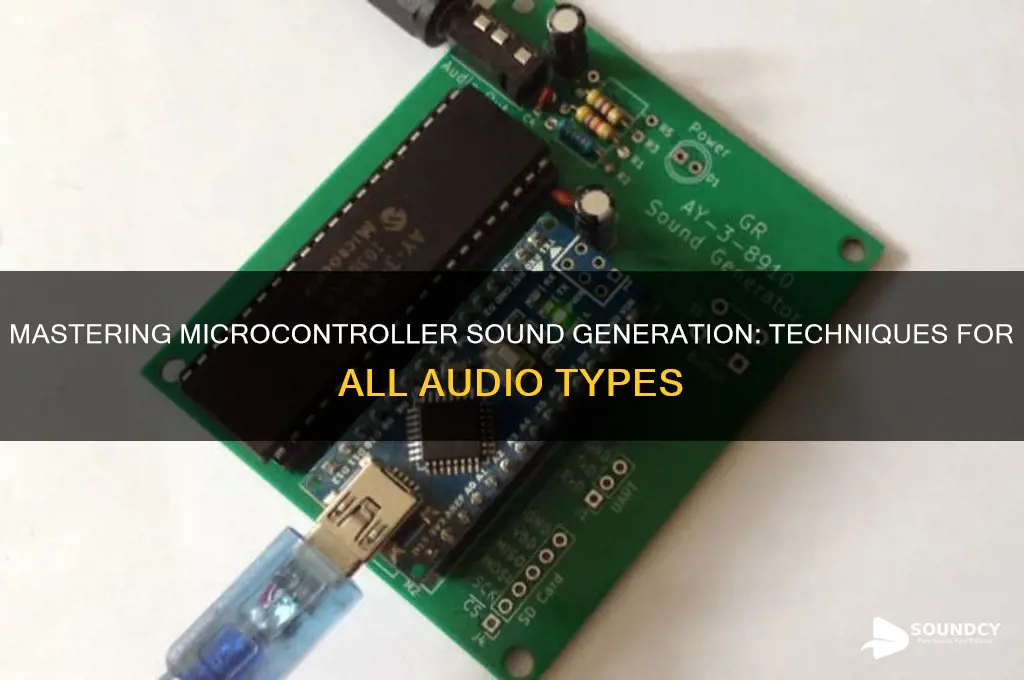

Generating all types of sounds from a microcontroller involves leveraging its digital and analog capabilities to produce a wide range of audio outputs, from simple beeps and tones to complex melodies and even speech. Microcontrollers, such as those from the Arduino or Raspberry Pi families, can achieve this by using pulse-width modulation (PWM) to create variable frequencies for basic tones, or by interfacing with specialized audio chips like the VS1053 for higher-quality playback. Additionally, techniques such as direct digital synthesis (DDS) or utilizing external DACs (Digital-to-Analog Converters) allow for more precise control over waveforms, enabling the generation of sine, square, triangle, and sawtooth waves. For advanced applications, microcontrollers can also drive speakers or headphones directly or through amplifiers, and libraries like the Tone library for Arduino simplify the process of producing musical notes. By combining hardware peripherals, software algorithms, and creative programming, microcontrollers can effectively generate virtually any type of sound, making them versatile tools for audio projects.
Explore related products
What You'll Learn
- PWM Techniques for Audio: Using Pulse Width Modulation to create variable sound frequencies and amplitudes
- DAC Integration for Quality: Implementing Digital-to-Analog Converters for high-fidelity sound output from microcontrollers
- Buzzer and Speaker Control: Driving passive/active buzzers and speakers for simple tones and melodies
- Sound Libraries and Coding: Utilizing pre-built libraries for generating complex sounds and effects efficiently
- Noise Generation Methods: Creating white, pink, or other noise types using algorithms and hardware tricks
PWM Techniques for Audio: Using Pulse Width Modulation to create variable sound frequencies and amplitudes
Pulse Width Modulation (PWM) is a powerful technique for generating audio signals using microcontrollers, leveraging the precise control of digital outputs to produce analog-like waveforms. By varying the duty cycle of a square wave, PWM can simulate different voltage levels, effectively creating variable amplitudes. When combined with frequency modulation, this method allows microcontrollers to generate a wide range of sounds, from simple tones to complex melodies, using minimal hardware. For instance, an 8-bit microcontroller with a PWM-capable timer can output audio signals by adjusting the duty cycle to control volume and the timer’s frequency to determine pitch.
To implement PWM for audio, start by configuring a microcontroller’s timer module to generate a carrier frequency well above the audible range, typically 20 kHz or higher, to minimize audible switching noise. The duty cycle of this carrier signal is then modulated to create the desired audio waveform. For example, a 50% duty cycle produces a mid-level amplitude, while 25% and 75% yield quieter and louder outputs, respectively. By dynamically adjusting the duty cycle in real-time, you can create smooth amplitude variations, essential for realistic sound synthesis.
One practical application of PWM audio is generating musical notes. Each note corresponds to a specific frequency, which can be achieved by setting the timer’s period accordingly. For instance, middle C (261.63 Hz) requires a timer interrupt at that frequency. Combining this with duty cycle adjustments for volume control enables the creation of expressive melodies. Libraries like the Arduino `tone()` function simplify this process, abstracting the PWM configuration for ease of use, though understanding the underlying principles allows for greater customization.
However, PWM audio has limitations. The square wave output is inherently harsh and lacks the harmonic richness of sine waves or other waveforms. To improve sound quality, consider using a low-pass filter to smooth the PWM signal, attenuating high-frequency components and extracting the modulated audio waveform. A simple RC filter with a cutoff frequency below the audible range (e.g., 10 kHz) can significantly enhance the output, making it suitable for basic audio applications like alarms, notifications, or even simple music playback.
In conclusion, PWM techniques offer a versatile and resource-efficient way to generate audio from microcontrollers. By mastering duty cycle and frequency control, developers can create variable sound frequencies and amplitudes with minimal components. While the output may not rival dedicated audio chips, PWM audio is ideal for embedded systems where simplicity and cost-effectiveness are priorities. Experimenting with filters and waveform modulation can further refine the results, unlocking creative possibilities in sound design.
