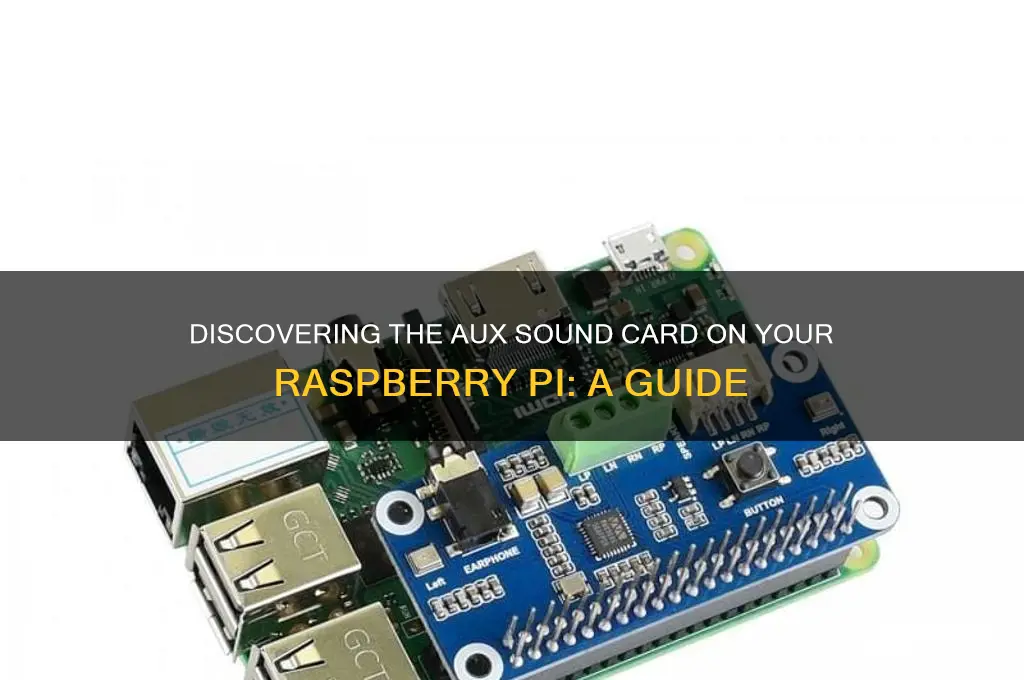

Finding the auxiliary sound card on a Raspberry Pi can be a crucial step for enhancing audio capabilities, especially for projects requiring external speakers or microphones. The Raspberry Pi, by default, uses the onboard audio jack, but for more advanced setups, an auxiliary sound card can be connected via USB or the GPIO pins. To locate and configure this, start by identifying the type of sound card you’re using, whether it’s a USB-based device or a HAT (Hardware Attached on Top) module. Next, ensure the Raspberry Pi recognizes the device by checking the system logs or using commands like `aplay -l` or `arecord -l` in the terminal to list available audio devices. If the card isn’t detected, verify the hardware connections and ensure the necessary drivers are installed. Finally, configure the sound card as the default output or input device using tools like `alsamixer` or by editing the `/etc/asound.conf` file. This process ensures optimal audio performance for your Raspberry Pi project.
| Characteristics | Values |
|---|---|
| Raspberry Pi Models Supported | Raspberry Pi 3, 4, and newer models (built-in audio via 3.5mm jack) |
| Auxiliary Sound Card Types | USB sound cards, PCIe sound cards (for compatible models), I2S audio cards |
| Detection Method (Built-in Audio) | Run aplay -l or arecord -l to list available sound devices |
| Detection Method (USB Sound Card) | Connect USB sound card, then run aplay -l or lsusb to identify |
| Default Device Check | Use cat /proc/asound/cards to list available sound cards |
| Switching Audio Output | Use sudo amixer cset numid=3 1 (for Raspberry Pi OS, may vary) |
| Required Software | ALSA (Advanced Linux Sound Architecture), PulseAudio (optional) |
| Configuration File | /etc/modprobe.d/alsa-base.conf for ALSA settings |
| Common USB Sound Cards | Creative Sound Blaster Play! 3, StarTech USB Audio Adapter, etc. |
| I2S Audio Card Compatibility | Requires GPIO pins and specific HATs (e.g., DAC HATs) |
| Troubleshooting Tips | Check device permissions, update ALSA drivers, reboot after changes |
| Community Resources | Raspberry Pi Forums, GitHub repositories, ALSA documentation |
Explore related products
What You'll Learn
- Identify Raspberry Pi Audio Ports: Locate the audio jack and HDMI port for sound output options
- Enable Raspberry Pi Audio: Modify config.txt to activate the onboard audio interface
- Install USB Sound Card: Connect and configure an external USB audio device for aux
- Check ALSA Settings: Use `alsamixer` to ensure the sound card is recognized and unmuted
- Test Audio Output: Run `aplay` or play media to verify aux sound card functionality
Identify Raspberry Pi Audio Ports: Locate the audio jack and HDMI port for sound output options
The Raspberry Pi, a versatile single-board computer, offers multiple audio output options, but identifying the correct ports can be a challenge for newcomers. The two primary sound output ports are the 3.5mm audio jack and the HDMI port, each serving different purposes and use cases. Understanding their locations and functionalities is crucial for setting up audio on your Raspberry Pi effectively.
Locating the Audio Ports: A Visual Guide
On most Raspberry Pi models, the 3.5mm audio jack is situated near the edge of the board, often labeled as "Audio" or accompanied by a headphone icon. This port is typically green and resembles the standard headphone jack found on laptops and smartphones. For HDMI audio, the port is usually located opposite the USB ports, identifiable by its trapezoidal shape and "HDMI" label. The exact placement may vary slightly between Raspberry Pi versions (e.g., Pi 4 vs. Pi Zero), but the general layout remains consistent.
Choosing the Right Port for Your Needs
The 3.5mm audio jack is ideal for direct connections to speakers, headphones, or amplifiers, offering simplicity and compatibility with most audio devices. However, it supports only analog audio, which may result in lower quality compared to digital alternatives. The HDMI port, on the other hand, provides high-quality digital audio and video output, making it perfect for connecting to modern TVs, monitors, or AV receivers. If your display device supports HDMI-ARC (Audio Return Channel), you can also route audio back to the Raspberry Pi, enabling advanced setups like media centers.
Practical Tips for Seamless Setup
To ensure optimal audio performance, verify that your Raspberry Pi's operating system (e.g., Raspberry Pi OS) is configured to use the correct output port. This can be done via the Audio Settings menu or by editing the `config.txt` file for advanced users. For HDMI audio, ensure your display device is set to the correct input source and supports audio passthrough. If using the 3.5mm jack, test with known-working headphones or speakers to rule out hardware issues.
Troubleshooting Common Issues
If audio isn’t working, first confirm the physical connection to the correct port. For HDMI, check if the cable supports audio transmission, as some older cables are video-only. On the software side, run `aplay -l` in the terminal to list available sound cards and ensure the desired output is selected. For persistent issues, consider updating the Raspberry Pi firmware or reinstalling the audio drivers. By systematically addressing hardware and software factors, you can resolve most audio port-related problems efficiently.
Foam Earplugs: Effective Vibration Reduction for Sound Protection?
You may want to see also
Explore related products
Enable Raspberry Pi Audio: Modify config.txt to activate the onboard audio interface
The Raspberry Pi's onboard audio interface is a powerful yet often underutilized feature. By default, it may not be enabled, leaving users scrambling to find external solutions for their audio needs. Fortunately, activating this built-in capability is a straightforward process that involves modifying the `config.txt` file, a critical configuration file for the Raspberry Pi's boot behavior.
Understanding the `config.txt` File
The `config.txt` file resides in the boot partition of your Raspberry Pi's microSD card. It contains various settings that dictate how the Pi initializes hardware components during startup. To enable the onboard audio, we'll focus on a specific setting related to audio output.
Steps to Enable Onboard Audio
- Access `config.txt`: Power down your Raspberry Pi and remove the microSD card. Insert it into your computer and navigate to the boot partition. Locate the `config.txt` file and open it with a text editor.
- Locate Audio Settings: Within `config.txt`, search for lines starting with `dtparam=audio`. These lines control audio configuration.
- Enable Onboard Audio: Add or uncomment the following line: `dtparam=audio=on`. This explicitly instructs the Pi to activate the onboard audio interface.
- Save and Reboot: Save the changes to `config.txt`, safely eject the microSD card, reinsert it into your Raspberry Pi, and power it on.
Important Considerations
- Conflicting Settings: Ensure no other audio-related settings in `config.txt` conflict with `dtparam=audio=on`.
- Hardware Variations: Different Raspberry Pi models may have slight variations in audio hardware. Consult the official documentation for your specific model if you encounter issues.
By following these steps and understanding the role of `config.txt`, you can effortlessly unlock the Raspberry Pi's onboard audio capabilities, eliminating the need for external sound cards in many projects. This simple modification opens up a world of possibilities for audio-based applications, from media centers to voice-controlled devices.
Mastering Audio Creation: A Step-by-Step Guide to Making Sound Files
You may want to see also
Explore related products
Install USB Sound Card: Connect and configure an external USB audio device for aux
Raspberry Pi's default audio output might not always meet your needs, especially if you're aiming for high-quality sound or specific audio configurations. This is where an external USB sound card comes into play, offering a straightforward solution to enhance your audio experience. By connecting a USB sound card, you can easily add an auxiliary (aux) audio output to your Raspberry Pi, providing more flexibility for your projects.
Step-by-Step Installation:
- Hardware Connection: Begin by plugging the USB sound card into an available USB port on your Raspberry Pi. Ensure the device is recognized by checking the system logs or using the `lsusb` command in the terminal, which lists all connected USB devices.
- Driver Installation: Most modern USB audio devices are plug-and-play, meaning they don't require additional drivers. However, for optimal performance, you might need to install specific drivers. Check the manufacturer's website for Raspberry Pi-compatible drivers and follow their installation instructions.
- Configuration: After the hardware is connected and drivers are installed, configure the sound settings. Open the Raspberry Pi's audio settings and select the USB sound card as the output device. You can also use the `aplay -l` command to list available audio devices and their IDs, then use `sudo amixer cset numid=3 1` (replace '1' with the ID of your USB card) to set it as the default.
Cautions and Troubleshooting:
- Compatibility: Not all USB sound cards are created equal. Some may not be fully compatible with the Raspberry Pi's operating system, leading to functionality issues. Always check user reviews and forums for compatibility reports before purchasing.
- Power Considerations: USB sound cards with additional features like amplifiers might require more power. Ensure your Raspberry Pi's power supply can handle the extra load, or consider using a powered USB hub.
- Latency Issues: In some cases, USB audio devices can introduce latency. If you experience delays, try adjusting the buffer settings in your audio software or using a different USB port.
Enhancing Audio Projects:
Installing a USB sound card opens up a world of possibilities for audio enthusiasts and creators. You can now connect high-quality speakers, headphones, or even studio equipment to your Raspberry Pi. This is particularly useful for media centers, home theaters, or music production setups where superior audio quality is essential. With the right configuration, you can achieve low-latency audio, making it suitable for live performances or recording sessions.
Practical Tip: For a seamless experience, consider using a USB sound card with multiple outputs, allowing you to connect various audio devices simultaneously. This setup is ideal for creating a versatile audio station, catering to different use cases without constant reconfiguration. Remember, the key to a successful aux sound card installation is compatibility and proper configuration, ensuring your Raspberry Pi delivers the audio performance you desire.
Humble Service: Why You Shouldn’t Sound a Trumpet in Giving
You may want to see also
Explore related products
Check ALSA Settings: Use `alsamixer` to ensure the sound card is recognized and unmuted
One of the first steps in troubleshooting audio issues on a Raspberry Pi is verifying that the Advanced Linux Sound Architecture (ALSA) recognizes your sound card and that it isn’t muted. ALSA is the default audio framework in Raspberry Pi OS, and its command-line tool, `alsamixer`, provides a straightforward interface to check and adjust settings. Open a terminal and type `alsamixer` to launch the utility. If your sound card is detected, you’ll see a list of controls for volume, capture, and other settings. If the list is empty or your device is missing, it’s a clear sign that ALSA isn’t recognizing the hardware, requiring further investigation into kernel modules or device drivers.
Navigating `alsamixer` is intuitive: use the arrow keys to highlight different controls, and press `M` to unmute channels if necessary. Look for the "MM" symbol next to any channel, which indicates muting. Unmuting these channels is often the quickest fix for silent audio output. However, be cautious with volume levels; setting them too high can lead to distortion or damage to speakers. A practical tip is to start with the volume at 50% and adjust incrementally while testing audio playback. If the sound card appears but remains muted despite adjustments, check for hardware-level issues, such as loose connections or incompatible devices.
Comparing `alsamixer` outputs between a working and non-working setup can reveal discrepancies in device recognition or configuration. For instance, a missing "Headphone" or "Master" control in the non-working setup suggests the sound card isn’t being initialized correctly. In such cases, rebooting the Raspberry Pi or reinstalling ALSA drivers (`sudo apt-get install --reinstall alsa-base alsa-utils`) can resolve the issue. Additionally, examining the `/proc/asound/cards` file provides a list of recognized sound cards, offering a cross-reference to confirm ALSA’s detection.
Persuasively, mastering `alsamixer` is not just about fixing immediate audio problems but also about understanding the underlying system. By familiarizing yourself with ALSA settings, you gain the ability to troubleshoot not only the Raspberry Pi but also other Linux-based systems. This knowledge is particularly valuable in projects involving multimedia, where consistent audio output is critical. For example, in a home theater setup or a retro gaming console, ensuring the sound card is unmuted and properly configured can save hours of frustration.
In conclusion, `alsamixer` is a powerful yet often overlooked tool in the Raspberry Pi audio toolkit. Its ability to diagnose and resolve sound card recognition and muting issues makes it an essential step in any audio troubleshooting process. By systematically checking ALSA settings, adjusting controls, and comparing configurations, users can quickly identify and rectify problems, ensuring their Raspberry Pi delivers the expected audio performance. Whether you’re a beginner or an experienced user, this approach demystifies audio management and empowers you to tackle more complex projects with confidence.
Explosive Echoes: Unveiling the Unique Sounds of Firecrackers
You may want to see also
Explore related products
Test Audio Output: Run `aplay` or play media to verify aux sound card functionality
Once you’ve identified the auxiliary sound card on your Raspberry Pi, the next critical step is to verify its functionality. Testing audio output ensures the card is properly recognized and operational, saving you from troubleshooting later. The simplest way to do this is by using the `aplay` command or playing media files directly. Start by connecting your speakers or headphones to the aux port and powering on the device. Open the terminal and type `aplay -l` to list available sound cards. Note the device number associated with your aux card, typically labeled as `card x`, where `x` is a numerical identifier.
To test basic audio functionality, run `aplay /usr/share/sounds/alsa/Front_Center.wav`, replacing the file path with any valid `.wav` file on your system. If the sound card is working, you’ll hear a test tone. Alternatively, play a media file using `omxplayer` or `mpg123` for more comprehensive testing. For example, `omxplayer /path/to/your/audiofile.mp3` will stream audio through the aux port. If no sound is produced, check physical connections, volume levels, and permissions for the audio file.
Analyzing the output of these tests provides valuable insights. If `aplay` fails with an error like "no soundcard found," the card may not be recognized by ALSA. In such cases, verify the card’s compatibility with Raspberry Pi and ensure the correct drivers are installed. If the sound is distorted or low-quality, inspect the audio cable for damage or try a different output device. Successful playback confirms the aux card is functional, but further testing with varied media types (e.g., high-bitrate files or streaming services) can reveal performance limitations.
A practical tip is to create a test playlist with diverse audio formats (e.g., `.wav`, `.mp3`, `.flac`) to assess the card’s handling of different codecs. For users new to Raspberry Pi, start with pre-installed test files in `/usr/share/sounds/` to avoid file compatibility issues. Advanced users can monitor system logs (`dmesg` or `journalctl`) during testing to identify driver-related errors.
In conclusion, testing audio output is a straightforward yet essential step in validating your Raspberry Pi’s aux sound card. By combining terminal commands with media playback, you can quickly diagnose issues and ensure optimal performance. Whether you’re setting up a media center or a DIY audio project, this method provides a reliable foundation for further customization.
Understanding MS in Sound: Mid-Side Microphone Technique Explained
You may want to see also
Frequently asked questions
Use the command `aplay -l` or `arecord -l` in the terminal to list available sound cards. Look for entries labeled "card x" where x is the number of your auxiliary sound card.
Yes, edit the `/etc/asound.conf` file or use `sudo raspi-config` to change the default sound output to the auxiliary card.
Ensure the sound card is properly connected and supported by the Raspberry Pi. Check kernel logs with `dmesg` for errors or missing drivers.
Use `speaker-test -c 2 -t wav` or play a file with `omxplayer` or `aplay`, specifying the card number (e.g., `aplay -D hw:1 test.wav`).
Disable the built-in audio in `config.txt` by adding `dtparam=audio=off`, then reboot and retest the auxiliary card.
