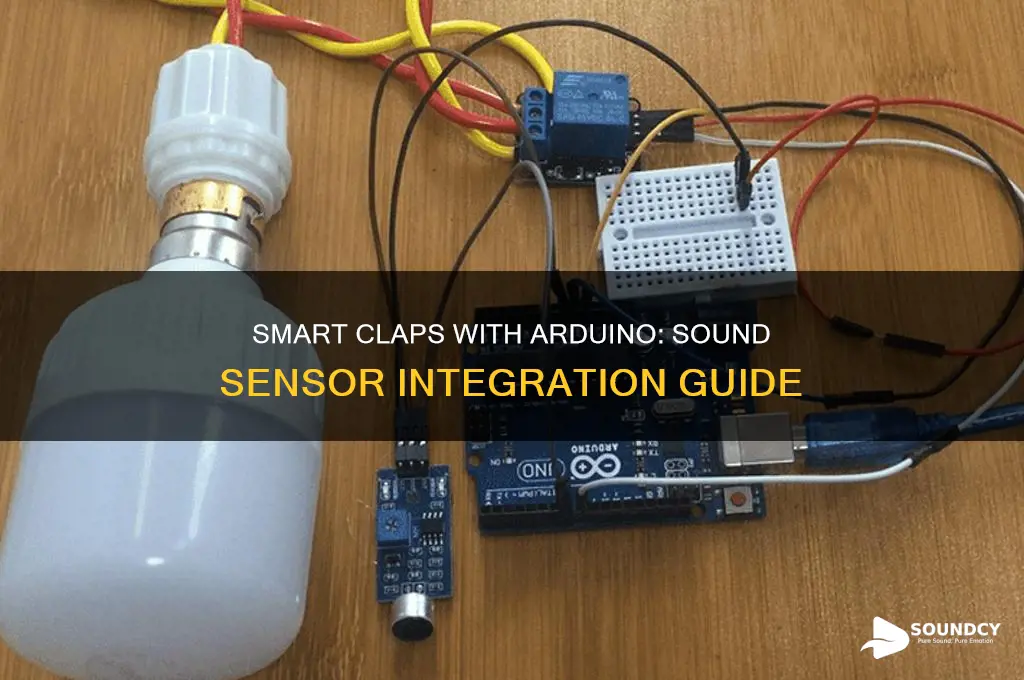

Smart claps using a sound sensor and Arduino offer an innovative way to control devices or trigger actions with simple hand claps. By integrating a sound sensor module, such as the KY-038, with an Arduino board, you can detect specific clap patterns and program the system to respond accordingly. This project involves setting up the sensor to capture audio signals, calibrating it to recognize distinct claps, and writing Arduino code to interpret these signals. Once configured, the system can activate relays, LEDs, or other outputs based on the detected claps, making it a versatile solution for home automation, interactive installations, or educational projects. With minimal components and straightforward programming, this DIY setup demonstrates the potential of combining sensors and microcontrollers for creative applications.
| Characteristics | Values |
|---|---|
| Project Goal | Detect claps using a sound sensor and trigger actions via Arduino. |
| Hardware Components | Arduino board, Sound Sensor (e.g., KY-038), LED (optional), Buzzer (optional), Jumper wires, Breadboard. |
| Sound Sensor Pinout | VCC (5V), GND, DO (Digital Output), AO (Analog Output). |
| Arduino Code Logic | Read sound levels from the sensor, detect peaks corresponding to claps, and trigger actions (e.g., toggle LED or buzzer). |
| Threshold Setting | Adjust analog threshold value in code to differentiate between noise and claps (e.g., int threshold = 100). |
| Debounce Mechanism | Implement a debounce delay (e.g., 200ms) to avoid multiple triggers from a single clap. |
| Power Supply | 5V via Arduino board or external power source. |
| Applications | Smart home automation, clap-controlled devices, interactive projects. |
| Programming Language | Arduino C/C++. |
| Libraries Required | None (basic Arduino functions suffice). |
| Accuracy | Depends on sensor quality and environmental noise; may require calibration. |
| Cost | Low (~$5-$10 for components). |
| Difficulty Level | Beginner-friendly. |
| Example Action | Toggle an LED or sound a buzzer after detecting two claps. |
| Expansion Possibilities | Integrate with relays for appliance control or use multiple sensors for advanced detection. |
Explore related products
What You'll Learn
- Sound Sensor Setup: Connect sensor to Arduino, calibrate sensitivity, and test for accurate sound detection
- Clap Detection Code: Write Arduino sketch to identify claps using threshold values and timing logic
- Debouncing Technique: Implement software debouncing to filter false triggers and ensure reliable clap detection
- Output Integration: Connect LEDs, buzzers, or motors to Arduino for responsive smart clap actions
- Power Optimization: Use low-power modes and efficient components to extend battery life in portable setups
Sound Sensor Setup: Connect sensor to Arduino, calibrate sensitivity, and test for accurate sound detection
To create a smart clap system with an Arduino, the sound sensor setup is your foundation. Begin by connecting the sound sensor to your Arduino board. Typically, the sensor has three pins: VCC, GND, and AO. Connect VCC to the 5V pin on the Arduino, GND to the ground pin, and AO to an analog input pin, such as A0. This configuration allows the Arduino to read the voltage output from the sensor, which corresponds to the sound level detected. Ensure your connections are secure to avoid intermittent readings that could disrupt the clap detection process.
Once connected, calibrating the sensor’s sensitivity is crucial for accurate clap detection. Start by uploading a basic sketch to the Arduino that reads the analog value from the sound sensor and prints it to the Serial Monitor. Place the sensor in your intended environment and observe the baseline noise level. Adjust the threshold value in your code to distinguish between background noise and a clap. For example, if the baseline noise reads 50 and a clap reads 200, set the threshold between these values, such as 150. Fine-tune this threshold by testing with varying clap volumes and distances to ensure reliability.
Testing the setup is the final step to ensure accurate sound detection. Write a sketch that triggers an action (e.g., turning on an LED or playing a tone) when the sound level exceeds the calibrated threshold. Clap at different distances and volumes to verify consistency. If the sensor fails to detect claps or triggers falsely, re-evaluate the threshold or check for environmental factors like echo or interference. Practical tip: Use a debounce mechanism in your code to ignore rapid consecutive triggers, ensuring the system responds to distinct claps rather than continuous noise.
A comparative analysis of sound sensors reveals that models with digital outputs (DO pin) can simplify the process by providing a binary high/low signal based on a preset threshold. However, analog sensors offer greater flexibility for custom calibration. For beginners, analog sensors paired with manual threshold adjustments are recommended, as they provide a deeper understanding of how sound detection works. Advanced users might prefer digital sensors for quicker integration into complex projects. Regardless of the sensor type, the calibration and testing steps remain essential for achieving a responsive smart clap system.
The Clanking, Rattling, and Clashing Sounds of Chains Explained
You may want to see also
Explore related products
Clap Detection Code: Write Arduino sketch to identify claps using threshold values and timing logic
Clap detection using an Arduino and a sound sensor is a fascinating project that blends hardware and software to create an interactive system. The core challenge lies in distinguishing a clap from ambient noise, which requires precise threshold values and timing logic. Here’s how to craft an Arduino sketch that effectively identifies claps: start by calibrating the sound sensor to establish a baseline noise level. This baseline will serve as your threshold, allowing the Arduino to differentiate between background noise and a distinct clap. Use the `analogRead()` function to continuously monitor the sensor’s output and compare it against the threshold. When the sensor value exceeds the threshold, initiate a timing mechanism to ensure the sound is brief and sharp, characteristic of a clap.
The timing logic is crucial for reducing false positives. A clap typically lasts between 50 to 200 milliseconds, so incorporate a delay to measure the duration of the detected sound. If the sound persists beyond this window, it’s likely not a clap. Use the `millis()` function to track time intervals without blocking the code. For example, set a flag when the threshold is crossed and reset it if the sound continues beyond the expected duration. This approach ensures the system responds only to sharp, transient sounds, minimizing errors from prolonged noise.
To refine the detection, consider implementing hysteresis in your threshold logic. Hysteresis prevents rapid toggling between states by requiring the sensor value to drop below a lower threshold before another clap can be detected. This technique adds stability to the system, especially in noisy environments. For instance, if the threshold for detecting a clap is 500, set the lower threshold at 300. This ensures the system ignores minor fluctuations and only responds to clear, distinct claps.
Practical implementation involves connecting the sound sensor to an analog pin on the Arduino and using the serial monitor for debugging. Start with a simple sketch that prints sensor values to identify an appropriate threshold. Once calibrated, integrate the threshold and timing logic into a loop that continuously monitors for claps. Test the system in various environments to fine-tune the thresholds and timing parameters. For advanced applications, pair clap detection with relays or LEDs to control devices, creating a hands-free interface.
In conclusion, writing an Arduino sketch for clap detection requires a balance of hardware calibration and software logic. By setting precise thresholds, incorporating timing mechanisms, and applying hysteresis, you can create a robust system that accurately identifies claps. This project not only demonstrates the capabilities of Arduino but also serves as a foundation for more complex interactive applications. Experiment with different sensors and environments to enhance the system’s reliability and explore its potential in real-world scenarios.
Cash Rebates: Smart Business Strategy or Costly Mistake?
You may want to see also
Explore related products
Debouncing Technique: Implement software debouncing to filter false triggers and ensure reliable clap detection
Mechanical switches and sensors often introduce noise, leading to false triggers in clap detection systems. This phenomenon, known as *bouncing*, occurs when the electrical contacts rapidly open and close before settling into a stable state. For sound sensors in Arduino projects, even a single false trigger can disrupt the intended functionality. Software debouncing mitigates this by ignoring rapid, transient signals and recognizing only sustained inputs, ensuring that your smart clap system responds reliably to actual claps rather than electrical noise.
To implement software debouncing, start by defining a debounce interval—typically 20 to 50 milliseconds—during which subsequent triggers are ignored after an initial detection. In your Arduino sketch, use a timestamp to track when the last valid trigger occurred. If the sound sensor detects a new signal within the debounce interval, discard it as noise. Only when the interval has elapsed should the system accept the signal as a legitimate clap. This approach requires minimal code adjustments but significantly enhances the system’s robustness.
Consider the following example: if your sound sensor reads a high signal (indicating a clap), record the current time using `millis()`. If another high signal is detected before the debounce interval has passed, ignore it. Once the interval elapses, reset the timestamp and process the clap. This method ensures that rapid, false triggers caused by bouncing are filtered out, while genuine claps are consistently recognized.
While software debouncing is effective, it’s crucial to balance the debounce interval with system responsiveness. Too short an interval may still allow noise through, while too long an interval can delay legitimate clap detection. Experiment with values between 30 and 50 milliseconds to find the optimal setting for your specific sound sensor and environment. Additionally, pair this technique with hardware debouncing (e.g., using a capacitor) for even greater reliability, especially in noisy electrical setups.
In conclusion, software debouncing is a simple yet powerful technique for refining clap detection in Arduino projects. By filtering out false triggers, it ensures that your smart clap system operates seamlessly, responding only to genuine inputs. With careful tuning of the debounce interval and consideration of hardware enhancements, you can achieve a robust, noise-resistant solution that elevates the performance of your project.
How's That Sound? Exploring the Perfect GIF for Every Reaction
You may want to see also
Explore related products
Output Integration: Connect LEDs, buzzers, or motors to Arduino for responsive smart clap actions
Integrating outputs like LEDs, buzzers, or motors with your Arduino and sound sensor transforms a simple clap detection project into an interactive, responsive system. Start by connecting your sound sensor to the Arduino’s analog pin to read sound levels. Once the clap threshold is detected, use digital pins to control external components. For example, connect an LED to pin 13 and a buzzer to pin 8. Write a sketch that triggers the LED to blink and the buzzer to beep for 500 milliseconds upon detecting a clap. This basic setup demonstrates how outputs can react instantly to sound input, laying the foundation for more complex integrations.
When expanding to motors, consider using a motor driver like the L298N to handle higher currents safely. Connect the motor’s positive and negative terminals to the driver’s output pins, then link the driver’s control pins to Arduino’s digital pins 9 and 10. Program the motor to rotate clockwise for 2 seconds when a clap is detected. For added functionality, incorporate a potentiometer to adjust the motor’s speed or duration. This approach not only enhances the project’s interactivity but also introduces principles of power management and component compatibility.
For a visually dynamic effect, combine multiple LEDs with different colors and resistors (220 ohms recommended) to create a clap-activated light show. Connect red, green, and blue LEDs to pins 5, 6, and 7, respectively. Use the `analogWrite()` function to fade the LEDs in sequence after a clap, creating a smooth transition effect. Pair this with a buzzer playing a short melody for a multisensory experience. This setup showcases how combining outputs can elevate the project’s aesthetic and functional appeal.
Caution: When working with motors or buzzers, avoid direct connections to Arduino pins without a driver or transistor, as these components draw more current than the board can safely provide. Always use a breadboard for prototyping to prevent short circuits. Test each component individually before integrating them to ensure proper functionality. By following these precautions and leveraging the Arduino’s versatility, you can create a robust, responsive smart clap system tailored to your needs.
Is Sofar Sounds Royalty-Free? Exploring Music Licensing for Live Performances
You may want to see also
Explore related products
Power Optimization: Use low-power modes and efficient components to extend battery life in portable setups
In portable Arduino setups for smart clap detection, battery life is often the limiting factor. The sound sensor and microcontroller consume power continuously, draining batteries quickly. To extend operational time, prioritize low-power modes and efficient components. For instance, use the Arduino’s `LowPower` library to put the microcontroller into sleep mode between clap detection cycles. This reduces current draw from ~20mA to under 1mA, significantly prolonging battery life. Pair this with a low-power sound sensor like the KY-038, which consumes minimal energy when idle.
Analyzing power consumption reveals that the microcontroller is often the primary drain. By leveraging sleep modes, you can reduce its power usage by up to 95%. However, waking the device reliably is critical. Configure the sound sensor to trigger an interrupt, which wakes the Arduino only when a clap is detected. This eliminates unnecessary polling, further conserving energy. For example, a 2000mAh battery powering a sleeping Arduino and sound sensor can last weeks instead of days.
Efficient components are equally important. Replace high-power LEDs or buzzers with low-current alternatives, such as 3mm LEDs or piezo buzzers, which consume microamps instead of milliamps. Use a voltage regulator with low quiescent current, like the MIC5205, to minimize power loss during conversion. Additionally, opt for a lithium-ion battery with a high energy density, ensuring maximum capacity in a compact form factor. These swaps collectively reduce overall power draw, making the setup more sustainable.
A practical tip: measure power consumption using a multimeter or dedicated tool like the INA219 sensor. This helps identify power-hungry components and validate optimization efforts. For instance, if the system draws 50mA in active mode and 0.5mA in sleep mode, calculate the duty cycle to estimate battery life accurately. A 10% active duty cycle with a 2000mAh battery could yield over 400 hours of operation.
In conclusion, power optimization in portable smart clap setups hinges on low-power modes and efficient components. By minimizing idle consumption, using interrupt-driven wake-ups, and selecting low-current parts, you can dramatically extend battery life. These strategies transform a short-lived prototype into a practical, long-duration device, ideal for real-world applications.
Exploring Gay Voice and Identity with David
You may want to see also
Frequently asked questions
You will need an Arduino board (e.g., Uno), a sound sensor module (e.g., KY-038), an LED or other output device, jumper wires, a breadboard, and a power source for the Arduino.
Connect the VCC pin of the sound sensor to the 5V pin on the Arduino, the GND pin to GND, the DO (digital output) pin to a digital pin (e.g., D2), and the AO (analog output) pin to an analog pin (optional, if needed).
Use the digitalRead() function to monitor the DO pin of the sound sensor. When a clap is detected (high signal), trigger the desired action, such as turning on an LED or playing a sound, using digitalWrite() or other output commands.
Ensure the sensor is properly calibrated and the environment is not too noisy. Adjust the sensitivity of the sensor using its onboard potentiometer if available. Additionally, check the wiring and ensure the Arduino code is correctly reading the sensor’s output.
