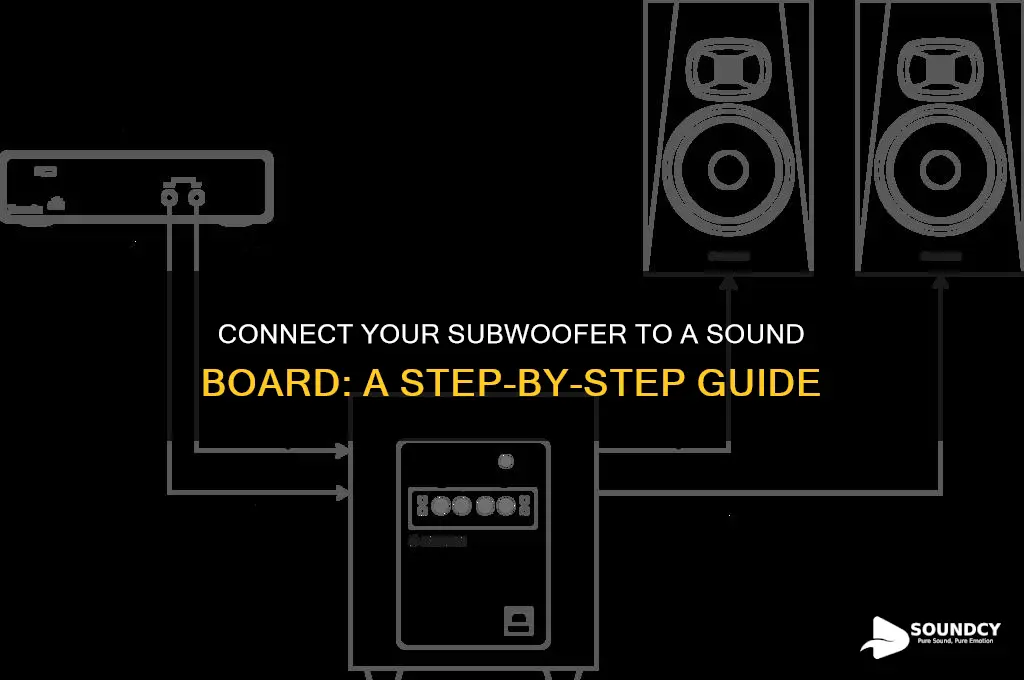

Connecting a subwoofer to a sound board is a crucial step in enhancing the low-frequency response of your audio setup, whether for live events, studio recording, or home entertainment. The process involves identifying the appropriate outputs on your sound board, typically labeled as Sub Out or Low Out, and matching them with the corresponding inputs on your subwoofer. Depending on your equipment, you may use XLR, RCA, or 1/4-inch cables to establish the connection. It’s essential to ensure the subwoofer’s frequency range and gain settings align with your main speakers to achieve a balanced and seamless sound. Additionally, some sound boards offer crossover settings to manage the frequency distribution between the subwoofer and other speakers, optimizing the overall audio performance. Proper setup not only improves bass response but also prevents phase issues and ensures a cohesive listening experience.
| Characteristics | Values |
|---|---|
| Connection Type | Balanced XLR, Unbalanced RCA, Speaker-Level, or Subwoofer Output (if available) |
| Required Cables | XLR cables, RCA cables, Speaker wires, or Subwoofer-specific cables |
| Sound Board Output | Subwoofer output (if available), Aux/Line output, or Speaker output |
| Subwoofer Input | Line-level input (RCA), Speaker-level input, or XLR input |
| Signal Type | Low-frequency audio signal (typically below 120 Hz) |
| Gain/Volume Control | Adjust on both the sound board and subwoofer for optimal balance |
| Crossover Settings | Set crossover frequency on the subwoofer (typically 80-120 Hz) |
| Phase Alignment | Ensure subwoofer phase matches main speakers (0° or 180°) |
| Polarity Check | Verify positive (+) and negative (-) terminals match between devices |
| Power Requirements | Ensure subwoofer is powered and turned on |
| Compatibility | Check sound board and subwoofer specifications for compatibility |
| Additional Equipment | May require a crossover or signal processor for advanced setups |
| Testing | Play audio and adjust levels to ensure proper integration |
| Safety Precautions | Avoid overloading the subwoofer or sound board with excessive volume |
| Documentation | Refer to user manuals for both the sound board and subwoofer |
Explore related products
What You'll Learn
- Identify Subwoofer Outputs: Check if your subwoofer has line-level, speaker-level, or LFE inputs for connection
- Sound Board Outputs: Locate the sound board’s subwoofer output or auxiliary send for routing
- Cabling Options: Use RCA, XLR, or ¼-inch cables based on compatible ports on both devices
- Gain and Crossover Settings: Adjust subwoofer gain and set crossover frequency to match main speakers
- Phase Alignment: Ensure subwoofer phase matches speakers for clear, punchy bass without cancellation
Identify Subwoofer Outputs: Check if your subwoofer has line-level, speaker-level, or LFE inputs for connection
Subwoofers are not one-size-fits-all, and their connection methods vary widely. Before attempting to link your subwoofer to a soundboard, the first critical step is identifying the type of inputs it supports. Subwoofers typically feature line-level, speaker-level, or LFE (Low-Frequency Effects) inputs, each designed for specific audio setups. Line-level inputs accept low-voltage signals from preamps or processors, while speaker-level inputs handle high-power signals directly from amplifiers. LFE inputs, often found on home theater subwoofers, are dedicated to reproducing deep bass effects from movies or soundtracks. Understanding these distinctions ensures compatibility and optimal performance.
Analyzing your subwoofer’s inputs requires a close inspection of its rear panel. Line-level inputs are usually RCA jacks, labeled as "Line In" or "Low Level." Speaker-level inputs often appear as spring-clip or binding post terminals, marked as "Speaker In" or "High Level." LFE inputs are typically RCA jacks labeled "LFE" or integrated into a surround sound input panel. If your subwoofer has multiple input options, prioritize LFE for dedicated bass channels or line-level for balanced integration with a soundboard. Speaker-level inputs are ideal when connecting directly to an amplifier without preamp capabilities.
The choice of input type significantly impacts sound quality and setup complexity. Line-level connections offer cleaner, more controlled bass because they bypass power amplification, making them suitable for professional soundboards. Speaker-level inputs, while versatile, may introduce noise or distortion if not matched properly with the amplifier’s output. LFE inputs are purpose-built for cinematic bass, delivering tight, impactful low-end frequencies but limiting their use to specific audio formats. For live sound or studio applications, line-level inputs are often the preferred choice due to their precision and ease of integration.
Practical tips can streamline the identification process. If your subwoofer’s manual is unavailable, search for the model online to access specifications. For older or unmarked units, test each input with a known signal source to determine functionality. When in doubt, consult an audio technician to avoid damaging equipment. Pairing the correct input type with your soundboard’s output ensures seamless operation and maximizes the subwoofer’s potential. Always verify impedance and power ratings to maintain system harmony.
In conclusion, identifying your subwoofer’s inputs is a foundational step in achieving a successful connection to a soundboard. By recognizing line-level, speaker-level, or LFE inputs, you can tailor your setup to meet specific audio needs. This knowledge not only prevents technical mishaps but also enhances the overall listening experience, whether for music production, live events, or home theater systems. Take the time to assess your subwoofer’s capabilities—it’s the key to unlocking its full sonic potential.
Understanding Intermittent Heart Sounds: Causes, Symptoms, and Diagnosis Explained
You may want to see also
Explore related products
Sound Board Outputs: Locate the sound board’s subwoofer output or auxiliary send for routing
The first step in connecting a subwoofer to a sound board is identifying the correct output. Not all sound boards have a dedicated subwoofer output, so understanding your board's capabilities is crucial. Most modern digital mixers feature a specific "Sub Out" jack, often labeled clearly on the rear panel. If your board lacks this, look for an auxiliary send or a group output that can be designated for low-frequency signals. Analog boards may require more creativity, potentially using a direct output from a channel strip or a monitor send.
Consider the signal flow when selecting an output. A dedicated subwoofer output typically includes a built-in crossover, filtering out frequencies above a certain threshold (usually 80–120 Hz) to ensure only bass reaches the sub. If using an auxiliary send or group output, you’ll need an external crossover or rely on the subwoofer’s internal crossover, if available. Ensure the output’s gain or level control aligns with the subwoofer’s input sensitivity to avoid distortion or underpowered bass.
For example, the Yamaha MG series mixers often include a "Sub Out" with a fixed crossover at 100 Hz, simplifying setup. In contrast, the Behringer X32 allows you to assign any auxiliary bus as a sub output, offering flexibility but requiring manual crossover adjustment. If your board lacks these features, route the kick drum or bass guitar channel to a group output, then use an external crossover to split the signal for the main speakers and subwoofer.
A common mistake is using a main output for the subwoofer without a crossover, resulting in duplicated frequencies and muddy sound. Always verify the output’s purpose and adjust settings accordingly. If unsure, consult the sound board’s manual or manufacturer’s website for specific guidance. Proper routing ensures clean bass response and protects both the subwoofer and main speakers from damage caused by overlapping frequencies.
In summary, locating the correct sound board output is foundational to integrating a subwoofer seamlessly. Whether using a dedicated sub out, auxiliary send, or creative routing, prioritize signal clarity and frequency management. Pair this step with appropriate cabling (XLR or ¼-inch balanced) and gain staging for optimal performance. With the right output identified, you’re one step closer to achieving a balanced, powerful sound system.
Sound Tigers Game Duration: Understanding the Length of Each Match
You may want to see also
Explore related products
Cabling Options: Use RCA, XLR, or ¼-inch cables based on compatible ports on both devices
The choice of cable for connecting a subwoofer to a sound board is dictated by the available ports on both devices. RCA, XLR, and ¼-inch cables are the most common options, each with distinct characteristics suited to different scenarios. RCA cables, with their red and white connectors, are ubiquitous in home audio setups and offer a straightforward, cost-effective solution for basic subwoofer integration. However, they lack the balanced signal transmission of XLR cables, which are preferred in professional audio environments for their noise rejection and longer cable runs without signal degradation. ¼-inch cables, often found in guitar amplifiers and some pro audio gear, provide a middle ground but are less common for subwoofer connections due to their unbalanced nature and limited frequency response in some cases.
When selecting a cable, begin by identifying the output ports on your sound board and the input ports on your subwoofer. For instance, if your sound board has XLR outputs and your subwoofer has XLR inputs, this is the ideal pairing for professional-grade setups. XLR cables not only ensure a balanced signal but also handle low-frequency information more reliably over longer distances, making them the go-to choice for live sound and studio applications. If your subwoofer only accepts RCA inputs, you’ll need an XLR-to-RCA adapter or cable, though this may introduce slight signal loss or imbalance.
RCA cables are the simplest option for home theater or casual use, especially when both devices have RCA ports. Their plug-and-play nature makes them user-friendly, but they are limited to shorter distances (under 15 feet) to avoid signal degradation. For longer runs, consider upgrading to XLR or using a signal booster, though this adds complexity and cost. ¼-inch cables, while less common for subwoofers, can be used in a pinch if both devices support them, but their unbalanced design may introduce hum or interference in noisy environments.
A practical tip is to match the impedance and signal level requirements of both devices. Most subwoofers operate at line level, but some require a specific input voltage range, which can be affected by the cable type and length. For example, using a long RCA cable with a subwoofer expecting a high-level input may result in a weak or distorted signal. Always consult the user manuals for both the sound board and subwoofer to ensure compatibility and optimal performance.
In summary, the cable choice hinges on port availability, signal integrity needs, and the environment. XLR cables excel in professional settings for their balanced, noise-resistant design, while RCA cables are ideal for short, simple connections in home setups. ¼-inch cables are a fallback option but should be used cautiously due to their limitations. By aligning the cable type with the specific demands of your setup, you ensure a clean, powerful bass response without unnecessary complications.
Discovering Eastsound WA: Location, Map, and Travel Tips
You may want to see also
Explore related products
Gain and Crossover Settings: Adjust subwoofer gain and set crossover frequency to match main speakers
Connecting a subwoofer to a soundboard isn’t just about plugging in cables—it’s about ensuring the subwoofer complements your main speakers seamlessly. The gain and crossover settings are critical here, acting as the bridge between your subwoofer and the rest of your sound system. The gain controls the subwoofer’s output level, while the crossover frequency determines where the subwoofer takes over from the main speakers. Get these wrong, and you risk muddy bass, uneven sound, or even speaker damage. Get them right, and you achieve a balanced, immersive audio experience.
Analytical Insight: The crossover frequency is essentially the handoff point between your main speakers and the subwoofer. For most systems, setting the crossover between 80Hz and 120Hz works well, as this range typically falls below the main speakers’ lower limit. However, this isn’t one-size-fits-all. Smaller bookshelf speakers might require a lower crossover (e.g., 80Hz), while larger floor-standing speakers could handle a higher one (e.g., 100Hz). The goal is to avoid overlap, where both the subwoofer and main speakers reproduce the same frequencies, causing phase cancellation or reinforcement.
Instructive Steps: Start by setting the subwoofer gain to its minimum. Play a track with strong bass and gradually increase the gain until the bass feels balanced with the mids and highs from your main speakers. Avoid cranking it up too high, as excessive gain can overpower the mix and strain the subwoofer. Next, adjust the crossover frequency. Begin at 80Hz and listen critically. If the bass sounds thin, lower the frequency; if it sounds boomy, raise it. Small increments (5-10Hz) are key—subtle changes make a big difference.
Comparative Perspective: Think of gain and crossover settings as a chef balancing flavors in a dish. Too much salt (gain) ruins the meal, while poorly layered ingredients (frequencies) create chaos. Just as a chef tastes and adjusts, you must listen and tweak. Unlike a recipe, there’s no single correct setting—it depends on your room acoustics, speaker placement, and personal preference. For example, a carpeted room may require slightly higher gain to compensate for sound absorption, while a hardwood room might need less.
Practical Tip: Use a test tone or a bass-heavy track (e.g., a kick drum or synth bass) to fine-tune your settings. Apps like Room EQ Wizard or even a smartphone SPL meter can help objectively measure frequency response, but your ears remain the ultimate judge. If you’re unsure, start conservative—lower gain and higher crossover—and gradually refine. Remember, the goal isn’t to feel the bass in your chest but to integrate it smoothly with your main speakers for a cohesive soundstage.
Takeaway: Proper gain and crossover settings are the difference between a subwoofer that enhances your system and one that detracts from it. Approach these adjustments methodically, using both technical tools and your ears. The result? A sound system where the subwoofer feels like an extension of your main speakers, not an add-on. This harmony ensures every note, from the deepest bass to the highest treble, is delivered with clarity and impact.
Mastering English Alphabet Pronunciation: A Step-by-Step Guide to Clear Speech
You may want to see also
Explore related products
Phase Alignment: Ensure subwoofer phase matches speakers for clear, punchy bass without cancellation
Phase alignment is the unsung hero of subwoofer integration, the difference between bass that rumbles with clarity and bass that muddies your mix. When your subwoofer and main speakers are out of phase, their sound waves can cancel each other out, creating thin, weak bass or even acoustic dead spots. Imagine two teams pulling a rope in opposite directions—that's what happens when your sub and speakers are fighting each other acoustically.
To align phases, start by identifying your subwoofer’s phase switch, typically labeled "0°" or "180°." Play a bass-heavy track and toggle between these settings while standing in the listening position. The setting that makes the bass feel tighter and more defined is the correct phase alignment. For finer control, some sound boards or subwoofers offer variable phase adjustment, allowing you to dial in the perfect match within a 0° to 180° range.
Here’s a practical tip: use a test tone, like a 40Hz sine wave, to pinpoint phase issues. Play the tone through both your main speakers and subwoofer, then adjust the phase until the bass sounds maximized. If you’re using a digital audio workstation (DAW), plugins like phase alignment tools can automate this process, ensuring precision down to the millisecond.
Ignoring phase alignment can lead to more than just poor sound—it can strain your system. When waves cancel out, your amplifier works harder to compensate, potentially overheating or damaging components. Think of it as driving a car with the parking brake on; it’s inefficient and risky. By aligning phases, you not only improve sound quality but also protect your equipment.
In live sound scenarios, phase alignment becomes even more critical due to room acoustics. Reflections and standing waves can exacerbate phase issues, so always test alignment in the actual space. For example, if your subwoofer is placed farther from the stage than your mains, delay the sub’s signal by a few milliseconds to compensate for the physical distance. This ensures the sound waves arrive in sync, creating a cohesive bass response.
The takeaway? Phase alignment isn’t just a technical detail—it’s the key to unlocking your subwoofer’s full potential. Whether you’re mixing in a studio or setting up for a live event, taking the time to align phases will result in bass that’s punchy, clear, and free from cancellation. It’s the difference between a good sound system and a great one.
Exploring the Unique Sound of Descending Accents in Speech Patterns
You may want to see also
Frequently asked questions
Yes, you can connect a subwoofer directly to a sound board if the sound board has a dedicated subwoofer output or low-frequency effects (LFE) channel. Use an RCA or XLR cable, depending on the available ports.
If your sound board lacks a subwoofer output, you can use the auxiliary (AUX) or monitor outputs. Alternatively, connect the subwoofer to the main outputs via a crossover to split high and low frequencies.
It depends on the subwoofer. If it’s a passive subwoofer, you’ll need an external amplifier. If it’s an active subwoofer (with a built-in amplifier), you can connect it directly to the sound board using the appropriate cables.
