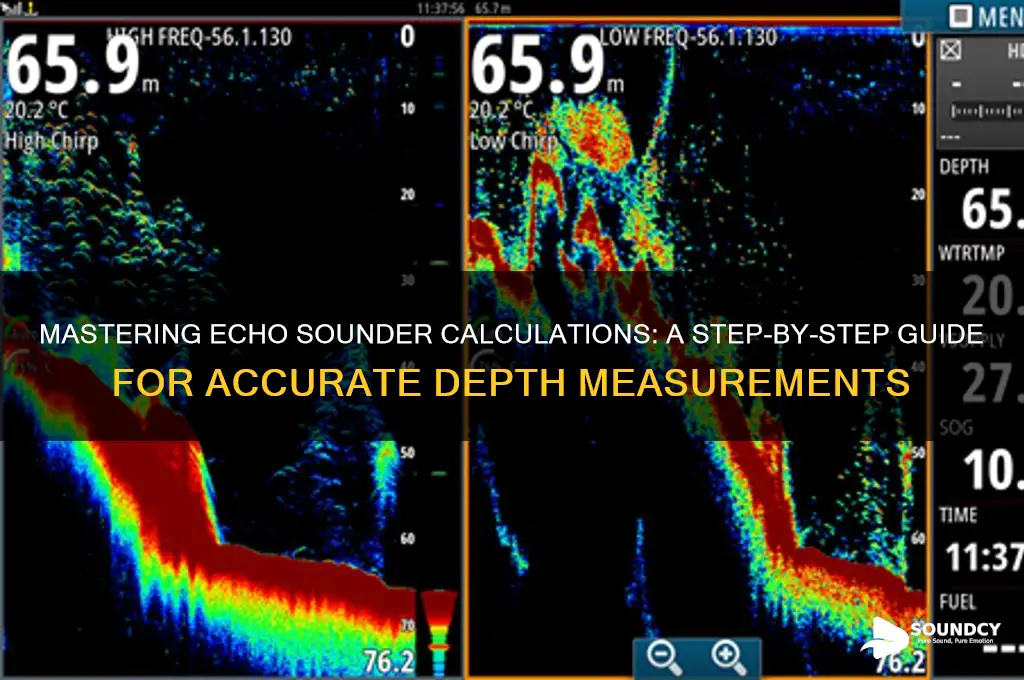

An echo sounder is a critical tool used in marine navigation and hydrography to measure the depth of water by transmitting sound waves and measuring the time it takes for the echo to return from the seabed. Calculating the depth using an echo sounder involves understanding the principles of sound wave propagation and the speed of sound in water. The basic formula, Depth = (Speed of Sound × Time) / 2, is applied, where the speed of sound in water is typically around 1,500 meters per second, and the time is the round-trip duration of the sound wave. Accurate calculations require accounting for factors such as water temperature, salinity, and pressure, which can affect the speed of sound. Mastering this process ensures precise depth measurements, essential for safe navigation, underwater mapping, and marine research.
| Characteristics | Values |
|---|---|
| Principle of Operation | Measures water depth by emitting sound pulses and calculating time for echo return. |
| Sound Speed in Water | Approximately 1,500 meters per second (varies with temperature, salinity, and pressure). |
| Depth Calculation Formula | Depth = (Speed of Sound × Time) / 2 |
| Frequency Range | Typically 33 kHz to 210 kHz (higher frequencies for shallow waters). |
| Accuracy | ±1% of water depth (dependent on sound speed accuracy and equipment quality). |
| Maximum Depth Range | Up to 11,000 meters (dependent on transducer and water conditions). |
| Transducer Types | Single beam, dual-frequency, and multi-beam transducers. |
| Environmental Factors Affecting Accuracy | Temperature, salinity, water pressure, and turbidity. |
| Applications | Hydrography, fisheries, underwater navigation, and oceanography. |
| Data Output | Digital depth readings, graphical displays, and raw echo soundings. |
| Power Source | Typically 12V or 24V DC for marine applications. |
| Calibration Requirement | Regular calibration needed to account for changes in sound speed. |
Explore related products
What You'll Learn
- Transducer Frequency Selection: Choosing the right frequency for depth and resolution in echo sounding
- Sound Speed Calculation: Determining water sound speed for accurate depth measurements
- Depth Calculation Formula: Using the two-way travel time formula to compute depth
- Data Interpretation: Analyzing echo sounder readings for seabed and underwater features
- Calibration Techniques: Ensuring accuracy by calibrating the echo sounder equipment regularly
Transducer Frequency Selection: Choosing the right frequency for depth and resolution in echo sounding
Transducer frequency selection is a critical aspect of echo sounding, as it directly impacts both the depth penetration and the resolution of the underwater imagery. Echo sounders operate by emitting sound waves at a specific frequency, which travel through water, reflect off the seabed or objects, and return to the transducer. The choice of frequency is a trade-off between depth capability and image clarity. Lower frequencies, typically ranging from 30 kHz to 200 kHz, penetrate deeper into the water due to their longer wavelengths and reduced absorption. However, they provide lower resolution, making it difficult to distinguish fine details on the seabed or objects. Higher frequencies, such as 400 kHz and above, offer superior resolution but are more rapidly absorbed by water, limiting their effective range. Understanding this relationship is essential for selecting the appropriate frequency based on the specific requirements of the survey or application.
When determining the optimal transducer frequency, consider the maximum depth of the water body being surveyed. For deep-water applications, such as oceanographic studies or offshore oil exploration, lower frequencies are generally preferred. For example, a 50 kHz transducer can achieve depths of several hundred meters, making it suitable for mapping the ocean floor. Conversely, in shallow waters like rivers, lakes, or coastal areas, higher frequencies are more effective. A 200 kHz or 400 kHz transducer provides excellent resolution for detecting small objects or subtle changes in the seabed topography. It’s important to note that environmental factors, such as water temperature, salinity, and turbidity, also influence sound wave propagation, further affecting frequency selection.
Resolution is another key factor in transducer frequency selection. Higher frequencies produce shorter wavelengths, resulting in sharper images and better differentiation between closely spaced objects. This is particularly important in applications like fisheries, where identifying schools of fish or underwater structures requires high detail. For instance, a 400 kHz transducer can resolve objects as small as a few centimeters, whereas a 50 kHz transducer may struggle to distinguish features smaller than a meter. However, the increased resolution of higher frequencies comes at the cost of reduced depth penetration, so the choice must align with the primary goals of the survey.
Practical considerations also play a role in frequency selection. Transducers with higher frequencies are often more compact and easier to install on smaller vessels, making them ideal for recreational or small-scale commercial use. Lower frequency transducers, on the other hand, are typically larger and require more power, which may limit their use to larger vessels or specialized equipment. Additionally, the cost of transducers increases with frequency, so budget constraints may influence the decision. Balancing these factors ensures that the chosen frequency meets both technical and operational needs.
In summary, selecting the right transducer frequency for echo sounding involves evaluating the trade-offs between depth penetration and resolution, as well as considering environmental and practical factors. Lower frequencies excel in deep-water applications but offer lower resolution, while higher frequencies provide detailed imagery in shallow waters at the expense of range. By carefully assessing the specific requirements of the survey, including depth, resolution needs, and operational constraints, users can choose the most suitable frequency to achieve accurate and reliable echo sounding results.
The Cost of Sound Breathing: Uncovering the Value of Healthy Respiration
You may want to see also
Explore related products
Sound Speed Calculation: Determining water sound speed for accurate depth measurements
Accurate depth measurements using an echo sounder rely heavily on knowing the speed of sound in water, as this directly influences the time it takes for the sound pulse to travel to the seabed and back. Sound speed in water is not constant; it varies with temperature, salinity, and pressure. Therefore, calculating the correct sound speed is essential for precise depth calculations. The formula to determine depth is Depth = (Speed of Sound × Time) / 2, where time is the round-trip time of the sound pulse. Without an accurate sound speed, depth measurements can be significantly off, leading to errors in navigation, hydrography, and other marine applications.
To calculate the speed of sound in water, the most commonly used empirical formula is the Chen and Millero equation, which accounts for temperature, salinity, and pressure. The equation is: c = 1448.96 + 4.591T - 0.05304T² + 0.0002374T³ + (1.340 - 0.01025T)S + 0.0163P, where c is the speed of sound in meters per second, T is temperature in degrees Celsius, S is salinity in parts per thousand (ppt), and P is pressure in megapascals (MPa). Pressure can be estimated using the depth of the water column, as it increases by approximately 0.1 MPa for every 10 meters of depth. This formula provides a high degree of accuracy for most marine environments.
In practice, many echo sounders come equipped with built-in sound speed profiles or allow manual input of water temperature and salinity to automatically calculate sound speed. However, for manual calculations, it’s crucial to measure these parameters accurately. Temperature can be measured using a thermometer or a CTD (Conductivity, Temperature, Depth) profiler, while salinity can be determined using a refractometer or conductivity sensor. If pressure is not directly measurable, it can be approximated based on the depth range being surveyed.
For applications requiring high precision, such as hydrographic surveys or scientific research, it’s recommended to use a sound velocity profiler (SVP). An SVP measures sound speed directly at various depths, providing a detailed profile of sound speed variations in the water column. This data can then be used to correct echo sounder measurements, ensuring the highest accuracy. Without such tools, relying on the Chen and Millero equation with accurate temperature and salinity data remains the next best approach.
In summary, determining the speed of sound in water is a critical step in achieving accurate depth measurements with an echo sounder. By using empirical formulas like the Chen and Millero equation, measuring key parameters such as temperature and salinity, and leveraging tools like sound velocity profilers, users can significantly improve the reliability of their depth data. Ignoring sound speed variations can lead to substantial errors, underscoring the importance of this calculation in marine and hydrographic applications.
How Sweet the Sound: Celebrating Musical Talent and Harmony
You may want to see also
Explore related products
Depth Calculation Formula: Using the two-way travel time formula to compute depth
An echo sounder is a device used to determine the depth of water by measuring the time it takes for a sound pulse to travel from the transducer to the seabed and back. The key to calculating depth using an echo sounder lies in understanding the two-way travel time formula. This formula relates the time taken for the sound wave to travel to the seabed and return to the speed of sound in water. The basic principle is straightforward: the total distance traveled by the sound wave is twice the depth of the water, as the sound travels down and back up.
The two-way travel time formula for depth calculation is given by:
\[
\text{Depth} = \frac{\text{Speed of Sound} \times \text{Two-Way Travel Time}}{2}
\]
Here, the speed of sound in water is a critical factor and typically ranges between 1,450 to 1,500 meters per second (m/s), depending on water temperature, salinity, and pressure. The two-way travel time is the total time measured from the emission of the sound pulse to the reception of the echo. This time is usually recorded by the echo sounder in seconds or milliseconds.
To apply the formula, first ensure the speed of sound in the specific body of water is known. If not, a standard value of 1,500 m/s can be used for initial calculations. Next, measure the two-way travel time using the echo sounder. For example, if the two-way travel time is 0.1 seconds (100 milliseconds), the calculation would be:
\[
\text{Depth} = \frac{1,500 \, \text{m/s} \times 0.1 \, \text{s}}{2} = 75 \, \text{meters}
\]
This means the water depth is 75 meters.
It’s important to note that the formula divides by 2 because the measured time corresponds to the round trip of the sound wave. If the echo sounder provides one-way travel time, the depth can be directly calculated by multiplying the speed of sound by the one-way travel time. However, most echo sounders measure two-way travel time, making the above formula the standard approach.
Accuracy in depth calculation depends on precise measurement of travel time and correct estimation of the speed of sound. Errors can arise from factors like water conditions, transducer positioning, and signal interference. Therefore, calibrating the echo sounder and accounting for environmental variables is essential for reliable results. By mastering the two-way travel time formula, users can effectively compute depth using an echo sounder in various marine applications.
Unraveling the Quack: How Many Sounds Does a Duck Make?
You may want to see also
Explore related products
Data Interpretation: Analyzing echo sounder readings for seabed and underwater features
Echo sounders are essential tools for mapping the seabed and identifying underwater features by emitting sound pulses and measuring the time it takes for the echoes to return. To interpret echo sounder readings effectively, start by understanding the basic principles of sound wave propagation in water. The speed of sound in water is approximately 1,500 meters per second, and this value is crucial for calculating the depth of the seabed. The formula for depth is given by: Depth = (Speed of Sound × Time) / 2, where time is the round-trip time of the echo. Accurate interpretation begins with calibrating the echo sounder to account for variations in water temperature, salinity, and pressure, as these factors influence sound speed.
Once the depth is calculated, the next step is to analyze the strength and pattern of the echo returns. Strong, clear echoes typically indicate a hard, flat seabed, such as rocky or compacted sediment surfaces. Weaker or scattered echoes may suggest softer substrates like mud or sand, or the presence of underwater vegetation. Advanced echo sounders often display data in the form of a depth profile or echogram, where variations in echo intensity are represented by color gradients. Interpreting these profiles requires identifying anomalies, such as sudden changes in depth or echo strength, which could signify underwater features like reefs, shipwrecks, or submerged structures.
To further refine data interpretation, consider the beam angle and frequency of the echo sounder. Narrow beam angles provide higher resolution but cover a smaller area, making them ideal for detailed feature detection. Lower frequencies penetrate deeper into the water column and are better suited for mapping deeper seabeds, while higher frequencies offer greater detail in shallower waters. By adjusting these parameters based on the survey objectives, you can optimize the data for specific underwater environments. For instance, a high-frequency, narrow-beam setup is effective for identifying small objects like pipelines or archaeological artifacts.
Another critical aspect of analyzing echo sounder readings is distinguishing between the seabed and sub-bottom features. Sub-bottom profiling, which involves interpreting echoes that penetrate beneath the seafloor, can reveal layers of sediment, geological structures, or buried objects. This requires specialized echo sounders capable of emitting low-frequency pulses and capturing weaker return signals. By correlating sub-bottom data with surface echo readings, you can create a comprehensive understanding of the underwater terrain, including both the seabed topography and underlying stratigraphy.
Finally, integrating echo sounder data with other geospatial tools enhances the accuracy and utility of the analysis. Combining echo sounder readings with GPS coordinates allows for the creation of detailed bathymetric maps, which are essential for navigation, marine construction, and environmental studies. Additionally, overlaying echo sounder data with side-scan sonar imagery or seismic surveys can provide a more holistic view of the underwater environment. By systematically interpreting echo sounder readings and leveraging complementary technologies, you can effectively map seabed features, identify potential hazards, and support informed decision-making in marine applications.
Sound Baths and Christianity: Exploring Spiritual Practices and Faith
You may want to see also
Explore related products
$23.9
Calibration Techniques: Ensuring accuracy by calibrating the echo sounder equipment regularly
Calibration of echo sounder equipment is essential for maintaining accurate depth measurements and ensuring reliable data collection in marine and hydrographic surveys. Regular calibration compensates for factors such as transducer wear, temperature variations, and electronic drift, which can introduce errors over time. The process involves adjusting the system to match known reference values, ensuring the device accurately measures the time it takes for a sound pulse to travel to the seabed and back. This section outlines key calibration techniques to ensure the echo sounder operates with precision.
One fundamental calibration technique is the use of a calibration sphere or plate, which is a known target of specific size and material placed at a fixed distance from the transducer. By measuring the echo return from this target and comparing it to the expected value, adjustments can be made to the system’s gain, pulse length, and other parameters. This method is particularly useful for verifying the accuracy of the transducer’s transmit and receive capabilities. The calibration sphere should be deployed in a controlled environment, such as a tank or calm water, to minimize external interference.
Another critical technique is sound velocity profiling, which accounts for variations in the speed of sound through water due to temperature, salinity, and pressure. Echo sounders assume a constant sound velocity, but in reality, this varies with environmental conditions. By measuring the sound velocity at different depths using a sound velocity probe or conductivity-temperature-depth (CTD) sensor, the echo sounder can be calibrated to correct for these variations. This ensures that the calculated depth accurately reflects the true distance to the seafloor.
Towing a calibration target at a known depth is another effective method, especially for systems used in moving vessels. This involves deploying a target, such as a weighted bar or plate, at a precise depth and measuring the echo return as the vessel moves. By comparing the measured depth to the known depth, adjustments can be made to the system’s timing and range settings. This technique is particularly useful for verifying the accuracy of the system under operational conditions, including the effects of vessel motion and water turbulence.
Regular system checks and adjustments are also vital for maintaining calibration. This includes inspecting the transducer for damage, ensuring proper mounting and alignment, and verifying the integrity of cables and connectors. Software settings, such as gain, pulse length, and filtering, should be reviewed and adjusted as needed based on calibration results. Additionally, logging calibration data and comparing it over time helps identify trends and potential issues before they affect performance.
In conclusion, calibrating echo sounder equipment regularly using these techniques ensures accurate and reliable depth measurements. By employing calibration spheres, sound velocity profiling, towing targets, and routine system checks, operators can maintain the integrity of their data and the longevity of their equipment. Calibration should be performed at regular intervals, particularly before and after critical surveys, to account for environmental and operational factors that may impact accuracy.
Does PSVR Have Sound? Exploring Audio Features of PlayStation VR
You may want to see also
Frequently asked questions
An echo sounder is a device used to measure the depth of water by transmitting sound waves and measuring the time it takes for the echo to return after hitting the seabed. It works on the principle of sonar, using the speed of sound in water to calculate depth.
To calculate depth, use the formula: Depth = (Speed of Sound × Time) / 2. The speed of sound in water is approximately 1,500 meters per second, and the time is the round-trip duration of the sound wave. Divide by 2 to account for the sound traveling down and back.
Accuracy can be affected by water temperature, salinity, and pressure, as they influence the speed of sound. Additionally, rough seas, debris in the water, and incorrect calibration of the device can also impact the readings.
