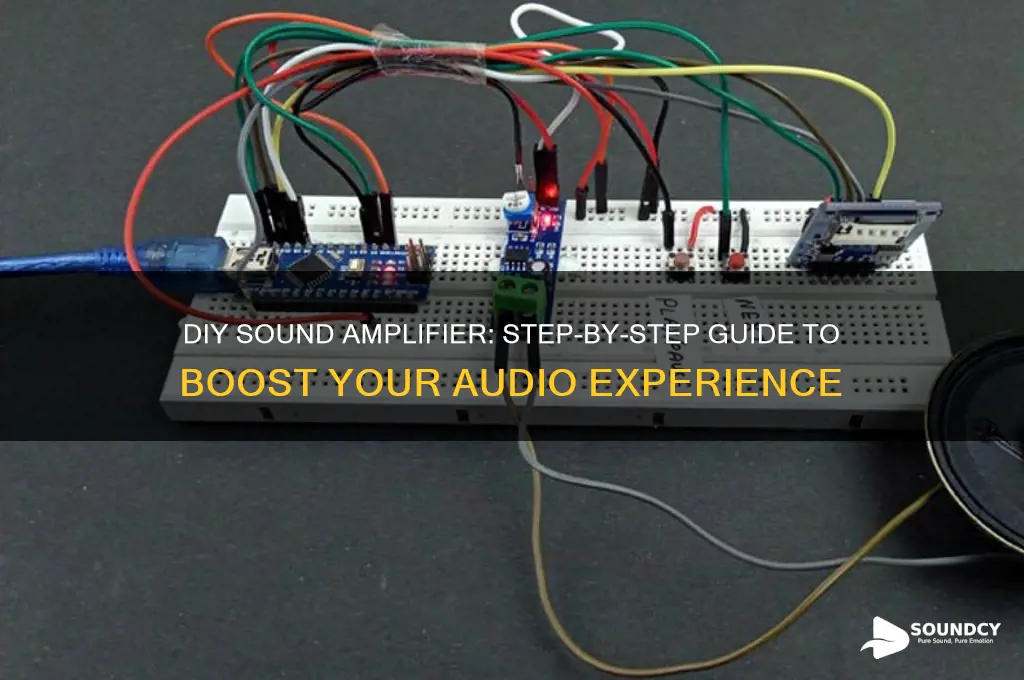

Building a sound amplifier can be a rewarding DIY project for audio enthusiasts and hobbyists alike, offering a deeper understanding of electronics and acoustics. The process typically involves selecting the right components, such as transistors, resistors, capacitors, and speakers, and assembling them according to a well-designed circuit diagram. Key steps include choosing an amplifier type—whether it’s a simple class A amplifier for low power or a more efficient class AB design—and ensuring proper power supply and heat management to prevent damage. Additionally, understanding impedance matching between the amplifier and speakers is crucial for optimal sound quality. With patience, attention to detail, and basic soldering skills, anyone can create a functional sound amplifier tailored to their specific audio needs.
Explore related products
What You'll Learn
- Components Needed: List essential parts like transistors, resistors, capacitors, and speakers for amplifier construction
- Circuit Design: Understand schematic diagrams and layout for optimal signal amplification and clarity
- Power Supply Setup: Choose and connect a reliable power source to ensure stable operation
- Enclosure Building: Design and assemble a durable case to house the amplifier components
- Testing & Tuning: Verify functionality, adjust gain, and fine-tune for best audio performance
Components Needed: List essential parts like transistors, resistors, capacitors, and speakers for amplifier construction
To build a sound amplifier, you’ll need a combination of essential electronic components that work together to amplify audio signals. The core components include transistors, which act as the primary amplification elements. For a basic amplifier, bipolar junction transistors (BJTs) like the 2N3904 (NPN) and 2N3906 (PNP) are commonly used due to their availability and ease of use. Alternatively, metal-oxide-semiconductor field-effect transistors (MOSFETs) can be used for higher power applications, offering better efficiency and lower distortion. Transistors are the heart of the amplifier, as they take the weak input signal and increase its strength to drive a speaker.
Resistors are another critical component, serving multiple roles in the amplifier circuit. They are used to set biasing points for the transistors, control current flow, and establish voltage levels. For instance, a voltage divider made of two resistors is often used to bias the base of the transistor. Additionally, resistors are used in the feedback network to stabilize the amplifier and control gain. Common resistor values range from a few hundred ohms to several kilo-ohms, depending on the specific circuit requirements. It’s essential to choose resistors with appropriate power ratings to avoid overheating.
Capacitors play a vital role in coupling and decoupling signals within the amplifier. Coupling capacitors are used to block DC while allowing AC audio signals to pass between stages of the amplifier. These are typically electrolytic capacitors with values ranging from 10 μF to 100 μF. Decoupling capacitors, often ceramic or tantalum, are placed near the power supply pins of active components to filter out high-frequency noise and ensure stable operation. Additionally, bypass capacitors are used to improve high-frequency response and reduce distortion by providing a low-impedance path for AC signals.
The speaker is the output device that converts the amplified electrical signal into sound. For a basic amplifier, an 8-ohm speaker is commonly used, though the impedance can vary depending on the design. The power rating of the speaker should match the output power of the amplifier to avoid damage. For example, if the amplifier delivers 5 watts, a speaker rated for at least 5 watts is recommended. Some amplifiers also include a volume control potentiometer to adjust the output level, which is essentially a variable resistor.
Finally, the amplifier requires a power supply to operate. This can be a simple DC power source, such as a 9V battery or a regulated power supply unit. The voltage and current capacity of the power supply depend on the amplifier’s design and power output requirements. For higher power amplifiers, heat sinks may be needed to dissipate excess heat from the transistors. Additionally, diodes and fuses can be included for protection against reverse polarity and overcurrent conditions.
In summary, the essential components for building a sound amplifier include transistors for amplification, resistors for biasing and control, capacitors for coupling and filtering, a speaker for sound output, and a power supply to drive the circuit. Each component plays a specific role, and selecting the right parts with appropriate specifications is crucial for achieving a functional and efficient amplifier.
Unveiling the Unique Rhythms and Tones of the German Language
You may want to see also
Explore related products
Circuit Design: Understand schematic diagrams and layout for optimal signal amplification and clarity
To build a sound amplifier with optimal performance, start by understanding the core components of the circuit. A typical audio amplifier consists of an input stage, amplification stage, and output stage. The schematic diagram will include components like transistors (BJTs or MOSFETs), operational amplifiers (op-amps), resistors, capacitors, and sometimes transformers. The input stage often uses a differential amplifier or a single op-amp to condition the incoming audio signal, reducing noise and ensuring proper impedance matching. The amplification stage, usually the heart of the circuit, employs a Class A, B, AB, or D amplifier topology, each with trade-offs in efficiency, distortion, and complexity. For clarity and fidelity, Class AB is commonly used for its balance between efficiency and low distortion.
When designing the schematic, pay close attention to the signal path and component selection. Use high-quality, low-noise components for the input stage to preserve signal integrity. For the amplification stage, select transistors or op-amps with sufficient gain and power handling capabilities. Capacitors in the signal path should be low-ESR types to avoid distortion, while coupling capacitors must be sized appropriately to pass the desired audio frequency range (typically 20 Hz to 20 kHz). Feedback resistors are critical for stabilizing gain and reducing distortion, so calculate their values carefully based on the amplifier's open-loop gain.
The layout of the circuit is equally important as the schematic design. Proper layout minimizes noise, reduces interference, and ensures thermal stability. Place components in a logical flow, following the signal path from input to output. Keep high-gain and sensitive components away from power traces to avoid hum or interference. Use ground planes to provide a low-impedance return path for signals, reducing ground loops and noise. For heat-generating components like power transistors, ensure adequate spacing and consider adding heat sinks to maintain optimal operating temperatures.
To optimize signal clarity, incorporate filtering and decoupling techniques. Add bypass capacitors (e.g., 0.1 µF ceramic capacitors) near active components to filter high-frequency noise. Use low-pass or band-pass filters at the output stage to remove unwanted harmonics or noise outside the audio bandwidth. If using a Class D amplifier, include an LC filter to smooth the PWM output into an analog audio signal. Properly designed filters enhance sound quality by reducing distortion and hiss.
Finally, simulate and test your design before finalizing the circuit. Use software tools like LTspice or Multisim to verify the schematic's performance, checking for gain, frequency response, and distortion levels. Prototype the circuit on a breadboard or PCB, measuring key parameters with an oscilloscope or audio analyzer. Iterate the design based on test results, adjusting component values or layout as needed. A well-designed schematic and layout, combined with thorough testing, ensures a sound amplifier that delivers both amplification and clarity.
Boost Your Projector's Audio: Simple Tips to Amplify Sound Effectively
You may want to see also
Explore related products
Power Supply Setup: Choose and connect a reliable power source to ensure stable operation
When setting up the power supply for your sound amplifier, the first step is to choose a reliable power source that matches the amplifier’s requirements. Most DIY amplifiers operate on a low-voltage DC supply, typically ranging from 9V to 24V, depending on the circuit design. For smaller amplifiers, a 9V battery can be sufficient, but for higher power output, a DC power adapter or a regulated power supply is recommended. Ensure the power source can deliver the required current (measured in amperes) to avoid underpowering the amplifier, which can lead to distortion or damage. Always check the amplifier’s schematic or datasheet for specific voltage and current needs.
Once you’ve selected the power source, connect it securely to the amplifier circuit. If using a DC adapter, ensure the polarity (positive and negative terminals) matches the amplifier’s input. Incorrect polarity can damage components, so double-check the markings on the circuit board or schematic. For battery-powered setups, use high-quality connectors or soldered wires to minimize resistance and ensure a stable connection. If using a regulated power supply, connect the output leads to the amplifier’s power input terminals, typically labeled as "V+" (positive) and "GND" (ground).
To ensure stable operation, consider adding a decoupling capacitor (usually 1000µF or larger) across the power supply lines near the amplifier’s input. This capacitor helps filter out noise and voltage fluctuations, providing a cleaner power source. Additionally, a voltage regulator IC (such as the 7805 for 5V or 7812 for 12V) can be used to maintain a consistent voltage level, especially if the power source is prone to variations. This is particularly important for amplifiers with sensitive components like operational amplifiers (op-amps) or digital signal processors.
For safety and reliability, always include a fuse in the power supply line, especially when using high-current adapters or batteries. A fuse protects the circuit from overcurrent conditions that could cause overheating or component failure. Choose a fuse rating slightly higher than the amplifier’s maximum current draw to avoid unnecessary tripping. Finally, ensure all connections are insulated and secured to prevent short circuits, which can be hazardous and damaging.
Lastly, test the power supply before connecting it to the amplifier. Use a multimeter to verify the output voltage and ensure it matches the amplifier’s requirements. Check for any overheating or unusual behavior during operation. If using a battery, monitor its voltage level over time to avoid deep discharge, which can reduce its lifespan. A stable and well-configured power supply is critical for the amplifier’s performance and longevity, so take the time to set it up correctly.
Shallow Speakers: Do They Compromise Sound Quality? A Critical Analysis
You may want to see also
Explore related products
Enclosure Building: Design and assemble a durable case to house the amplifier components
When building a sound amplifier, the enclosure is a critical component that not only protects the internal circuitry but also influences the overall sound quality and durability of the device. The first step in Enclosure Building: Design and assemble a durable case to house the amplifier components is to plan the dimensions and layout of the enclosure. Measure the size of your amplifier circuit board, power supply, and any additional components like volume knobs or input/output jacks. Add extra space for ventilation, wiring, and future upgrades. Sketch a design that accommodates these elements while ensuring a compact and ergonomic form factor. Consider the material for the enclosure; common choices include aluminum, wood, or ABS plastic, each offering different levels of durability, weight, and cost.
Once the design is finalized, procure the materials and begin cutting or shaping them according to your measurements. If using aluminum or metal, a sturdy yet lightweight option, you may need to drill holes for screws, vents, and component access. For wooden enclosures, ensure the wood is thick enough to withstand handling and consider sanding and staining for a professional finish. Plastic enclosures are often easier to work with and can be cut with basic tools, but they may lack the rigidity of metal or wood. Regardless of the material, ensure all edges are smooth to avoid injury and interference with internal components.
Assembly is the next critical phase. Secure the sides, top, and bottom of the enclosure using screws, glue, or interlocking joints, depending on the material. Reinforce corners and joints for added strength, especially if the enclosure will be portable. Install vents or fans if your amplifier generates significant heat, as overheating can damage components. Position the vents strategically to maintain airflow without compromising structural integrity. If using a metal enclosure, ensure proper grounding to prevent electrical interference.
After the enclosure is assembled, mount the amplifier components inside. Use standoffs or insulating material to secure the circuit board and prevent short circuits. Arrange the power supply, transformers, and other heavy components near the bottom to lower the center of gravity and improve stability. Label the interior with component locations for easy maintenance and troubleshooting. Test the fit of all parts before final assembly to ensure everything aligns correctly.
Finally, test the amplifier within the enclosure to ensure proper functionality and ventilation. Check for any vibrations or resonances that could affect sound quality and address them by adding damping material like foam or rubber pads. Once satisfied, seal the enclosure securely, ensuring all screws are tight and seams are closed. A well-designed and assembled enclosure not only enhances the longevity of your amplifier but also contributes to its aesthetic appeal and portability. With careful planning and execution, your sound amplifier will be housed in a durable, functional, and professional-looking case.
Did Bell Sound Studios Equipment Shape Music History?
You may want to see also
Explore related products
Testing & Tuning: Verify functionality, adjust gain, and fine-tune for best audio performance
Once your sound amplifier is assembled, the first step is to verify its basic functionality. Connect a power source and input device (such as a smartphone or audio player) to the amplifier. Play a test audio signal at low volume and listen for output from the speakers. Ensure there is no distortion, buzzing, or unwanted noise. If the amplifier remains silent, check all connections, including power, input, and output wires, for loose or incorrect placements. Use a multimeter to test for continuity and voltage at key points, such as the power supply and amplifier IC, to identify any faults.
Next, adjust the gain to achieve the desired amplification level. Start with the gain control (if available) set to its minimum position. Gradually increase the gain while playing a consistent audio signal. Observe the output for distortion or clipping, which occurs when the amplifier is overdriven. If distortion is present, reduce the gain until the audio is clean and clear. For amplifiers without a dedicated gain control, adjust the input signal level from the source device to achieve optimal performance. Ensure the gain is set high enough to amplify the signal adequately but low enough to avoid distortion.
Fine-tuning the amplifier involves optimizing its performance for the best audio quality. Use a variety of test tracks with different frequencies and dynamics to evaluate the amplifier’s response. Pay attention to bass, midrange, and treble frequencies, ensuring they are balanced and free from excessive emphasis or attenuation. If your amplifier includes tone controls, adjust them to achieve a flat frequency response or a desired sound signature. For example, increase bass for richer low-end or treble for clearer highs, depending on your preference.
To further refine performance, test the amplifier under different load conditions. Connect speakers with varying impedance ratings (e.g., 4 ohms, 8 ohms) and observe how the amplifier handles each. Ensure it delivers consistent power and audio quality across all loads. If the amplifier struggles with certain speakers, verify that the power supply is adequate and that the amplifier’s output stage is not overheating. Use a heat sink or cooling fan if necessary to maintain optimal operating temperatures.
Finally, conduct a long-term stability test by running the amplifier at moderate volume for several hours. Monitor for any changes in sound quality, temperature, or performance. If the amplifier begins to overheat or distort over time, recheck the gain settings, power supply, and component connections. Once all tests are complete and the amplifier performs reliably, it is ready for regular use. Regularly revisit the tuning process to ensure continued optimal performance, especially if using the amplifier in different environments or with varying audio sources.
The Haunting Melody: Decoding the Unique Sound of a Train Whistle
You may want to see also
Frequently asked questions
The basic components include an audio input source (e.g., microphone or device), an amplifier IC (e.g., LM386), resistors, capacitors, a power supply (battery or adapter), speakers, and a PCB or breadboard for assembly.
Choose an amplifier IC based on your power requirements, input/output impedance, and desired gain. Popular options include the LM386 for low-power applications or the TDA2030 for higher power outputs.
Yes, you can use a breadboard for prototyping, but soldering is recommended for a more permanent and reliable setup, especially for higher power amplifiers.
Use quality components, minimize noise by grounding properly, add filters or capacitors to reduce distortion, and ensure the power supply is stable and free from interference.
