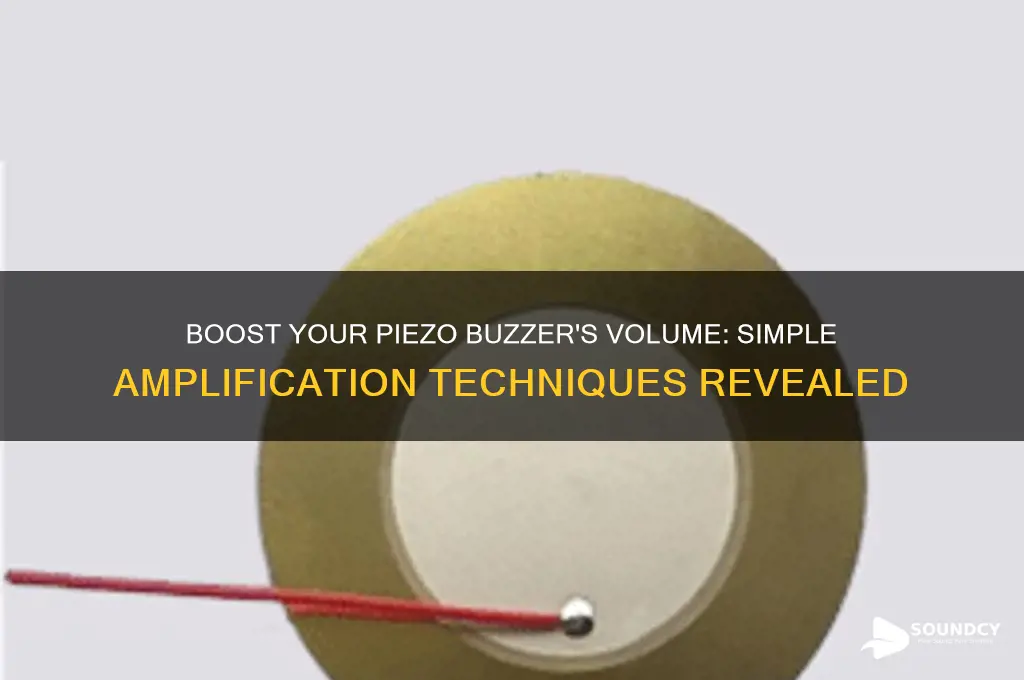

Amplifying the sound of a piezo buzzer can be a practical solution for various applications, from alarm systems to electronic projects, where a louder and clearer tone is required. Piezo buzzers, known for their efficiency and compact size, produce sound through the piezoelectric effect, but their volume can often be limited. To enhance their output, several methods can be employed, including using a transistor amplifier circuit, which boosts the signal without distorting the tone, or incorporating a dedicated audio amplifier module for more significant gains. Additionally, optimizing the buzzer's mechanical setup, such as mounting it on a resonant surface or using a sound-reflecting enclosure, can further increase its audible range. Understanding these techniques allows enthusiasts and engineers to maximize the potential of piezo buzzers in their projects.
| Characteristics | Values |
|---|---|
| Amplification Method | Use a transistor amplifier circuit (e.g., NPN transistor like BC547) |
| Power Supply | 3V to 12V depending on the buzzer and amplifier circuit |
| Transistor Configuration | Common Emitter or Darlington Pair for higher gain |
| Resistors | Base resistor (e.g., 1kΩ to 10kΩ) and emitter resistor (e.g., 100Ω) |
| Capacitors | Coupling capacitor (e.g., 10µF) to block DC and allow AC signal |
| Speaker/Output | 8Ω speaker or larger for better sound output |
| Buzzer Operating Voltage | Typically 3V to 5V for most piezo buzzers |
| Frequency Range | Piezo buzzers operate at 2kHz to 4kHz; amplification maintains range |
| Current Draw | Amplified circuit draws more current (e.g., 50mA to 200mA) |
| Heat Dissipation | Use heat sinks for transistors if high power amplification is used |
| Circuit Complexity | Low to moderate (basic electronics knowledge required) |
| Cost | Low ($1 to $5 for components depending on quality) |
| Applications | Alarms, notifications, DIY projects, and small audio devices |
| Alternative Methods | Use operational amplifiers (Op-Amps) or dedicated audio amplifiers |
| Sound Quality | Amplification improves volume but may introduce distortion |
| Size | Compact design possible with SMD components |
| Durability | Robust if properly designed and powered |
Explore related products
What You'll Learn
Boosting Voltage for Louder Output
To boost the voltage for a louder output from a piezo buzzer, you must understand that piezo buzzers operate based on the piezoelectric effect, where mechanical stress generates an electric charge. Increasing the voltage supplied to the buzzer can significantly enhance its sound output. One straightforward method is to use a boost converter circuit, which steps up the input voltage to a higher level. For instance, if your power source provides 3.3V or 5V, a boost converter can elevate this to 12V or even 24V, depending on the buzzer's specifications. Ensure the buzzer can handle the increased voltage to avoid damage.
Another approach is to use a transistor-based amplifier circuit to drive the piezo buzzer with higher voltage pulses. A common configuration involves using an NPN transistor, such as the 2N2222, to switch the buzzer on and off rapidly at a higher voltage. Connect the transistor's collector to the higher voltage source (e.g., 12V) and the emitter to the buzzer. The base of the transistor can be controlled by a microcontroller or signal generator to create the desired sound patterns. This method allows for precise control over the buzzer's output while leveraging higher voltage for increased loudness.
For a simpler solution, consider using a voltage multiplier circuit, which can generate higher voltages from a lower input source. A Cockcroft-Walton multiplier, for example, uses diodes and capacitors to double or triple the input voltage. This setup is particularly useful if you need a compact and low-cost solution. However, ensure the components can handle the current requirements of the piezo buzzer, as voltage multipliers may have limitations in this regard.
If you prefer a ready-made solution, dedicated piezo buzzer driver ICs like the LM386 or MAX9744 can amplify the signal and boost the voltage to achieve louder output. These ICs often include built-in voltage amplification and are designed specifically for driving piezoelectric devices. Follow the datasheet instructions to integrate the IC into your circuit correctly, ensuring compatibility with your power supply and buzzer.
Lastly, always incorporate safety measures when boosting voltage. Use voltage regulators or resistors to limit current and prevent overheating. Test the circuit incrementally, starting with lower voltages, and gradually increase the voltage while monitoring the buzzer's performance. This cautious approach ensures optimal performance without risking damage to the piezo buzzer or other components. By carefully applying these techniques, you can effectively boost the voltage and achieve a significantly louder output from your piezo buzzer.
