When exploring the design and functionality of a motherboard, one important aspect to consider is the number of sound ports integrated directly into it. Modern motherboards typically come equipped with a variety of audio connectors, such as 3.5mm jacks for headphones, microphones, and speakers, as well as digital audio outputs like S/PDIF. The exact number of sound ports can vary depending on the motherboard's form factor, intended use, and manufacturer specifications. Entry-level and mid-range motherboards often feature 3 to 5 audio ports, while high-end models may include additional ports or advanced audio solutions, such as integrated amplifiers or support for surround sound systems. Understanding the number and type of sound ports available is crucial for ensuring compatibility with your audio devices and optimizing your overall sound experience.
Explore related products
What You'll Learn
- Types of Sound Ports: Explore various audio connectors like 3.5mm jacks, optical, and HDMI
- Integrated vs. Dedicated Ports: Compare motherboard-integrated ports to external sound card options
- Common Port Configurations: Examine typical setups (e.g., front/rear panel audio ports)
- Compatibility with Devices: Check compatibility with headphones, speakers, and microphones
- Troubleshooting Sound Ports: Identify issues like driver problems or physical port damage
Types of Sound Ports: Explore various audio connectors like 3.5mm jacks, optical, and HDMI
Modern motherboards typically integrate 3 to 5 sound ports, depending on the model and intended use. These ports serve as gateways for connecting audio devices, each with unique capabilities and use cases. Among the most common are the 3.5mm jack, optical (TOSLINK), and HDMI, each catering to different audio needs. Understanding their functions helps in optimizing sound quality and compatibility with peripherals.
The 3.5mm jack is the most ubiquitous audio connector, found on virtually all motherboards. This port supports analog audio signals and is primarily used for headphones, speakers, and microphones. Its simplicity and widespread compatibility make it a staple, though it’s limited to stereo sound unless paired with additional ports for multi-channel setups. For basic audio needs, the 3.5mm jack remains the go-to choice, especially for budget-friendly systems.
In contrast, the optical (TOSLINK) port offers a digital audio solution, transmitting multi-channel sound without interference. Ideal for home theater systems or high-fidelity setups, it bypasses the motherboard’s DAC (digital-to-analog converter), relying on the connected device’s processing. However, its bulkier size and fragility make it less common on modern motherboards, often reserved for premium models. Pairing it with a compatible receiver unlocks its full potential, delivering pristine audio quality.
HDMI ports, while primarily video connectors, also carry high-quality audio signals, including multi-channel formats like Dolby Atmos and DTS:X. This dual functionality makes HDMI a versatile choice for integrated setups, such as connecting a PC to a TV or monitor with built-in speakers. Its digital nature ensures lossless transmission, though it requires devices with HDMI support. For users seeking a single-cable solution, HDMI is unparalleled in convenience and performance.
When selecting a motherboard, consider your audio requirements. Gamers and content creators may prioritize HDMI for seamless integration, while audiophiles might opt for optical ports to leverage external DACs. The 3.5mm jack remains essential for everyday use, ensuring compatibility with a wide range of devices. By understanding these ports, you can tailor your setup to deliver the best possible sound experience.
Mastering Siren Sounds: A Step-by-Step Guide to Creating Authentic Alarms
You may want to see also
Explore related products
Integrated vs. Dedicated Ports: Compare motherboard-integrated ports to external sound card options
Modern motherboards typically integrate 3 to 6 sound ports, including line-out, microphone, and sometimes optical S/PDIF. These ports cater to basic audio needs, such as connecting speakers, headphones, or a microphone. However, the quality and versatility of integrated audio solutions often pale in comparison to dedicated external sound cards. For users demanding superior sound fidelity, lower latency, or advanced features like surround sound, the choice between integrated and dedicated ports becomes critical.
Analyzing the Trade-offs
Integrated sound ports are convenient and cost-effective, requiring no additional hardware or setup. They suffice for everyday tasks like video calls, casual gaming, or streaming music. However, they share system resources with the CPU, which can introduce latency or distortion under heavy loads. Dedicated sound cards, on the other hand, offload audio processing to a separate chip, reducing CPU strain and delivering cleaner, more accurate sound. For instance, an external sound card like the ASUS Xonar AE provides a signal-to-noise ratio (SNR) of 110dB, compared to the 90dB typical of integrated solutions—a noticeable difference for audiophiles.
Practical Considerations
If you’re a content creator, gamer, or music enthusiast, investing in a dedicated sound card can enhance your experience. For example, the Creative Sound Blaster Z offers 24-bit/192kHz playback, virtual 7.1 surround sound, and a dedicated headphone amplifier, features rarely found in integrated audio. However, this comes at a price: external cards range from $50 to $300, depending on features. Integrated ports, while limited, are free and adequate for most users. Consider your use case: if you’re pairing high-end headphones or studio monitors, a dedicated card is a worthwhile upgrade.
Installation and Compatibility
Adding a dedicated sound card requires a free PCIe slot and driver installation, which may deter less tech-savvy users. Integrated ports, however, are plug-and-play, with drivers automatically installed via the operating system. One caveat: some motherboards disable integrated audio when a dedicated card is detected, so ensure compatibility if you plan to use both simultaneously. For laptops, external USB sound cards like the Focusrite Scarlett Solo offer a portable alternative, though they may introduce slight latency due to USB limitations.
Final Takeaway
Integrated sound ports are sufficient for general use, offering convenience and zero additional cost. Dedicated sound cards, however, provide superior audio quality, reduced latency, and advanced features for niche users. Assess your needs and budget: if you’re an audiophile or professional, the investment in a dedicated card pays off. Otherwise, stick with the integrated ports and save your money for other upgrades.
Do Curtains Absorb Sound? Enhancing Acoustic Comfort in Your Space
You may want to see also
Explore related products
Common Port Configurations: Examine typical setups (e.g., front/rear panel audio ports)

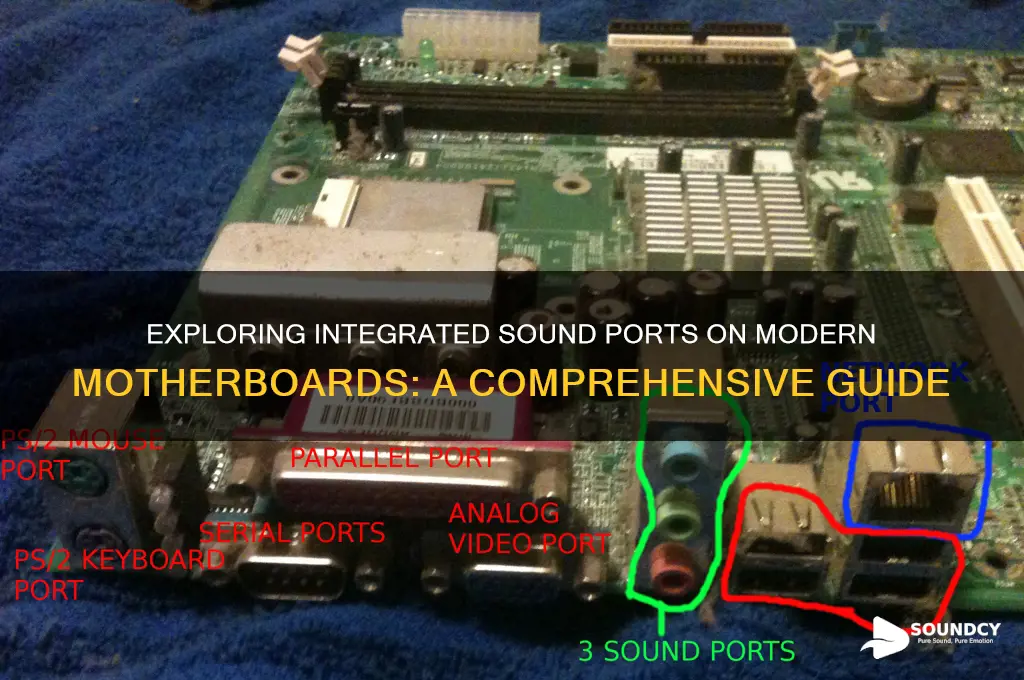

Modern motherboards typically integrate a standard set of audio ports to accommodate both basic and advanced sound setups. The most common configuration includes three rear panel audio ports: one for line-out (speakers or headphones), one for line-in (external audio sources), and one for microphone input. This setup caters to everyday users who rely on external speakers or headsets for audio output and input. While this configuration is sufficient for most, it lacks the versatility needed for multi-channel audio systems or professional setups.
For users seeking more advanced audio capabilities, some motherboards expand the rear panel to include five or more ports, supporting multi-channel surround sound systems like 5.1 or 7.1. These setups often include dedicated ports for front, rear, center, and subwoofer speakers, enabling a more immersive audio experience. High-end motherboards may also feature optical or coaxial S/PDIF outputs for digital audio transmission, ideal for connecting to AV receivers or external DACs.
Front panel audio ports, while not integrated directly into the motherboard, are another critical aspect of common configurations. These ports, typically connected via a header on the motherboard, provide convenient access to audio jacks located on the front of a PC case. A standard front panel setup includes headphone and microphone jacks, allowing users to plug in devices without reaching around to the rear. However, ensuring compatibility between the front panel connectors and the motherboard’s audio header is essential, as misalignment can result in non-functional ports.
When selecting a motherboard based on audio port configurations, consider your specific needs and future upgrades. For instance, gamers or content creators may prioritize rear panel multi-channel support, while casual users might focus on front panel accessibility. Additionally, check for onboard audio chip quality, as higher-end codecs (e.g., Realtek ALC1220 or ESS Sabre) offer better sound clarity and lower distortion. Balancing port availability with audio quality ensures a setup that meets both current and future demands.
How Does My Writing Sound? Crafting Clear, Engaging, and Impactful Content
You may want to see also
Explore related products
Compatibility with Devices: Check compatibility with headphones, speakers, and microphones
Modern motherboards typically integrate 3 to 6 sound ports, including separate jacks for headphones, microphones, and front/rear speakers. This variety ensures compatibility with a range of audio devices, but not all ports are created equal. For instance, a 3.5mm headphone jack may support stereo sound, while a dedicated microphone port often lacks the power to drive high-impedance headsets. Understanding these distinctions is crucial for optimal audio performance.
Step 1: Identify Your Device’s Connector Type
Before plugging in, inspect your headphones, speakers, or microphone for connector types. Most consumer devices use 3.5mm jacks, but professional-grade equipment might require USB, XLR, or 6.35mm adapters. Motherboards rarely include XLR ports natively, so external interfaces or adapters are necessary for studio-quality microphones. USB-connected devices bypass the motherboard’s onboard audio, relying instead on their own DACs (digital-to-analog converters), which can improve sound quality but may introduce latency.
Caution: Avoid Mismatched Ports
Plugging a microphone into a headphone port (or vice versa) can damage both the device and the motherboard. Headphone ports output audio signals, while microphone ports expect input. Forcing incompatible connections may short-circuit the circuit, leading to permanent hardware failure. Always match the device to the labeled port—green for headphones, pink for microphones, and black/orange for speakers (on color-coded systems).
Pro Tip: Test Compatibility with Multifunction Devices
Some headphones and headsets combine audio output and microphone input into a single 3.5mm jack. These often require a splitter cable (CTIA or OMTP standard) to separate the signals for motherboards with distinct ports. Gaming headsets with USB or wireless connectivity sidestep this issue but may lack compatibility with older motherboards lacking USB audio drivers. Always verify device specifications against your motherboard’s audio chipset (e.g., Realtek ALC1220 supports 7.1 surround sound, while basic AC’97 does not).
Takeaway: Prioritize Future-Proofing
While current devices may work seamlessly, consider long-term compatibility. Motherboards with fewer ports might restrict upgrades to multi-channel speaker systems or high-fidelity microphones. If your setup includes virtual reality headsets, streaming equipment, or studio gear, opt for motherboards with additional USB or optical S/PDIF ports. Alternatively, invest in a dedicated sound card to bypass onboard limitations entirely. Compatibility today ensures flexibility tomorrow.
The Science Behind Fart Sounds: How Gases Create That Unique Noise
You may want to see also
Explore related products
Troubleshooting Sound Ports: Identify issues like driver problems or physical port damage
Modern motherboards typically integrate 3 to 5 sound ports, depending on the model and manufacturer. These ports, often color-coded for clarity, include front and rear panel audio jacks for microphones, headphones, and speakers. While this integration simplifies audio connectivity, it also introduces potential points of failure. Troubleshooting sound port issues requires a systematic approach to distinguish between driver problems and physical damage, ensuring you address the root cause effectively.
Step 1: Verify Driver Integrity
Outdated, corrupt, or missing audio drivers are a common culprit behind sound port malfunctions. Start by accessing your device manager (on Windows, press `Win + X` and select Device Manager). Look for the "Sound, video, and game controllers" section. If you see a yellow exclamation mark or an unknown device, the driver is likely faulty. Download the latest driver from the motherboard manufacturer’s website or use a driver update tool. After installation, restart your system and test the sound ports. If the issue persists, proceed to the next step.
Step 2: Inspect for Physical Damage
Physical damage to sound ports can range from bent pins to loose connections. Visually inspect the ports for debris, dust, or visible wear. Use a flashlight and a magnifying glass if necessary. Gently clean the ports with compressed air or a soft brush. If the port appears damaged, avoid inserting jacks forcefully, as this can exacerbate the issue. For internal damage, such as a loose connection between the port and the motherboard, disassemble the case and check the wiring. If you’re unsure, consult a professional to avoid further harm.
Step 3: Test with Alternative Devices
To isolate the problem, test the sound ports with different devices. Plug in known-working headphones or speakers into each port. If no sound is produced, the issue may be with the port itself or the audio controller. Conversely, if the device works in one port but not another, the faulty port is likely the issue. Repeat this test with multiple devices to confirm consistency. This step helps determine whether the problem is hardware-specific or widespread.
Caution: Avoid Common Pitfalls
When troubleshooting, avoid common mistakes like assuming all ports are identical. Rear panel ports are often directly connected to the motherboard’s audio chip, while front panel ports may rely on case wiring. Additionally, don’t overlook BIOS/UEFI settings; ensure the onboard audio is enabled. Finally, resist the urge to replace components prematurely. Misdiagnosis can lead to unnecessary expenses and frustration.
By methodically checking drivers, inspecting physical ports, and testing with alternative devices, you can pinpoint sound port issues with precision. Whether it’s a software glitch or hardware damage, this approach ensures you address the problem effectively. Remember, patience and attention to detail are key to resolving audio connectivity issues and maximizing the functionality of your motherboard’s integrated sound ports.
Foam Spray Sound Insulation: Effective Noise Reduction Solution for Homes?
You may want to see also
Frequently asked questions
Most modern motherboards come with 3 to 6 integrated sound ports, including headphone/speaker, microphone, and sometimes line-in/line-out ports.
No, the number of sound ports varies by motherboard model and manufacturer. Entry-level boards may have fewer ports, while high-end boards often include more.
Yes, you can add more sound ports by using a dedicated sound card or external USB audio adapters.
For most users, integrated sound ports are sufficient. However, audiophiles or professionals may prefer dedicated sound cards for superior audio quality.
No, integrated sound ports eliminate the need for external audio devices unless you require additional features or higher quality than the motherboard provides.
