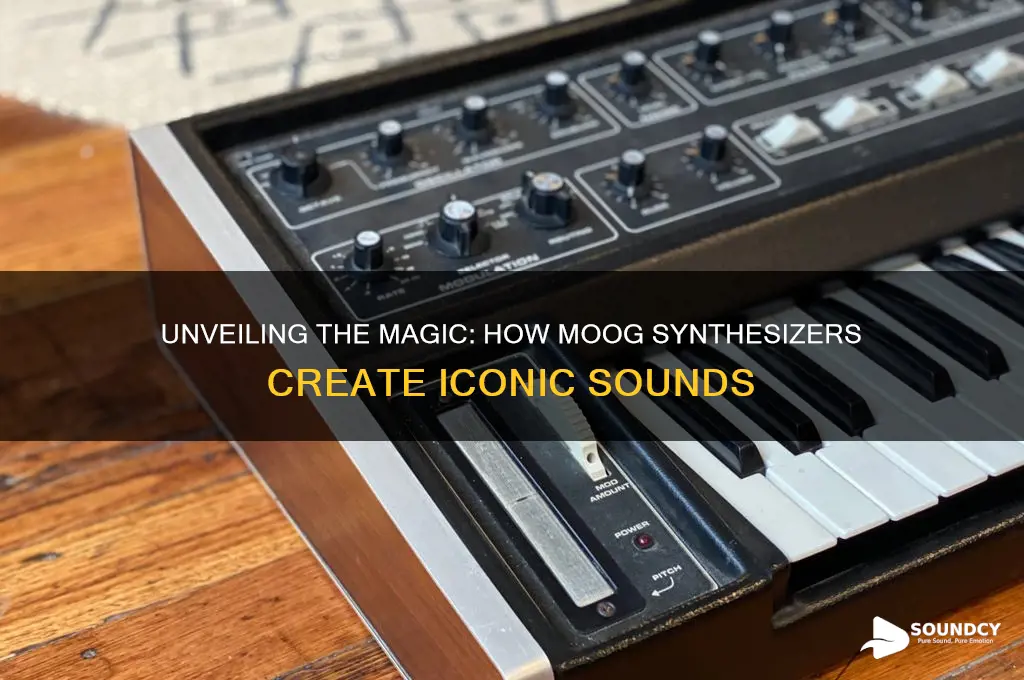

The Moog synthesizer, pioneered by Robert Moog in the 1960s, revolutionized electronic music by producing sound through analog circuitry. Unlike traditional instruments, the Moog generates sound using voltage-controlled oscillators (VCOs) that create waveforms such as sine, square, or sawtooth waves, which form the basis of its tones. These waveforms are then shaped by filters, amplifiers, and envelope generators, allowing for dynamic control over timbre, pitch, and modulation. The Moog’s signature sound is characterized by its warm, rich textures and ability to create everything from deep basslines to ethereal pads and expressive leads. Its modular design enables musicians to patch different components together, fostering endless sonic experimentation and making it a cornerstone of modern music production.
| Characteristics | Values |
|---|---|
| Sound Generation | Subtractive synthesis |
| Oscillators | Voltage-controlled oscillators (VCOs) producing waveforms like sawtooth, square, triangle, and sine |
| Filters | Voltage-controlled filters (VCFs), typically 24 dB/octave low-pass filters (Moog ladder filter) |
| Amplifier | Voltage-controlled amplifier (VCA) for envelope shaping |
| Modulation | Envelope generators (ADSR), low-frequency oscillators (LFO) for vibrato, modulation, and pitch bending |
| Keyboard | Velocity-sensitive or non-velocity-sensitive keys with aftertouch (depending on model) |
| Pitch Control | Glide/portamento for smooth transitions between notes |
| Noise Source | White and/or pink noise for additional sound design |
| Patching | Modular systems allow for complex patching and signal routing |
| Tuning | Analog oscillators require periodic tuning due to temperature and component drift |
| Timbre | Warm, fat, and rich due to the analog circuitry and Moog ladder filter |
| Expression | Wheel and modulation controls for real-time sound manipulation |
| Connectivity | CV/Gate, MIDI, and audio inputs/outputs (depending on model) |
| Power | Requires external power supply or internal power source |
| Portability | Varies by model; some are studio-based, others are more portable |
| Notable Models | Moog Minimoog, Moog Modular, Moog Subsequent 25, Moog Grandmother |
Explore related products
What You'll Learn
- Voltage-Controlled Oscillators (VCOs): Generate waveforms (sine, square, sawtooth) using voltage inputs for pitch control
- Filters and Resonance: Shape sound with low-pass filters, emphasizing frequencies for warmth and character
- Envelope Generators: Control sound dynamics (attack, decay, sustain, release) for expressive modulation
- Modulation Sources: Use LFO, noise, and sample-and-hold for vibrato, tremolo, and random effects
- Patching and Routing: Connect modules via cables to create unique signal paths and sounds
Voltage-Controlled Oscillators (VCOs): Generate waveforms (sine, square, sawtooth) using voltage inputs for pitch control
Voltage-Controlled Oscillators (VCOs) are the heart of sound generation in a Moog synthesizer, responsible for producing the raw waveforms that form the basis of its iconic tones. At their core, VCOs generate repetitive electronic signals, or waveforms, whose frequency (pitch) is determined by an input voltage. This voltage control is fundamental to the Moog's expressive capabilities, allowing musicians to manipulate pitch dynamically via keyboards, modulators, or external control voltages. The most common waveforms produced by VCOs are sine, square, and sawtooth waves, each with distinct sonic characteristics. Sine waves are smooth and pure, square waves are rich in harmonics with a bold, hollow sound, and sawtooth waves contain a bright, aggressive edge due to their odd and even harmonic content.
The process of generating these waveforms begins with an oscillator circuit that creates a repeating signal. In the case of a sine wave, the circuit produces a smooth, curved waveform with a single frequency. For square waves, the oscillator abruptly switches between two levels, creating a waveform with only odd harmonics. Sawtooth waves are generated by a linear ramp that resets abruptly, producing a waveform containing all harmonics. The frequency of these waveforms is directly proportional to the input voltage, following the principle of the "volt per octave" standard, where a 1-volt increase doubles the frequency, corresponding to a musical octave.
Voltage control over pitch is achieved through the use of exponential converters within the VCO. These converters translate the linear voltage changes from the keyboard or other control sources into the exponential changes required to produce accurate musical intervals. This ensures that each semitone increase in pitch corresponds to a precise voltage increase, maintaining the correct musical tuning. The precision of this voltage-to-frequency conversion is critical for the Moog's ability to produce harmonious and musically useful sounds.
One of the key innovations of the Moog synthesizer is the ability to mix and shape these waveforms to create complex timbres. By combining sine, square, and sawtooth waves in varying proportions, musicians can design sounds ranging from warm and mellow to sharp and biting. Additionally, the Moog's VCOs often include pulse-width modulation (PWM) for square waves, allowing further timbral variation by adjusting the duty cycle of the waveform. This versatility in waveform generation and manipulation is a cornerstone of the Moog's sound design capabilities.
Finally, the interaction between VCOs and other modules, such as filters and envelopes, expands the sonic possibilities exponentially. For example, feeding a sawtooth wave into a low-pass filter can create the classic "fat" bass sounds associated with Moog synthesizers. Similarly, modulating the pitch of a VCO with an envelope generator or low-frequency oscillator (LFO) introduces dynamic elements like sweeps and vibrato. This modular approach, centered on voltage-controlled oscillators, is what gives the Moog its unparalleled ability to produce a wide range of sounds, from emulations of traditional instruments to entirely new and experimental tones.
The Sound of Silence: Performed by Simon & Garfunkel
You may want to see also
Explore related products
Filters and Resonance: Shape sound with low-pass filters, emphasizing frequencies for warmth and character
The Moog synthesizer, a pioneer in analog synthesis, owes much of its distinctive sound to its low-pass filters and resonance capabilities. A low-pass filter is a fundamental component that shapes the timbre of the sound by allowing frequencies below a certain cutoff point to pass while attenuating frequencies above it. This filtering technique is crucial for creating the warm, rich tones that the Moog is renowned for. By adjusting the cutoff frequency, you can sculpt the sound, making it brighter or darker. For instance, lowering the cutoff frequency will remove higher frequencies, resulting in a warmer, more mellow sound, ideal for basslines or pads.
Resonance, often referred to as 'emphasis' or 'Q' in the context of Moog synthesizers, plays a pivotal role in adding character to the filtered sound. When resonance is applied, it boosts the frequencies around the cutoff point, creating a peak in the frequency spectrum. This effect can make the sound more vibrant and alive, especially when combined with a low-pass filter. For example, with a moderate cutoff frequency and high resonance, you can achieve a sharp, biting tone, perfect for lead sounds. The interaction between the filter and resonance is dynamic; as you sweep the cutoff frequency, the resonance can create a dramatic, vocal-like quality, often described as the Moog's signature 'growl.'
##
The beauty of the Moog's filter design lies in its ability to self-oscillate when the resonance is turned up high. This means that even without an input signal, the filter can generate its own sine wave at the cutoff frequency. This self-oscillation feature is a powerful tool for creating unique sound effects and adding harmonic content to the sound. By carefully adjusting the resonance and cutoff, you can introduce subtle or extreme harmonic overtones, further enhancing the warmth and complexity of the synthesized sound.
In practice, shaping sound with low-pass filters and resonance involves a delicate balance. Start by setting a relatively high cutoff frequency to allow a wide range of frequencies to pass, then gradually lower it to find the sweet spot for your desired tone. Simultaneously, adjust the resonance to taste, keeping in mind that too much resonance can lead to a thin, harsh sound, while too little may result in a dull tone. The key is to experiment with these controls to find the perfect balance that emphasizes the desired frequencies, creating sounds that range from smooth and velvety to aggressive and cutting.
The Moog's approach to sound design through filters and resonance has had a profound impact on electronic music. Its ability to transform simple waveforms into complex, expressive sounds has made it a staple in various genres. Whether you're crafting deep, resonant basslines or shimmering, evolving pads, understanding and manipulating the low-pass filter and resonance is essential to unlocking the full potential of the Moog synthesizer's iconic sound. This hands-on approach to sound sculpting encourages musicians and producers to explore and create unique sonic signatures.
Guitar Troubleshooting: Why Does It Sound Bad?
You may want to see also
Explore related products
Envelope Generators: Control sound dynamics (attack, decay, sustain, release) for expressive modulation
Envelope generators are a cornerstone of sound design in synthesizers like the Moog, providing dynamic control over how a sound evolves over time. At their core, envelope generators shape the amplitude of a sound by defining four key stages: attack, decay, sustain, and release (ADSR). These stages allow musicians to craft sounds that mimic natural instruments or create entirely new, expressive textures. By manipulating these parameters, the Moog synthesizer can produce sounds ranging from sharp, percussive hits to long, sustained tones, all with nuanced control over their evolution.
The attack stage determines how quickly the sound reaches its peak volume after a key is pressed. A fast attack creates an immediate, punchy sound, ideal for plucked or struck instruments, while a slow attack results in a gradual fade-in, useful for creating ambient or swelling sounds. In the Moog, adjusting the attack time allows for precise control over the sound’s onset, enabling everything from sharp, staccato notes to smooth, legato phrases. This parameter is critical for shaping the initial character of the sound and its perceived sharpness or softness.
Following the attack, the decay stage controls how quickly the sound drops from its peak volume to the sustain level. A short decay creates a snappy, percussive feel, while a longer decay allows the sound to linger, adding warmth and depth. In the Moog, the decay setting is particularly important for defining the body of the sound, as it influences how the tone settles into its sustained portion. By fine-tuning the decay, musicians can create sounds that feel tight and focused or open and expansive, depending on the desired effect.
The sustain stage maintains the sound at a constant volume as long as the key is held. This level can be set anywhere from silent to the peak volume, allowing for a wide range of expressive possibilities. In the Moog, the sustain parameter is essential for creating held notes or pads, where the sound remains steady and consistent. By adjusting the sustain level, musicians can emphasize certain parts of a melody or chord progression, adding emotional depth and variation to their performances.
Finally, the release stage controls how the sound diminishes after the key is released. A fast release creates a sudden cutoff, ideal for crisp, defined notes, while a slow release allows the sound to fade gracefully, mimicking the natural decay of acoustic instruments. In the Moog, the release setting is crucial for shaping the end of a sound, ensuring that it feels complete and intentional. Whether crafting a dramatic, lingering echo or a tight, rhythmic pulse, the release parameter provides the final touch that ties the sound together.
Together, these four stages of the envelope generator give the Moog synthesizer its unparalleled ability to produce expressive, dynamic sounds. By carefully adjusting the attack, decay, sustain, and release parameters, musicians can imbue their performances with emotion, texture, and movement, making the Moog a powerful tool for sound design and musical expression. Whether recreating the nuances of traditional instruments or pushing the boundaries of electronic music, the envelope generator remains a fundamental element of the Moog’s iconic sound.
Fans and Sound Quality: Friends or Foes?
You may want to see also
Explore related products
Modulation Sources: Use LFO, noise, and sample-and-hold for vibrato, tremolo, and random effects
The Moog synthesizer, a pioneer in analog synthesis, offers a rich palette of sound-shaping capabilities, and modulation sources play a pivotal role in creating dynamic and expressive sounds. Among these, the Low-Frequency Oscillator (LFO), noise generator, and sample-and-hold (S&H) circuits are essential tools for introducing movement and unpredictability to your patches. These modulation sources can be routed to various parameters, enabling effects like vibrato, tremolo, and random modulation, which are fundamental to the Moog's signature sound.
LFO for Vibrato and Tremolo: The LFO is a versatile modulation source that generates a waveform at a frequency below the audible range, typically from 0.1 Hz to 10 Hz. When applied to the pitch of an oscillator, the LFO creates vibrato, a subtle or dramatic pitch variation that adds life to sustained notes. For instance, routing the LFO to the oscillator's pitch control with a triangle wave will produce a smooth, undulating vibrato effect. Similarly, connecting the LFO to the amplifier's gain or VCA (Voltage Controlled Amplifier) results in tremolo, a rhythmic variation in volume. Experimenting with different waveforms (sine, square, ramp) and rates allows for a wide range of vibrato and tremolo characters, from gentle undulations to rapid, pulsating effects.
Noise for Adding Texture: Noise, another crucial modulation source, introduces randomness and complexity. White or pink noise can be used to modulate various parameters, creating unique, organic sounds. For instance, applying noise to the filter cutoff frequency adds a gritty, unpredictable texture to the sound, ideal for creating tense atmospheres or simulating natural phenomena like wind or rain. When combined with an envelope generator, noise can also be used to create percussive sounds with intricate, evolving textures.
Sample-and-Hold for Random Modulation: The sample-and-hold circuit is a powerful tool for generating random voltages, which can be used to create unpredictable and ever-changing sounds. S&H works by sampling the voltage of a signal (often noise) and holding that voltage until the next trigger event. When applied to parameters like oscillator pitch, filter cutoff, or amplifier gain, it produces random, stepped changes. This technique is particularly effective for creating chaotic, evolving soundscapes or simulating the unpredictability of acoustic instruments. For example, using S&H to modulate the pitch of multiple oscillators can generate complex, discordant harmonies that shift randomly over time.
By combining these modulation sources creatively, Moog users can craft an extensive range of sounds. Layering LFO-induced vibrato with noise-modulated filters and S&H-controlled pitch shifts can result in rich, animated textures. These techniques not only add depth and movement to individual sounds but also contribute to the overall expressive capabilities of the Moog synthesizer, making it a favorite among musicians and sound designers seeking to push the boundaries of electronic music and sound design.
Sound Suppressors: Legal in Washington?
You may want to see also
Explore related products
Patching and Routing: Connect modules via cables to create unique signal paths and sounds
The Moog synthesizer, a pioneer in the world of electronic music, produces its distinctive sounds through a modular system where various components, or modules, are interconnected via patch cables. Patching and routing is the art of connecting these modules to create unique signal paths, allowing for an immense variety of sounds. Each module serves a specific function—such as oscillators generating waveforms, filters shaping frequencies, and envelopes controlling dynamics—and by linking them together, you craft a custom audio journey. For example, routing an oscillator’s output to a filter and then to an amplifier creates a basic sound path, but the possibilities expand exponentially as you introduce more modules like modulators, effects, or sequencers.
To begin patching, start by identifying the signal flow you want to achieve. A common starting point is connecting an oscillator to a filter, as this forms the core of many synthesizer sounds. Use a patch cable to link the oscillator’s output (e.g., a sawtooth or square wave) to the filter’s input. From there, route the filter’s output to a voltage-controlled amplifier (VCA) to control the sound’s volume. This simple path creates a foundational tone, but the magic lies in experimentation. For instance, patching a low-frequency oscillator (LFO) to the filter’s cutoff frequency adds modulation, creating a sweeping or pulsating effect. Each connection alters the sound, making patching a hands-on, intuitive process.
Advanced patching involves creating complex interactions between modules. For example, you can route an envelope generator to modulate both the filter cutoff and the VCA, giving the sound a dynamic shape. Or, patch a sequencer to control multiple oscillators, creating intricate melodic patterns. The Moog’s modular design encourages creativity—you might even route audio signals into control voltage inputs (CV) to achieve unconventional effects, like using a noise generator to modulate an oscillator’s pitch. The key is to think of each module as a building block and the cables as the pathways that bring them to life.
Routing also allows for feedback loops, where a signal is fed back into an earlier stage of the path, creating chaotic or self-oscillating effects. For instance, patching the output of a filter back into its input can generate resonant peaks or unpredictable textures. Similarly, routing the output of a VCA back to an oscillator’s frequency input can create amplitude modulation (AM) effects. These techniques require careful adjustment but can yield sounds that are impossible to achieve with fixed-architecture synthesizers.
Finally, patching is not just about functionality but also about exploring the Moog’s expressive capabilities. By routing external controllers like keyboards, ribbon controllers, or joysticks to various parameters, you can manipulate sounds in real time. For example, connecting a keyboard’s CV output to an oscillator’s pitch input allows for melodic playing, while routing its gate output to an envelope generator triggers dynamic articulation. This interplay between patching and performance is what makes the Moog a powerful tool for musicians and sound designers alike. Through deliberate or experimental routing, you unlock the synthesizer’s full potential, crafting sounds that are uniquely yours.
Beats Solo 3: Active Noise Cancelling?
You may want to see also
Frequently asked questions
The Moog synthesizer generates sound using voltage-controlled oscillators (VCOs) that create electrical signals at specific frequencies, which are then shaped by filters, amplifiers, and modulators to produce a wide range of tones.
The oscillator in a Moog synthesizer is the sound source, generating waveforms like square, sawtooth, or sine waves, which determine the basic timbre of the sound.
The filter, typically a low-pass filter, shapes the sound by attenuating frequencies above a certain cutoff point, allowing for the iconic warm and smooth tones associated with Moog synths.
Modulation in a Moog synthesizer involves using one signal (e.g., an LFO or envelope) to control another parameter (e.g., pitch or filter cutoff), creating dynamic and evolving sounds like vibrato or filter sweeps.
The Moog's analog circuitry, including transistors and resistors, introduces subtle imperfections and warmth, giving it a rich, organic sound that differs from digital synthesizers.
