A speaker produces sound through a process that begins with an electrical audio signal, which is sent to the speaker's components. The signal first reaches the voice coil, a lightweight wire coil wrapped around a cylindrical former, causing it to move back and forth due to the interaction with a magnetic field created by a permanent magnet. This movement is transferred to the diaphragm, a flexible cone or dome attached to the voice coil, which vibrates at varying frequencies corresponding to the audio signal. These vibrations displace the air molecules around the diaphragm, creating alternating regions of compression and rarefaction. As these air pressure waves travel through the surrounding medium, they reach our ears and are perceived as sound, effectively converting electrical energy into audible sound waves.
| Characteristics | Values |
|---|---|
| Sound Generation Principle | Speakers convert electrical signals into mechanical vibrations using electromagnetism or piezoelectricity. |
| Components | Diaphragm, voice coil, magnet, suspension (spider and surround), frame. |
| Electromagnetic Driver | Voice coil moves in magnetic field, causing diaphragm to vibrate. |
| Piezoelectric Driver | Piezoelectric material deforms when voltage is applied, producing sound. |
| Diaphragm Function | Vibrates to push air molecules, creating sound waves. |
| Frequency Response | Typically 20 Hz to 20 kHz for full-range speakers. |
| Efficiency | Measured in dB/W/m, varies by design (e.g., 85-95 dB for hi-fi speakers). |
| Impedance | Usually 4, 6, or 8 ohms, affects compatibility with amplifiers. |
| Power Handling | Rated in watts (e.g., 50W RMS), indicates maximum power capacity. |
| Directivity | Sound dispersion pattern varies by design (e.g., omnidirectional, directional). |
| Distortion | Measured as THD (Total Harmonic Distortion), ideally <1%. |
| Sensitivity | Output sound pressure level (SPL) per unit input power (e.g., 88 dB/W/m). |
| Enclosure Design | Affects bass response (e.g., sealed, ported, bandpass). |
| Crossover Networks | Divides audio frequencies among drivers (e.g., woofer, tweeter). |
| Material Impact | Diaphragm materials (e.g., paper, metal, polymer) affect sound quality. |
| Damping | Controls diaphragm movement after signal stops, reduces distortion. |
Explore related products
What You'll Learn
- Vibration Creation: Electrical signals convert into diaphragm vibrations, initiating sound wave generation
- Diaphragm Movement: Diaphragm oscillates, pushing air molecules to create compression and rarefaction
- Sound Wave Formation: Pressure variations propagate as sound waves through the medium
- Frequency and Pitch: Vibration speed determines frequency, influencing the perceived pitch of sound
- Amplification Process: Sound waves travel and interact with surroundings, amplifying or dampening intensity
Vibration Creation: Electrical signals convert into diaphragm vibrations, initiating sound wave generation
The process of sound production in speakers begins with the conversion of electrical signals into mechanical vibrations, a fundamental principle in audio technology. When an electrical audio signal reaches a speaker, it is directed to a component called the voice coil, which is a lightweight coil of wire suspended in a magnetic field. This coil acts as a crucial intermediary, translating the electrical energy into physical motion. As the electrical current flows through the voice coil, it generates a magnetic field that interacts with the permanent magnet within the speaker. This interaction results in a force that causes the coil to move back and forth rapidly.
The voice coil is attached to a diaphragm, typically a lightweight cone-shaped structure made of materials like paper, plastic, or metal. This diaphragm is the key element in vibration creation. When the voice coil moves, it sets the diaphragm into motion, causing it to vibrate. The diaphragm's vibration is a precise replication of the electrical audio signal's waveform, ensuring that the original sound is accurately reproduced. The design and material of the diaphragm are critical, as they influence the speaker's sound quality, frequency response, and overall performance.
The vibration of the diaphragm is where sound wave generation begins. As the diaphragm moves back and forth, it pushes and pulls the air molecules in front of it, creating areas of compression and rarefaction. This movement of air molecules constitutes a sound wave. The frequency of the diaphragm's vibration determines the pitch of the sound produced, with higher frequencies creating higher-pitched sounds and lower frequencies producing deeper tones. The amplitude of the vibration affects the sound's loudness, with larger vibrations resulting in louder sounds.
This process is a delicate balance of physics and engineering. The speaker's components must be precisely designed and positioned to ensure efficient energy transfer from the electrical signal to the diaphragm's vibration. The voice coil's movement needs to be highly responsive and accurate to reproduce the intricate details of the audio signal. Additionally, the diaphragm's material and shape play a significant role in determining the speaker's sound characteristics, such as its frequency response and overall sound quality.
In summary, the conversion of electrical signals into diaphragm vibrations is a critical step in sound production by speakers. This process involves the interaction of magnetic fields, precise mechanical movements, and the careful design of speaker components. The resulting vibrations of the diaphragm initiate the creation of sound waves, bringing audio signals to life and allowing us to hear music, speech, and various sounds with remarkable clarity and detail. Understanding this vibration creation process is essential for appreciating the technology behind speakers and the science of sound reproduction.
High-Pitched Sounds: Effective Mice Deterrent or Myth?
You may want to see also
Explore related products
Diaphragm Movement: Diaphragm oscillates, pushing air molecules to create compression and rarefaction
The process of sound production in a speaker begins with the movement of its diaphragm, a critical component responsible for converting electrical signals into audible sound waves. When an electrical audio signal reaches the speaker, it is directed to the voice coil, which is attached to the diaphragm. The voice coil interacts with a magnetic field, causing it to move back and forth rapidly in response to the fluctuations in the electrical signal. This movement is directly transferred to the diaphragm, initiating its oscillation. The diaphragm, typically made of lightweight yet rigid material, acts as a piston, moving in a controlled manner to displace the air molecules in front of it.
As the diaphragm oscillates, it alternately compresses and rarefies the air molecules in its vicinity. During the forward motion of the diaphragm, it pushes air molecules closer together, creating a region of high air pressure known as compression. This compression propagates outward as a sound wave, traveling through the medium (usually air) until it reaches the listener's ear. Conversely, when the diaphragm moves backward, it pulls away from the air molecules, causing them to spread apart and form a region of low air pressure called rarefaction. This rarefaction also travels as a sound wave, following the compression wave.
The continuous back-and-forth movement of the diaphragm results in a series of alternating compressions and rarefactions, which together constitute a sound wave. The frequency of these oscillations corresponds to the frequency of the original electrical audio signal, determining the pitch of the sound produced. For example, a higher frequency signal causes the diaphragm to oscillate more rapidly, producing a higher-pitched sound, while a lower frequency results in slower oscillations and a lower pitch. This relationship between the electrical signal, diaphragm movement, and sound wave frequency is fundamental to how speakers reproduce audio.
The efficiency of sound production depends on the diaphragm's ability to move air molecules effectively. Larger diaphragms can displace more air, generally producing louder sounds, while smaller diaphragms are better suited for higher frequencies due to their lower mass and quicker response times. Additionally, the shape and material of the diaphragm influence its performance, with designs optimized to minimize distortion and maximize the accuracy of sound reproduction. Understanding the mechanics of diaphragm movement highlights the precision engineering required to transform electrical signals into the rich and varied sounds we hear from speakers.
In summary, the diaphragm's oscillating motion is the heart of a speaker's sound-producing mechanism. By alternately compressing and rarefying air molecules, it generates sound waves that correspond to the input audio signal. This process demonstrates the elegant interplay between electrical energy, mechanical movement, and acoustic physics, all working together to bring sound to life. Whether in a small earbud or a large concert speaker, the principle of diaphragm movement remains consistent, showcasing its importance in audio technology.
The Unique Sonic Signature of Japan's High-Speed Bullet Trains
You may want to see also
Explore related products

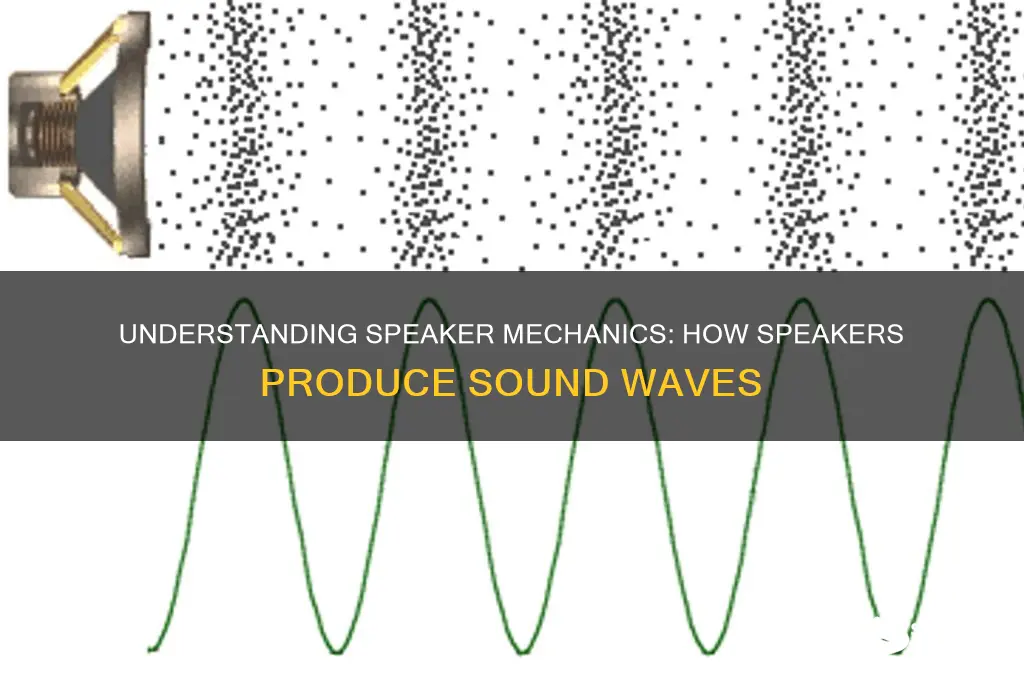

Sound Wave Formation: Pressure variations propagate as sound waves through the medium
Sound wave formation is a fundamental process that underlies how speakers produce audible sound. At its core, sound is created by pressure variations that propagate through a medium, such as air, water, or solids. When a speaker operates, it initiates these pressure variations by converting electrical signals into mechanical motion. The process begins with an audio signal, which is an alternating current representing the sound to be reproduced. This signal is sent to the speaker’s voice coil, a lightweight wire coil suspended in a magnetic field. As the current flows through the coil, it interacts with the magnetic field, causing the coil to move back and forth rapidly. This movement is directly proportional to the electrical signal’s fluctuations, ensuring that the speaker’s diaphragm, attached to the voice coil, vibrates in sync with the audio input.
The vibration of the speaker’s diaphragm is where sound wave formation truly begins. As the diaphragm moves outward, it compresses the air molecules in front of it, creating a region of high air pressure. Conversely, when the diaphragm moves inward, it rarefies the air, forming a region of low pressure. These alternating compressions (high pressure) and rarefactions (low pressure) generate pressure variations in the surrounding air. The air molecules, being elastic, respond to these changes by oscillating back and forth, transmitting the pressure variations through the medium as a sound wave. This wave travels in all directions from the speaker, carrying the energy of the original audio signal.
The propagation of sound waves through a medium is a mechanical process, meaning it relies on the physical interaction of particles. In air, sound waves travel as longitudinal waves, where the particles move parallel to the direction of wave propagation. The speed of sound depends on the medium’s properties, such as its density and elasticity. For example, sound travels faster in solids than in air because the particles in solids are closer together, allowing for quicker energy transfer. In the context of a speaker, the pressure variations created by the diaphragm’s movement are what enable sound to travel efficiently through the air, reaching our ears as audible sound.
The frequency and amplitude of the pressure variations determine the characteristics of the sound wave. Frequency, measured in Hertz (Hz), corresponds to the pitch of the sound—higher frequencies produce higher pitches, while lower frequencies produce lower pitches. Amplitude, on the other hand, relates to the loudness of the sound, with larger pressure variations resulting in louder sounds. The speaker’s design, including the size and material of the diaphragm, influences its ability to reproduce these variations accurately across different frequencies. By precisely controlling the movement of the diaphragm, a speaker can recreate the complex pressure variations present in the original audio signal, ensuring faithful sound reproduction.
In summary, sound wave formation in a speaker is a result of pressure variations initiated by the vibration of the speaker’s diaphragm. These variations propagate through the medium as sound waves, traveling as alternating compressions and rarefactions. The process is governed by the principles of wave mechanics, with the speed, frequency, and amplitude of the waves determining the sound’s characteristics. Understanding this mechanism highlights the intricate relationship between electrical signals, mechanical motion, and the physical properties of the medium, all of which are essential for producing the sounds we hear from speakers.
How Do Zebras Say Schwa?
You may want to see also
Explore related products
Frequency and Pitch: Vibration speed determines frequency, influencing the perceived pitch of sound
The relationship between frequency and pitch is fundamental to understanding how speakers produce sound. At its core, sound is a mechanical wave that travels through a medium, such as air, by causing particles to vibrate. In a speaker, this process begins with an electrical signal that is converted into mechanical motion. The speaker's diaphragm, typically a cone-shaped structure, vibrates in response to the electrical input. The speed of these vibrations, known as the vibration speed, directly determines the frequency of the sound wave produced. Frequency, measured in Hertz (Hz), refers to the number of cycles of vibration per second. For example, a vibration speed that completes 440 cycles per second generates a frequency of 440 Hz, which corresponds to the musical note A above middle C.
The frequency of a sound wave is intimately tied to its pitch, the perceptual characteristic that allows us to distinguish between high and low tones. Higher frequencies, resulting from faster vibration speeds, produce higher-pitched sounds, while lower frequencies, from slower vibrations, create lower-pitched sounds. This is because the human ear interprets the rate of vibration as pitch. When a speaker's diaphragm vibrates rapidly, it creates a sound wave with closely spaced compressions and rarefactions, leading to a higher frequency and, consequently, a higher pitch. Conversely, slower vibrations result in a sound wave with more widely spaced compressions and rarefactions, producing a lower frequency and a lower pitch.
To illustrate, consider a speaker playing a musical scale. As the notes ascend, the vibration speed of the diaphragm increases, generating higher frequencies. This increase in frequency is perceived as a rise in pitch. For instance, the note C4 has a frequency of approximately 262 Hz, while the note C5, one octave higher, has a frequency of 523 Hz. The doubling of frequency corresponds to a clear increase in pitch, demonstrating how vibration speed directly influences the perceived sound. This principle is consistent across all sound production, whether in speakers, musical instruments, or the human voice.
The design of a speaker plays a crucial role in accurately reproducing these frequencies and pitches. Speakers are often engineered with multiple drivers—such as woofers for low frequencies and tweeters for high frequencies—to handle different ranges of vibration speeds effectively. This specialization ensures that the speaker can reproduce the full spectrum of audible frequencies, from deep bass notes with slow vibration speeds to high-pitched treble notes with rapid vibrations. Without this capability, the sound would lack clarity and depth, as certain frequencies and pitches would be underrepresented or distorted.
In summary, the vibration speed of a speaker's diaphragm is the key determinant of frequency, which in turn shapes the pitch of the sound we hear. This relationship is essential for understanding how speakers convert electrical signals into audible sound waves. By controlling the vibration speed, speakers can produce a wide range of frequencies, allowing us to perceive the rich variety of pitches in music, speech, and other audio content. This interplay between vibration speed, frequency, and pitch highlights the precision and complexity of sound reproduction technology.
Mastering Puppy Sound Checks: Essential Tips for Healthy, Happy Pups
You may want to see also
Explore related products
Amplification Process: Sound waves travel and interact with surroundings, amplifying or dampening intensity
The amplification process of sound waves is a fascinating interplay between the initial generation of sound by a speaker and how that sound interacts with the surrounding environment. When a speaker produces sound, it begins with an electrical signal that is converted into mechanical motion. The speaker's diaphragm vibrates in response to this signal, creating pressure waves in the air, which we perceive as sound. These sound waves travel outward in all directions, but their intensity and quality are significantly influenced by the environment through which they pass. The process of amplification or dampening occurs as these waves encounter various surfaces, objects, and spatial conditions.
As sound waves travel, they interact with the surroundings in several ways. When waves encounter hard, flat surfaces like walls or floors, they can reflect, leading to amplification in certain areas due to constructive interference. This occurs when reflected waves align with the original waves, increasing their amplitude and, consequently, their loudness. Conversely, soft or porous materials like curtains, carpets, or acoustic panels absorb sound waves, reducing their intensity through dampening. This absorption converts sound energy into heat, minimizing reflections and echoes. The shape of the space also plays a crucial role; enclosed areas can trap sound waves, causing them to bounce repeatedly and amplify, while open spaces allow waves to disperse more freely, often leading to dampening.
Another factor in the amplification process is the phenomenon of resonance. When sound waves encounter objects or spaces that vibrate at the same frequency, resonance occurs, amplifying the sound. For example, a speaker placed near a hollow object or a room with specific dimensions might cause the sound to resonate, increasing its intensity. Conversely, if the frequency of the sound wave does not match the natural frequency of the object or space, the sound may be dampened. This principle is often utilized in architectural acoustics to design spaces that either enhance or reduce sound amplification based on their intended use.
The distance from the speaker also affects the amplification or dampening of sound waves. As sound travels farther from its source, its intensity decreases due to the inverse square law, which states that sound intensity is inversely proportional to the square of the distance from the source. However, in certain environments, such as long, narrow corridors or spaces with reflective surfaces, sound waves can travel farther and maintain their intensity due to repeated reflections. In such cases, the amplification process is prolonged, making the sound seem louder over a greater distance.
Finally, the presence of obstacles and air conditions can further influence the amplification process. Obstacles like furniture or partitions can block or scatter sound waves, either dampening them by preventing direct transmission or causing indirect reflections that amplify the sound in certain directions. Additionally, air density and temperature affect sound propagation; for instance, sound travels faster in warmer air, which can alter how waves interact with surfaces and objects. Understanding these interactions is crucial for optimizing sound quality in various settings, from concert halls to home audio systems, ensuring that the amplification process enhances the listening experience rather than detracting from it.
Security Cameras in Schools: Do They Record Audio?
You may want to see also
Frequently asked questions
A speaker produces sound by converting electrical signals into mechanical vibrations. When an electrical current passes through the speaker's voice coil, it creates a magnetic field that interacts with the permanent magnet, causing the coil and attached diaphragm to move back and forth. These vibrations create sound waves in the air.
The diaphragm is a thin, flexible surface in the speaker that moves in response to the voice coil's vibrations. It pushes air molecules back and forth, creating compressions and rarefactions that travel as sound waves through the air.
The frequency of the electrical signal determines the pitch of the sound. Higher frequencies cause the diaphragm to vibrate faster, producing higher-pitched sounds, while lower frequencies result in slower vibrations and lower-pitched sounds.
Speakers come in various sizes and shapes to handle different frequency ranges. Larger speakers, like woofers, are better at producing low-frequency sounds (bass), while smaller speakers, like tweeters, are designed for high-frequency sounds (treble).
The enclosure in a speaker system helps control the movement of air and enhances sound quality. It prevents sound waves from the back of the diaphragm from canceling out the waves from the front, improving bass response and overall clarity.
