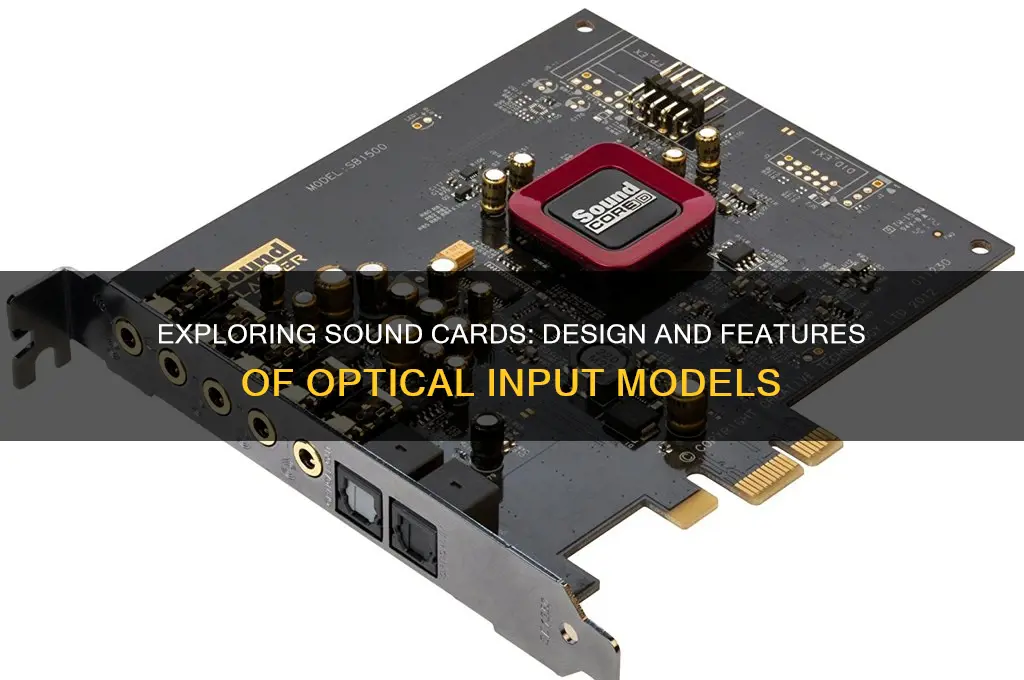

A sound card with optical input typically features a compact, circuit board design equipped with a dedicated optical (S/PDIF) port, usually identified by its square-shaped connector with a protective cover. Alongside this, the card often includes standard audio jacks for analog connections, such as 3.5mm or 6.35mm ports, and may also incorporate additional interfaces like USB or PCIe for system integration. The optical input allows for high-quality, lossless digital audio transmission, making it ideal for connecting devices like home theater systems, gaming consoles, or high-end audio equipment. The card’s layout is usually streamlined, with clearly labeled ports and minimal clutter, ensuring ease of use and compatibility with both consumer and professional audio setups.
| Characteristics | Values |
|---|---|
| Form Factor | PCIe, USB, External (varies by model) |
| Optical Input Port | TOSLINK (standard optical port, usually square or rounded shape) |
| Color of Port | Typically black or silver, with a plastic or metal surround |
| Port Location | Rear panel (PCIe/internal cards), side or front (external/USB models) |
| Additional Ports | May include 3.5mm audio jacks, HDMI, RCA, or coaxial inputs/outputs |
| Size of Card | PCIe: ~120mm (length), USB/External: Compact, portable designs |
| LED Indicators | Often includes activity LEDs near the optical port (e.g., green/red) |
| Build Material | Metal or plastic chassis, with reinforced ports for durability |
| Compatibility | Supports optical audio devices (e.g., soundbars, AV receivers, gaming PCs) |
| Bit Depth/Sampling Rate | Typically supports up to 24-bit/192kHz (varies by model) |
| Drivers/Software | Requires specific drivers for advanced features (e.g., surround sound) |
| Power Source | PCIe: Powered by motherboard, USB: Bus-powered or external adapter |
| Price Range | $20 (basic) to $300+ (high-end models) |
| Brands | Creative, ASUS, Sound Blaster, Focusrite, Behringer, etc. |
| Use Case | Home theater, gaming, music production, professional audio setups |
Explore related products
What You'll Learn
- Physical Design: Compact, rectangular PCB with optical port, audio jacks, and connectors for motherboard integration
- Optical Port Location: TOSLINK port positioned on the rear panel for secure fiber optic cable connection
- Internal Components: DAC, ADC, and amplifier chips for digital-to-analog and analog-to-digital conversion
- LED Indicators: Activity lights near the optical port to confirm signal reception and transmission
- Compatibility Features: Supports multi-channel audio, Dolby/DTS formats, and high-resolution audio standards
Physical Design: Compact, rectangular PCB with optical port, audio jacks, and connectors for motherboard integration
A sound card with optical input typically features a compact, rectangular PCB that efficiently integrates essential components while maintaining a low profile. This design is crucial for compatibility with various computer cases, ensuring it fits seamlessly alongside other motherboard components. The PCB’s layout prioritizes functionality, with clearly labeled optical ports, audio jacks, and motherboard connectors positioned for easy access and minimal cable clutter. This streamlined approach not only enhances aesthetics but also simplifies installation, making it ideal for both novice builders and seasoned enthusiasts.
The optical port, often located at one edge of the PCB, is a standout feature, offering high-fidelity digital audio transmission. Its placement is strategic, allowing for direct connection to optical cables without obstructing nearby components. Adjacent to the optical port are the audio jacks, typically color-coded for microphone, line-in, and headphone outputs, ensuring intuitive use. These jacks are reinforced to withstand frequent plugging and unplugging, a practical consideration for users who regularly switch between devices.
Motherboard integration is facilitated by a set of connectors, usually PCIe or USB interfaces, depending on the card’s design. These connectors are engineered for a secure fit, minimizing signal loss and ensuring stable performance. For PCIe-based cards, the bracket aligns with standard motherboard slots, while USB-powered variants include a dedicated port for power and data transfer. This modularity allows the sound card to adapt to different system configurations, from compact mini-ITX builds to full-sized ATX setups.
Despite its compact size, the PCB incorporates heat management solutions, such as passive cooling fins or small heat sinks, to maintain optimal operating temperatures during prolonged use. This is particularly important for high-performance audio processing, where overheating can degrade sound quality. The overall design strikes a balance between functionality and space efficiency, making it a versatile addition to any audio-focused system.
For users seeking to upgrade their audio setup, this physical design offers a practical and cost-effective solution. Its compact form factor ensures compatibility with modern cases, while the inclusion of an optical port caters to those prioritizing digital audio clarity. By combining essential features into a single, well-organized PCB, this sound card eliminates the need for external devices, streamlining both setup and maintenance. Whether for gaming, music production, or multimedia consumption, its thoughtful design delivers reliable performance in a minimalist package.
Does Earth's Rotation Create an Audible Sound? Exploring the Science
You may want to see also
Explore related products
Optical Port Location: TOSLINK port positioned on the rear panel for secure fiber optic cable connection
The TOSLINK port, a staple for optical audio connections, is typically nestled on the rear panel of a sound card, ensuring a secure and stable link for fiber optic cables. This placement is deliberate, designed to minimize cable strain and maintain signal integrity. Unlike front-panel ports, which are more prone to accidental disconnections, the rear positioning keeps the connection out of the way during routine use. For audiophiles and professionals alike, this design choice is a practical solution to preserve the pristine quality of digital audio transmission.
When installing a sound card with a rear-mounted TOSLINK port, consider cable routing to avoid sharp bends or excessive tension. Fiber optic cables are more fragile than their copper counterparts, and improper handling can lead to signal degradation or physical damage. Use cable ties or clips to secure the fiber optic cable along the back of your PC case, ensuring it doesn’t dangle or get caught in nearby components. This small step can significantly extend the lifespan of both the cable and the port.
Comparatively, sound cards with front-panel optical ports may offer convenience for quick connections but often sacrifice stability. The rear-panel placement of the TOSLINK port, however, aligns with professional audio setups where reliability is paramount. For instance, in a home studio or gaming rig, a secure rear connection ensures uninterrupted audio playback, even during intense sessions. This design also aligns with the industry trend of prioritizing functionality over aesthetics in audio hardware.
To maximize the benefits of a rear-mounted TOSLINK port, pair it with a high-quality fiber optic cable. Look for cables with robust connectors and protective cladding to shield against environmental factors. Avoid cables longer than 10 meters, as signal loss can occur beyond this length. Additionally, ensure the port is free from dust or debris before connecting the cable, as even small particles can obstruct the light signal. Regularly inspect both the port and cable for signs of wear to maintain optimal performance.
In conclusion, the rear-panel positioning of the TOSLINK port on a sound card is a thoughtful design choice that prioritizes durability and audio fidelity. By understanding its purpose and implementing practical cable management techniques, users can fully leverage this feature for a seamless audio experience. Whether for casual listening or professional applications, this setup ensures that the optical connection remains secure, reliable, and out of harm’s way.
Understanding Sound Level LW: Definition, Measurement, and Practical Applications
You may want to see also
Explore related products
Internal Components: DAC, ADC, and amplifier chips for digital-to-analog and analog-to-digital conversion
Optical inputs on sound cards are sleek, often appearing as a small, square-shaped port with a protective flap or cover to shield the delicate fiber optic connection. But beneath this minimalist exterior lies a complex interplay of components that transform digital audio signals into rich, audible sound. At the heart of this process are the DAC (Digital-to-Analog Converter), ADC (Analog-to-Digital Converter), and amplifier chips, each playing a critical role in bridging the digital and analog worlds.
Consider the DAC chip, the unsung hero of audio fidelity. Its primary function is to convert binary data from optical sources into an analog electrical signal that speakers or headphones can interpret. High-quality DACs, such as those using Burr-Brown or ESS Sabre chipsets, are prized for their ability to minimize distortion and noise, delivering a dynamic range often exceeding 110 dB. For audiophiles, this translates to clearer highs, deeper lows, and a more immersive listening experience. When selecting a sound card, look for DACs with a high sample rate (e.g., 192 kHz or higher) and bit depth (24-bit) to ensure compatibility with high-resolution audio formats.
Conversely, the ADC chip performs the reverse operation, converting analog signals into digital data for recording or processing. This is essential for musicians or podcasters who need to capture pristine audio. Modern ADCs, like those from Cirrus Logic or AKM, boast low latency and high signal-to-noise ratios, ensuring that every nuance of the original sound is preserved. Pairing an ADC with a quality preamp can further enhance input clarity, particularly for microphones or instruments with low output levels.
Amplifier chips, often integrated into sound cards, serve as the final stage in the audio chain, boosting the DAC’s output to drive speakers or headphones effectively. Class-D amplifiers are popular for their efficiency and compact size, while Class-AB designs offer warmer, more natural sound. For headphone enthusiasts, dedicated amplifier chips with adjustable gain settings can optimize performance across different impedance levels, ensuring balanced power delivery to high-end headphones like the Sennheiser HD 800 or Audio-Technica ATH-M50x.
In practice, the synergy between these components defines a sound card’s performance. For instance, a sound card with a top-tier DAC but a weak amplifier will struggle to drive power-hungry headphones. Conversely, a powerful amplifier paired with a mediocre DAC will produce loud but lackluster sound. When upgrading, prioritize sound cards that balance these elements, such as the Creative Sound Blaster AE-9 or ASUS Essence STX II, which combine premium DACs, ADCs, and amplifiers to deliver studio-grade audio. By understanding these internal components, you can make informed decisions to elevate your audio experience, whether for gaming, music production, or critical listening.
Unveiling the Acoustic Secrets: What Do Soundstages Really Sound Like?
You may want to see also
Explore related products
![Warrky Optical Audio Cable, 6ft / 1.8m Optical Cable for Soundbar, TV, Stereo Systems, Home Cinema [Nylon Braided, Slim Metal Case], Fiber Optic Audio Cord for Samsung, Vizio, LG, Bose, Sony, Sonos](https://m.media-amazon.com/images/I/711n1wMPtYL._AC_UY218_.jpg)
![Cubilux USB A SPDIF Input Adapter for PC [Stereo Recording ONLY, NOT for Playing Audio] USB Optical Line-in Dongle, Toslink to USB Receiver, USB A SDPIF RX Interface Suitable for Laptop Computer](https://m.media-amazon.com/images/I/51xOVNAVoFL._AC_UY218_.jpg)
LED Indicators: Activity lights near the optical port to confirm signal reception and transmission
Sound cards with optical inputs often feature LED indicators near the port, serving as visual cues for signal activity. These lights typically glow or blink to confirm that data is being received or transmitted, providing immediate feedback to users. For instance, a steady green light might indicate active reception, while a flashing red light could signal transmission. This simple yet effective design ensures users can troubleshoot connectivity issues at a glance, eliminating the need for software diagnostics.
Analyzing the functionality of these LEDs reveals their dual purpose: usability and diagnostics. Unlike traditional audio jacks, optical ports transmit digital signals, making physical feedback crucial for verification. LEDs act as a bridge between the user and the card’s internal processes, translating complex data flow into intuitive visual signals. For example, if the light fails to activate during playback, it suggests a potential issue with the cable, source device, or the sound card itself, streamlining problem-solving.
When integrating a sound card with optical input into your setup, position it in a visible location to maximize the utility of these LEDs. Avoid placing the card in enclosed spaces or behind obstructions that could block the lights. Additionally, familiarize yourself with the card’s specific LED patterns, as these can vary by manufacturer. Some cards may use color-coding (e.g., blue for idle, green for active) or blinking frequencies to differentiate between signal types, such as PCM or Dolby Digital.
A comparative look at sound cards reveals that not all LEDs are created equal. High-end models often include multi-color displays or segmented lights that provide granular feedback, such as indicating bit depth or sample rate. In contrast, budget options may limit LEDs to basic on/off states. For audiophiles or professionals, investing in a card with advanced LED indicators can enhance monitoring capabilities, ensuring optimal performance during critical listening or recording sessions.
In conclusion, LED indicators near the optical port are more than just decorative elements—they are essential tools for verifying and troubleshooting digital audio connections. By understanding their function and leveraging their visibility, users can ensure seamless signal flow and quickly address issues. Whether you’re a casual listener or a professional, these lights simplify the interaction with your sound card, making them a valuable feature in any audio setup.
Is Your Cat's Hoarse Meow Normal or a Health Concern?
You may want to see also
Explore related products
![eSynic Optical to 3.5mm/Aux Adapter 7 FT Long 192KHz Digital to Analog Converter-Metal Shell Built in Amplifier Chip from HDTV/Blu-Ray/Gaming Console to 3.5MM Headphone [Not Connect Optical Soundbar]](https://m.media-amazon.com/images/I/613Vs8s+GsL._AC_UY218_.jpg)
Compatibility Features: Supports multi-channel audio, Dolby/DTS formats, and high-resolution audio standards
Sound cards with optical inputs often serve as the linchpin for high-fidelity audio setups, bridging the gap between digital sources and analog outputs. Among their standout compatibility features are support for multi-channel audio, Dolby/DTS formats, and high-resolution audio standards. These capabilities ensure that the card can handle complex audio signals, from surround sound setups to lossless music files, making it a versatile choice for both home theaters and professional studios. For instance, a sound card that supports 7.1 multi-channel audio can deliver a fully immersive experience, positioning sound sources accurately around the listener.
To maximize compatibility with Dolby and DTS formats, ensure your sound card includes hardware decoding for these codecs. This feature offloads processing from the CPU, reducing latency and improving performance. For example, Dolby TrueHD and DTS-HD Master Audio are lossless formats commonly found on Blu-ray discs, and a sound card with native support can render them without quality degradation. When selecting a card, verify its specifications for compatibility with these formats, especially if you plan to use it for media consumption or gaming.
High-resolution audio standards, such as 24-bit/192kHz or DSD (Direct Stream Digital), demand a sound card capable of handling vast amounts of data. These formats offer greater dynamic range and detail compared to standard CD-quality audio (16-bit/44.1kHz). A sound card with optical input that supports these standards should feature a high-quality digital-to-analog converter (DAC) to ensure accurate reproduction. Practical tip: Pair the card with studio-grade headphones or speakers to fully appreciate the enhanced clarity and depth of high-resolution audio.
When integrating a sound card with optical input into your setup, consider the source devices. Gaming consoles, Blu-ray players, and modern PCs often include optical outputs, but not all devices support multi-channel audio or high-resolution formats. For example, while a PlayStation 5 can output Dolby Atmos via optical, older consoles may be limited to stereo. Always check both the sound card’s capabilities and the source device’s output specifications to avoid compatibility issues.
Finally, future-proofing your setup is crucial. Opt for a sound card that not only meets current standards but also supports emerging audio technologies. For instance, some high-end cards now include compatibility with 3D audio formats like Dolby Atmos Music or Sony 360 Reality Audio. While these formats are still gaining traction, investing in a card that supports them ensures longevity. Takeaway: Prioritize sound cards that balance current compatibility with forward-thinking features to maximize your audio investment.
Enhance Your Outdoor Movie Nights: Tips for Clear Projector Sound
You may want to see also
Frequently asked questions
A sound card with optical input usually features a standard PCIe or PCI card form factor with an additional Toslink (optical) port alongside traditional audio jacks. The optical port is a small, square-shaped connector with a protective cover.
The optical input is easily identified by its unique design—a small, square port with a plastic flap or cover to protect the internal lens. It is often labeled as "Optical," "Toslink," or "SPDIF."
No, sound cards with optical input come in both internal (PCIe/PCI) and external (USB) formats. External models are compact and connect via USB, making them portable and easy to use with laptops or desktops.
Yes, sound cards with optical input often include advanced features like high-resolution audio support, multiple audio channels (e.g., 5.1 or 7.1 surround sound), and dedicated DACs for improved sound quality, in addition to the optical connectivity.
