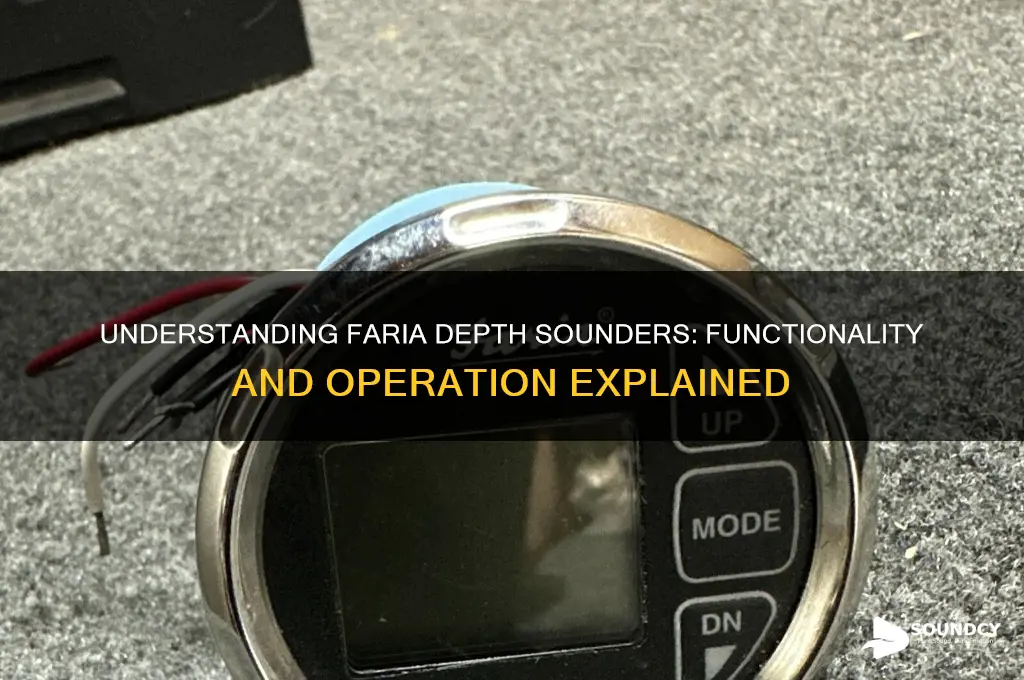

A Faria depth sounder is a marine electronic device designed to measure the depth of water beneath a boat or ship by emitting sound waves and calculating the time it takes for them to bounce back from the seabed. Utilizing sonar technology, it provides real-time depth readings, helping navigators avoid shallow waters, locate safe anchorages, and ensure safe passage. Faria depth sounders are known for their reliability, accuracy, and user-friendly interfaces, making them a popular choice among boaters and sailors. Understanding how this device works involves exploring its components, such as the transducer, display unit, and signal processing, as well as its ability to account for factors like water temperature and salinity that affect sound wave speed.
| Characteristics | Values |
|---|---|
| Functionality | Measures water depth using sonar technology. |
| Technology | Utilizes ultrasonic or sonar waves to determine depth. |
| Display Type | Analog or digital display, depending on the model. |
| Depth Range | Typically ranges from 0.5 feet to 200 feet (or 0.15 meters to 60 meters). |
| Accuracy | ±1% of reading or better, depending on water conditions. |
| Frequency | Operates at 200 kHz for optimal performance in most water conditions. |
| Power Source | 12V or 24V DC, commonly used in marine environments. |
| Mounting | Through-hull or transom mount options available. |
| Material | Durable, marine-grade materials resistant to corrosion and water damage. |
| Compatibility | Works with most boats and marine vessels. |
| Additional Features | May include alarms for shallow or deep water, temperature readings, etc. |
| Installation | Requires proper installation of the transducer for accurate readings. |
| Water Conditions | Performs best in calm to moderately choppy waters. |
| Brand | Faria, a well-known manufacturer of marine instruments. |
| Applications | Ideal for boating, fishing, and navigation in shallow or deep waters. |
Explore related products
What You'll Learn
- Transducer Functionality: How the transducer sends and receives sound waves to measure depth
- Display Features: Understanding the gauge or digital screen readings and indicators
- Installation Process: Steps to mount and connect the depth sounder correctly
- Calibration Methods: Techniques to ensure accurate depth measurements in various conditions
- Troubleshooting Tips: Common issues and solutions for malfunctioning depth sounders
Transducer Functionality: How the transducer sends and receives sound waves to measure depth
A Faria depth sounder relies on a critical component called the transducer to measure water depth. The transducer is the device responsible for both sending and receiving sound waves, which are the foundation of depth measurement. Mounted on the hull of the boat, typically near the keel, the transducer is designed to operate efficiently underwater. Its primary function is to emit a high-frequency sound pulse (typically in the ultrasonic range, around 200 kHz) downward into the water. This sound wave travels through the water column until it encounters the seabed or any other solid object beneath the boat.
The process of sending sound waves begins with an electrical signal generated by the depth sounder unit. This signal is transmitted to the transducer, which contains a piezoelectric element. When energized, the piezoelectric material vibrates rapidly, converting the electrical signal into a sound wave. The sound wave propagates through the water at a known speed, approximately 1,500 meters per second, depending on water temperature and salinity. The transducer is carefully designed to focus the sound wave into a narrow beam to ensure accuracy and minimize interference from reflections off the hull or other underwater structures.
Once the sound wave strikes the seabed, it is reflected back toward the surface. The transducer acts as a receiver, detecting the returning echo. The piezoelectric element now performs the reverse function, converting the mechanical energy of the returning sound wave back into an electrical signal. This signal is then sent to the depth sounder unit for processing. The time taken for the sound wave to travel to the seabed and back is measured with high precision, typically using a crystal oscillator or digital timer within the sounder unit.
The depth sounder calculates the depth by multiplying the time taken for the round trip by the speed of sound in water and dividing by two (to account for the sound traveling down and back). For example, if the round-trip time is 0.1 seconds, the depth would be calculated as (0.1 seconds * 1,500 meters/second) / 2 = 75 meters. This calculation is performed almost instantaneously, allowing the depth sounder to provide real-time depth readings to the user.
In addition to measuring depth, the transducer’s functionality also plays a role in ensuring accuracy and reliability. Factors such as water temperature, salinity, and turbulence can affect the speed of sound in water, potentially introducing errors in depth measurements. Advanced transducers and sounder units may incorporate temperature sensors or allow manual adjustments to compensate for these variables. Furthermore, the transducer’s mounting position and orientation are critical to its performance. Improper installation can lead to inaccurate readings due to air pockets, fouling, or interference from the boat’s hull.
Overall, the transducer is the heart of a Faria depth sounder, enabling precise depth measurements through the emission and reception of sound waves. Its dual functionality as both a transmitter and receiver, combined with the sounder unit’s processing capabilities, ensures that boaters have access to accurate and reliable depth information, enhancing safety and navigation on the water.
What's the Difference Between Sounds and Phonemes?
You may want to see also
Explore related products
Display Features: Understanding the gauge or digital screen readings and indicators
A Faria depth sounder is a marine instrument designed to measure the depth of water beneath a boat by using sonar technology. The display features of a Faria depth sounder are crucial for interpreting water depth accurately and making informed decisions while navigating. Whether the unit features a traditional gauge or a modern digital screen, understanding the readings and indicators is essential for effective use.
Gauge Displays typically consist of a needle that moves across a graduated scale to indicate depth. The scale is often marked in feet or meters, with additional hash marks or numbers to denote specific depths. The needle’s position directly corresponds to the depth detected by the sonar transducer. Some gauges also include a "shallow" or "deep" warning zone, highlighted in red or another color, to alert the operator when the boat is approaching dangerously shallow or unusually deep waters. It’s important to calibrate the gauge periodically to ensure the needle accurately reflects the depth measurements.
Digital Screen Displays offer more advanced features and are easier to read, especially in low-light conditions. These screens typically show depth numerically, often with large, clear digits that update in real time. Many digital displays also include a graphical representation of the water depth, such as a bar graph or a trend line, which helps users visualize changes in depth over time. Additional indicators, like water temperature or fish finder symbols, may be integrated into the display, providing a multifunctional tool for boaters. Digital screens often have backlighting options and adjustable brightness settings to enhance visibility under various lighting conditions.
Both gauge and digital displays may feature alarm indicators to alert the operator of critical depth conditions. For example, an audible or visual alarm may activate when the boat enters water shallower than a preset limit, helping to prevent grounding. Similarly, some units allow users to set a maximum depth alarm, which can be useful for avoiding underwater hazards or ensuring compliance with local navigation regulations. Understanding how to set and adjust these alarms is key to maximizing the safety features of the depth sounder.
Units of Measurement are another important aspect of display features. Most Faria depth sounders allow users to switch between feet and meters, depending on their preference or regional standards. This flexibility ensures that operators can work with the most familiar and relevant unit of measurement. It’s crucial to verify the current unit setting before relying on the displayed depth to avoid misinterpretation.
Finally, additional indicators such as signal strength, transducer status, or battery level may be included on the display, depending on the model. These indicators provide valuable information about the depth sounder’s performance and reliability. For instance, a weak signal indicator may suggest that the transducer is not properly mounted or that there is interference, prompting the operator to take corrective action. By familiarizing themselves with all display features, users can ensure their Faria depth sounder operates efficiently and provides accurate, actionable data.
How Sound Affects Your Sleep
You may want to see also
Explore related products
Installation Process: Steps to mount and connect the depth sounder correctly
Installation Process: Steps to Mount and Connect the Faria Depth Sounder Correctly
Before beginning the installation of your Faria depth sounder, ensure you have all necessary tools and components, including the transducer, display unit, mounting hardware, and wiring. Start by selecting an appropriate location for the transducer on the boat's hull. The transducer should be mounted in a position that allows it to remain submerged at all times and avoids areas with excessive turbulence or air pockets. Clean the hull thoroughly in the chosen area to ensure a strong bond between the transducer and the boat. If the hull is made of fiberglass, lightly sand the surface to create a better adhesive surface. For metal hulls, ensure the area is free from corrosion and properly primed.
Next, prepare the transducer for mounting. Apply a marine-grade adhesive or sealant to the base of the transducer, following the manufacturer’s instructions. Carefully press the transducer onto the hull, ensuring it is level and aligned with the boat’s keel for optimal performance. Secure it in place using the provided mounting brackets or screws, and allow the adhesive to cure fully according to the recommended time. Once mounted, route the transducer cable through the hull using a waterproof gland or fitting to prevent water intrusion. Ensure the cable is protected from sharp edges and potential damage during installation.
With the transducer in place, proceed to install the display unit. Choose a location on the boat’s dashboard or console that is easily visible to the operator and protected from direct sunlight and water exposure. Use the provided mounting bracket or create a custom mount if necessary. Secure the display unit firmly in place, ensuring it is level and stable. Connect the transducer cable to the display unit, following the wiring diagram provided in the Faria depth sounder manual. Double-check all connections to ensure they are secure and properly seated.
After connecting the transducer, route the power cable from the display unit to the boat’s power source. Connect the power cable to a switched 12-volt DC supply, such as the boat’s battery or a dedicated marine fuse block. Use appropriate marine-grade connectors and ensure all connections are insulated to prevent short circuits. Test the power connection by turning on the boat’s power system and verifying that the display unit powers up correctly.
Finally, perform a test run to ensure the depth sounder is functioning properly. Launch the boat into the water and power on the display unit. Check that the transducer is reading depths accurately and that the display is clear and responsive. Adjust the transducer’s position if necessary to eliminate any interference or inaccurate readings. Once satisfied with the performance, secure any loose cables and ensure all components are watertight. Regularly inspect the installation for signs of wear or damage, especially after prolonged use or exposure to harsh marine conditions.
Fun Ways to Teach Short 'A' Sounds
You may want to see also
Explore related products
Calibration Methods: Techniques to ensure accurate depth measurements in various conditions
A Faria depth sounder is a marine instrument used to measure the depth of water beneath a vessel by emitting sound waves and calculating the time it takes for the echo to return. Ensuring accurate depth measurements is crucial for navigation and safety, especially in varying water conditions. Calibration methods play a vital role in maintaining the precision of these devices. Below are detailed techniques to ensure accurate depth measurements in diverse environments.
Initial Calibration and Setup: Before deploying a Faria depth sounder, initial calibration is essential. This involves setting the transducer depth offset, which accounts for the distance between the waterline and the transducer. The user must measure this distance accurately and input it into the sounder’s settings. Additionally, selecting the correct transducer type and frequency is critical, as different frequencies perform better in varying water conditions (e.g., 200 kHz for shallow, clear water and 50 kHz for deeper or turbid water). Proper mounting of the transducer, ensuring it is free from air bubbles and securely attached, is also fundamental to accurate readings.
Temperature Compensation: Water temperature affects the speed of sound, which directly impacts depth measurements. Most Faria depth sounders include temperature compensation features. Users should input the water temperature manually or connect a temperature sensor to the system for automatic adjustments. Regularly updating the temperature data ensures the sounder calculates depth accurately, especially in waters with significant temperature gradients or seasonal variations.
Keel Offset Adjustment: For vessels with transducers mounted away from the keel, a keel offset adjustment is necessary. This calibration accounts for the horizontal distance between the transducer and the vessel’s centerline. By inputting the correct keel offset, the sounder can provide depth readings relative to the vessel’s actual position, preventing errors caused by transducer placement. This is particularly important in narrow or shallow waterways where precise depth measurements are critical.
Manual and Automatic Calibration in Different Conditions: In varying water conditions, such as shallow bays, deep oceans, or areas with dense aquatic vegetation, manual calibration may be required. This involves comparing the sounder’s readings with known depths (e.g., marked channels or charted areas) and adjusting the settings accordingly. Some advanced Faria models offer automatic calibration features, which continuously adjust readings based on real-time data. Users should periodically verify these automatic adjustments to ensure ongoing accuracy, especially after significant changes in water conditions or vessel modifications.
Regular Maintenance and Verification: Routine maintenance is key to long-term accuracy. Inspecting the transducer for fouling, damage, or misalignment and cleaning it regularly ensures optimal performance. Periodically verifying the sounder’s readings against reliable sources, such as nautical charts or GPS-based depth data, helps identify and rectify calibration issues early. Software updates provided by the manufacturer should also be installed to incorporate the latest calibration algorithms and improvements.
By implementing these calibration methods, users can ensure their Faria depth sounder provides accurate and reliable depth measurements across various conditions, enhancing both navigational safety and operational efficiency.
Muffled AirPod Mystery: Finding the Cause and Solution
You may want to see also
Explore related products
Troubleshooting Tips: Common issues and solutions for malfunctioning depth sounders
One of the most common issues with Faria depth sounders is an inaccurate or inconsistent depth reading. This can occur due to improper transducer installation or misalignment. The transducer, which sends and receives sonar signals, must be mounted correctly on the hull of the boat, ensuring it is free from air bubbles, debris, or paint. If readings are erratic, inspect the transducer for damage or fouling. Clean the surface and ensure it is securely mounted at the correct angle, typically parallel to the waterline. If the issue persists, check the transducer’s wiring for loose connections or damage, as poor electrical contact can disrupt signal transmission.
Another frequent problem is a blank or unresponsive display. This often stems from power supply issues or faulty wiring. Start by verifying that the depth sounder is receiving adequate power. Check the fuse and wiring connections to the unit for corrosion, fraying, or disconnection. If the fuse is blown, replace it with the correct amperage. Additionally, ensure the power source is functioning by testing it with a multimeter. If the display remains blank after these checks, the issue may lie within the unit itself, requiring professional inspection or replacement.
Interference from other electronic devices can also cause depth sounders to malfunction, leading to garbled or nonexistent readings. This is particularly common with older models or in boats with multiple electronics. To mitigate interference, ensure the depth sounder’s wiring is properly shielded and separated from other cables. Avoid running wires parallel to high-power devices like radios or GPS systems. If interference persists, consider installing a ferrite bead or filter on the transducer cable to suppress noise.
Water temperature and depth range settings can further impact performance. Faria depth sounders often have adjustable settings to optimize readings based on water conditions. If the sounder fails to detect the bottom in deep or shallow water, adjust the range setting accordingly. For example, in shallow water, use a shorter range to improve sensitivity. Conversely, in deep water, increase the range but be aware that this may reduce detail. Additionally, extreme water temperatures can affect sonar signal propagation, so ensure the transducer is functioning within its specified temperature range.
Lastly, software or calibration issues can lead to malfunctioning depth sounders. If the unit displays incorrect depth or fails to update readings, perform a factory reset or recalibration as per the manufacturer’s instructions. This can resolve glitches or errors in the unit’s programming. Regularly updating the firmware, if applicable, can also prevent compatibility issues and improve performance. If calibration does not resolve the problem, consult the user manual or contact Faria’s support team for further assistance.
By systematically addressing these common issues—transducer installation, power supply, interference, settings adjustments, and software calibration—most malfunctions with Faria depth sounders can be resolved efficiently, ensuring reliable and accurate depth readings for safer navigation.
Writing Sounds: Capturing Audio in Words
You may want to see also
Frequently asked questions
A Faria depth sounder uses sonar technology to measure water depth. It sends a sound pulse from a transducer mounted on the boat's hull, which travels through the water and bounces off the seabed. The sounder then calculates the depth by measuring the time it takes for the echo to return.
The range of a Faria depth sounder typically varies depending on the model, but most units can measure depths from a few feet up to several hundred feet. Deeper ranges may require more powerful transducers and optimal conditions for accurate readings.
Yes, a Faria depth sounder can work in shallow water, but accuracy may vary. In very shallow water (less than 2 feet), the sounder might struggle to get a reliable reading due to the short distance and potential interference from the boat's movement or debris.
Installing a Faria depth sounder involves mounting the display unit in a convenient location on the boat, connecting it to a power source, and installing the transducer on the hull below the waterline. Ensure the transducer is properly aligned and free from air bubbles for accurate readings. Follow the manufacturer’s instructions for specific steps.
