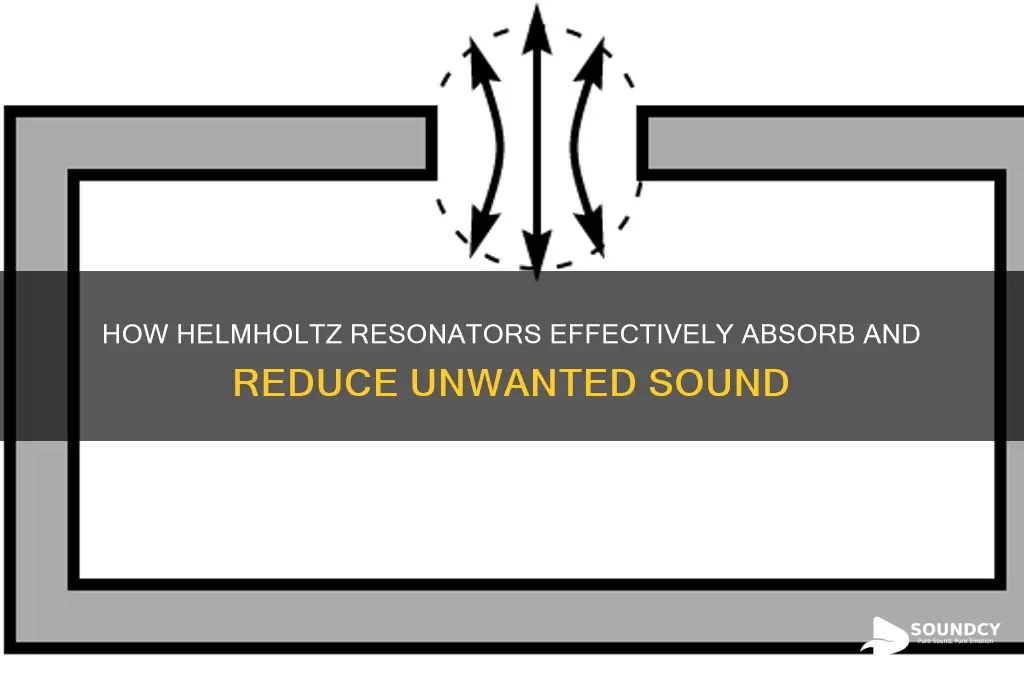

Helmholtz resonators are simple yet effective devices designed to absorb sound by leveraging the principles of acoustic resonance. Consisting of a cavity or hollow chamber connected to the surrounding environment by a narrow neck or opening, these resonators work by converting sound energy into heat through a process of vibration and dissipation. When sound waves encounter the resonator, the air inside the cavity begins to oscillate at a specific frequency, known as the resonant frequency, which matches the frequency of the incoming sound. This oscillation causes the air to move in and out of the neck, effectively trapping the sound energy within the cavity. As the air molecules collide with the walls of the resonator, the kinetic energy of the sound waves is converted into thermal energy, thereby reducing the amplitude of the sound and diminishing its intensity. This mechanism makes Helmholtz resonators particularly useful in applications such as automotive exhaust systems, architectural acoustics, and noise control in machinery, where targeted sound absorption at specific frequencies is required.
| Characteristics | Values |
|---|---|
| Principle of Operation | Absorption of sound via resonance, where the resonator's cavity and neck are tuned to a specific frequency |
| Frequency Range | Typically effective at low to mid-frequencies (around 50 Hz to 500 Hz), depending on the resonator's design |
| Resonant Frequency | Determined by the formula: ( f = \frac{2\pi} \sqrt{\frac} ), where ( c ) is the speed of sound, ( A ) is the cross-sectional area of the neck, ( V ) is the volume of the cavity, and ( L ) is the length of the neck |
| Absorption Mechanism | Sound waves cause air to oscillate in the neck, creating a pressure difference that drives air in and out of the cavity, dissipating acoustic energy as heat |
| Neck-to-Cavity Ratio | Critical for tuning; a smaller neck and larger cavity generally lower the resonant frequency |
| Material Influence | Materials with higher thermal conductivity (e.g., metals) enhance energy dissipation but may affect tuning |
| Applications | Automotive exhaust systems, HVAC systems, architectural acoustics, and musical instruments |
| Efficiency | Highly efficient at their resonant frequency but less effective at other frequencies |
| Tuning Flexibility | Adjustable by modifying neck length, cavity volume, or neck diameter |
| Limitations | Narrow bandwidth of absorption; multiple resonators or additional treatments are needed for broader frequency coverage |
| Recent Advancements | Use of variable geometry resonators and active control systems to broaden frequency response |
Explore related products
What You'll Learn
- Resonant Frequency Matching: Sound waves match the resonator's natural frequency, initiating absorption
- Air Mass Oscillation: Air inside the cavity oscillates, converting sound energy into heat
- Neck Geometry Role: Narrow neck restricts airflow, amplifying energy dissipation
- Cavity Volume Effect: Larger cavities target lower frequencies for effective absorption
- Damping Material Use: Linings inside the cavity enhance energy absorption and reduce reflections
Resonant Frequency Matching: Sound waves match the resonator's natural frequency, initiating absorption
Helmholtz resonators are highly effective at absorbing sound through a principle known as Resonant Frequency Matching. This phenomenon occurs when the frequency of incoming sound waves aligns with the natural resonant frequency of the resonator, triggering a process that converts acoustic energy into heat, thereby reducing sound levels. The natural frequency of a Helmholtz resonator is determined by its physical characteristics, specifically the volume of the cavity and the length and diameter of the neck. When sound waves encounter the resonator at this precise frequency, they excite the air column within the neck, causing it to vibrate in sympathy with the sound wave.
The absorption process begins as the sound waves force air in and out of the resonator's neck, creating a mass-spring system where the air mass in the neck oscillates against the compressible air volume in the cavity. At the resonant frequency, this oscillation is maximized, leading to a significant transfer of energy from the sound wave into the resonator. The energy is then dissipated as heat due to viscous and thermal losses within the air and the resonator's walls, effectively absorbing the sound. This mechanism is why Helmholtz resonators are particularly efficient at attenuating specific frequencies, making them ideal for targeted noise reduction applications.
To achieve optimal absorption, the dimensions of the Helmholtz resonator must be carefully calculated to match the target frequency. The formula for the resonant frequency \( f \) is given by \( f = \frac{c}{2\pi} \sqrt{\frac{A}{V L}} \), where \( c \) is the speed of sound, \( A \) is the cross-sectional area of the neck, \( V \) is the volume of the cavity, and \( L \) is the length of the neck. By adjusting these parameters, engineers can design resonators to absorb specific frequencies prevalent in a given environment, such as engine noise in automotive applications or low-frequency hum in HVAC systems.
When the resonant frequency of the Helmholtz resonator matches the frequency of the incoming sound wave, a condition known as acoustic tuning is achieved. In this state, the resonator acts as a highly efficient sound absorber, as the energy of the sound wave is almost entirely converted into mechanical motion within the resonator. This motion is then rapidly damped, primarily through friction and heat dissipation, ensuring that the sound energy is not re-radiated back into the environment. The effectiveness of this process is why Helmholtz resonators are widely used in mufflers, architectural acoustics, and musical instruments.
In practical applications, multiple Helmholtz resonators are often tuned to different frequencies to broaden the range of sound absorption. This approach, known as bandwidth enhancement, ensures that a wider spectrum of noise is attenuated, providing more comprehensive sound control. For example, in automotive exhaust systems, a series of resonators with varying dimensions are used to target and absorb multiple frequencies of engine noise. By leveraging resonant frequency matching, Helmholtz resonators offer a precise and efficient solution for noise reduction, making them indispensable in both industrial and everyday contexts.
Sound Blaster Command: Is It Worth the Download?
You may want to see also
Explore related products
Air Mass Oscillation: Air inside the cavity oscillates, converting sound energy into heat
Helmholtz resonators are effective sound-absorbing devices that operate based on the principle of Air Mass Oscillation. When sound waves encounter the resonator, they cause the air inside the cavity to oscillate at a specific frequency, known as the resonant frequency. This oscillation is a critical mechanism in converting sound energy into heat, thereby reducing the amplitude of the sound waves and effectively absorbing them. The process begins when sound waves enter the resonator through its neck, creating a pressure difference between the inside and outside of the cavity. This pressure difference drives the air mass within the cavity to move back and forth, initiating oscillation.
The oscillation of the air mass inside the Helmholtz resonator is a damped process, meaning that with each cycle, some of the sound energy is dissipated as heat. This energy conversion occurs due to the viscosity of the air and the friction between air molecules as they move within the confined space of the cavity and neck. As the air mass oscillates, it experiences resistance, which transforms the mechanical energy of the sound waves into thermal energy. This heat dissipation is a key factor in the resonator's ability to absorb sound, as it effectively "removes" the energy from the sound wave, reducing its intensity.
The effectiveness of air mass oscillation in sound absorption depends on the dimensions of the Helmholtz resonator, particularly the volume of the cavity and the length and diameter of the neck. These parameters determine the resonant frequency of the resonator, which must match the frequency of the sound waves to be absorbed for maximum efficiency. When the incoming sound wave frequency aligns with the resonant frequency, the amplitude of the air mass oscillation increases, leading to greater energy dissipation and, consequently, more effective sound absorption.
It is important to note that the air mass oscillation within a Helmholtz resonator is not a simple back-and-forth motion but a complex interaction of air molecules. The movement of air in and out of the cavity creates a standing wave pattern, with regions of high and low pressure. This standing wave enhances the interaction between the sound wave and the resonator, further promoting the conversion of sound energy into heat. The geometry of the resonator plays a crucial role in shaping this standing wave and optimizing the absorption process.
In practical applications, Helmholtz resonators are often tuned to target specific frequencies, making them particularly useful in noise control for machinery, vehicles, and architectural acoustics. By carefully designing the resonator's dimensions, engineers can ensure that the air mass oscillation effectively absorbs unwanted sound at the desired frequency range. This targeted approach allows Helmholtz resonators to be highly efficient in reducing noise pollution, demonstrating the power of air mass oscillation as a sound-absorbing mechanism. Understanding and harnessing this principle enable the creation of quieter environments in various settings.
Headphone Jacks: Do They Impact Audio Quality?
You may want to see also
Explore related products
Neck Geometry Role: Narrow neck restricts airflow, amplifying energy dissipation
The role of neck geometry in Helmholtz resonators is pivotal to their ability to absorb sound, particularly through the mechanism of energy dissipation. A Helmholtz resonator consists of a cavity connected to the outside environment via a narrow neck. The neck's geometry, specifically its narrowness, plays a critical role in restricting airflow, which in turn amplifies the dissipation of acoustic energy. When sound waves encounter the resonator, the narrow neck acts as a bottleneck, limiting the volume of air that can move in and out of the cavity. This restriction is essential because it forces the air to oscillate at a specific frequency, matching the resonant frequency of the cavity. At this frequency, the resonator is most effective at absorbing sound energy.
The narrow neck increases the resistance to airflow, which is a key factor in energy dissipation. As air moves through the neck, it experiences friction and viscous forces, particularly at the walls of the neck. These forces convert the kinetic energy of the sound waves into thermal energy, effectively "damping" the sound. The narrower the neck, the greater the resistance, and thus, the more pronounced the energy dissipation. This principle is analogous to how a small opening in a water hose increases resistance, reducing the flow rate and dissipating the water's energy. In the context of sound absorption, this dissipation is crucial for reducing the amplitude of the sound waves.
Another important aspect of the narrow neck is its ability to enhance the pressure drop across the neck opening. When sound waves cause air to oscillate in and out of the cavity, the narrow neck ensures that the pressure changes are more significant compared to a wider neck. This amplified pressure drop leads to greater energy losses as the air molecules collide and interact within the confined space. The increased pressure drop also ensures that the resonator remains effective over a narrow frequency band, making it highly efficient at absorbing specific frequencies of sound.
Furthermore, the narrow neck contributes to the tuning of the Helmholtz resonator. The dimensions of the neck, particularly its length and diameter, determine the resonant frequency of the system. By carefully designing the neck geometry, engineers can tailor the resonator to target specific frequencies of unwanted sound. This precision is vital in applications such as automotive exhaust systems, where Helmholtz resonators are used to reduce noise at particular frequencies. The narrow neck ensures that the resonator operates optimally within the desired frequency range, maximizing sound absorption efficiency.
In summary, the narrow neck of a Helmholtz resonator is fundamental to its sound-absorbing capabilities. By restricting airflow, the neck amplifies energy dissipation through increased resistance, friction, and pressure drops. This geometry ensures that the resonator effectively converts acoustic energy into thermal energy, thereby reducing sound amplitude. Additionally, the narrow neck allows for precise tuning of the resonator to target specific frequencies, making it a highly effective tool in noise reduction applications. Understanding and optimizing neck geometry is therefore essential for maximizing the performance of Helmholtz resonators in various acoustic engineering contexts.
Sound Cards and USB Headsets: Do They Work Together?
You may want to see also
Explore related products
Cavity Volume Effect: Larger cavities target lower frequencies for effective absorption
The Cavity Volume Effect is a fundamental principle governing the performance of Helmholtz resonators in sound absorption. Helmholtz resonators operate by creating a mass-spring system where the air mass in the neck of the resonator and the compressible air within the cavity act as a tuned absorber. The volume of the cavity plays a critical role in determining the frequency at which the resonator is most effective. Specifically, larger cavities target lower frequencies for effective absorption. This relationship arises from the physics of acoustic resonance, where the resonant frequency (*f*) of a Helmholtz resonator is inversely proportional to the square root of the cavity volume (*V*). Mathematically, this is expressed as *f ∝ 1/√V*. As the cavity volume increases, the resonant frequency decreases, allowing the resonator to absorb sound energy more effectively at lower frequencies.
To understand why larger cavities are better suited for lower frequencies, consider the behavior of air within the resonator. When sound waves interact with the resonator, they cause the air in the neck to oscillate, creating pressure variations inside the cavity. In a larger cavity, the air has more space to expand and contract, which reduces the stiffness of the system. This reduced stiffness lowers the resonant frequency, enabling the resonator to match and absorb sound waves with longer wavelengths, characteristic of lower frequencies. Conversely, smaller cavities exhibit higher stiffness, resulting in higher resonant frequencies that are less effective for low-frequency sound absorption.
Designing Helmholtz resonators with specific cavity volumes allows engineers to tailor their performance to target particular frequency ranges. For instance, in automotive applications, larger cavities are often used to mitigate low-frequency engine noise, while smaller cavities may address mid-range frequencies. The choice of cavity volume must also consider the neck dimensions, as the two parameters work together to determine the overall resonant frequency. However, the cavity volume has a more pronounced effect on frequency tuning, making it a primary consideration for low-frequency absorption.
Practical implementations of this principle can be seen in architectural acoustics, where Helmholtz resonators with large cavities are installed to combat low-frequency issues in spaces like concert halls or recording studios. Similarly, in industrial settings, larger cavity volumes are employed to attenuate the deep rumbling noises produced by heavy machinery. By strategically increasing the cavity volume, designers can ensure that the resonators are tuned to the problematic frequencies, maximizing their sound-absorbing efficiency.
In summary, the Cavity Volume Effect underscores the importance of cavity size in Helmholtz resonator design for targeted sound absorption. Larger cavities inherently target lower frequencies, making them indispensable for addressing bass-heavy noise. This effect is rooted in the acoustic properties of the resonator, where increased cavity volume reduces system stiffness and lowers the resonant frequency. By leveraging this principle, engineers can create effective noise mitigation solutions tailored to specific frequency ranges, enhancing acoustic comfort in various environments.
Sound Cards and DirectX: Compatibility Questions
You may want to see also
Explore related products
Damping Material Use: Linings inside the cavity enhance energy absorption and reduce reflections
Helmholtz resonators are effective at absorbing sound by tuning their cavity and neck dimensions to target specific frequencies. When sound waves enter the resonator’s neck, they induce air pressure variations inside the cavity, causing it to vibrate at its resonant frequency. At this frequency, the resonator efficiently converts acoustic energy into mechanical energy, dissipating sound. However, to maximize this energy absorption and minimize unwanted reflections, damping materials are strategically applied as linings inside the cavity. These materials play a critical role in enhancing the resonator’s performance by increasing energy dissipation and reducing internal reflections.
Damping material use inside the cavity is essential because it directly addresses the issue of energy buildup and reflection. Without damping, sound waves entering the resonator could reflect off the cavity walls, leading to standing waves and reduced absorption efficiency. By lining the cavity with materials such as foam, felt, or porous fabrics, the kinetic energy of the air particles is converted into heat through friction within the material’s structure. This process effectively damps the vibrations, ensuring that the absorbed sound energy is not re-radiated back into the environment. The choice of damping material depends on factors like porosity, thickness, and density, which influence its ability to absorb and dissipate energy.
The application of damping linings also improves the broadband performance of Helmholtz resonators. While the resonator is inherently tuned to a specific frequency, the damping material helps absorb sound energy across a wider range of frequencies. This is particularly useful in real-world applications where noise spectra are often complex and not limited to a single frequency. The material’s porous structure allows it to interact with sound waves of varying wavelengths, providing additional attenuation beyond the resonator’s primary resonant frequency. This dual action—targeted resonance and broadband damping—makes the resonator more versatile and effective in noise control.
Proper installation of damping materials is crucial for optimal performance. The lining should be uniformly applied to the cavity walls, ensuring full coverage without obstructing the neck or altering the cavity volume. In some cases, the material may be adhered directly to the walls, while in others, it may be suspended or fitted as inserts. The goal is to maximize the interaction between the sound waves and the damping material while maintaining the resonator’s structural integrity. Careful consideration of material placement and thickness ensures that the resonator’s resonant frequency remains unchanged while benefiting from enhanced energy absorption.
In summary, damping material use inside the cavity of a Helmholtz resonator is a key strategy for enhancing energy absorption and reducing reflections. By converting acoustic energy into heat and minimizing internal reflections, these linings improve the resonator’s efficiency and broaden its frequency range. The selection and installation of damping materials require careful attention to ensure they complement the resonator’s design without compromising its tuning. When implemented effectively, damping linings transform the Helmholtz resonator into a powerful tool for targeted and broadband sound absorption in various acoustic applications.
Dented Mids: Impacting Audio Quality or Just a Cosmetic Concern?
You may want to see also
Frequently asked questions
A Helmholtz resonator is a device designed to absorb sound by using a cavity or hollow space connected to the environment through a small opening (neck). It works by creating a resonant frequency at which the air in the cavity and neck oscillates, effectively absorbing sound waves that match this frequency.
A Helmholtz resonator absorbs sound by converting acoustic energy into heat through the vibration of air within its cavity and neck. When sound waves at the resonator's tuned frequency enter the neck, they cause the air to oscillate, dissipating energy as heat and reducing the amplitude of the sound wave.
The resonant frequency of a Helmholtz resonator is determined by the volume of the cavity and the length and cross-sectional area of the neck. The formula for the resonant frequency (f) is given by:
\[ f = \frac{c}{2\pi} \sqrt{\frac{A}{VL}} \]
where \( c \) is the speed of sound, \( A \) is the cross-sectional area of the neck, \( V \) is the volume of the cavity, and \( L \) is the length of the neck.
Helmholtz resonators are commonly used in applications such as automotive exhaust systems to reduce noise, in architectural acoustics to control room reverberation, and in musical instruments like stringed instruments to enhance tonal qualities. They are also used in HVAC systems and industrial settings to mitigate specific frequency noise.
