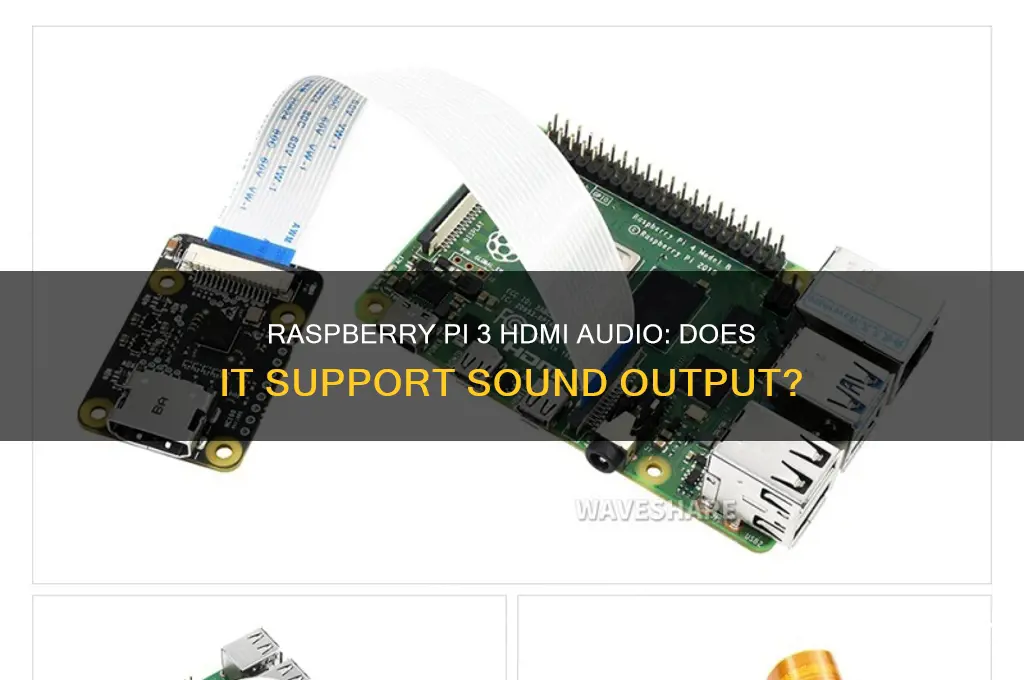

The Raspberry Pi 3, a popular single-board computer, is widely used for various projects, from media centers to IoT devices. One common question among users is whether the Raspberry Pi 3 supports sound over HDMI, a feature essential for multimedia applications. The Raspberry Pi 3 does indeed support audio output via HDMI, allowing users to connect it directly to HDMI-enabled displays or monitors and enjoy both video and sound without the need for additional audio cables. This capability is particularly useful for projects like home theater systems, digital signage, or gaming setups, where seamless audio-visual integration is crucial. However, users should ensure their operating system, such as Raspbian, is properly configured to enable HDMI audio output, as it may require adjustments in settings or additional software installations.
| Characteristics | Values |
|---|---|
| HDMI Version Supported | HDMI 1.3 (Raspberry Pi 3 Model B and B+) |
| Audio Over HDMI Capability | Yes, supported natively |
| Audio Formats Supported | PCM (uncompressed), up to 24-bit/192kHz |
| Driver Requirements | No additional drivers needed; handled by the Raspberry Pi OS (formerly Raspbian) |
| Configuration Needed | Automatically enabled by default; may require manual adjustment via config.txt or GUI settings for specific cases |
| Common Issues | Occasionally requires HDMI mode setting adjustment (e.g., config.txt modifications) |
| Alternative Audio Output | 3.5mm analog audio jack available if HDMI audio is not functioning |
| Compatibility with Displays | Works with most modern HDMI displays/TVs supporting HDMI 1.3 or higher |
| Latency | Minimal latency, suitable for multimedia playback |
| Power Consumption | No additional power required for HDMI audio output |
| Firmware Dependency | Requires up-to-date firmware for optimal performance |
Explore related products
What You'll Learn
- HDMI Audio Setup: Enabling sound through HDMI on Raspberry Pi 3 requires specific configuration steps
- Supported Formats: Raspberry Pi 3 supports various audio formats over HDMI, including PCM and AC3
- Troubleshooting Tips: Common issues like no sound can be resolved by checking HDMI settings
- Hardware Compatibility: Ensure your HDMI device and cable support audio transmission for seamless output
- Software Updates: Updating Raspbian OS and firmware can fix HDMI audio-related bugs
HDMI Audio Setup: Enabling sound through HDMI on Raspberry Pi 3 requires specific configuration steps
The Raspberry Pi 3 supports HDMI audio output, but enabling it isn’t automatic. By default, the device prioritizes the 3.5mm audio jack, requiring manual intervention to route sound through HDMI. This setup is essential for users relying on HDMI-connected displays or monitors without separate speakers. The process involves editing configuration files and ensuring compatibility with the connected device, making it a task that demands precision but is entirely achievable for users familiar with basic Linux commands.
To enable HDMI audio on the Raspberry Pi 3, start by accessing the Raspberry Pi OS configuration tool. Open a terminal and type `sudo raspi-config`, then navigate to the "Advanced Options" menu. Here, select "Audio" and choose "Force HDMI" as the output device. This step overrides the default audio routing, but it’s only the beginning. Rebooting the system is necessary for the changes to take effect, though this alone may not resolve all cases, particularly with older monitors or specific HDMI devices.
For persistent issues, manual editing of the `/boot/config.txt` file is often required. Add the line `dtparam=audio=on` to enable HDMI audio, and consider including `hdmi_drive=2` to ensure the Raspberry Pi detects the HDMI device correctly. Save the file and reboot. If sound remains absent, verify the HDMI cable supports audio transmission and check the monitor’s settings to ensure it’s not muting the input. These steps highlight the importance of troubleshooting hardware and software configurations in tandem.
A common pitfall is assuming all HDMI devices handle audio identically. Some monitors or TVs require additional settings adjustments, such as enabling external speakers or selecting the correct input source. For users running older versions of Raspberry Pi OS, updating the firmware and OS can resolve compatibility issues. Pairing these steps with a basic understanding of the Raspberry Pi’s audio architecture ensures a smoother setup process, transforming the Pi into a versatile multimedia device capable of delivering both video and sound via a single HDMI connection.
The Mystery of Blends: One or Two Sounds?
You may want to see also
Explore related products
![Mini HDMI to HDMI Cable 6FT, [Mini HDMI][Aluminum Shell, Braided] High Speed 4K 60Hz HDMI 2.0 Cord, Compatible with Camera, Camcorder, Tablet and Graphics/Video Card, Laptop, Raspberry Pi Zero W](https://m.media-amazon.com/images/I/717snsvPqlL._AC_UY218_.jpg)
Supported Formats: Raspberry Pi 3 supports various audio formats over HDMI, including PCM and AC3
The Raspberry Pi 3's HDMI output isn't just for video; it's a gateway to rich, immersive audio experiences. Among the formats it supports over HDMI are PCM (Pulse-Code Modulation) and AC3 (Audio Codec 3), each bringing distinct advantages to the table. PCM, an uncompressed format, delivers pristine, lossless audio quality, making it ideal for music enthusiasts and audiophiles. AC3, on the other hand, is a compressed format commonly used in DVDs and streaming services, offering efficient bandwidth usage without significant quality loss.
To leverage these formats, ensure your HDMI cable is high-speed and properly connected to both the Raspberry Pi 3 and your display or audio device. Navigate to the Raspberry Pi's audio settings, typically found in the configuration menu, and select HDMI as the output device. For PCM, no additional configuration is usually required, as it’s natively supported. For AC3, you may need to enable passthrough in the audio settings, allowing the raw AC3 stream to be sent directly to your receiver or sound system.
A practical tip: If you’re using AC3 for home theater setups, pair your Raspberry Pi 3 with an AV receiver that supports AC3 decoding. This ensures the audio is processed correctly, delivering the surround sound experience AC3 is known for. For PCM, consider using a high-quality DAC (Digital-to-Analog Converter) if your setup includes external speakers, as this can further enhance audio fidelity.
While PCM and AC3 are the standout formats, it’s worth noting that the Raspberry Pi 3’s HDMI audio capabilities extend beyond these. However, mastering these two formats first provides a solid foundation for optimizing your audio setup. Experiment with different media files encoded in PCM and AC3 to hear the differences and tailor your configuration to your preferences.
In summary, the Raspberry Pi 3’s support for PCM and AC3 over HDMI opens up versatile audio possibilities, from high-fidelity music playback to immersive home theater experiences. By understanding and configuring these formats correctly, you can unlock the full potential of your Raspberry Pi’s audio capabilities.
Anger Management: Do I Sound Angry?
You may want to see also
Explore related products
Troubleshooting Tips: Common issues like no sound can be resolved by checking HDMI settings
The Raspberry Pi 3 is a versatile single-board computer capable of outputting audio over HDMI, but users often encounter issues like no sound. Before assuming a hardware fault, it’s critical to verify HDMI settings, as misconfigurations are a common culprit. Start by ensuring your monitor or TV supports audio over HDMI, as some older displays lack this feature. Next, check the Raspberry Pi’s configuration by running `sudo raspi-config` and navigating to the audio settings. Confirm that HDMI is selected as the primary audio output. If the issue persists, inspect the HDMI cable for damage or try a different one, as subpar cables often fail to transmit audio signals reliably.
Analyzing the problem systematically can save hours of frustration. Begin by isolating the issue: connect the Raspberry Pi to another HDMI-compatible device to determine if the problem lies with the original display or the Pi itself. If sound works on a different device, the issue is likely display-specific. Dive into the Raspberry Pi’s `/boot/config.txt` file using a text editor like `nano` and ensure the `hdmi_drive=2` setting is present, which forces HDMI audio mode. Reboot the system after making changes to apply them. If the Pi still lacks sound, consider updating the firmware or reinstalling the operating system, as corrupted files can disrupt audio functionality.
Persuasive troubleshooting often involves eliminating variables methodically. For instance, if you’re using an external HDMI adapter or converter, bypass it and connect the Pi directly to the display. Adapters can introduce compatibility issues, especially with older hardware. Additionally, ensure the volume is unmuted both on the Raspberry Pi and the connected display. On the Pi, use `alsamixer` in the terminal to check and adjust audio levels. If the volume sliders are muted or set too low, adjust them and test the sound again. This simple step is frequently overlooked but can resolve the issue instantly.
Comparing the Raspberry Pi 3 to newer models like the Pi 4 highlights advancements in HDMI audio handling, but the core troubleshooting principles remain consistent. For example, both models require proper driver configuration, but the Pi 4’s firmware updates have streamlined audio setup. Regardless, the Pi 3’s HDMI audio is reliable when settings are correctly configured. A practical tip for persistent issues is to boot the Pi into safe mode by holding the Shift key during startup, which can bypass problematic configurations. Once in safe mode, reconfigure the audio settings and reboot normally to see if the issue is resolved.
Descriptive troubleshooting involves visualizing the problem-solving process. Imagine a scenario where the Pi is connected to a modern 4K TV but produces no sound. First, access the TV’s audio settings and ensure it’s set to receive audio via HDMI. Then, on the Pi, open the `Audio Device Preferences` in the desktop environment and confirm HDMI is selected. If the TV has multiple HDMI ports, try switching to a different one, as some ports may not support audio. Finally, restart both the Pi and the TV to refresh their connection. This step-by-step approach ensures no detail is overlooked, turning a complex issue into a manageable task.
Thick Materials: The Science Behind Effective Soundproofing Solutions
You may want to see also
Explore related products
Hardware Compatibility: Ensure your HDMI device and cable support audio transmission for seamless output
The Raspberry Pi 3, a versatile single-board computer, is capable of outputting sound over HDMI, but this functionality hinges on hardware compatibility. Not all HDMI devices and cables are created equal, and ensuring seamless audio transmission requires careful consideration of both components. HDMI cables, for instance, are categorized by version (e.g., HDMI 1.4, 2.0) and type (e.g., Standard, High Speed), each supporting different features and bandwidths. For audio, HDMI 1.4 and later versions are recommended, as they support multi-channel audio formats like 7.1 surround sound. However, even with a compatible cable, the connected device—whether a monitor, TV, or projector—must also support audio reception over HDMI.
To verify compatibility, start by checking the specifications of your HDMI device. Look for explicit mention of HDMI audio support in the user manual or product documentation. Some older or budget devices may lack this feature, rendering them incapable of receiving audio signals. Next, inspect your HDMI cable. While most modern cables support audio, older or low-quality ones might not. A simple way to test is by connecting the Raspberry Pi 3 to a known compatible device and checking for audio output. If sound is absent, swap the cable with a verified high-speed HDMI cable to isolate the issue.
A common pitfall is assuming that all HDMI ports on a device support audio. Some devices, particularly older models, may have HDMI ports dedicated solely to video. To avoid this, identify the correct port by consulting the device’s manual or looking for labels like "HDMI ARC" (Audio Return Channel) or "HDMI with Audio." Additionally, ensure the Raspberry Pi 3’s firmware is up to date, as older versions may have bugs affecting audio output. This can be done by running `sudo apt-get update && sudo apt-get upgrade` followed by `sudo rpi-update` in the terminal.
For troubleshooting, start with the basics: restart both the Raspberry Pi 3 and the connected device. If audio still doesn’t work, test the setup with a different HDMI cable and device to pinpoint the issue. In some cases, adjusting the Raspberry Pi’s audio configuration via the `raspi-config` tool may resolve the problem. Navigate to `Advanced Options > Audio` and ensure the correct output (HDMI) is selected. Finally, consider using an external USB sound card as a workaround if hardware limitations persist, though this adds complexity and cost.
In summary, achieving sound over HDMI on the Raspberry Pi 3 requires a compatible HDMI device, a suitable cable, and proper configuration. By methodically checking each component and following practical troubleshooting steps, users can ensure seamless audio output without unnecessary frustration. This approach not only saves time but also maximizes the potential of the Raspberry Pi 3 as a multimedia device.
Is Sounds True Really Free? Exploring Costs and Accessibility
You may want to see also
Explore related products
Software Updates: Updating Raspbian OS and firmware can fix HDMI audio-related bugs
The Raspberry Pi 3, a versatile single-board computer, is capable of delivering sound over HDMI, but users often encounter audio-related issues. These problems can stem from outdated software or firmware, which may not fully support the HDMI audio functionality. Keeping your Raspbian OS and firmware up-to-date is a straightforward yet effective solution to resolve such bugs and ensure a seamless audio experience.
Identifying the Need for Updates
Before diving into updates, it’s crucial to identify whether your audio issues are software-related. Common symptoms include no sound over HDMI, distorted audio, or failure to detect the HDMI device. If your Raspberry Pi 3 is running an older version of Raspbian or firmware, these problems are likely candidates for resolution through updates. Use the command `uname -a` in the terminal to check your kernel version and compare it with the latest release notes on the Raspberry Pi Foundation’s website.
Steps to Update Raspbian OS and Firmware
Updating your system is a two-step process. First, update the Raspbian OS by running `sudo apt update` followed by `sudo apt full-upgrade`. This ensures all packages, including those related to audio drivers, are up-to-date. Second, update the firmware using `sudo rpi-update`. This command fetches the latest firmware from GitHub, addressing hardware-level issues that may affect HDMI audio. After updating, reboot your Raspberry Pi with `sudo reboot` to apply changes.
Cautions and Troubleshooting
While updates are generally safe, proceed with caution if you’ve made custom configurations. Firmware updates, in particular, can overwrite modifications to the boot partition. Always back up critical files before updating. If audio issues persist post-update, verify your HDMI cable is functional and check the audio settings in Raspbian’s desktop environment or via the `amixer` command in the terminal. Ensure the HDMI output is selected as the default audio device.
Regularly updating your Raspbian OS and firmware is not just a fix for HDMI audio bugs but a best practice for maintaining system stability and security. By staying current with software releases, you minimize compatibility issues and maximize the performance of your Raspberry Pi 3. Whether you’re using it as a media center, gaming console, or development board, keeping your system updated ensures a reliable audio experience over HDMI.
Understanding Hitachi Smart Sound: Features, Benefits, and How It Works
You may want to see also
Frequently asked questions
Yes, the Raspberry Pi 3 supports sound over HDMI, allowing audio to be transmitted through the HDMI port to compatible displays or monitors.
To enable sound over HDMI, ensure your Raspberry Pi OS is up to date, then edit the `/boot/config.txt` file and add or uncomment the line `dtoverlay=vc4-fkms-v3d`. Reboot the device, and sound should output via HDMI.
No, the Raspberry Pi 3 does not support simultaneous audio output through both HDMI and the 3.5mm jack. You must choose one or the other.
Common issues include outdated firmware, incorrect configuration, or incompatible HDMI devices. Ensure your Raspberry Pi OS is updated, check the `/boot/config.txt` file for correct settings, and verify your HDMI device supports audio.
No, the necessary drivers for HDMI audio are included in the Raspberry Pi OS. Ensure your system is updated to the latest version for optimal performance.
