Gypsum board, commonly known as drywall, is a widely used building material in interior construction, primarily for walls and ceilings. One of its lesser-known properties is its ability to absorb sound, making it a topic of interest in acoustic design. While gypsum board itself is not a high-performance sound absorber, it can contribute to reducing sound transmission and echo within a space when combined with other materials or techniques, such as insulation or acoustic panels. Its density and mass play a role in blocking sound waves, though its effectiveness depends on factors like thickness, installation method, and the presence of additional soundproofing layers. Understanding gypsum board’s acoustic properties is essential for creating quieter, more comfortable indoor environments in residential, commercial, and industrial settings.
| Characteristics | Values |
|---|---|
| Sound Absorption | Gypsum board itself has limited sound absorption capabilities. |
| Mass-Spring-Mass Effect | When combined with insulation and air gaps, gypsum board can enhance sound reduction due to the mass-spring-mass effect. |
| STC (Sound Transmission Class) | Standard gypsum board typically has an STC rating of 30-34. |
| Frequency Performance | More effective at blocking lower frequencies; less effective at higher frequencies. |
| Thickness | Thicker gypsum boards generally provide better sound insulation. |
| Layering | Multiple layers of gypsum board can significantly improve sound blocking. |
| Damping | Gypsum board can be paired with damping compounds to reduce vibration and improve sound isolation. |
| Air Gaps | Incorporating air gaps between layers or using resilient channels can enhance sound reduction. |
| Insulation | Adding insulation (e.g., fiberglass or mineral wool) behind gypsum board improves sound absorption and blocking. |
| Sealing | Proper sealing of gaps and joints is crucial for maximizing sound insulation. |
| Applications | Commonly used in walls, ceilings, and floors for basic soundproofing. |
| Limitations | Not a standalone solution for high-level soundproofing; requires additional materials for optimal performance. |
Explore related products
What You'll Learn
Gypsum board's density and sound absorption capabilities
Gypsum boards, commonly used in construction for interior walls and ceilings, are known for their structural properties, but their sound absorption capabilities are often a subject of inquiry. The density of gypsum boards plays a crucial role in determining their ability to absorb sound. Standard gypsum boards typically have a density ranging from 1,500 to 1,700 kilograms per cubic meter (kg/m³). This density is relatively high compared to other sound-absorbing materials like foam or mineral wool, which are specifically designed for acoustic performance. The higher density of gypsum boards means they are more effective at blocking sound transmission (soundproofing) rather than absorbing it. When sound waves encounter a dense material like gypsum board, they are more likely to be reflected rather than absorbed, which limits their sound absorption capabilities.
Despite their density, gypsum boards can still contribute to sound control in certain applications. For instance, when combined with other materials such as insulation or acoustic membranes, gypsum boards can enhance the overall sound absorption of a wall or ceiling system. The air cavities behind gypsum boards, when filled with insulation, can act as resonators that help absorb specific frequencies of sound. However, on their own, gypsum boards are not considered highly effective sound absorbers due to their dense and solid composition. Their primary function remains to provide a rigid barrier that reduces sound transmission between spaces.
The thickness of gypsum boards also influences their acoustic properties, though not as significantly as density. Thicker boards can provide slightly better sound insulation due to increased mass, but they still do not excel at sound absorption. For improved sound absorption, specialized gypsum boards with perforated surfaces or integrated acoustic materials are available. These boards are designed to allow sound waves to penetrate and be dissipated within the material, thereby reducing reflections and enhancing absorption. However, such boards are not standard and are typically used in specific acoustic applications.
In summary, the density of gypsum boards makes them more effective at soundproofing than sound absorption. Their dense nature reflects sound waves rather than absorbing them, limiting their standalone acoustic performance. To maximize sound absorption, gypsum boards should be used in conjunction with other materials like insulation or specialized acoustic panels. Understanding these properties helps in selecting the right materials for achieving desired acoustic outcomes in building projects.
Unraveling the Phonetic Mystery: How Many Sounds Are in 'Apple'?
You may want to see also
Explore related products
![Acoustic Panels 12-Pack Soundproof Wall Panels 12"X12"X0.4" Sound Panels High Density Sound Dampening Panels - [White Square]](https://m.media-amazon.com/images/I/91JAbvB141L._AC_UL320_.jpg)
Impact of gypsum board thickness on soundproofing
Gypsum board, commonly known as drywall, is a popular building material used in interior construction. While it is not primarily designed as a soundproofing material, its thickness plays a significant role in reducing sound transmission. The impact of gypsum board thickness on soundproofing is directly related to its mass and density. Generally, thicker gypsum boards have a higher mass, which allows them to block more sound waves effectively. When sound waves encounter a denser material, they lose energy, resulting in reduced sound transmission through walls or ceilings. Therefore, increasing the thickness of gypsum board can enhance its soundproofing capabilities, making it a practical consideration for noise reduction in residential and commercial spaces.
The effectiveness of gypsum board thickness in soundproofing is often measured by its Sound Transmission Class (STC) rating. The STC rating indicates how well a material or assembly can block airborne sound, such as voices or music. Thicker gypsum boards typically yield higher STC ratings because they provide greater mass to impede sound waves. For instance, a standard ½-inch gypsum board may have an STC rating of around 33, while a ⅝-inch board can achieve an STC rating of approximately 40. By doubling the layers or using thicker boards, such as 1-inch gypsum, the STC rating can increase significantly, often reaching 50 or higher. This demonstrates that thicker gypsum boards are more effective at reducing sound transmission, making them a valuable component in soundproofing strategies.
Another factor influenced by gypsum board thickness is its ability to dampen vibrations, which contribute to sound transmission. Thicker boards are better at absorbing and dissipating vibrational energy, reducing the likelihood of sound traveling through structural elements. This is particularly important in multi-story buildings or spaces where impact noise, such as footsteps, is a concern. By using thicker gypsum boards, the overall stiffness and damping properties of the wall or ceiling assembly improve, leading to better sound isolation. Combining thicker gypsum boards with other soundproofing techniques, such as adding insulation or using resilient channels, can further enhance their effectiveness in minimizing noise.
It is important to note that while increasing gypsum board thickness improves soundproofing, it is not the only factor to consider. The overall design of the wall or ceiling assembly, including the framing, insulation, and sealing of gaps, also plays a critical role. For example, using thicker gypsum boards without addressing air gaps or flanking transmission may yield limited results. Therefore, thicker gypsum boards should be part of a comprehensive soundproofing approach. Additionally, the type of gypsum board used matters; specialized soundproof gypsum boards, which are denser and often thicker, offer even greater sound reduction compared to standard boards.
In practical applications, the choice of gypsum board thickness depends on the specific soundproofing goals and the type of noise to be addressed. For residential spaces where moderate sound reduction is sufficient, ⅝-inch gypsum boards are commonly used. However, in environments requiring higher levels of soundproofing, such as recording studios, theaters, or shared walls in apartment buildings, thicker boards or multiple layers of gypsum board are recommended. Consulting with acoustic professionals can help determine the optimal thickness and configuration to achieve the desired level of sound isolation. Ultimately, the impact of gypsum board thickness on soundproofing is clear: thicker boards provide better noise reduction, making them an essential consideration in acoustic design.
The Speed of Sound: How Fast Does It Travel Per Second?
You may want to see also
Explore related products
Comparing gypsum board to other sound-absorbing materials
Gypsum board, commonly known as drywall, is a popular building material primarily used for interior walls and ceilings. While it does provide some level of sound reduction due to its mass, it is not inherently a sound-absorbing material. Sound absorption is measured by a material’s ability to convert sound energy into heat, typically quantified by its Noise Reduction Coefficient (NRC). Gypsum board has a low NRC, usually around 0.05, meaning it absorbs very little sound. In contrast, dedicated sound-absorbing materials like acoustic panels, foam, or mineral wool have NRC values ranging from 0.7 to 1.0, making them far more effective at reducing reverberation and echo.
When comparing gypsum board to acoustic panels, the difference in performance is stark. Acoustic panels are specifically designed to trap and dissipate sound waves, often using porous materials like foam or fabric. These panels can significantly improve the acoustic quality of a room by reducing reflections. Gypsum board, on the other hand, primarily acts as a barrier to sound transmission due to its density but does little to absorb sound within a space. For applications requiring both sound blocking and absorption, gypsum board might be paired with acoustic panels, but it cannot replace them as a standalone solution.
Mineral wool and fiberglass insulation are other sound-absorbing materials often compared to gypsum board. These materials are lightweight, porous, and highly effective at absorbing mid to high-frequency sounds. When installed in walls or ceilings, they can dramatically improve a room’s acoustics. Gypsum board, while denser and better at blocking low-frequency sounds, lacks the porous structure needed for effective absorption. In scenarios where sound absorption is the primary goal, mineral wool or fiberglass would be the superior choice over gypsum board.
Another material to consider is mass-loaded vinyl (MLV), which, like gypsum board, is dense and effective at blocking sound transmission. However, MLV is more flexible and easier to install in specific applications, such as flooring or walls where rigidity is not required. While both materials excel at sound blocking, neither is designed for sound absorption. For rooms needing both soundproofing and acoustic treatment, a combination of gypsum board or MLV for blocking and acoustic panels or insulation for absorption would be ideal.
In summary, gypsum board is not a sound-absorbing material but rather a sound-blocking one. Its effectiveness lies in reducing sound transmission between spaces, not in improving the acoustic quality within a room. When compared to dedicated sound-absorbing materials like acoustic panels, mineral wool, or fiberglass, gypsum board falls short in terms of NRC and overall acoustic performance. For projects requiring sound absorption, it is essential to select materials specifically designed for that purpose, using gypsum board as a complementary element for sound blocking when needed.
Do Wires Impact Sound Quality? Unraveling the Audio Cable Debate
You may want to see also
Explore related products
Effectiveness of gypsum board in reducing noise transmission
Gypsum board, commonly known as drywall, is a widely used building material in interior construction. While it is primarily valued for its fire resistance and ease of installation, its effectiveness in reducing noise transmission is a topic of interest for many homeowners and builders. Gypsum board does not inherently absorb sound like specialized acoustic materials, but it plays a significant role in minimizing sound transmission between spaces. Its effectiveness in this regard depends on several factors, including thickness, density, and installation techniques. When used as part of a wall or ceiling assembly, gypsum board acts as a barrier that reflects and dampens sound waves, preventing them from passing through easily.
The thickness of gypsum board is a critical factor in its ability to reduce noise transmission. Thicker boards generally provide better sound insulation because they offer more mass to block sound waves. Standard gypsum board thicknesses range from 1/4 inch to 5/8 inch, with the latter being more effective at reducing noise. For instance, a single layer of 5/8-inch gypsum board can significantly improve Sound Transmission Class (STC) ratings, which measure a material’s ability to block airborne sound. However, thickness alone is not sufficient; the board must be part of a well-designed assembly to maximize its effectiveness.
Another important aspect is the density of the gypsum board. Higher-density boards are better at blocking sound due to their increased mass. Specialized types of gypsum board, such as those designed for sound reduction, often incorporate additional materials or layers to enhance their acoustic properties. For example, some boards include viscoelastic polymers or other damping compounds that help dissipate sound energy, further improving their performance in reducing noise transmission. These enhanced boards are particularly useful in environments where sound control is critical, such as recording studios, theaters, or multi-family residential buildings.
Proper installation is equally crucial for maximizing the effectiveness of gypsum board in reducing noise transmission. Gaps, cracks, or poorly sealed joints can compromise the barrier’s integrity, allowing sound to leak through. Techniques such as staggered stud placement, resilient channels, and the use of acoustic sealant can significantly improve performance. Resilient channels, for instance, decouple the gypsum board from the framing, reducing the transmission of sound vibrations. Additionally, adding insulation behind the gypsum board can further enhance its sound-blocking capabilities by absorbing sound within the cavity.
While gypsum board is effective in reducing airborne sound transmission, it is less effective against low-frequency noise or impact sounds, such as footsteps or furniture movement. To address these issues, additional measures like soundproof underlayments or double-stud walls may be necessary. In summary, gypsum board is a practical and cost-effective solution for reducing noise transmission when used thoughtfully in combination with other sound-control strategies. Its effectiveness depends on factors like thickness, density, and installation quality, making it a versatile option for improving acoustic comfort in various settings.
Listening to Life: The Unique Sound of a Baby's Heartbeat
You may want to see also
Explore related products
Enhancing gypsum board's sound absorption with additional treatments
Gypsum board, commonly known as drywall, is a popular building material for interior walls and ceilings due to its affordability, ease of installation, and fire-resistant properties. However, standard gypsum board alone offers limited sound absorption capabilities. While it can reduce sound transmission to some extent by providing a solid barrier, it does not effectively absorb sound waves, which can lead to echo and reverberation in indoor spaces. To enhance the sound absorption properties of gypsum board, additional treatments can be applied, transforming it into a more effective acoustic solution.
One effective method to improve gypsum board’s sound absorption is by adding acoustic panels or sound-absorbing foam directly onto its surface. These panels are typically made from materials like fiberglass, mineral wool, or foam, which are designed to trap and dissipate sound waves. Installing acoustic panels over gypsum board can significantly reduce reflections and improve the overall acoustic quality of a room. For a more seamless integration, panels can be custom-cut to fit the wall or ceiling dimensions and painted to match the existing décor, ensuring both functionality and aesthetics.

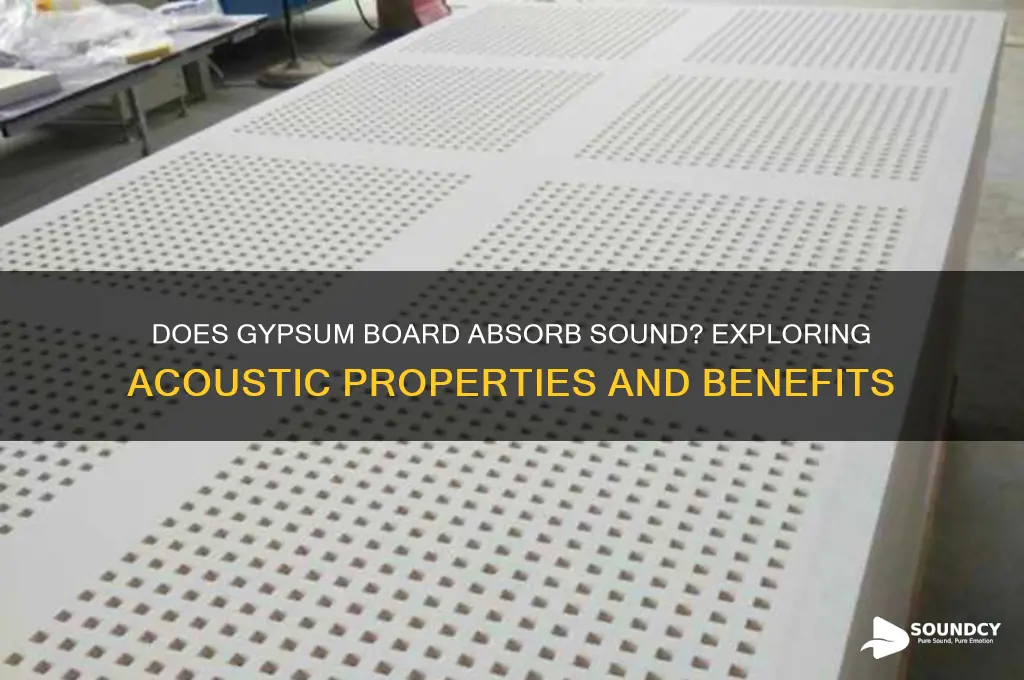

Another approach is to incorporate perforated gypsum board or acoustic drywall as part of the initial installation. These specialized boards feature tiny holes or grooves that allow sound waves to penetrate the material, where they are then absorbed by an insulating layer behind the board, such as fiberglass or mineral wool. This method is particularly effective in spaces like recording studios, home theaters, or conference rooms, where sound clarity is critical. Combining perforated gypsum board with a suitable backing material can achieve a noticeable improvement in sound absorption without compromising the structural integrity of the wall or ceiling.
Applying sound-absorbing paint or acoustic coatings is a less invasive option for enhancing gypsum board’s sound absorption. These specialized paints contain textured or porous materials that help dissipate sound energy upon contact. While this method may not be as effective as acoustic panels or perforated boards, it offers a cost-effective and aesthetically pleasing solution for minor acoustic improvements. It is ideal for spaces where minimal sound treatment is needed, such as offices or residential areas.
Finally, adding a layer of mass-loaded vinyl (MLV) behind or in front of gypsum board can further enhance its sound-absorbing properties. MLV is a dense, flexible material that blocks sound transmission while also contributing to absorption when paired with other treatments. For example, installing MLV behind gypsum board and then applying acoustic panels on the surface can create a multi-layered system that effectively reduces both sound transmission and reflection. This combination is particularly useful in environments where noise control is a priority, such as apartments or commercial buildings.
In conclusion, while gypsum board alone is not a highly effective sound absorber, its performance can be significantly enhanced through additional treatments. Whether by adding acoustic panels, using perforated gypsum board, applying sound-absorbing paint, or incorporating mass-loaded vinyl, these methods provide practical and customizable solutions for improving indoor acoustics. By carefully selecting and combining these treatments, it is possible to create spaces that are not only visually appealing but also acoustically optimized for comfort and functionality.
Does Flex Pipe Reduce Exhaust Noise? Exploring Sound Muffling Capabilities
You may want to see also
Frequently asked questions
Gypsum board itself is not a highly effective sound absorber, but when combined with other materials like insulation or acoustic treatments, it can improve sound reduction.
Gypsum board increases mass and density in walls or ceilings, which helps block sound transmission. However, it does not absorb sound on its own.
No, gypsum board alone is not sufficient for sound absorption. It requires additional materials like acoustic insulation or panels to enhance its sound-reducing capabilities.
Gypsum board is primarily a sound barrier due to its mass, while sound-absorbing materials (e.g., foam, fabric) reduce echoes and reverberation by converting sound energy into heat.
Pairing gypsum board with insulation, resilient channels, or acoustic panels can significantly improve its soundproofing and absorption properties.
