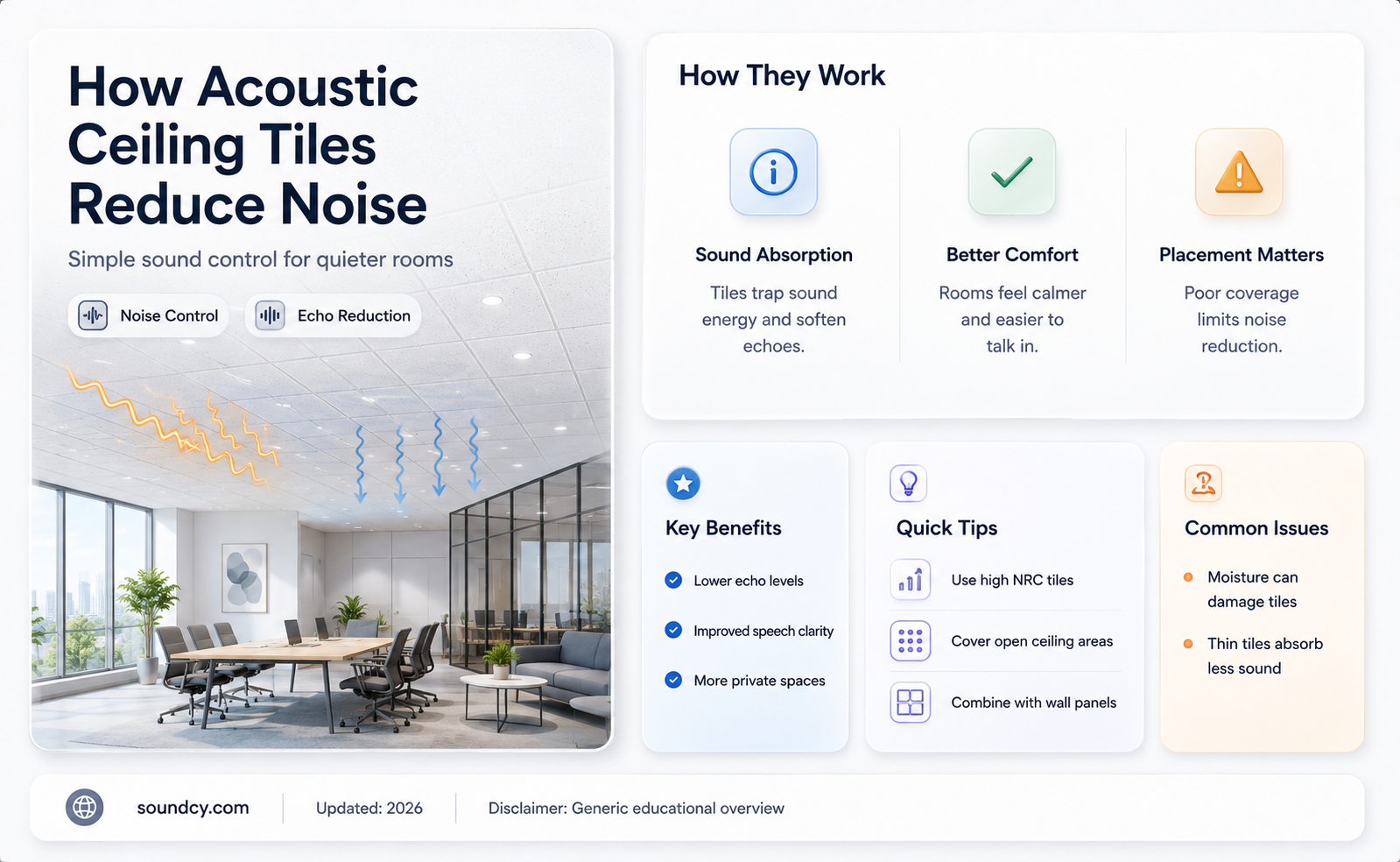

Acoustic ceiling tiles are designed to absorb sound and reduce echoes in noisy rooms. They are commonly used in both residential and commercial spaces to improve acoustics and enhance privacy. The effectiveness of acoustic ceiling tiles varies depending on the material used, with soft and porous textures demonstrating superior sound absorption compared to harder surfaces. Tin-style acoustic ceiling tiles, for example, are micro-perforated and placed on top of an acoustic pad, allowing sound to pass through and be deadened. The choice of acoustic ceiling tiles depends on the specific requirements of the space, such as the size and shape of the room, as well as the frequency ranges that need to be managed. While acoustic ceiling tiles can significantly improve sound absorption, they may not be sufficient for comprehensive soundproofing or isolation.
| Characteristics | Values |
|---|---|
| Purpose | Reduce echo in a room, absorb sound, block sound, or dampen sound |
| How they work | Acoustic ceiling tiles prevent the transmission or reflection of sound waves, trapping them rather than bouncing back or allowing them to pass through |
| Noise Reduction Coefficient (NRC) | The percentage of sound absorbed by the tile. The higher the NRC, the more sound is absorbed. For example, a tile with NRC 0.95 absorbs 95% of sound. |
| Ceiling Attenuation Class (CAC) | Measures the number of decibels blocked from leaving or entering a closed room. The higher the CAC, the better the performance. CAC less than 25 is low performance, CAC 35 or greater is high performance. |
| Effectiveness | Acoustic ceiling tiles are more effective at absorbing mid to high-frequency sound waves than low-frequency sound waves. |
| Types | Tin-style, PVC, mineral fiber, polyester batting, fiberglass, acoustic foam, and wood |
| Use cases | Commercial spaces (restaurants, bars, music venues, offices), residential spaces (basements, home theatres), recording studios, conference rooms, auditoriums, performance halls |
| Benefits | Improve sound clarity, enhance privacy, reduce background noise, improve concentration, reduce stress |
| Considerations | Size and shape of the room, reverb and echo are more pronounced in larger rooms with high ceilings, room furnishings and materials absorb sound |
| Limitations | May not be effective for soundproofing or completely isolating a room from external noise |
| Installation | Easy to install, can be nailed into place or installed through a drop-in grid system |
Explore related products
What You'll Learn
Soft and porous textures absorb more sound
Acoustic ceiling tiles are an effective way to reduce echo in a room. They work by preventing the transmission or reflection of sound waves. When sound waves encounter an absorbent material, they are trapped instead of bouncing back or passing through. Soft and porous textures absorb more sound than hard surfaces, reducing the reverberation period. This is because hard surfaces reflect more sound, which has a significant impact on the reverb time.
The effectiveness of sound-absorbing materials depends on factors such as the type and source of noise, the building's structure, and the characteristics of its surfaces. Materials with porous and fibrous structures are excellent at absorbing sound because they can trap and disperse sound waves. The more pores in a material, the greater the sound absorption effect. Materials with higher densities, such as concrete or solid plywood, tend to reflect more sound than they absorb. On the other hand, materials with lower densities, like melamine foam or cork, absorb more sound.
The amount of sound absorption can be measured by the sound absorption coefficient, which is the percentage of absorbed energy to the overall energy transmitted to the material by the sound wave. The coefficient is influenced by the frequency and incidence direction of the sound. Acoustic ceiling tiles are classified based on their Noise Reduction Coefficient (NRC), which indicates the percentage of sound absorbed by the tile, and their Ceiling Attenuation Class (CAC), which measures the number of decibels the tile can block.
In addition to acoustic ceiling tiles, other materials such as wool, acoustic felt, and acoustic foam are also effective in absorbing sound. These materials provide soft, sound-absorbing surfaces that enhance the acoustic quality of a space.
Newborn Congestion: Is It Normal?
You may want to see also
Explore related products
Ceiling Attenuation Class (CAC) measures decibels blocked
Acoustic ceiling tiles are an effective way to reduce echo and dampen sound in a room. They work by preventing the transmission or reflection of sound waves, essentially stopping the sound.
The effectiveness of acoustic ceiling tiles as a soundproofing solution is measured through the Ceiling Attenuation Class (CAC) rating system. CAC measures the ability of a ceiling system to block sound transmission between adjacent closed spaces that share a common air plenum. The higher the CAC rating, the better the performance. CAC ratings are determined through standardised laboratory tests, often conducted in compliance with ASTM E1414 (the American standard) or its international equivalent.
CAC ratings span from 25 to 50, with each range corresponding to a different level of sound attenuation. A ceiling system with a CAC rating of less than 25 is considered very low performance, while a CAC rating of 35 or greater is considered high performance. In practice, a CAC rating of 35 or above is deemed suitable for most professional settings, like offices, where moderate sound privacy is required. However, in environments that demand high levels of sound privacy or noise isolation, such as healthcare facilities, legal offices, or R&D labs, a CAC of 40 or higher is generally recommended.
The CAC rating of a ceiling system is influenced by various factors, including the type of material and its thickness. Denser materials with more mass per unit area generally offer better sound blocking capabilities. Thicker materials also tend to provide better sound attenuation than thinner ones due to their higher "mass law" value, making them more resistant to sound wave transmission.
It is important to note that CAC specifically measures the ability of a ceiling system to block sound transmission horizontally between rooms with shared ceiling voids. It does not measure the absorption of sound within the room, which is addressed by the Noise Reduction Coefficient (NRC) rating system. For optimal acoustic design, especially in healthcare or education settings, a balance between CAC and NRC ratings is crucial.
The CBGB Sound: Was It All the Same?
You may want to see also
Explore related products
Noise Reduction Coefficient (NRC) measures % of sound absorbed
Acoustic ceiling tiles are an effective way to reduce echo in a room. They work by preventing the transmission or reflection of sound waves, essentially stopping the sound. Acoustic ceiling tiles are often installed in offices, lobbies, and basements.
The Noise Reduction Coefficient (NRC) is a measure of the percentage of sound absorbed by a tile. The higher the percentage, the more sound is absorbed. For example, a ceiling tile with an NRC of 0.95 absorbs 95% of sound. The NRC is a logarithmic representation of the decay rate (dB/s) due to a panel or object with a defined surface area absorbing energy compared to the decay rate in a standard reverberant room without the panel or object.
NRC is a single-number value ranging from 0.0 to 1.0 that describes the average sound absorption performance of a material. An NRC of 0.0 indicates that the object does not attenuate mid-frequency sounds but reflects sound energy. Conversely, an NRC of 1.0 indicates that the material provides an acoustic surface area (in units sabin) equivalent to its physical, two-dimensional surface area. Materials can achieve NRC values greater than 1.0 due to testing standards, not because they can absorb more sound.
The NRC rating is calculated as the arithmetic average of the Absorption Coefficients at 250, 500, 1000, and 2000Hz octave bands, rounded to the nearest multiple of 0.05. The NRC provides a simplified way to determine how well an acoustical product absorbs mid-range sound, generally the range of speech frequencies. The rating is influenced by the type of absorbent material, its thickness, density, and mounting method.
While the NRC rating can be useful for mid-range speech frequencies, it is less helpful for low-frequency bass or high-pitched noises. The NRC does not indicate how well the material absorbs sound below 200 Hz or above 2500 Hz.
Music to Your Ears: Best-Sounding Exhausts
You may want to see also
Explore related products
Tin tiles have low NRC but high CAC
Acoustic ceiling tiles are a great way to reduce echo in a room. They can be used to absorb sound, block sound, or both. The effectiveness of acoustic ceiling tiles depends on their Noise Reduction Coefficient (NRC) and Ceiling Attenuation Class (CAC).
NRC measures the percentage of sound that can be absorbed by a tile. A higher NRC value means that the tile can absorb more sound. For example, a ceiling tile with an NRC of 0.95 absorbs 95% of sound. Soft and porous textures tend to have higher NRC values as they absorb more sound than hard surfaces.
CAC, on the other hand, measures the number of decibels the tile can block from leaving or entering a closed room. A higher CAC rating indicates better performance. A ceiling system with a CAC of 35 or greater is considered high performance, while a CAC of less than 25 is very low performance.
Now, tin tiles have a low NRC but a high CAC. For example, a tin tile may have an NRC of only 0.10, meaning it can only absorb 10% of sound. However, its high CAC means that it doesn't allow much sound to pass through its surface, providing great privacy. This is because when sound passes through the tin tile, it encounters other materials above the ceiling that reflect, absorb, or filter the sound.
To improve the overall sound absorption of a room with tin tiles, additional materials can be used. For instance, polyester batting can be added to absorb most of the sound as it filters through the ceiling tile. This way, even with a low NRC, the ceiling system as a whole can still provide effective sound absorption and privacy.
Ear Crackling: What's the Deal?
You may want to see also
Explore related products
Acoustic panels are designed for soundproofing
The effectiveness of acoustic panels depends on their material, with soft and porous textures absorbing more sound than hard surfaces. Acoustic foam, for example, can be easily shaped into patterns that increase its surface area and enhance sound absorption. Fibreglass acoustic tiles are also a popular choice due to their excellent sound absorption properties and fire resistance. Perforated or grooved wood panels can be designed with specific patterns to effectively absorb sound by disrupting sound waves.
When choosing acoustic panels, it is important to consider the size and shape of the room. Reverb and echo tend to be more pronounced in larger rooms and those with high ceilings. The purpose of the room also matters, as different frequencies may need to be absorbed depending on the intended use. For example, acoustic panels that can absorb both high and low frequencies may be necessary in environments where bass or rumble noise control is important.
In addition to acoustic panels, other soundproofing measures may be required for optimal results, especially for sound isolation and preventing sound escape. For instance, polyester batting can be added to ceiling tiles to absorb sound and improve ceiling attenuation.
Overall, acoustic panels are a great option for improving the acoustics of a space and reducing unwanted sound reflections, creating a more comfortable and productive environment.
Exploring Words That Sound the Same
You may want to see also
Frequently asked questions
Yes, acoustic ceiling tiles absorb sound by preventing the transmission or reflection of many sound waves.
The type of acoustic ceiling tile you need depends on the size and shape of the room, the materials in the room, and the purpose of the room. For example, tin ceiling tiles are best suited for rooms that include other objects that will absorb sound well (carpet, furniture, drapes).
Acoustic ceiling tiles can reduce reverb and echo, balance the sound within a room, and enhance privacy by reducing the intelligibility of speech through walls or ceilings. They can also improve concentration and reduce stress in work environments by reducing background noise.
